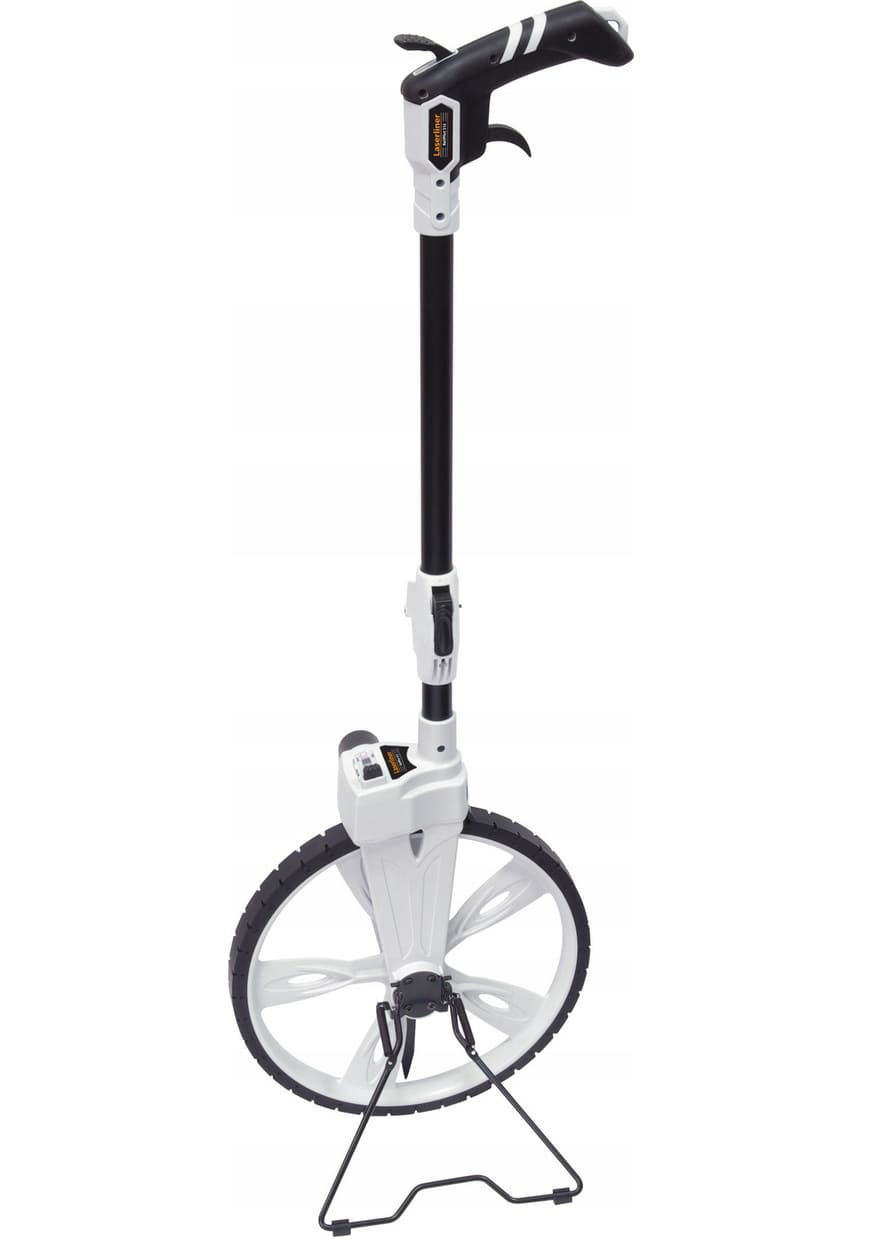

Measuring Wheel Distance Meter 9999.9m ±0.1% Brake Reset Foldable, Laserliner RollPilot S12

Quick Facts – Laserliner RollPilot S12 Measuring Wheel

• Brand: Laserliner
• Model: RollPilot S12
• Item No.: 075.005A
• EAN: 4021563672714
• Type: Mechanical measuring wheel (distance meter)
• Measuring Range: 0–9,999.9 m
• Accuracy: ±0.1% / 0.1 cm/m
• Wheel Circumference: 1 m
• Dimensions Unfolded (W × H × D): 318 × 1,000 × 140 mm
• Dimensions Folded (W × H × D): 318 × 540 × 210 mm
• Weight: 2.1 kg
• Brake: Yes – on the handle
• Reset: Yes – on the handle
• Reverse Motion: Automatic subtraction
• Start/Stop Indicator: Moving indicator on wheel unit
• Storage: Foldable with carry case included

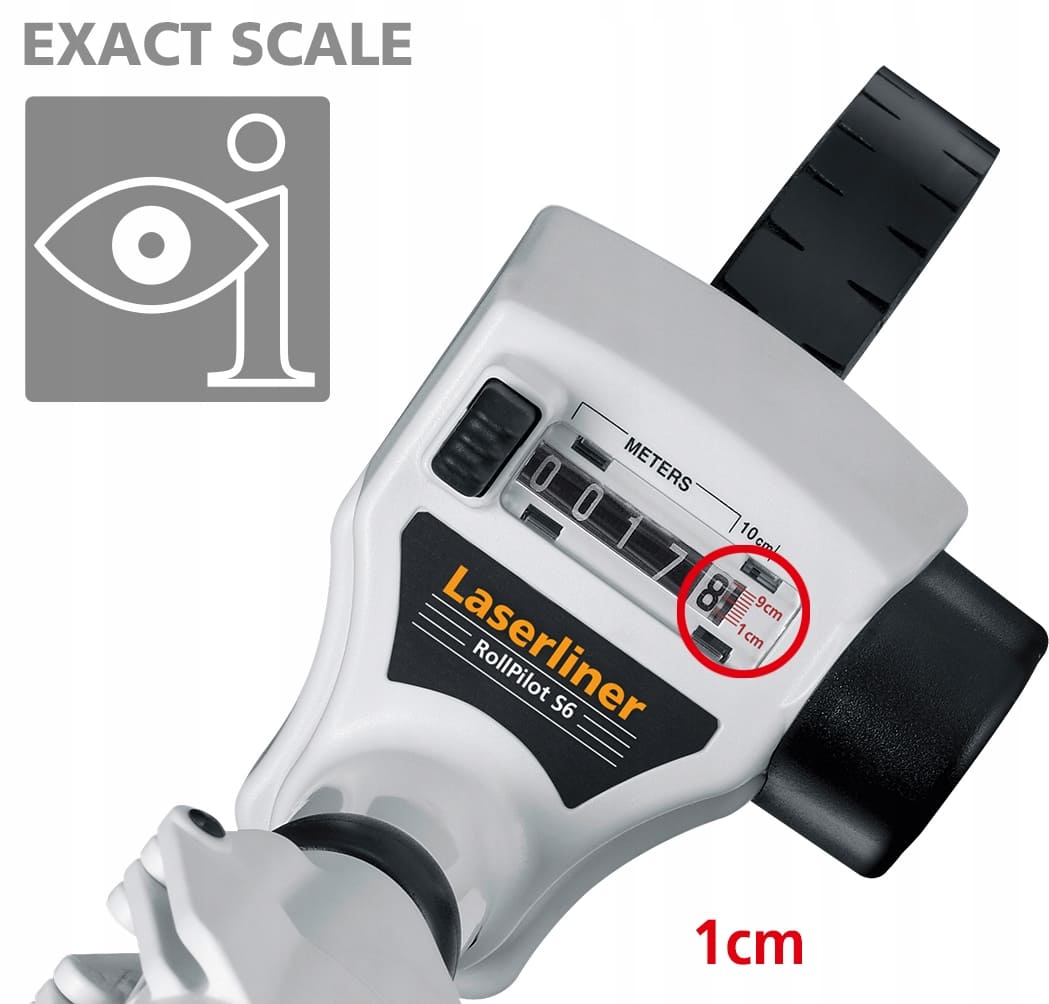

The Laserliner RollPilot S12 is a mechanical measuring wheel with a range of 0–9,999.9 m and an accuracy of ±0.1% (0.1 cm/m). The wheel circumference is exactly 1 m, allowing measurements to be read directly from the counter without conversion factors. The counter subtracts automatically on reverse motion, enabling corrections without restarting from zero.

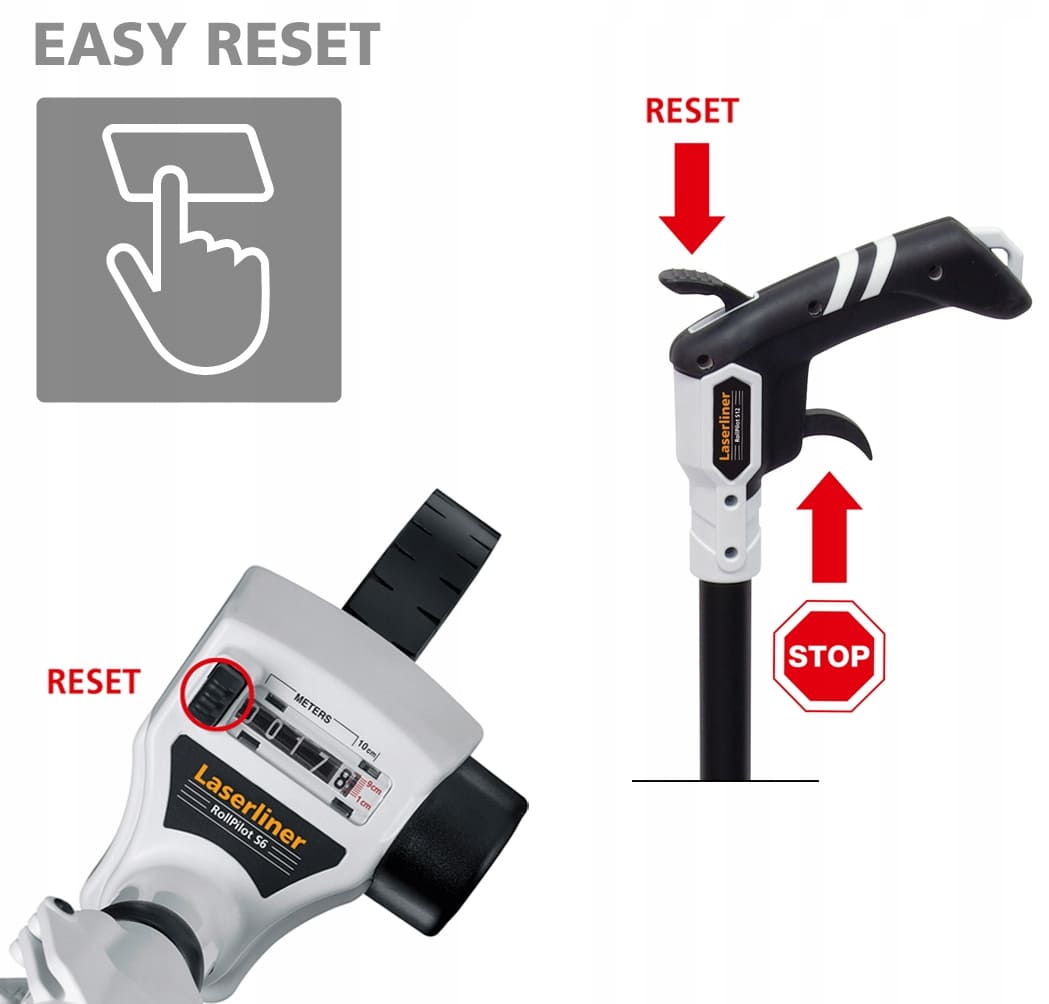

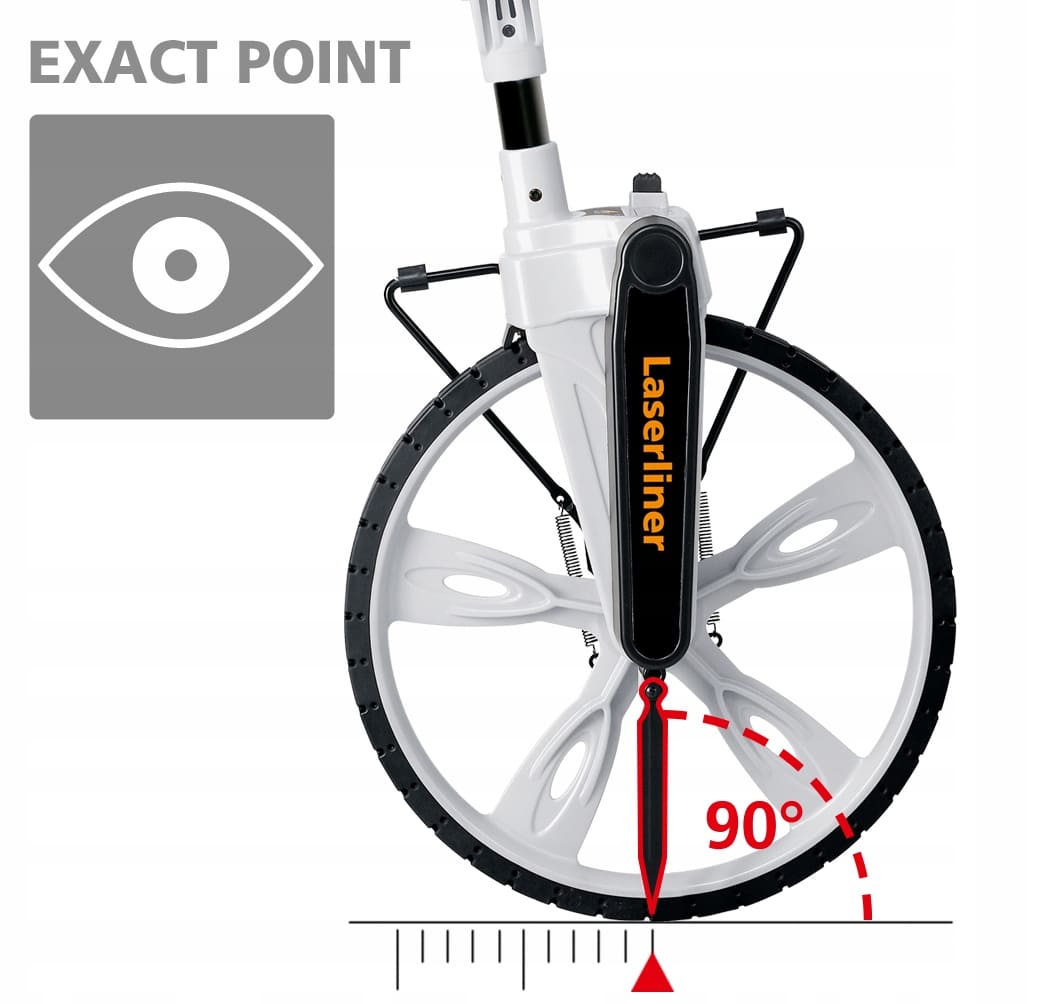

The brake and reset function are positioned directly at the hand on the handle, minimising the need to change grip during measurement. The brake locks the wheel at temporary stops — for example when marking a position — without affecting the measurement reading. The reset button zeroes the counter before a new measurement. A moving indicator on the wheel unit marks the start and end position of the measurement visually on the ground surface.

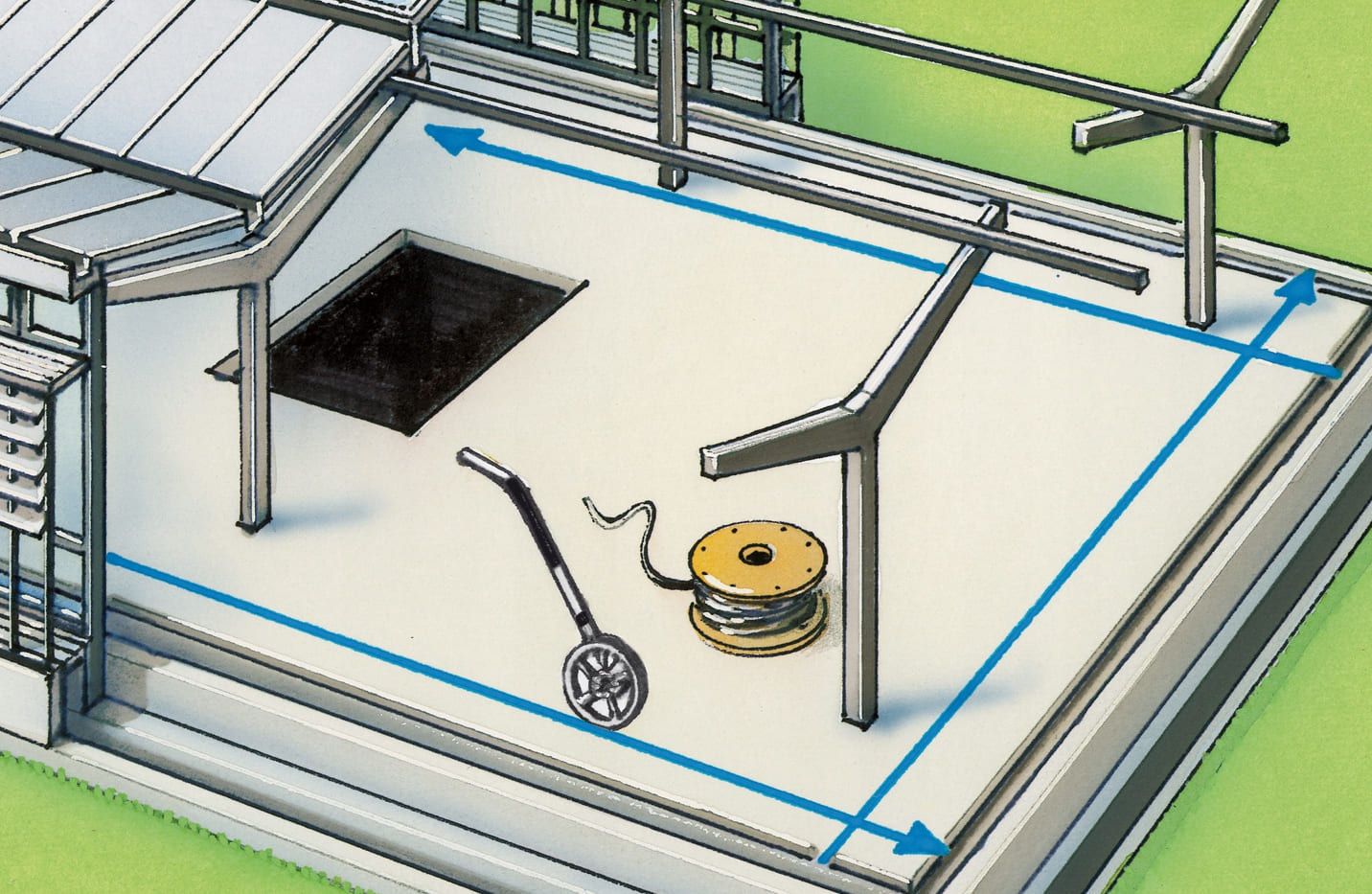

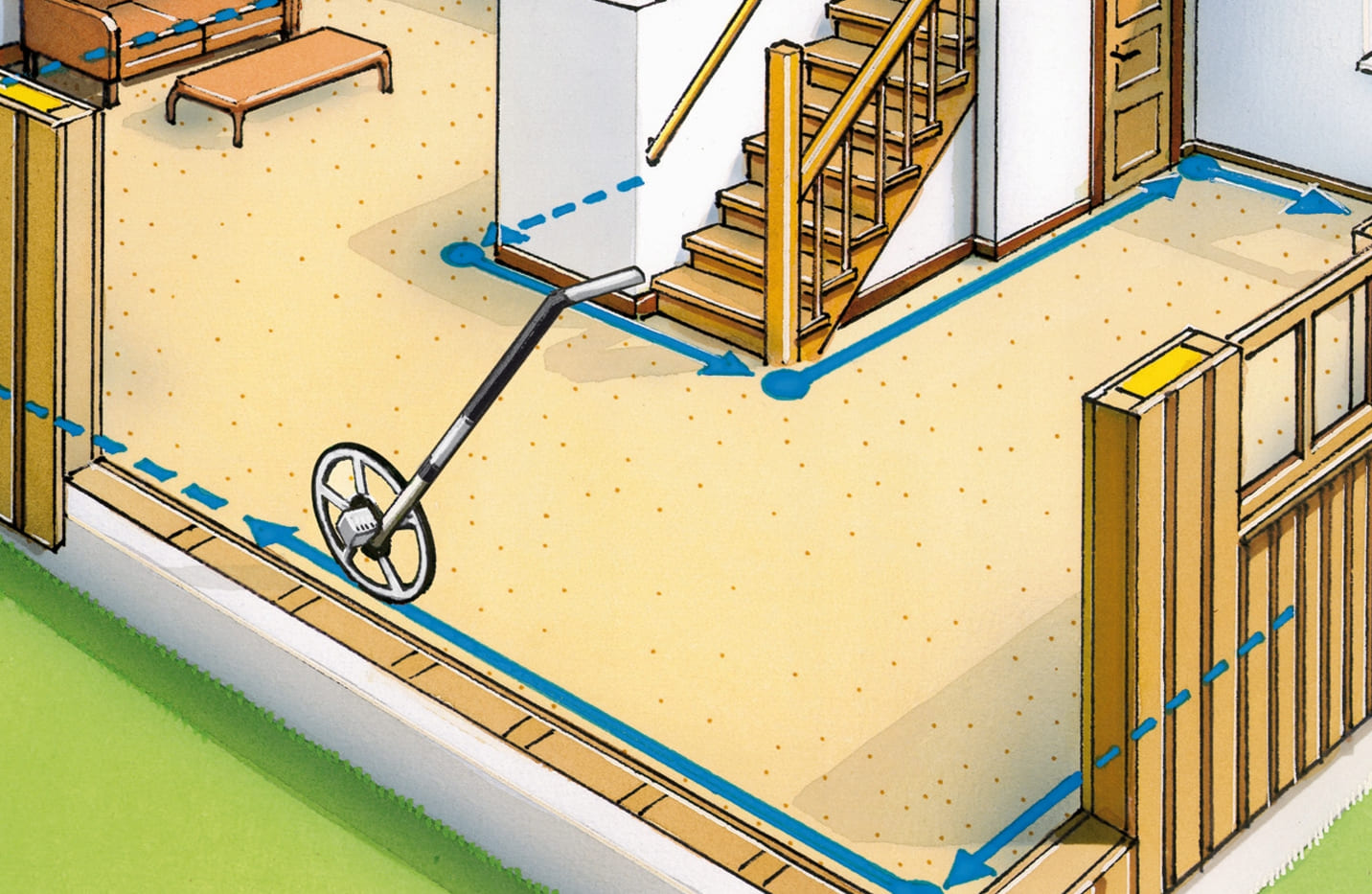

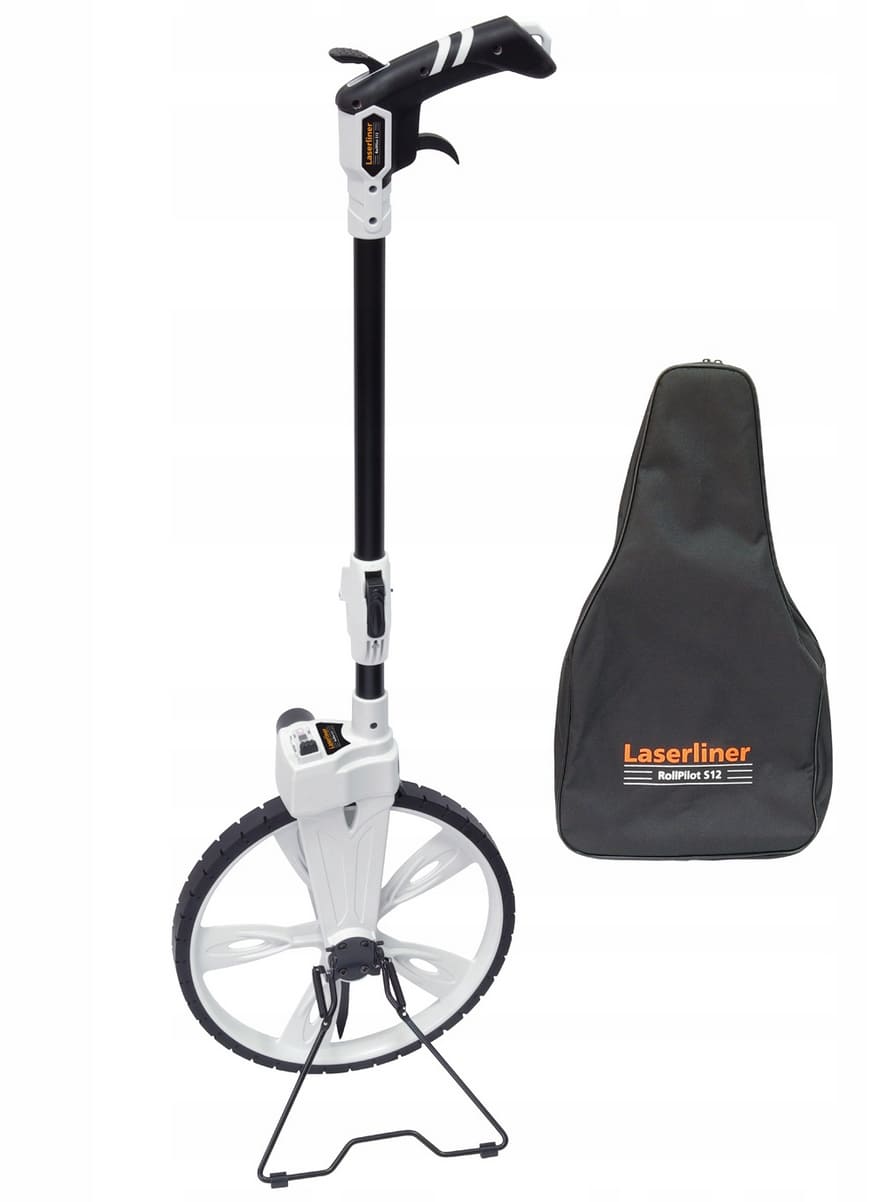

The RollPilot S12 folds to 318 × 540 × 210 mm and is stored in the included carry case with handle. Unfolded it measures 318 × 1,000 × 140 mm and weighs 2.1 kg. The kickstand allows the measuring wheel to be temporarily set aside without tipping over. The Laserliner RollPilot S12 suits measurement of road distances, plot areas, civil engineering works and similar outdoor distance measuring tasks.

What is the Laserliner RollPilot S12 and why should you choose it?

The Laserliner RollPilot S12 is a professional measuring wheel with a 9,999.9 m counter range and ±0.1% accuracy, designed for efficient outdoor distance measurement. The brake and reset on the handle allow one-hand operation without interrupting the measurement sequence. Automatic subtraction on reverse motion and the moving start indicator are features that reduce measurement errors and increase efficiency during repeated measurements. The foldable construction and included carry case make it practical to transport and store between assignments.

Which environments is the Laserliner RollPilot S12 suited for?

The Laserliner RollPilot S12 suits land surveyors, road inspectors, civil engineering contractors, property managers and municipal measurement technicians across Europe who need a reliable distance measuring tool for measurements along roads, on plots, in parks and in outdoor civil engineering works.

Technical Specifications

Suitable for: Land surveyors, road inspectors, civil engineering contractors, property managers and municipal measurement technicians carrying out outdoor distance measurements.

Industries: Land surveying and geodesy, road and civil engineering, property management, municipal administration and construction.

Frequently Asked Questions (FAQ)

What measuring range and accuracy does the Laserliner RollPilot S12 measuring wheel offer?

The Laserliner RollPilot S12 measures up to 9,999.9 m with an accuracy of ±0.1% (0.1 cm/m). The wheel circumference is exactly 1 m. The counter subtracts automatically on reverse motion, allowing corrections without restarting the measurement. The instrument weighs 2.1 kg unfolded and measures 318 × 1,000 × 140 mm.

What are the brake and reset function on the Laserliner RollPilot S12 used for?

The brake on the Laserliner RollPilot S12 locks the wheel at temporary stops — for example when marking a position along the measuring route — without interrupting the measurement sequence. The reset button zeroes the counter before a new measurement. Both functions are positioned directly at the hand on the handle, allowing one-hand operation without changing grip.

How is the Laserliner RollPilot S12 stored and transported and what are its folded dimensions?

The Laserliner RollPilot S12 folds to 318 × 540 × 210 mm and is stored in the included carry case with handle. The folded configuration significantly reduces transport volume compared to the unfolded dimensions of 318 × 1,000 × 140 mm. The kickstand on the wheel unit allows the instrument to be temporarily set aside without tipping over during fieldwork.
