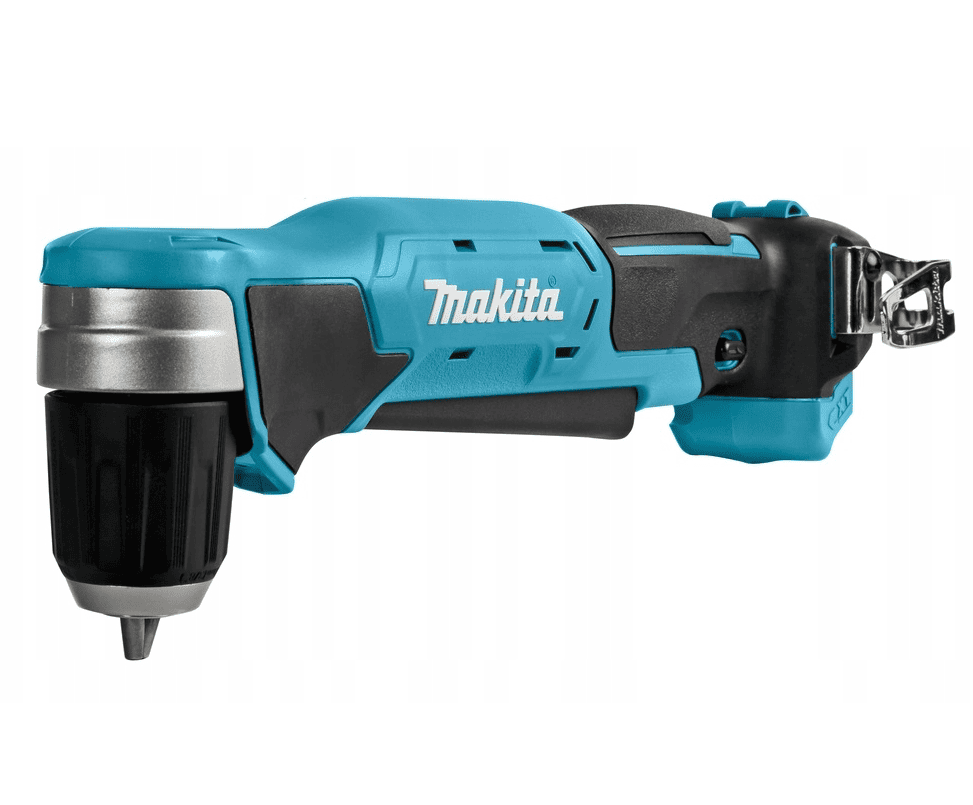

Cordless Angle Drill 12V CXT Head 84 mm Max 10 mm Steel LED Electric Brake BODY, MAKITA

Quick Facts – Makita DA333DZ Angle Drill 12V CXT BODY

• Brand: Makita
• Model: DA333DZ
• Type: Cordless angle drill, BODY (battery and charger not included)
• Voltage: 12V CXT (Li-ion)
• No-load Speed: 0–1,100 rpm
• Max Drilling Diameter Timber: 12 mm (18 mm auger bit, 24 mm self-feed bit)
• Max Drilling Diameter Steel: 10 mm
• Chuck: 0.8–10 mm keyless
• Head Height: 84 mm
• Edge to Chuck Centre: 23.5 mm
• Dimensions (L × W × H): 313 × 68 × 95 mm
• Weight (tool only): 0.99 kg
• Weight (with battery): 1.2–1.4 kg
• Vibration, drilling steel: 3.0 m/s² (K: 1.5 m/s²)
• Sound Pressure Level: 71 dB(A) (K: 3 dB(A))
• Features: LED work light, electric brake, battery protection system, variable speed, reverse
• Included: Belt hook 346909-5, keyless chuck 763228-8, double bit PH2 50mm 784244-7

The Makita DA333DZ is a battery-powered angle drill from the 12V CXT range, supplied as a BODY unit without battery or charger. The head height is 84 mm and the distance from the edge to the chuck centre is 23.5 mm, making it a dedicated tool for drilling in spaces where a standard drill cannot reach: behind pipes, inside wall cavities, in service shafts and overhead. The tool weight without battery is 0.99 kg; with a 12V CXT battery fitted, the combined weight is 1.2–1.4 kg depending on battery capacity.

Speed is variable up to 1,100 rpm with a reverse function for backing out fasteners and bits. The electric brake stops the chuck immediately when the trigger is released — a safety feature that reduces the risk of uncontrolled rotation in confined working positions. The battery protection system cuts the power supply automatically at critically low charge levels to protect the cells. The LED work light illuminates the drilling point in low-light conditions.

The DA333DZ is part of Makita's 12V CXT platform and is compatible with all BL10xx batteries in the same voltage range. The delivery includes belt hook 346909-5, keyless chuck 763228-8 and a double PH2 bit 784244-7. Battery and charger are ordered separately and can be selected from the existing 12V CXT range.

What is the Makita DA333DZ and why should you choose it?

The Makita DA333DZ is a 12V CXT angle drill built specifically for work in confined spaces where geometry sets the limit rather than power. A head height of 84 mm and an edge-to-chuck distance of 23.5 mm allow drilling in positions where a standard drill or a larger 18V angle drill does not fit. The combination of electric brake, battery protection system and elastomer grip handle makes the tool controllable and manageable even during extended work in awkward positions. The BODY format suits those already working with 12V CXT batteries who want to extend their platform without purchasing additional charging equipment.

Which environments is the Makita DA333DZ suited for?

The Makita DA333DZ suits electricians, plumbers, carpenters and installation technicians across Europe who regularly drill in service shafts, behind pipe fittings, inside wall and ceiling structures and in other spaces with restricted access depth. Distribution boards, built-in cabinets and horizontal timber noggins in ceilings are typical applications where the DA333DZ performs where a standard tool cannot reach.

Technical Specifications

Set Contents

Note: The DA333DZ is supplied as a BODY unit — battery and charger are not included and must be ordered separately.

Suitable for: Electricians, plumbers, installation technicians and carpenters working in confined spaces, service shafts, wall and ceiling structures and in overhead positions.

Industries: Electrical installation, plumbing and HVAC, construction and renovation, interior joinery and industrial assembly.

Frequently Asked Questions (FAQ)

What head height does the Makita DA333DZ angle drill have and which spaces is it designed for?

The Makita DA333DZ has a head height of 84 mm and an edge-to-chuck-centre distance of 23.5 mm. This allows it to operate in spaces where a standard drill cannot reach — behind pipes, inside distribution boards, in wall studs and in horizontal ceiling structures. The tool weighs 0.99 kg without battery and 1.2–1.4 kg with a 12V CXT battery fitted.

What drilling capacity does the Makita DA333DZ offer in timber and steel?

The Makita DA333DZ drills up to 12 mm in timber with a standard bit, 18 mm with an auger bit and 24 mm with a self-feed bit. Maximum drilling diameter in steel is 10 mm. Speed is 0–1,100 rpm with variable speed control and reverse function. The keyless chuck accepts accessories from 0.8 to 10 mm.

What does the BODY format mean on the Makita DA333DZ and which batteries are compatible?

The Makita DA333DZ BODY is supplied without battery and charger — these are ordered separately. The tool is compatible with all batteries in Makita's 12V CXT range (BL10xx series), such as the BL1021B 2.0Ah or the BL1041B 4.0Ah. The BODY format suits those already working with 12V CXT batteries who want to expand their platform without purchasing additional charging equipment.
