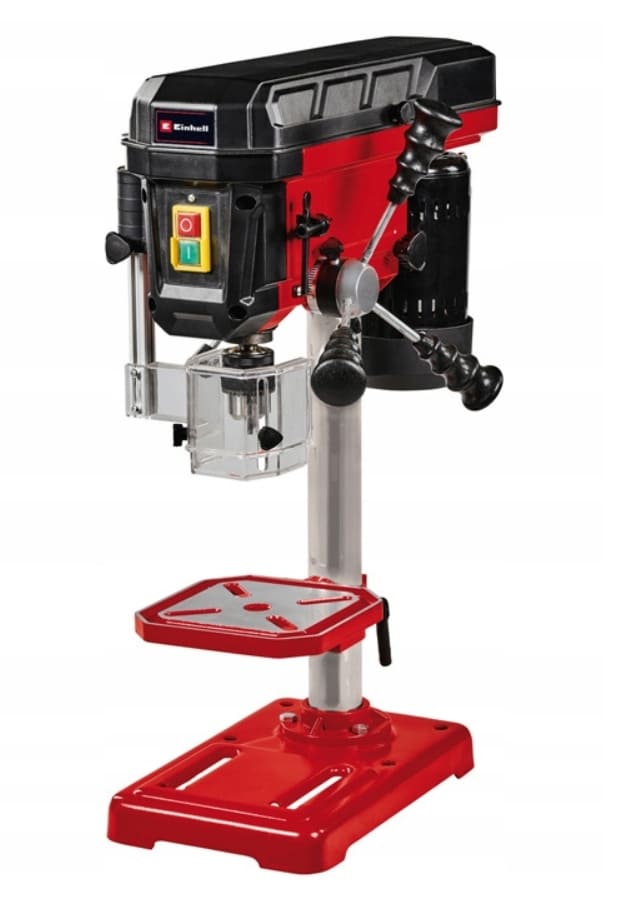

Column Drill EINHELL TC-BD 500

EINHELL Column Drill TC-BD 500

This is a precise tool for special requirements: thanks to a very large reach of 115 mm, you can reliably drill precise holes in large components made of wood or metal.

With a power of 500 W and 9 speed settings from 300 to 2410 revolutions per minute, you can drill accurately and in a material-specific manner. Therefore, the column drill can be used at both very low and very high rotational speeds, making it ideal for hard materials such as metal, but also for soft materials like wood.

The machine's spindle with ball bearings ensures long-lasting and easy handling. The height of the drilling table can be adjusted continuously thanks to the stepless height adjustment. Additionally, the drilling table can be rotated up to 90° and tilted up to 45°. The rubberized, three-fingered crank proves its worth by providing a beneficial leverage effect for precise pressing without effort. A foldable chip guard ensures safety during use, and the power switch/circuit breaker with zero voltage release prevents unintentional restart of the machine after a power outage.

Features:

• 9-speed control suitable for each material

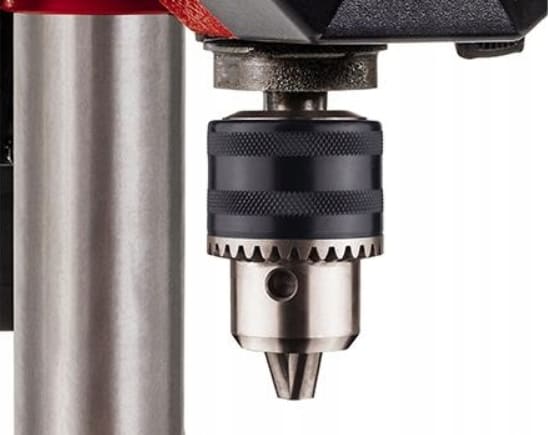

• For the most popular drill sizes thanks to a robust chuck key grip

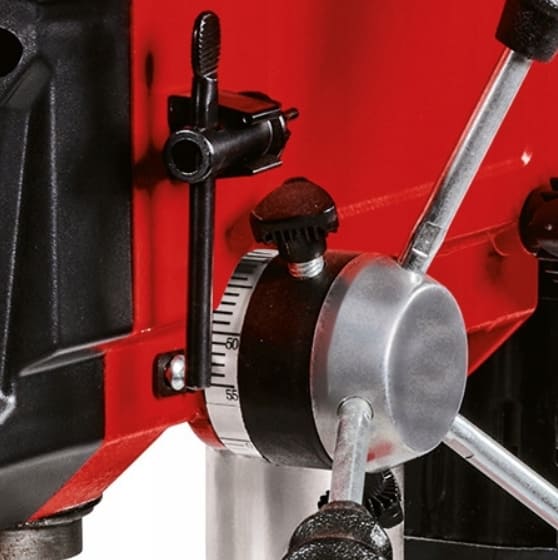

• Precise and quick drilling thanks to an adjustable depth stop

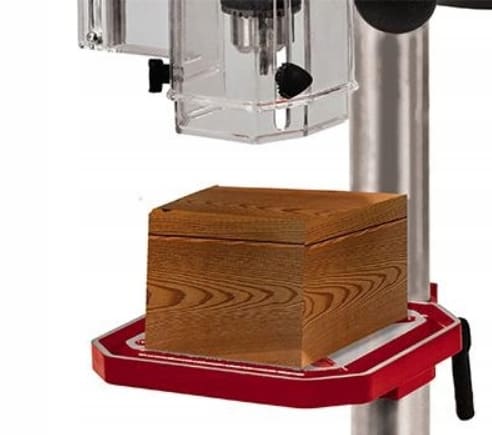

• Continuous adjustment of the drilling table height
• The drilling table can also be rotated and tilted
• Rubberized, three-fingered crank for precise pressure
• Safe operation thanks to a foldable chip guard
• Power switch/circuit breaker with zero voltage release
• Spindle with ball bearings for durability and easy handling

Technical Specifications:

• Weight: 16,100 kg
• Dimensions: 49.00 × 41.50 × 25.50 cm
• Power source: Mains connection
• Power [W]: 500
• Number of work areas: 1
• Rotational speed first gear [min^-1]: 300-2410
• Chuck diameter [mm]: 1.5-13
• Working height [mm]: 115
• Max drilling depth [mm]: 50

EINHELL Column Drill TC-BD 500 is a robust column drill for every hobby workshop. With a power of 500 W, precise drilling in wood and metal is easy. The 9-speed gradation allows for drilling at speeds from 300 to 2410 revolutions per minute depending on the material. In this way, the column drill allows precise drilling and becomes an indispensable assistant for every ambitious craftsman!

NOTE: Not suited for "heavy-duty" daily professional use.
