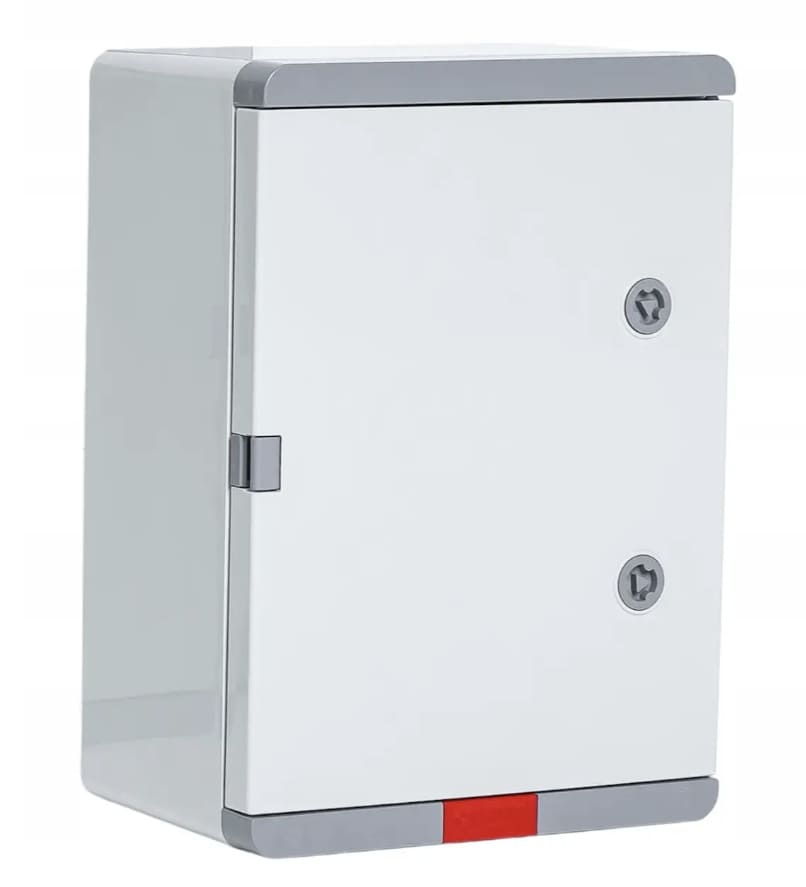

Enclosure Electrical Cabinet ABS Plastic IP67 350x250x150mm Grey Door PD253515, Plastim

Quick Facts – Plastim PD253515 Enclosure IP67

• Brand: Plastim
• Model: PD253515 (Design Pro Series)
• EAN: 632556186138
• Type: Plastic electrical enclosure with door
• Material: HB ABS plastic
• Mounting plate: 1 mm galvanised steel
• Overall dimensions: 350 × 250 × 150 mm
• Ingress protection: IP67
• Impact protection: IK08
• Door colour: Grey (RAL 7035)
• Rated voltage: Up to 690V
• Maximum current: Up to 800 A
• Operating temperature: -35 °C to +65 °C
• Chemical resistance: Alkalis, oils, salts, acids
• Made in: Turkey

The Plastim PD253515 is an enclosure manufactured from impact-resistant ABS plastic, designed for housing electrical components in demanding environments. The enclosure carries ingress protection class IP67, providing complete protection against dust as well as protection against temporary immersion in water to a depth of 1 metre for 30 minutes. Impact resistance is rated at IK08. Overall dimensions are 350 × 250 × 150 mm and the enclosure is supplied with a grey door (RAL 7035) and a mounting plate in 1 mm galvanised steel.

The enclosure is rated for installations up to 690V rated voltage and currents up to 800 A. The operating temperature range extends from -35 °C to +65 °C, making the enclosure suitable for outdoor use in Nordic climates. The ABS plastic resists chemicals, alkalis, oils and salts, and is non-conductive (dielectric), which reduces the risk of short circuits and enhances safety when working with electrical equipment.

The plastic enclosure offers several advantages over equivalent steel cabinets: lower weight that simplifies transport and installation, freedom from corrosion in aggressive environments such as coastal areas and chemical facilities, and electrical isolation. When produced with UV-resistant ABS, the enclosure retains its properties even under prolonged exposure to direct sunlight.

What is the Plastim PD253515 enclosure and why should you choose it?

The Plastim PD253515 is an IP67-rated enclosure designed for electrical installations where complete dust and water protection is required. The impact-resistant ABS plastic (IK08) withstands mechanical impact from tools and collisions in industrial environments. Compared to steel cabinets, the plastic enclosure is considerably lighter, which saves labour during transport and wall mounting. The material is completely corrosion-free – a decisive advantage in coastal installations, chemical facilities and other environments with aggressive airborne contaminants. The wide operating temperature range (-35 °C to +65 °C) makes the enclosure usable for outdoor installations year-round in Nordic climates.

What environments is the Plastim PD253515 enclosure suited to?

The enclosure suits electrical installations in humid and dusty environments such as car washes, swimming facilities, water parks, fountains and filling stations. In the food industry it suits production premises where regular wet cleaning and disinfection take place. In industrial settings it is used in workshops, concrete plants, metallurgical facilities and chemical process industries. The enclosure also functions in marine and port installations, on platforms, in ports and on vessels, as well as in coastal installations with high humidity and salt exposure. For construction sites the enclosure serves as a temporary distribution cabinet for powering construction machinery in demanding weather conditions.

Technical Specifications

Suitable for: Electricians, industrial technicians, property managers, construction contractors and installation technicians who need an IP67-rated enclosure for demanding electrical installations.

Industries: Electrical installation, industry, food production, marine engineering, construction and property management.

Frequently Asked Questions (FAQ)

Does the Plastim PD253515 enclosure work for outdoor mounting in car washes and other wet environments?

Yes, the Plastim PD253515 enclosure carries ingress protection class IP67, providing complete protection against dust and protection against temporary immersion in water to a depth of 1 metre for 30 minutes. This makes the enclosure suitable for car washes, swimming facilities, fountains and other environments with regular water exposure. The ABS plastic is completely corrosion-free and resists chemicals, salts and oils. The operating temperature ranges from -35 °C to +65 °C, handling Nordic outdoor climates year-round.

What dimensions and electrical capacity does the Plastim PD253515 enclosure have?

The Plastim PD253515 enclosure has overall dimensions of 350 × 250 × 150 mm and is supplied with a mounting plate in 1 mm galvanised steel and a grey door (RAL 7035). The enclosure is rated for electrical installations up to 690V rated voltage and currents up to 800 A. Impact resistance is IK08 and ingress protection is IP67. The ABS plastic is non-conductive, providing additional safety when working with electrical equipment.

What sets the Plastim PD253515 enclosure apart from equivalent steel cabinets on Verktygsgrossen?

The Plastim PD253515 in ABS plastic is completely corrosion-free, which is a decisive advantage in coastal installations, chemical facilities and other aggressive environments where steel cabinets require regular maintenance or replacement. The plastic enclosure is markedly lighter than a steel cabinet of the same size, simplifying transport and wall mounting. The material is non-conductive and therefore provides additional electrical safety in the event of short circuits. The IP67 ingress protection and IK08 impact rating match the protection levels of quality steel cabinets, but without the corrosion risks. With an operating temperature range of -35 °C to +65 °C and resistance to chemicals, oils and salts, the enclosure suits both indoor and outdoor installations.
