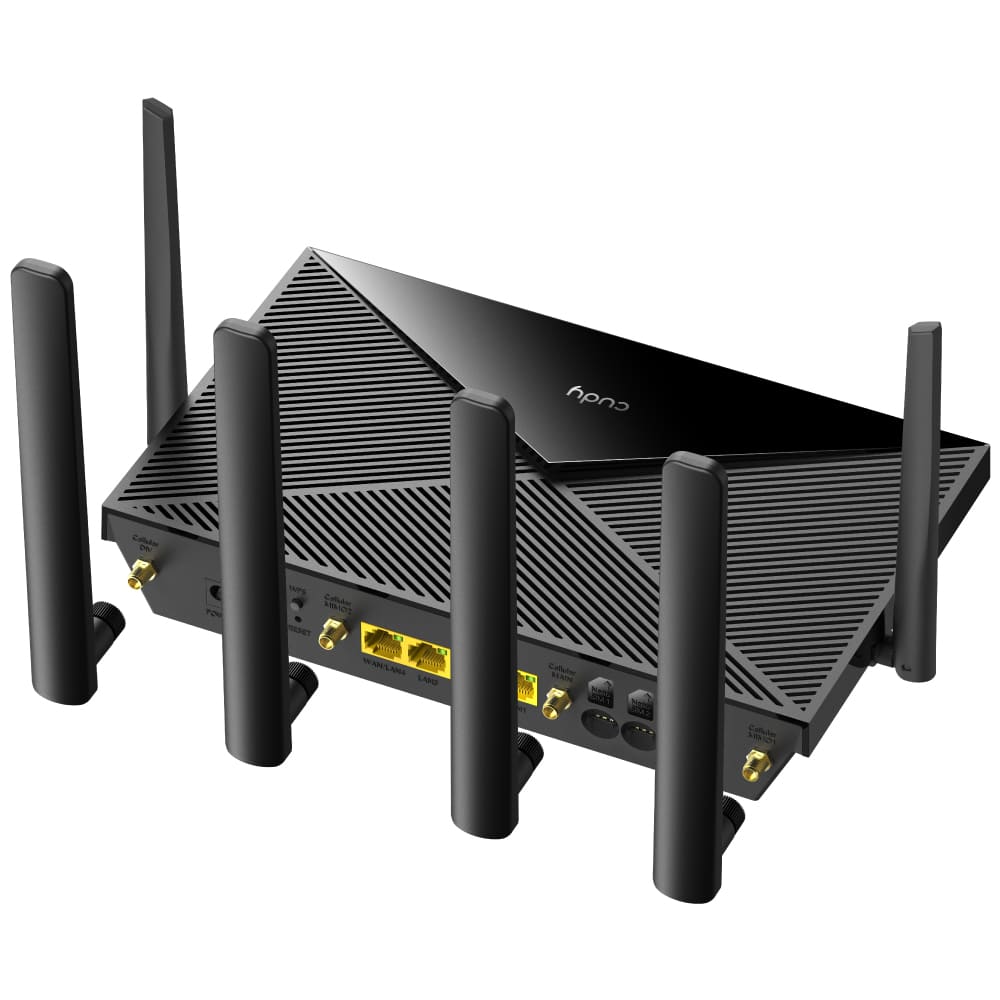

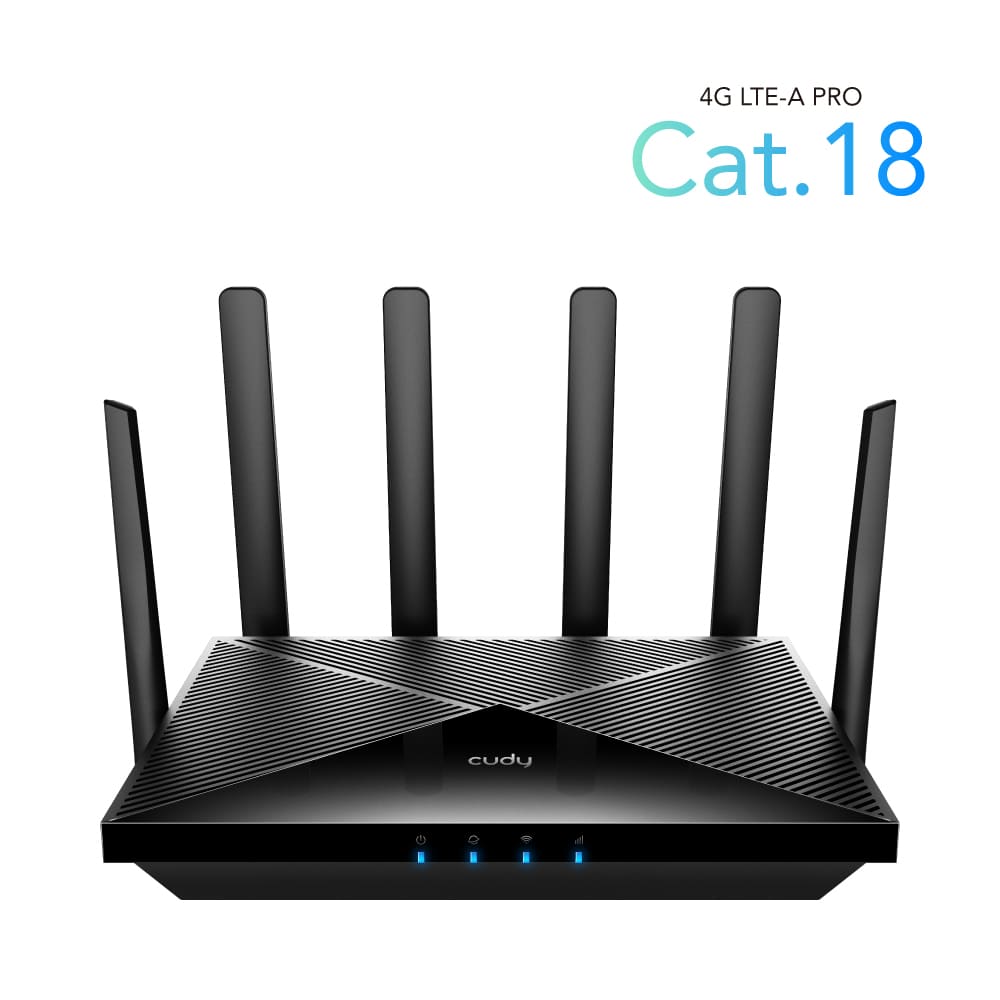

Router WiFi 6e AX1800 CAT18, Dual SIM, WAN 4G LTE 5 band Open WRT, Cudy LT18

4G LTE Cat. 18 AX1800 Wi-Fi 6 Router, Model: LT18

• Redundant SIM Slots
• Dual SIM slots provide redundancy and keep the device always online. Both SIM slots can be filled, you can choose whether to use SIM card 1 or SIM card 2, or auto-select by Cudy.

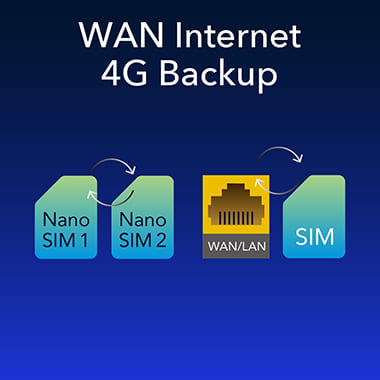

• WAN Internet, 4G Backup
• Set WAN/LAN port as WAN to enable Cudy to use the landline internet from WAN, and the 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.
• External SMA Antenna connector
• Combined with 4 detachable SMA Antenna interfaces to connect outdoor cellular antennas for a better and stable signal.

4G Band Lock

• 4G band lock makes it possible to lock the 4G working frequency to one or several bands to keep the stability of operation.     TTL Settings
• Support manual set TTL values to meet ISP's requirements (such as Verizon, Visible).
• Support set IPv4 TTL and IPv6 HL Values.     DNS over TLS
• Support DNS Encryption with Cloudflare or Google, protects your privacy, prevents eavesdropping and manipulation of DNS data via man-in-the-middle attacks.

Specifications

•     Model     AX1800 Wi-Fi 6 4G Cat18 Router
•     Data Speed     Wi-Fi      2.4GHz (802.11ax/n/g/b, MIMO 574Mbps)
•     5GHz (802.11ax/ac/an/a, MIMO 1201Mbps)
•     LTE     LTE FDD: Max 1.2Gbps (DL)/150Mbps (UL)
•     LTE TDD: Max 545Mbps (DL)/90.6Mbps (UL)
•     DC-HSPA+     42Mbps (DL)/11.5 Mbps (UL)
•     WCDMA     WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)
•     Hardware     DRAM: 256MB (2Gbit) DDR3
•     Flash: 16MB (128Mbit)
•     4 x GbE RJ45: 1 GbE WAN/LAN + 3 GbE LAN
•     2 x SIM Slots (Nano)
•     1 x WPS Button
•     1 x Reset Button
•     2 x Fixed WiFi Antennas
•     4 x Detachable Cellular Antennas
•     LED indicators (Power, WiFi, Internet, Signal)
•     Software     DHCP: Server, Client List, Address Reservation
•     NAT: Port Forwarding, Port Triggering, UPnP, DMZ
•     Firewall: Mac Filter, IP Filter, Domain Filter
•     DDNS: Compatible with 15 more DDNS providers
•     VPN: PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier
•     DNS over TLS: Cloudflare/Google
•     Schedule: Schedule Reboot /Wi-Fi Schedule
•     Internet Protocol version 4 or 6 (IPv4/IPv6)
•     Quality of Service (QoS)
•     TTL configuration(Extend/Spoof)
•     Band Selection

Mobile Frequency Band

    Europe/Middle East/Africa/Asia Pacific/Brazil

•     EU version(EG18-EA Inside)
•      LTE-FDD:B1/B3/B5/B7/B8/B20/B28
•     LTE-TDD: B38/B40/B41
•     WCDMA: B1/B3/B5/B8

    North America

•     US version(EG18-NA Inside)
•     LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71
•     LTE-TDD: B41
•     WCDMA: B2/B4/B5

Physical Product Dimension:

•     253x152.5x48.2mm (LxWxH)
•     Package Dimension: 415x265x90mm (LxWxH)
•     Power     AC Power Adapter: Input: 90~260V Output: 12V, 1.5A
•     DC input (12V-1.5A) Barrel Plug
•     SMS     Send Message
•     Receive Message
•     Environmental     Operation Temperature: 0° C to +45° C
•     Storage Temperature: -40° C to +70° C
•     Relative Humidity: 5% to 95% Non-Cond

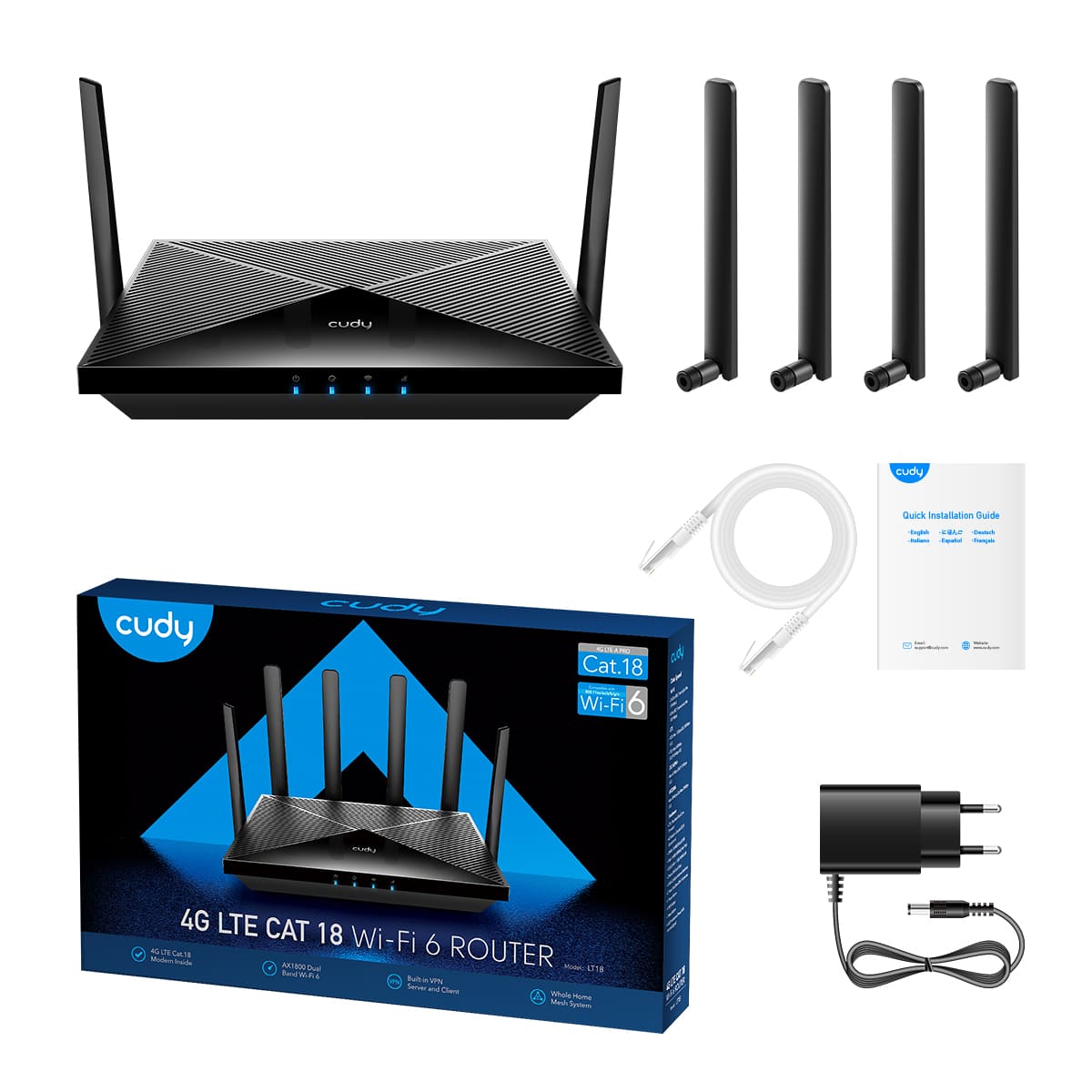

•     Package Contents     4G LTE WiFi Router
•     Power Adapter
•     RJ45 Ethernet Cable
•     System Requirements     Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access)
