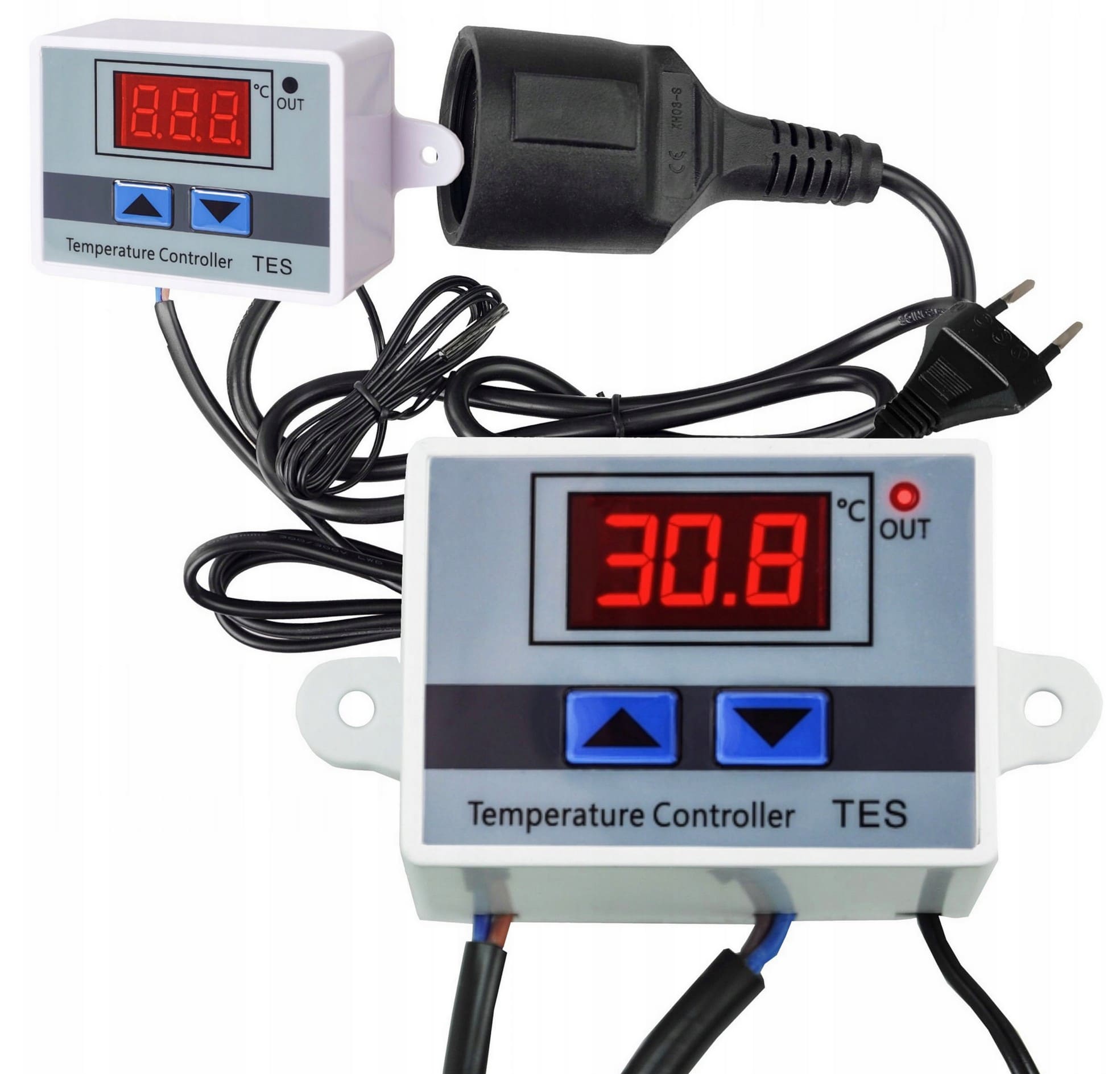

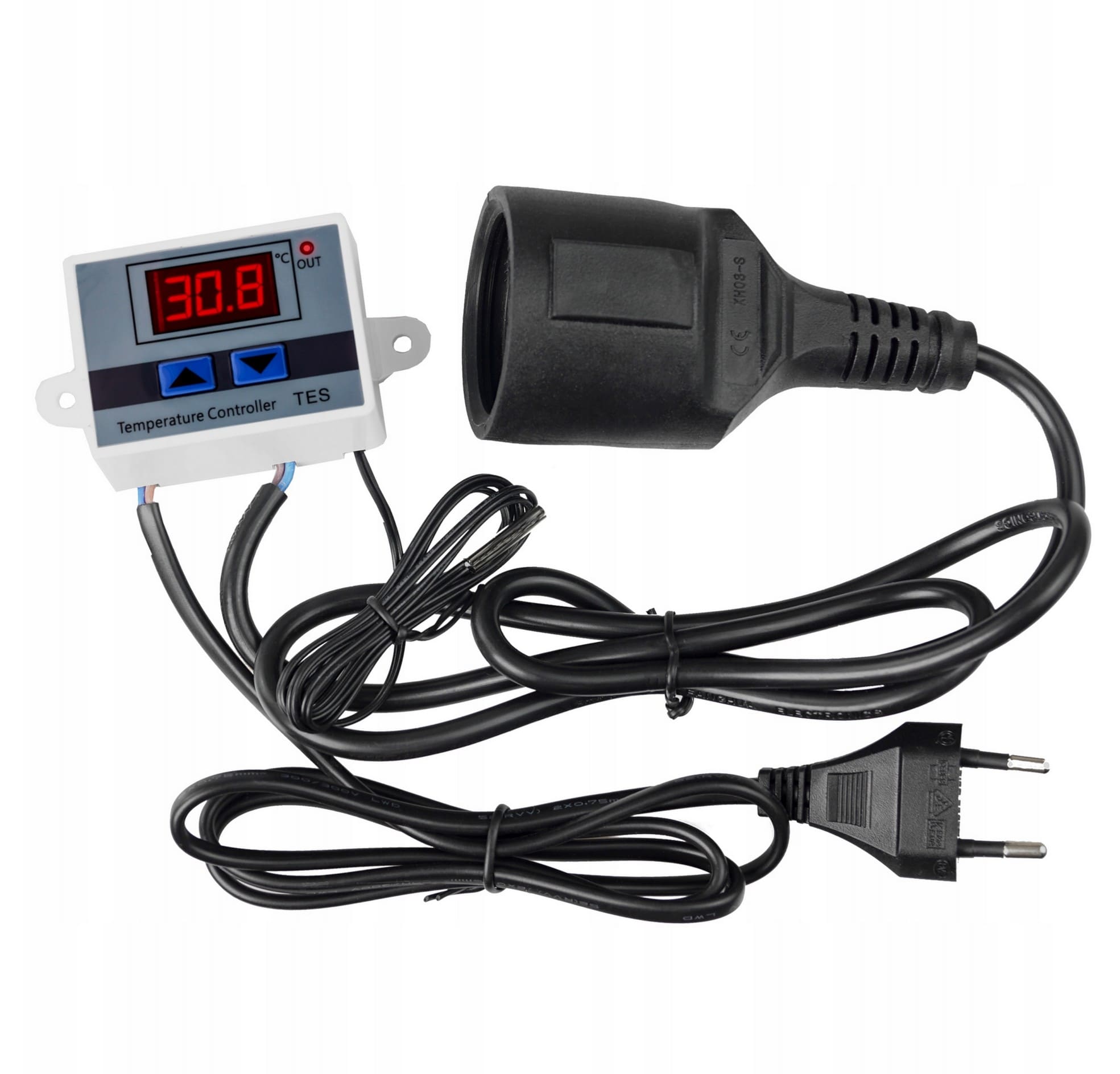

Thermostat Digital Plug-in 230V 1500W -55°C to 110°C Heat/Cool TES-230V, Adelid

Quick Facts – Adelid TES-230V Digital Thermostat

• Brand: Adelid
• Model: TES-230V-PLUGIN
• Type: Digital thermostat with plug and socket
• Voltage: 230V AC
• Max load: 1500W
• Measurement range: -55°C to +110°C
• Accuracy: 0.1°C
• Modes: Heating and cooling

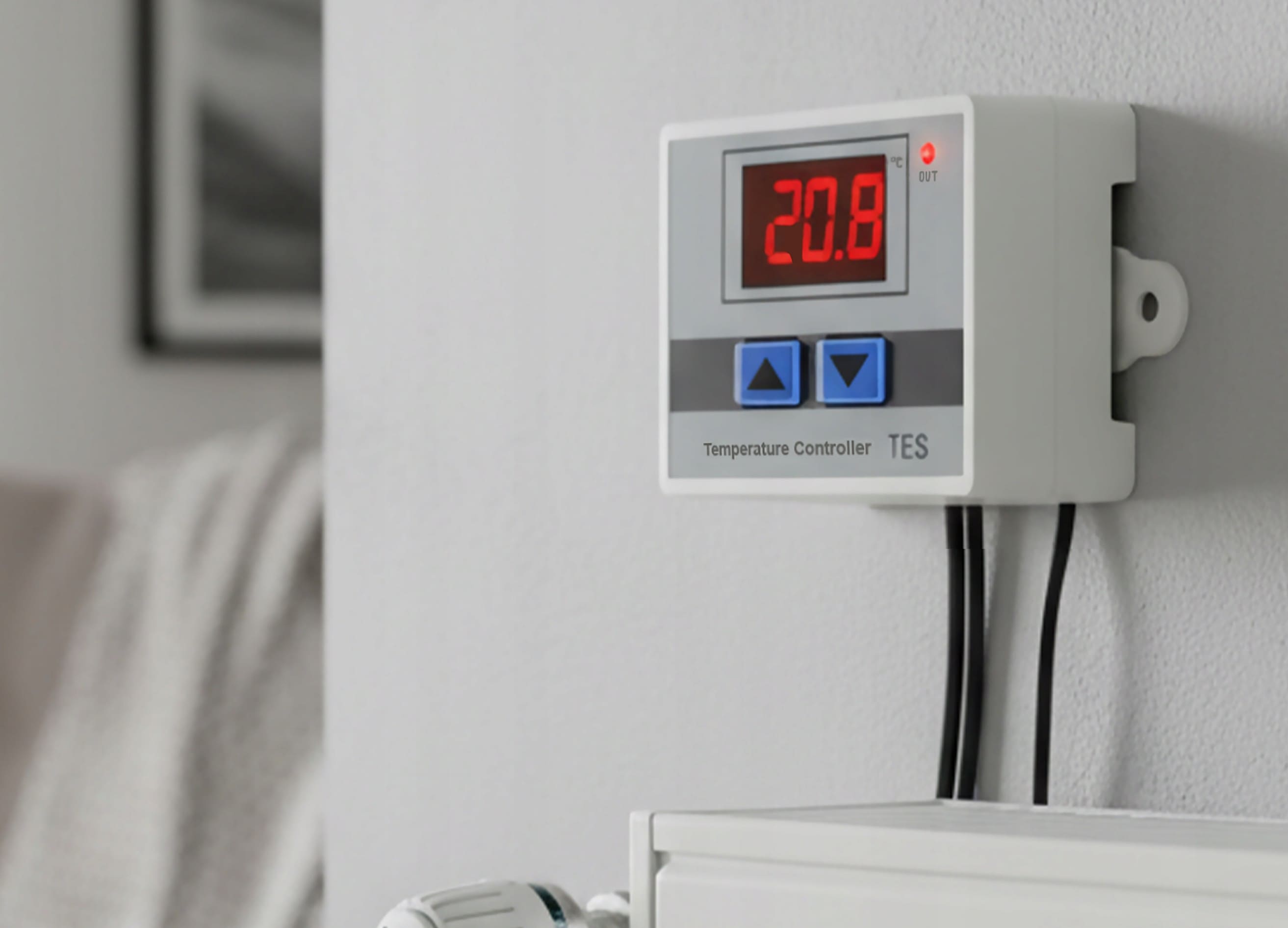

The Adelid TES-230V-PLUGIN is a universal digital thermostat with built-in plug and socket – ready to use straight out of the box. The thermostat can control electrical appliances up to 1500W based on temperature, such as circulation pumps, heating elements, fans, compressors and much more. With a measurement range from -55°C to +110°C, it is suitable for both heating and cooling applications.

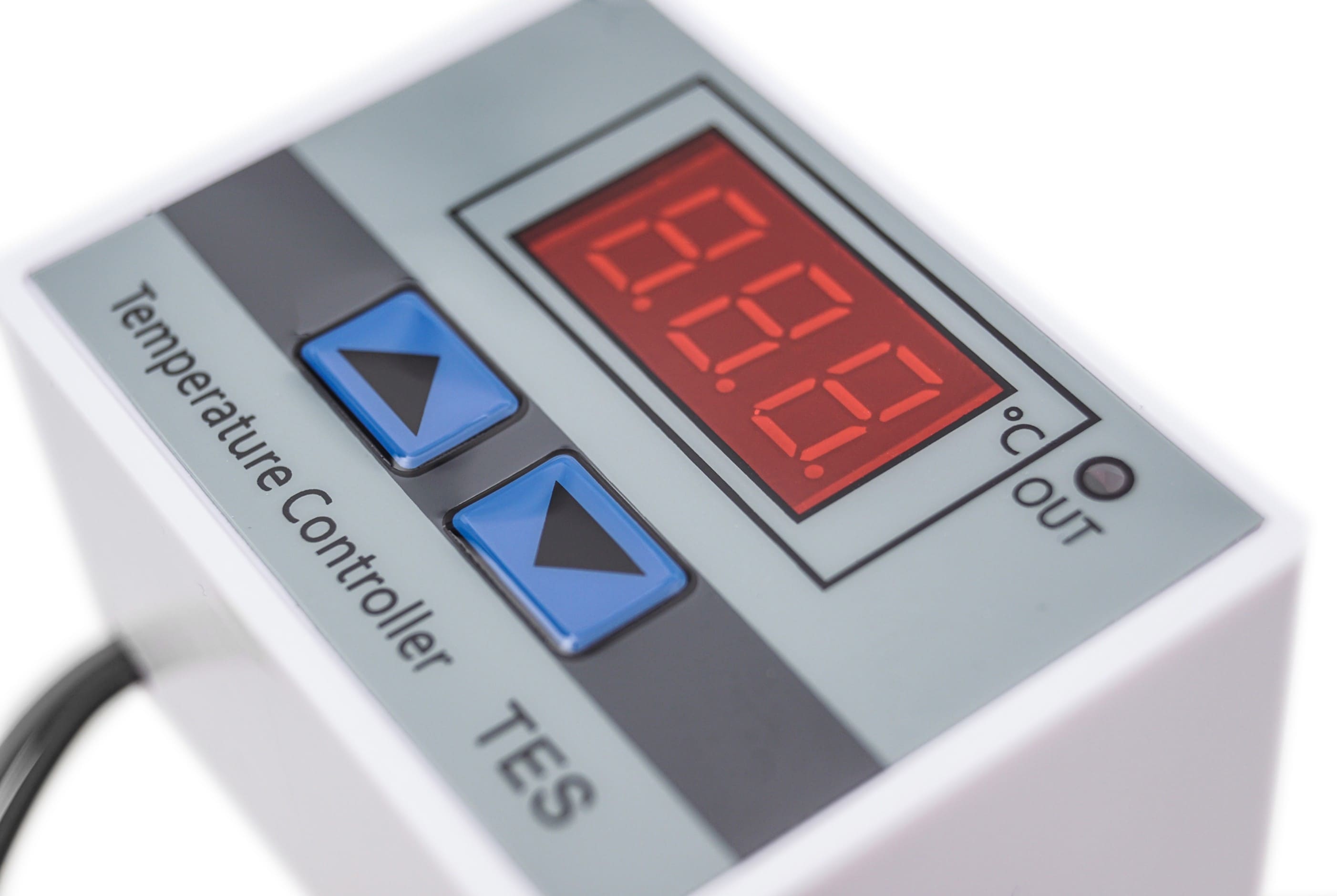

The included waterproof NTC probe (1 metre cable) enables temperature measurement in demanding environments. The red LED display (3 digits) shows current temperature and settings clearly. The thermostat saves settings even during power outages, so you don't need to reprogram it after a power cut.

Why choose Adelid TES-230V Thermostat?

Many thermostats require fixed electrical installation by an electrician. The TES-230V-PLUGIN is a plug-and-play solution that only needs to be connected to a standard wall socket. Then connect your appliance to the thermostat's outlet and set the desired temperature. The ability to choose between heating and cooling mode by simply changing the start/stop temperatures makes the thermostat extremely flexible.

Applications

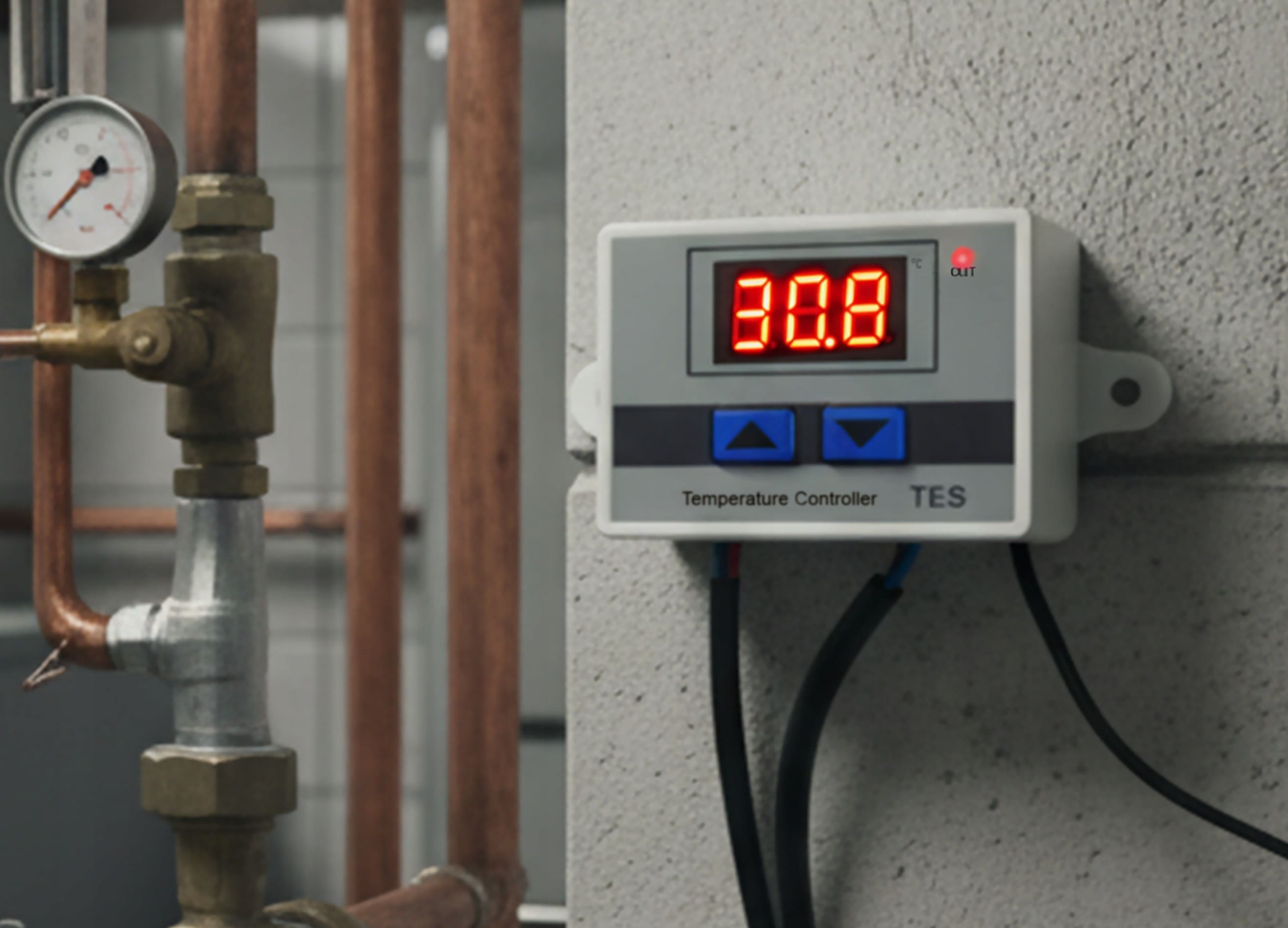

• Circulation pumps and heat pumps
• Heating elements and immersion heaters
• Fans and ventilation

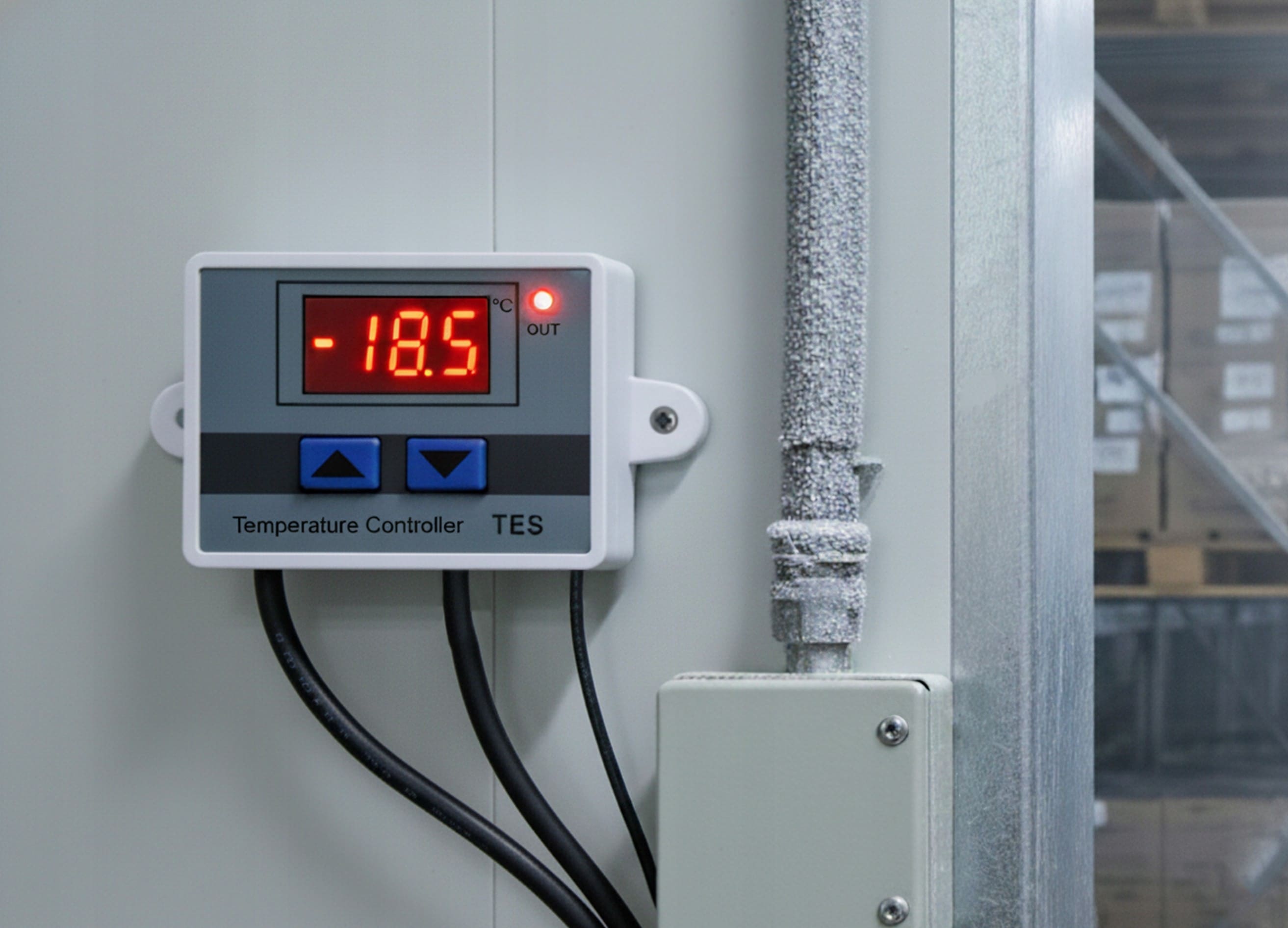

• Refrigerators, freezers and cooling equipment
• Aquariums and terrariums
• Greenhouses and cultivation
• Compressors and industrial applications

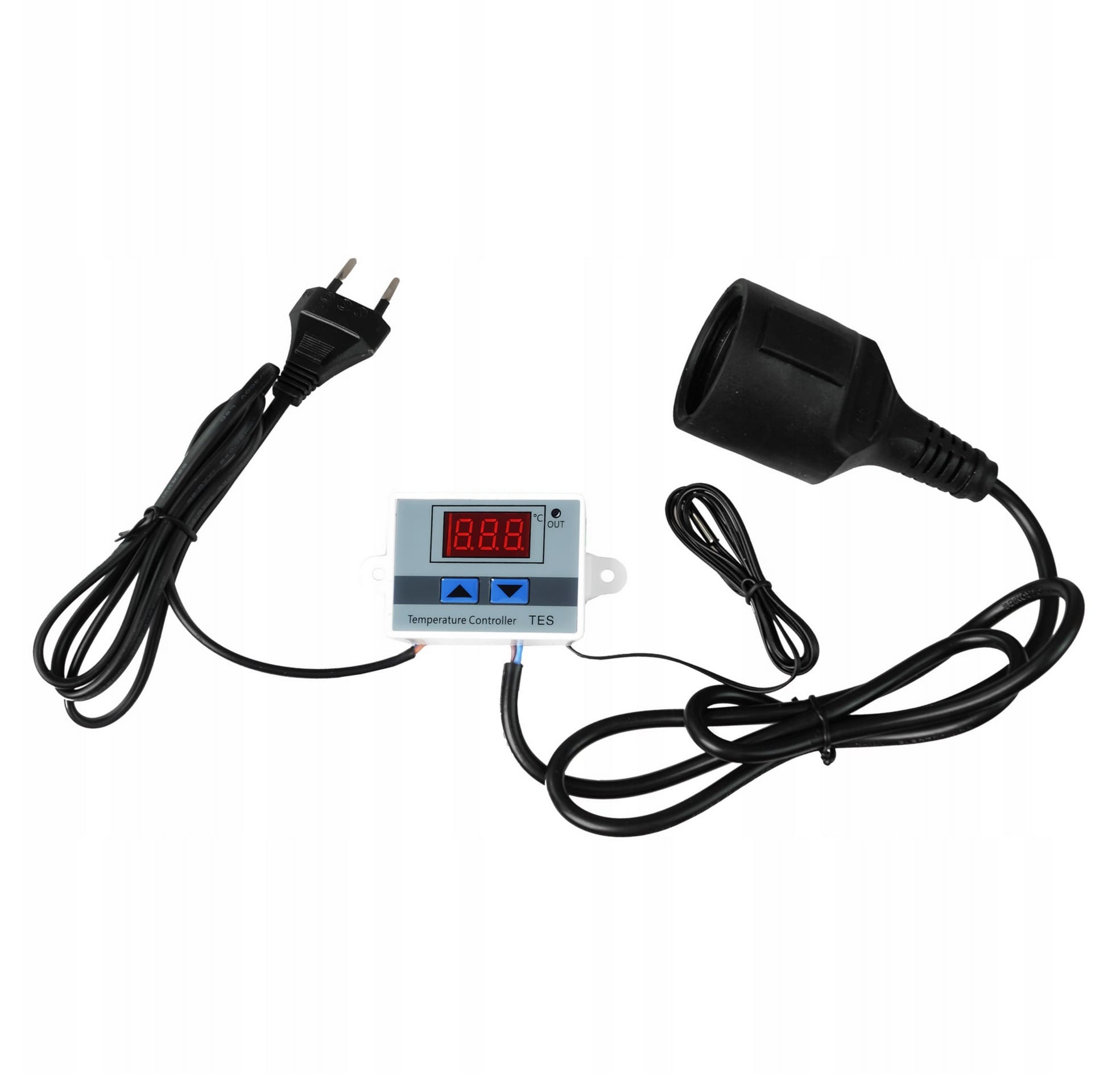

Package contents

• Temperature controller/thermostat
• NTC temperature probe (waterproof, 1 m cable)

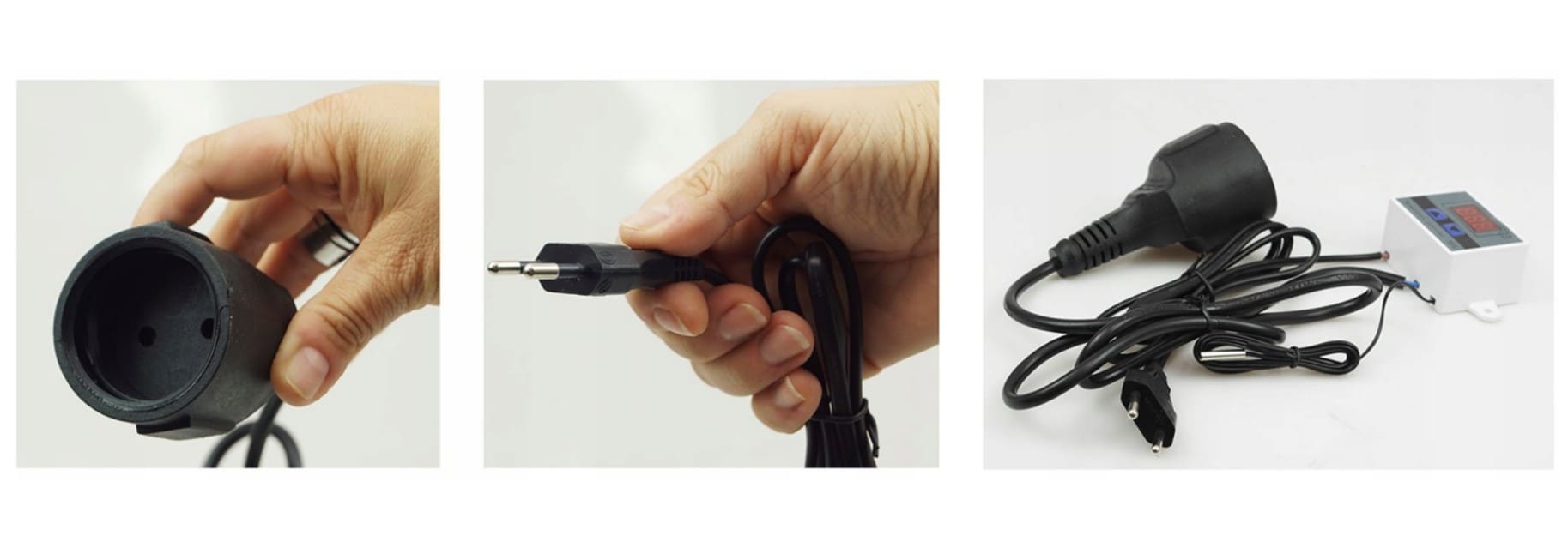

• Power cable with plug and socket (1 m)

Frequently Asked Questions about Adelid TES-230V Thermostat

How do I switch between heating and cooling mode?

The thermostat automatically switches between heating and cooling mode based on how you set the start and stop temperatures. If the start temperature (▲) is lower than the stop temperature (▼), heating mode is activated – the relay switches on when the temperature drops below the start value. If the start temperature is higher than the stop temperature, cooling mode is activated – the relay switches on when the temperature exceeds the start value.

Are settings saved during power outages?

Yes, the thermostat has built-in memory that saves your settings even when power is cut. When power returns, the thermostat continues to operate with the last saved values without you needing to reprogram it.

Can I use the thermostat in a humid environment?

The temperature probe (NTC sensor) is waterproof and can be placed in humid environments or submerged in liquids. However, the thermostat unit itself is not waterproof and should be placed in a dry location protected from direct water exposure. The operating temperature for the thermostat is -5°C to +40°C.
