Industrial Wall Exhaust Fan 610mm Aluminium 4800m³/h 1400 RPM 115W EF-24-AC2, Vevor

Quick Facts – Vevor EF-24-AC2 Wall Exhaust Fan 610mm

• Brand: Vevor
• Model: EF-24-AC2
• Type: Wall exhaust fan with automatic louvres
• Fan diameter: 610 mm (24 inches)
• Material: Aluminium alloy, galvanised steel
• Power: 115 W
• Voltage: 220V AC / 50 Hz
• Speed: 1400 RPM
• Airflow: 4800 m³/h (2892 CFM)

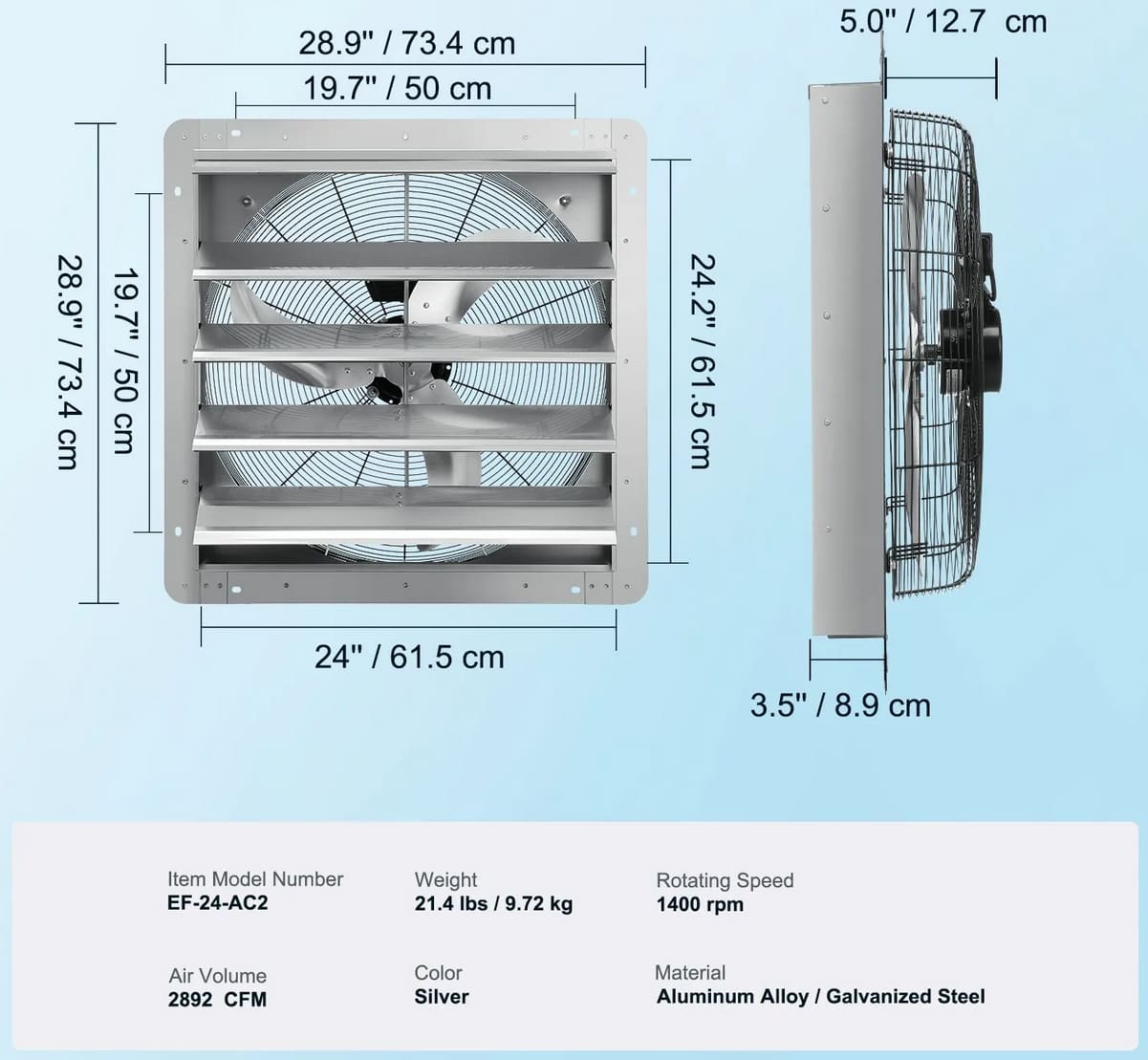

• Dimensions: 725 × 725 × 230 mm
• Weight: 9.72 kg
• Guard: Detachable steel mesh screen
• Louvres: Automatic, close when fan is off
• Protection: Overload and overheat protection
• Package contents: Exhaust fan with lock, instruction manual

The Vevor EF-24-AC2 is an industrial wall exhaust fan with a 610 mm fan diameter designed for wall mounting in garages, workshops, greenhouses, attic spaces and other premises requiring strong ventilation. The fan delivers an airflow of 4800 m³/h (2892 CFM) at 1400 RPM with a power consumption of just 115 W. The construction uses aluminium alloy and galvanised steel, providing durability and corrosion resistance.

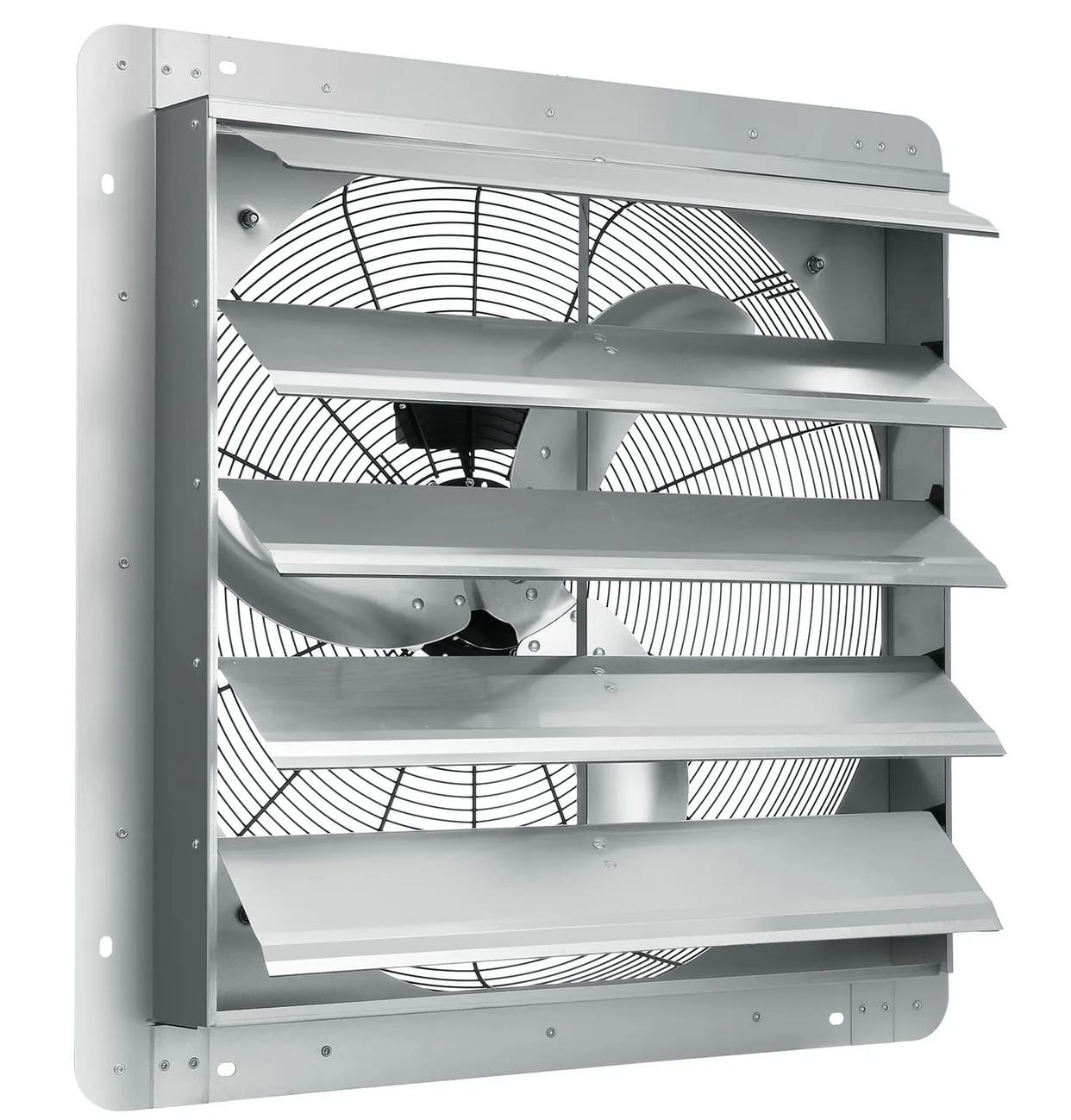

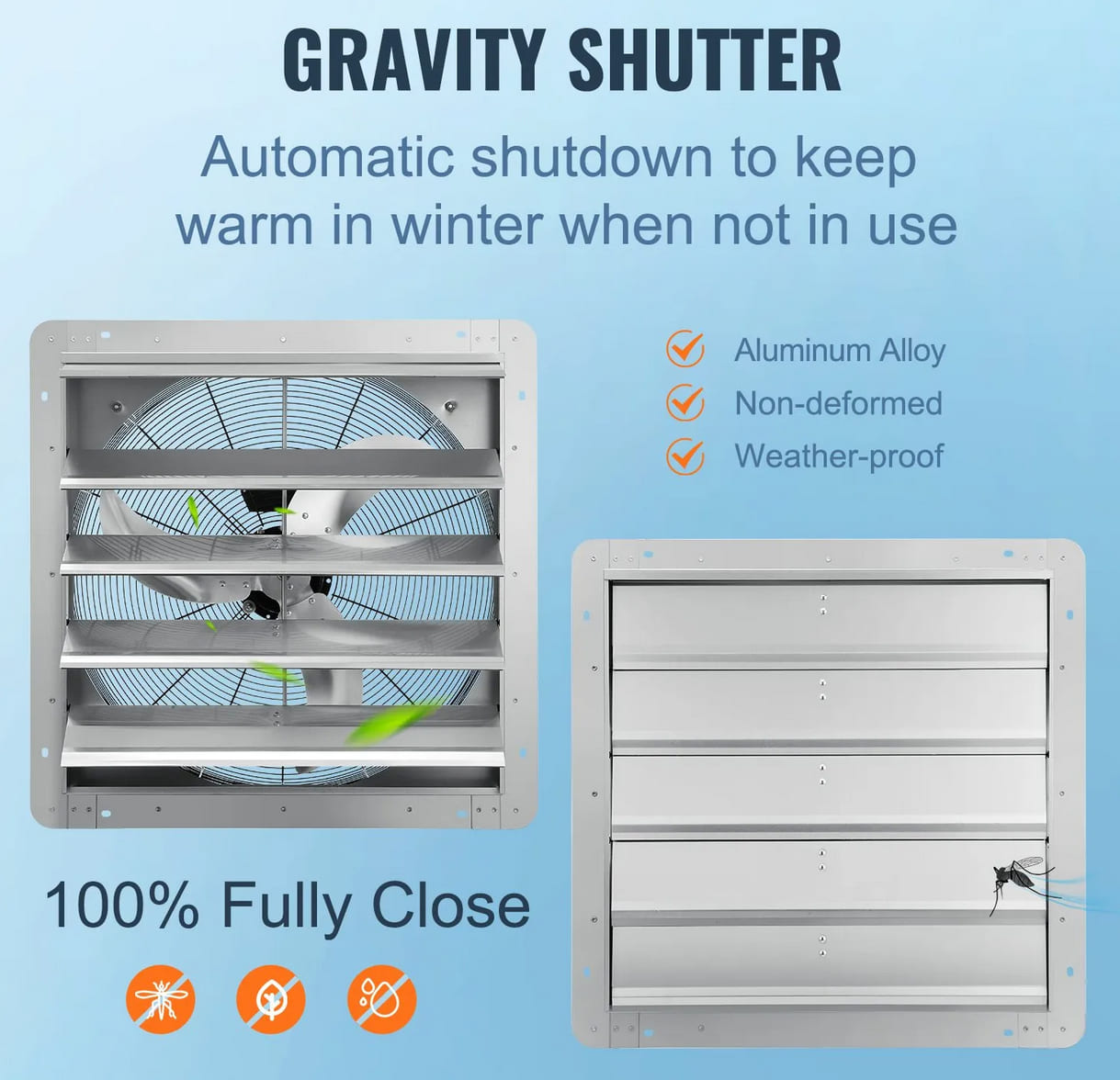

The fan has automatic louvres that close when the fan is not running, helping to maintain indoor temperature and protect against wind, rain and snow. The louvres are controlled by a simple switch. A detachable steel mesh screen sits on the outside and guards against leaves, debris and animals. The screen can be removed when needed. The fan has built-in overload and overheat protection.

The fan housing consists of four parts, which simplifies installation. Overall dimensions are 725 × 725 × 230 mm and the fan weighs 9.72 kg. The fan runs on 220V AC / 50 Hz and operates at a low noise level relative to its airflow capacity.

What is the Vevor EF-24-AC2 exhaust fan and why should you choose it?

The Vevor EF-24-AC2 is a wall-mounted exhaust fan that combines an airflow of 4800 m³/h with a power consumption of 115 W. The construction in aluminium alloy and galvanised steel makes the fan resistant to deformation, rust and weather exposure. The automatic louvres close when the fan is switched off and prevent cold air, rain and snow from entering the premises. The detachable steel mesh screen guards against external debris and can be removed for cleaning. Overload and overheat protection ensures safe operation during extended running periods. The four-part construction allows the fan to be installed without specialist tools.

What environments is the Vevor EF-24-AC2 exhaust fan suited to?

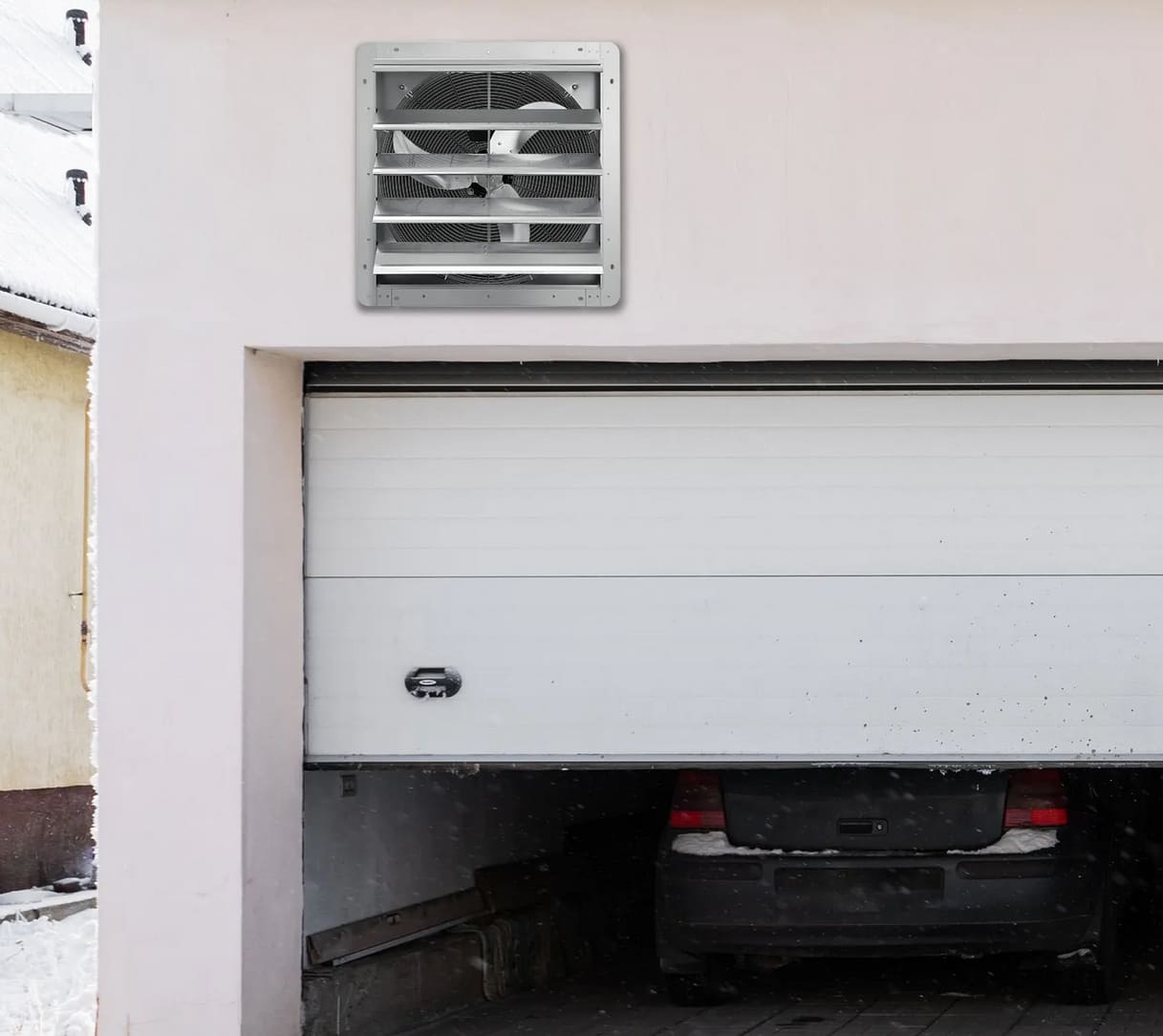

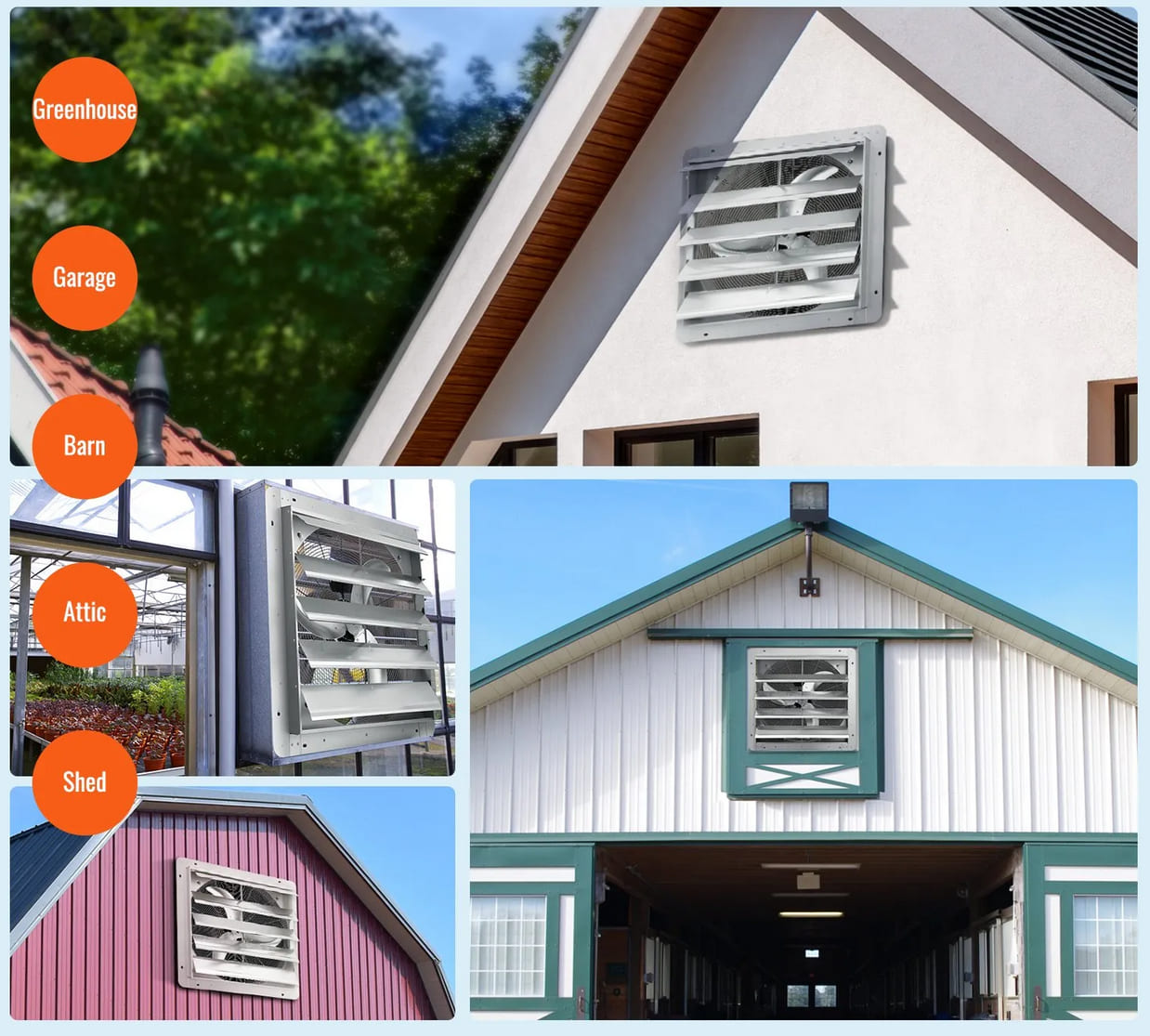

The fan suits garages, workshops, warehouses, greenhouses, attic spaces, barns, poultry houses, offices and other premises requiring effective air turnover. It removes smoke, fumes, hot air and moisture. In garages and workshops the fan ventilates exhaust gases and dust. In greenhouses it aids temperature regulation and air circulation. The aluminium alloy and galvanised steel construction withstands outdoor conditions including wind, rain and snow.

Technical Specifications

Suitable for: Workshop owners, garage owners, farmers, greenhouse growers, property managers and industrial technicians who need powerful wall-mounted ventilation.

Industries: Workshops, industrial production, agriculture, greenhouse cultivation, property management and warehousing.

Frequently Asked Questions (FAQ)

Does the Vevor EF-24-AC2 exhaust fan work for ventilating garages and workshops?

Yes, the Vevor EF-24-AC2 exhaust fan has an airflow of 4800 m³/h (2892 CFM) at 1400 RPM, providing effective ventilation in garages and workshops. The fan removes smoke, exhaust gases, dust and hot air. The automatic louvres close when the fan is switched off and prevent draughts and weather ingress. The construction in aluminium alloy and galvanised steel withstands demanding environments and the fan has built-in overload and overheat protection.

What capacity and dimensions does the Vevor EF-24-AC2 exhaust fan have?

The Vevor EF-24-AC2 exhaust fan has a fan diameter of 610 mm and delivers 4800 m³/h (2892 CFM) airflow at 1400 RPM with a power consumption of 115 W. Overall dimensions are 725 × 725 × 230 mm and the fan weighs 9.72 kg. It runs on 220V AC / 50 Hz and features automatic louvres, a detachable steel mesh screen and overload and overheat protection.

What sets the Vevor EF-24-AC2 exhaust fan apart from other exhaust fans on Verktygsgrossen?

The Vevor EF-24-AC2 stands out through its all-metal construction in aluminium alloy and galvanised steel – louvres, mesh screen, fan housing and connecting parts are all metal. The fan delivers 4800 m³/h airflow with just 115 W power consumption, giving a favourable ratio between air capacity and energy use. The automatic louvres, detachable steel mesh screen and built-in overload and overheat protection provide operational reliability in demanding environments. The four-part construction simplifies installation.

Choosing a Fan Speed Controller

A suitable, affordable model for controlling this fan:

Speed Controller BV300-SC (60–230V, 50–300W)

Since this fan uses an AC motor with a start capacitor, there are a few things to keep in mind when using a stepless electronic controller like this one:

1. Humming noise at low speeds: When you reduce the speed significantly, the motor may start to hum and run warm. This is normal for this type of motor control. If the fan hums noticeably, increase the speed slightly.
2. Minimum starting speed: Do not set the controller so low that the fan cannot start on its own when power is applied. A motor that remains stationary under voltage without rotating can quickly overheat and be damaged.

If you want completely silent speed control without humming or heat build-up, and the fan will be installed in a clean/dry indoor environment where you also want to be able to "lock" the minimum speed so no one accidentally turns the fan down to the point where the motor stalls and overheats, we recommend instead:

Art.ID: RS-1-400N   Speed Controller RS-1-400N (Vents) – IP40, 230V, 1.8A

If the fan will be installed in a workshop, garage, or a humid/dusty environment, choose this one — the higher IP54 rating and heavy-duty construction make it significantly more robust:

Art.ID: RO-1000   Industrial Speed Controller – IP54, up to 1000W

Choosing a Temperature Controller

For automated temperature-based control, we recommend these thermostats:

• Art.ID: TES-230V-PLUGIN
• Art.ID: TES-GS-DE
