Duct fan 125 mm, 284m3/h, 159Pa, 33W, Ferono

Duct Fan Ferono FKP125 in Plastic – 125mm

Applications

The Ferono FKP125 duct fan is a high-performance solution for ventilation in homes, offices, and industrial facilities. With a modern design and linear airflow, this duct fan is easy to connect to indoor ventilation ducts. Thanks to its high-quality components, it delivers high pressure and low noise levels, making it ideal for:

• Homes
• Offices
• Laboratories
• Restrooms
• Shops
• Production facilities

With two adjustable speeds (high and low), the fan can be customized to meet specific needs for optimal ventilation.

Design and Construction

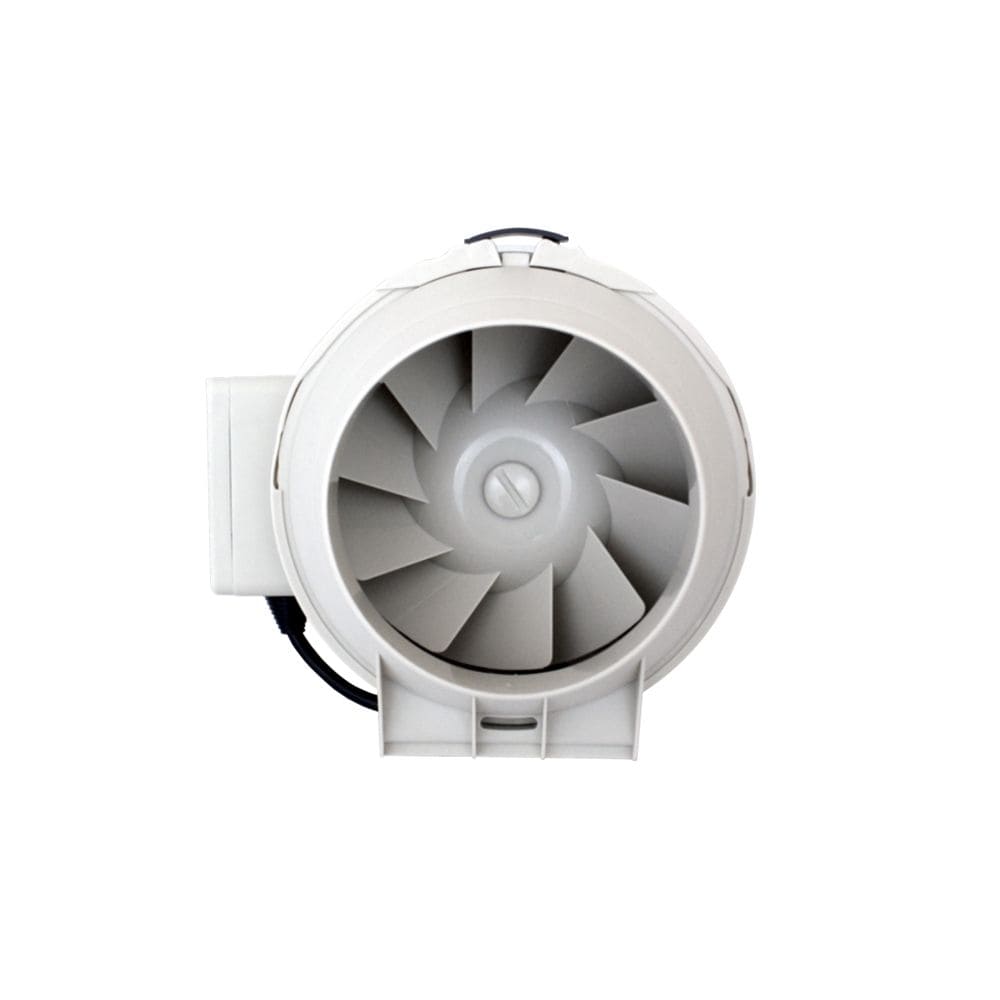

The Ferono FKP125 duct fan features a durable construction made of high-quality plastic with a modern oval design. The specially shaped fan blades prevent the accumulation of dust and dirt, ensuring long-lasting performance. The fan is compatible with round ventilation ducts and includes an integrated connection box for easy installation.

Technical Specifications

• Model: FKP125
• Voltage (V): 230
• Frequency (Hz): 50
• Speed: High - Low
• Power (W): 33 - 28
• Current (A): 0.14 - 0.13
• RPM: 2250 - 1850
• Airflow (m³/h): 284 - 248
• Air Pressure (Pa): 159 - 106
• Noise Level (dB): 31 - 26
• Capacitor Capacity (μF/V): 1 / 450
• Net Weight (kg): 1.7
• Gross Weight (kg): 2.05

Motor

The Ferono FKP125 duct fan is equipped with a brushless motor designed for voltage regulation. The motor includes built-in thermal protection activated via a temperature sensor. The high insulation class F and IP44 sealing class ensure reliable operation and long lifespan.

Advantages of Ferono FKP125

• Housing and blades made of high-quality plastic
• Modern design
• Low noise level
• Reliable brushless motor design
• Thermal motor protection
• Two adjustable speeds
• Operating temperature range: –10°C to 60°C
• High energy efficiency

Dimensions

• Model: FKP125
• A (mm): 295
• B (mm): 170
• C (mm): 80
• D (mm): 122
• E (mm): 204
