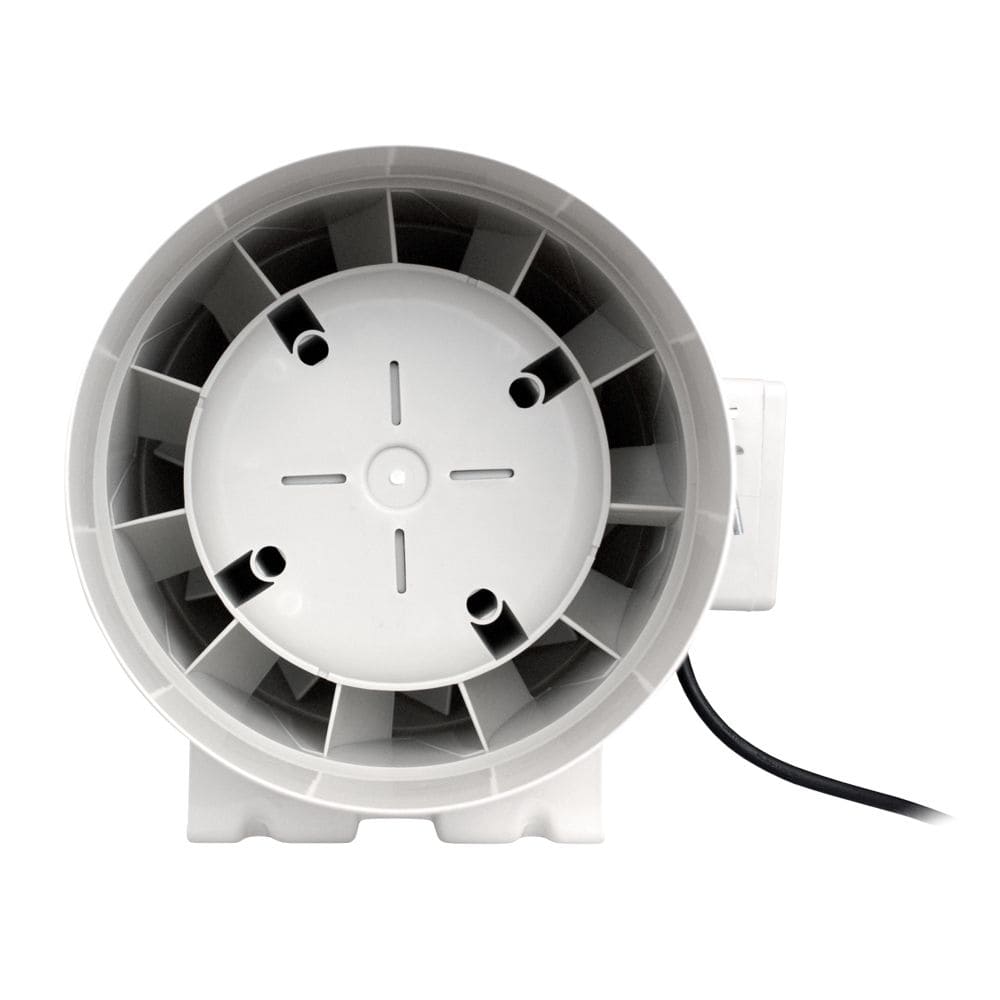

Duct fan 200 mm, 840m3/h, 352Pa, 128W, Ferono

Duct Fan / Pipe Fan Ferono FKP200 in Plastic – 200mm

Applications

The Ferono FKP200 is a duct fan / pipe fan that combines high performance with low noise levels. This ventilation solution is perfect for homes, offices, and industrial environments. With linear airflow and a modern design, the fan is easy to connect to round ventilation ducts. Thanks to its excellent technical features, it is suitable for:

• Homes
• Offices
• Laboratories
• Restrooms
• Shops
• Production facilities

With two adjustable speeds (high and low), the fan can be customized to meet specific ventilation requirements.

Design and Construction

The Ferono FKP200 duct fan features a durable casing and blades made of high-quality plastic. Its modern, oval design prevents dirt and dust from accumulating on the blades, maintaining the fan's efficiency over time. The fan is equipped with a connection box for easy and safe installation.

Technical Specifications

• Model: FKP200
• Voltage (V): 230
• Frequency (Hz): 50
• Power (W): 128
• Current (A): 0.53
• Speed (RPM): 2450
• Airflow (m³/h): 840
• Air Pressure (Pa): 352
• Capacitor Capacity (μF/V): 3.0 / 450
• Net Weight (kg): 4.9
• Gross Weight (kg): 5.4

Motor

The fan is equipped with a modern brushless motor that supports voltage regulation. The built-in thermal protection is activated via a temperature sensor, protecting the motor from overheating. With insulation class F and sealing class IP44, the fan is designed to ensure reliable operation and long service life.

Advantages of the Ferono FKP200

• Casing and blades made of high-quality plastic
• Modern and durable design
• Low noise level
• Reliable brushless motor
• Built-in thermal protection
• Two adjustable speeds
• Operating temperature range: –10°C to 60°C
• High energy efficiency

Dimensions

• A (mm): 307
• B (mm): 203
• C (mm): 100
• D (mm): 197
• E (mm): 240
• F (mm): 138
• G (mm): 138
• H (mm): 75

Note: This duct fan is only compatible with ventilation systems featuring dual-speed motors.

Choose the Ferono FKP200 duct fan and pipe fan to optimize ventilation in your home or workplace. Order now and take advantage of our competitive prices and fast deliveries!
