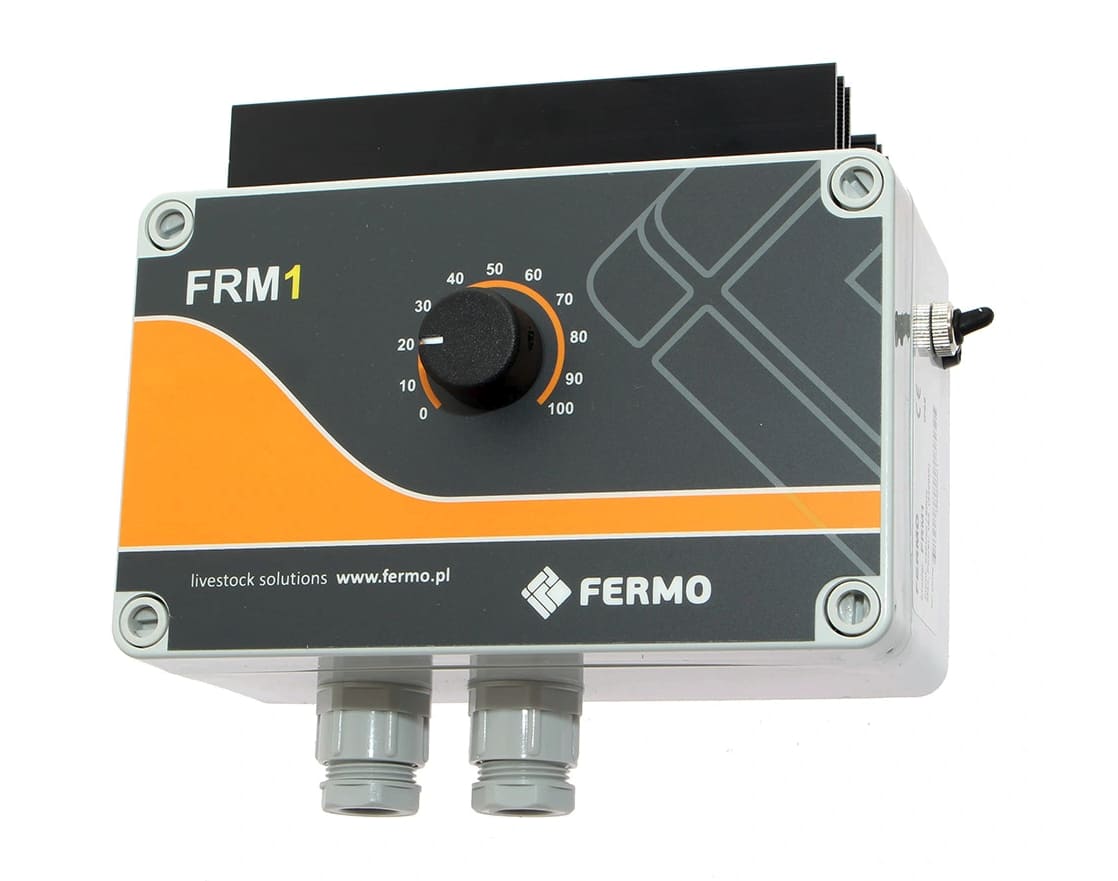

Manual Fan Speed Controller 15A 230V Stepless IP55 with Heat Sink FRM1, Fermo

Quick Facts – Fermo FRM1 Manual Fan Speed Controller 15A

• Brand: Fermo
• Model: FRM1
• Type: Manual fan speed controller for fans and fan heaters
• Maximum current: 15 A
• Recommended maximum continuous load: 12 A
• Maximum motor power: up to 2700 W
• Voltage: 230V
• Control: Stepless 0–100% via potentiometer
• Ingress protection: IP55 (dust-protected and jet-water resistant)
• Motor type: Single-phase asynchronous motors
• Other applications: Incandescent lamps, heating elements

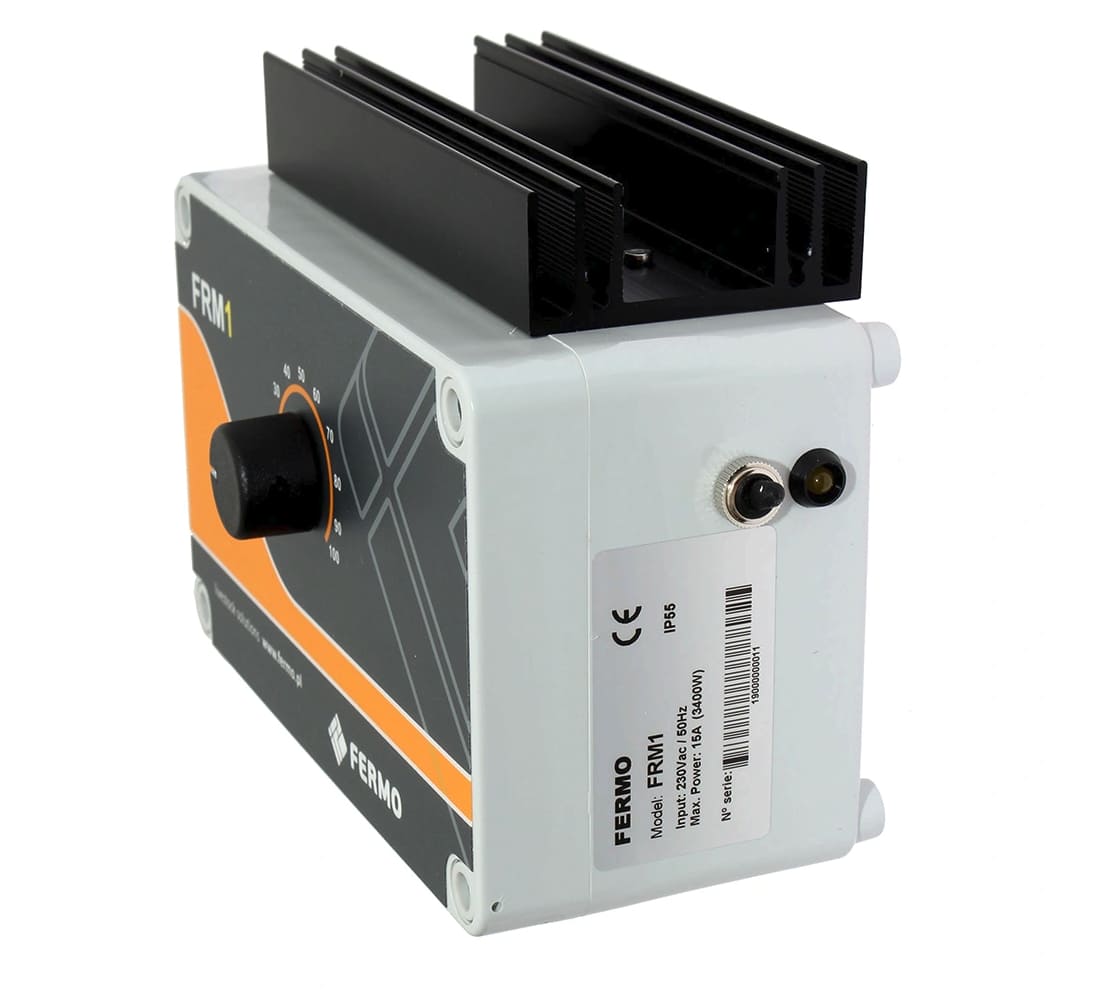

• Heat sink: Yes (mounted on top)
• Switch: Side-mounted on/off switch
• Intended for: Agriculture, stables, barns, industry, outdoor use (protected)

The Fermo FRM1 is a manual fan speed controller with a maximum current of 15 A, designed for regulating single-phase asynchronous fan motors and fan heaters. The controller adjusts speed steplessly from 0 to 100% via a potentiometer on the housing. The same control can also be used for power regulation of incandescent lamps and heating elements. The supply voltage is 230V and the IP55 ingress protection class provides resistance against dust and water jets, making the controller suitable for use in stables, barns, poultry houses and similar agricultural environments.

The housing incorporates a heat sink on the top surface that dissipates the heat generated during operation. A side-mounted on/off switch is included. The generous current capacity of 15 A means the controller operates with substantial headroom at lower loads, which reduces heat build-up and extends service life. The same controller can handle multiple fans connected in parallel, provided the combined current draw does not exceed 15 A.

The ability to run fans at 10–20% speed during winter provides the minimum necessary ventilation without chilling animals or causing unnecessary noise. Compared to simple on/off controllers, variable speed significantly reduces energy consumption and decreases wear on fan motor bearings.

What is the Fermo FRM1 fan speed controller and why should you choose it?

The Fermo FRM1 is a robust manual fan speed controller built for agriculture and demanding industrial environments. The 15 A maximum current gives substantial capacity headroom at typical fan loads of 2–8 A, allowing the controller to run cooler and last longer. The IP55 enclosure protects against dust and water jets, which is essential in livestock environments. Stepless 0–100% control via potentiometer makes it possible to match ventilation precisely to requirements across different seasons and weather conditions. Fermo specialises in agricultural solutions and designs its equipment with high tolerance for dust and moisture.

What environments is the Fermo FRM1 fan speed controller suited to?

The controller is designed for ventilation systems in barns, stables, poultry houses, piggeries and similar agricultural buildings where dust, moisture and temperature swings place high demands on equipment durability. It also suits industrial, warehouse and workshop environments with single-phase asynchronous fans. The IP55 enclosure allows outdoor mounting under a roof or canopy on a building's exterior wall. For outdoor installation, a weather shield above the controller is recommended to protect against direct sunlight and heavy rain, and cables should be routed from below with a U-shaped drip loop to prevent water from entering the housing.

Technical Specifications

Suitable for: Farmers, livestock keepers, stable owners, ventilation installers and industrial technicians who need robust stepless speed control of fans in dusty and humid environments.

Industries: Agriculture, livestock farming, poultry production, pig farming, industry and warehouse ventilation.

Frequently Asked Questions (FAQ)

Does the Fermo FRM1 fan speed controller work for controlling multiple fans in parallel in a barn or stable?

Yes, the Fermo FRM1 fan speed controller can control multiple fans connected in parallel provided the combined current draw does not exceed 15 A. With a maximum current of 15 A, the controller handles, for example, three fans drawing 4–5 A each without reaching its capacity limit. Stepless 0–100% control makes it possible to run fans at 10–20% speed during winter to maintain minimum ventilation without chilling livestock.

Does the Fermo FRM1 fan speed controller handle outdoor mounting on a barn or stable wall?

The IP55 ingress protection class provides resistance against dust and water jets, which allows outdoor mounting in protected locations. When mounting on an exterior wall, a weather shield above the controller is recommended to protect against direct sunlight and heavy rain, for example under a roof overhang or a sheet metal cover. Cables should be routed from below with a U-shaped drip loop to prevent water entering the housing. The side-mounted switch is the weakest point for ingress protection and should be shielded from direct exposure.

What sets the Fermo FRM1 fan speed controller apart from other fan controllers with lower current ratings on Verktygsgrossen?

The Fermo FRM1 stands out through its maximum current of 15 A, which is substantially higher than most comparable controllers. The high current capacity means the controller operates with considerable headroom at typical loads, which reduces heat generation and extends service life. The IP55 enclosure and heat sink make it suitable for dusty and humid agricultural environments where controllers with lower ingress protection ratings deteriorate more rapidly. Fermo specialises in agricultural equipment and the FRM1 is built with the specific stresses of livestock environments in mind.
