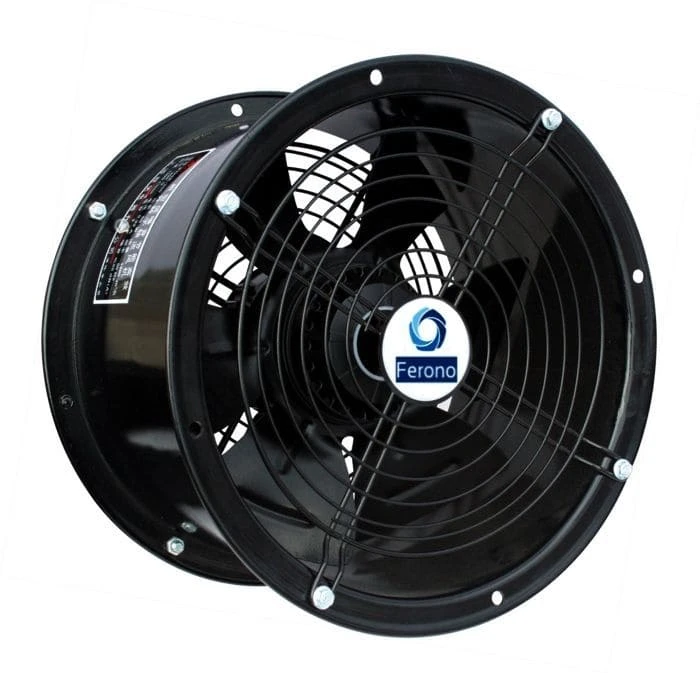

Axial Duct Fan Ferono FKO350 – Efficient Ventilation

Applications

The waterproof axial duct fan Ferono FKO350 is a high-performance solution for ventilation in industrial, commercial, and specialized environments. With the ability to mount both vertically and horizontally, this duct fan is ideal for:

• Industrial buildings such as warehouses, workshops, and production halls
• Commercial spaces like shops and wholesale facilities
• Specialized and livestock facilities such as greenhouses, poultry houses, and pigsties
• Smaller spaces like offices and garages

Design and Build

The Ferono FKO350 features a robust black construction, making it aesthetically pleasing and suitable for public environments. It is designed to deliver high performance, low noise levels, and stable operation while being easy to install.

Technical Specifications

• Model: FKO350
• Air Pressure (Pa): 140
• Diameter (mm): 350
• Voltage (V): 230
• Frequency (Hz): 50
• Power (W): 140
• Current (A): 0.65
• Speed (RPM): 1400
• Airflow (m³/h): 3500
• Noise Level (dB): 62
• Capacitor (μF/V): 4 / 450
• Net Weight / Gross Weight (kg): 6.5 / 7.0

Motor

The brushless and modern motor is equipped with voltage regulation and an integrated thermal protection system activated via a temperature sensor. With insulation class F and IP55 rating, this fan is built for reliable operation under demanding conditions.

Advantages of Ferono FKO350

• Aerodynamically designed blades for high airflow efficiency and low noise levels
• Robust metal construction for both motor and blades
• Double bearings to extend the fan's lifespan
• High insulation class for copper wiring: F
• Operating temperature: –20°C to 80°C
• IP55 protection for tough environments

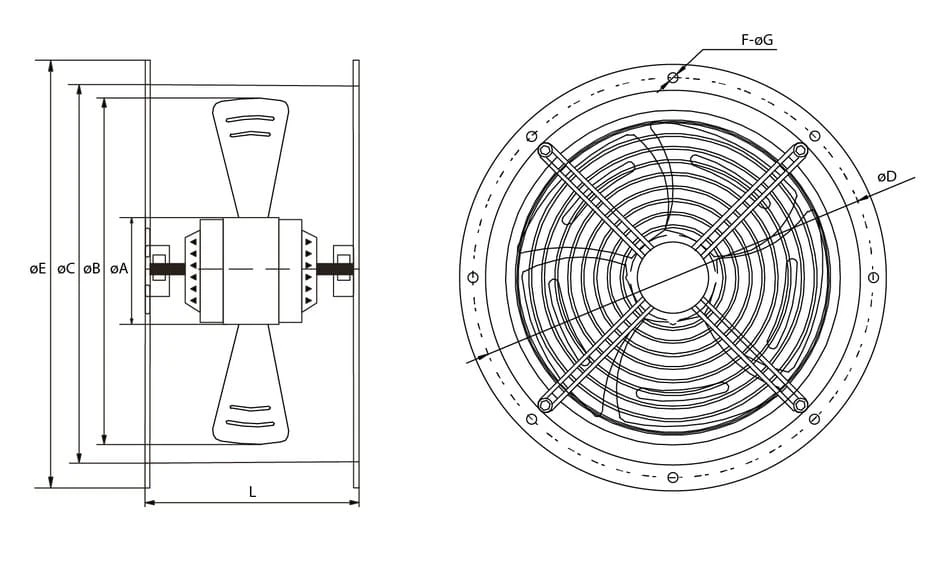

Dimensions

• A (mm): 102
• B (mm): 350
• C (mm): 365
• D (mm): 387
• E (mm): 412
• F (mm): 8
• G (mm): 6
• L (mm): 175

Order Ferono FKO350 today and upgrade your ventilation system with a reliable and high-performance axial duct fan. Perfect for both small and large spaces.
