Brushless Combi Drill 20 V, 50 Nm, 13 mm Chuck, Tool Only, Wuber Tools

Quick Facts — W04523 Combi drill

• Model: W04523
• EAN: 5905873308329
• Type: Combi drill, tool only
• Voltage: 20 V
• Max. torque: 50 Nm
• Motor type: Brushless
• Drill chuck: 13 mm

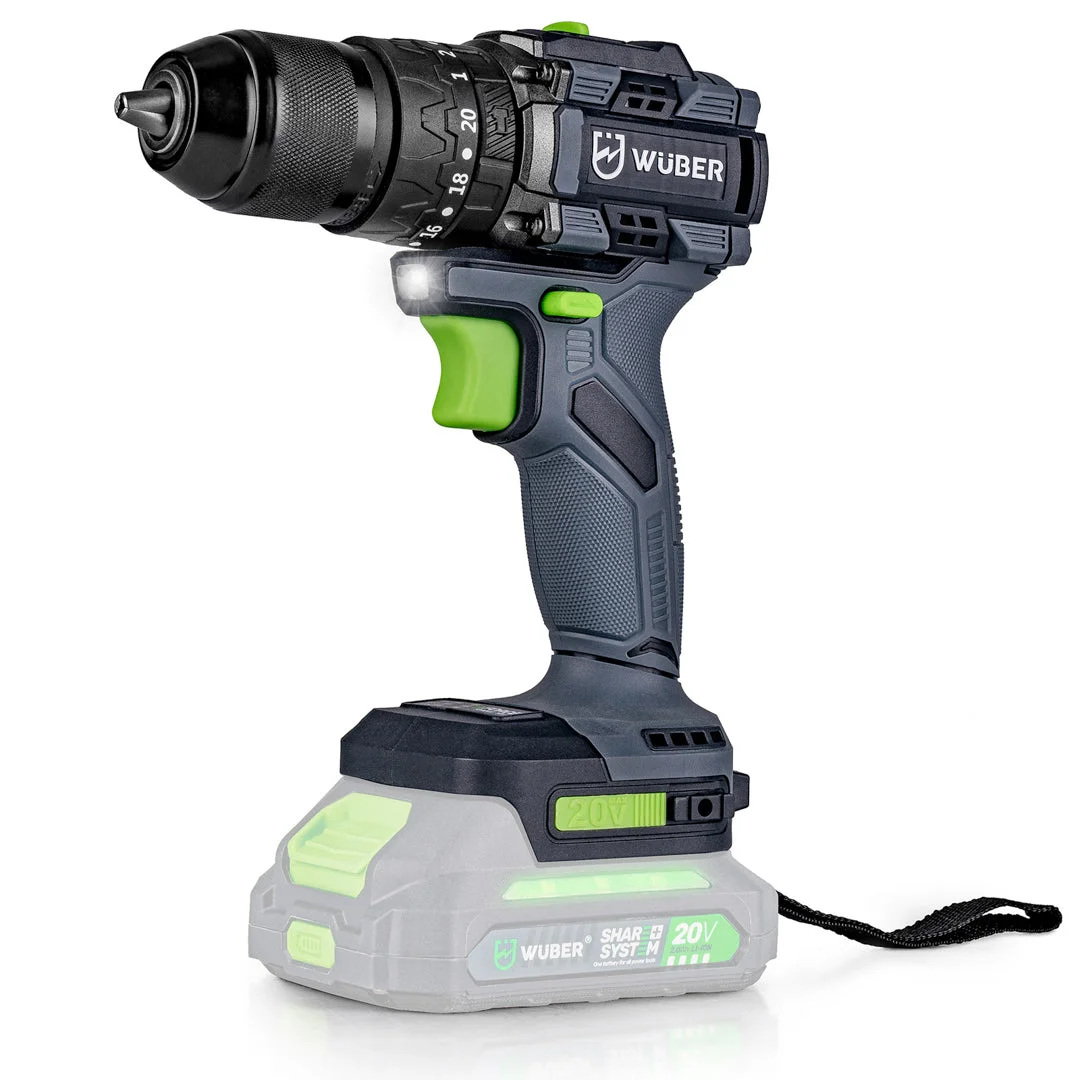

Combi drill W04523 from Wuber Tools is a brushless 20 V machine with 50 Nm max. torque, a 13 mm chuck and a hammer function for drilling and screwdriving in wood, metal and plastics.

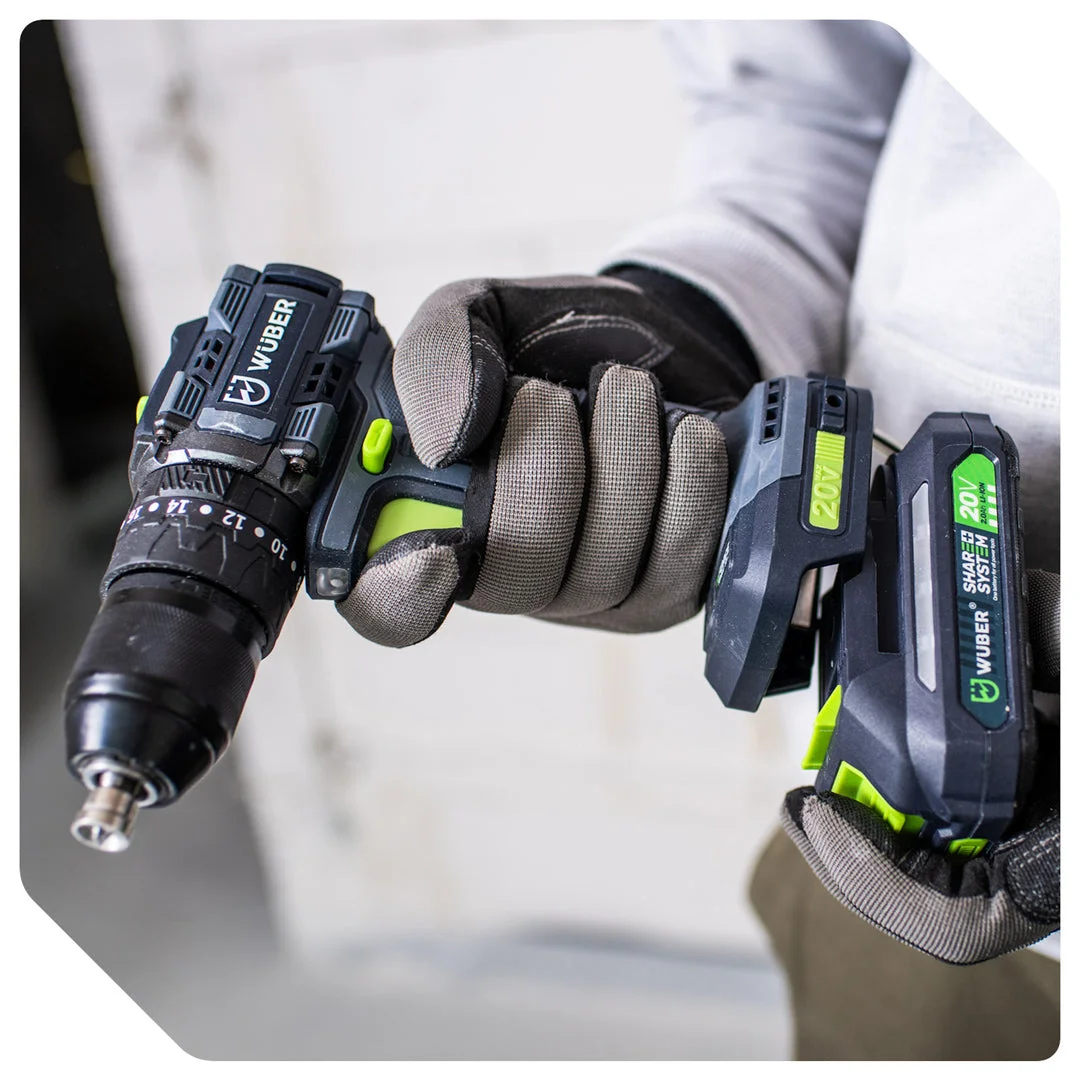

It is supplied as a tool-only version without battery and charger. It belongs to the Share+ System and runs on 20 V Wuber batteries on the same platform, so one battery can be shared between several tools.

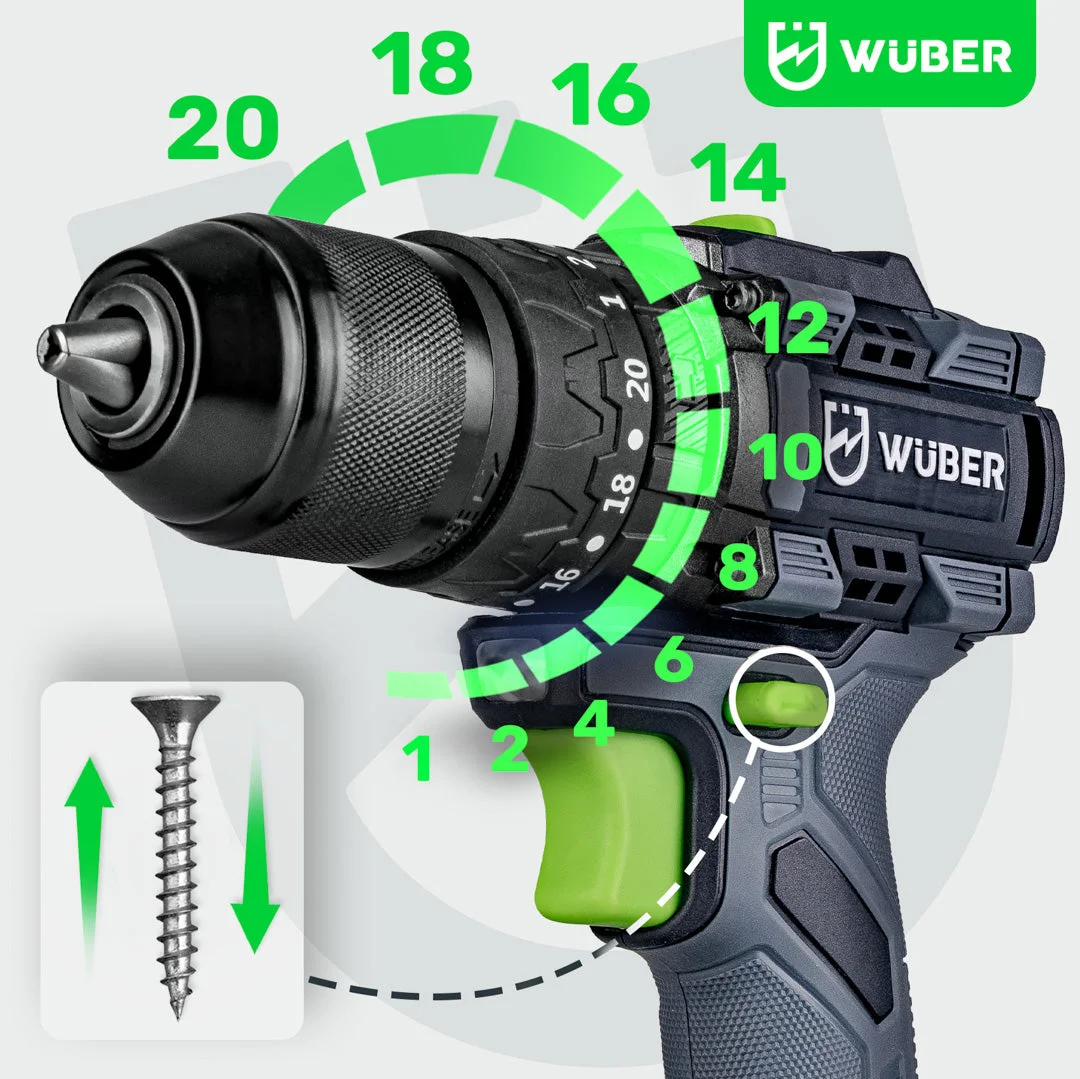

Torque is set with 20+1+1 clutch settings and two gears cover 0-500 rpm and 0-1700 rpm respectively. A motor brake and LED light are included.

When does combi drill W04523 make the most sense?

It makes most sense when one battery platform is shared between several tools and both screwdriving and hammer drilling are needed in one machine. The tool-only version suits those who already have 20 V batteries and a charger in the Share+ System.

Advantages in daily work:

• Two gears: 0-500 rpm for screwdriving and 0-1700 rpm for drilling
• 20+1+1 clutch settings to match tightening up to 50 Nm
• Motor brake that helps with serial screwdriving
• Rubberised, non-slip grip and LED light for the work area

How combi drill W04523 is used in wood, metal and plastics

The machine is used in wood, metal and plastics, with the hammer function when drilling in harder materials. Gear 1 at 0-500 rpm gives control when screwdriving, gear 2 at 0-1700 rpm gives speed when drilling.

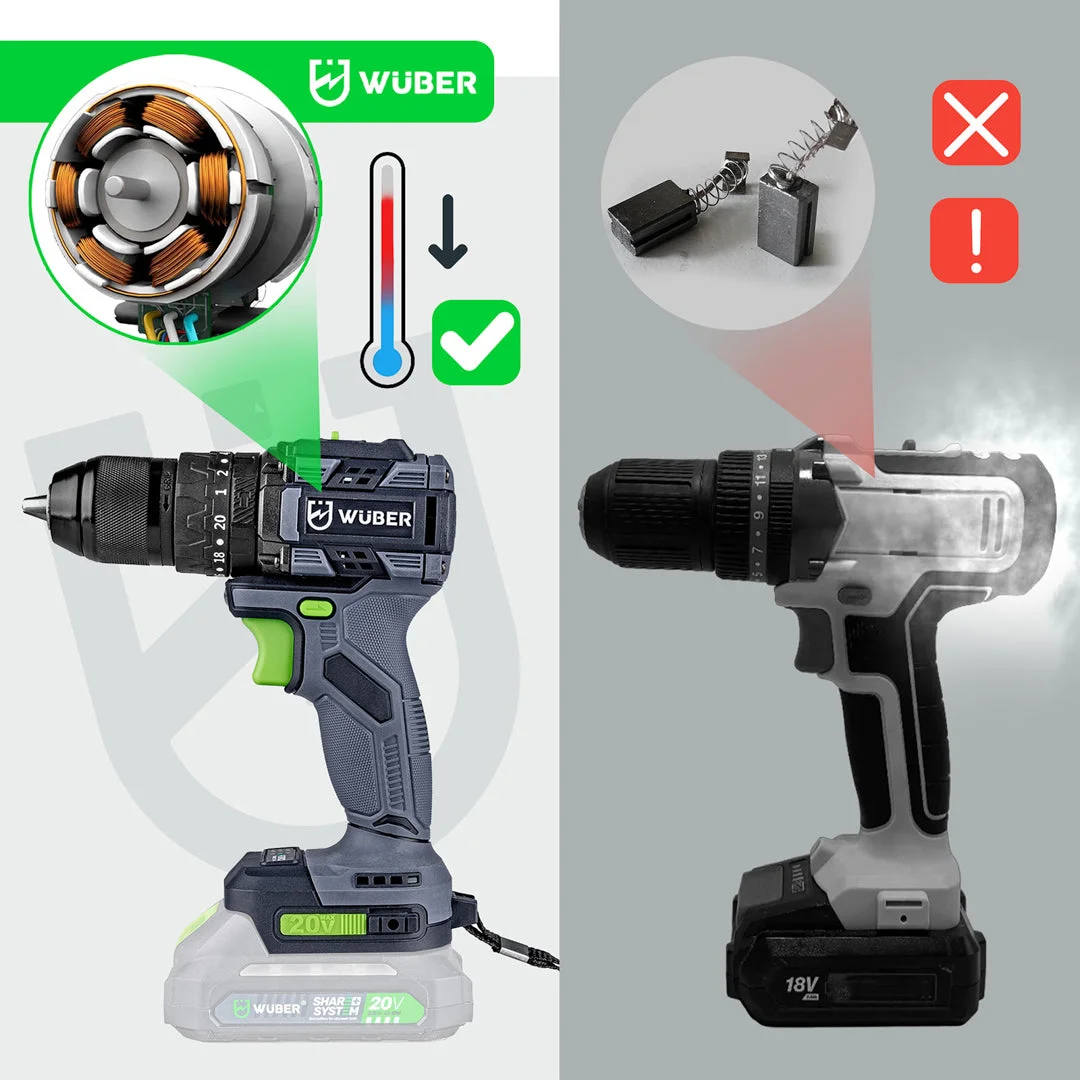

A weight of 1.4 kg (net, without battery) and the compact housing make it easy to handle in confined spaces. The brushless motor and the reinforced housing with optimised ventilation are built for regular use.

Technical Specifications

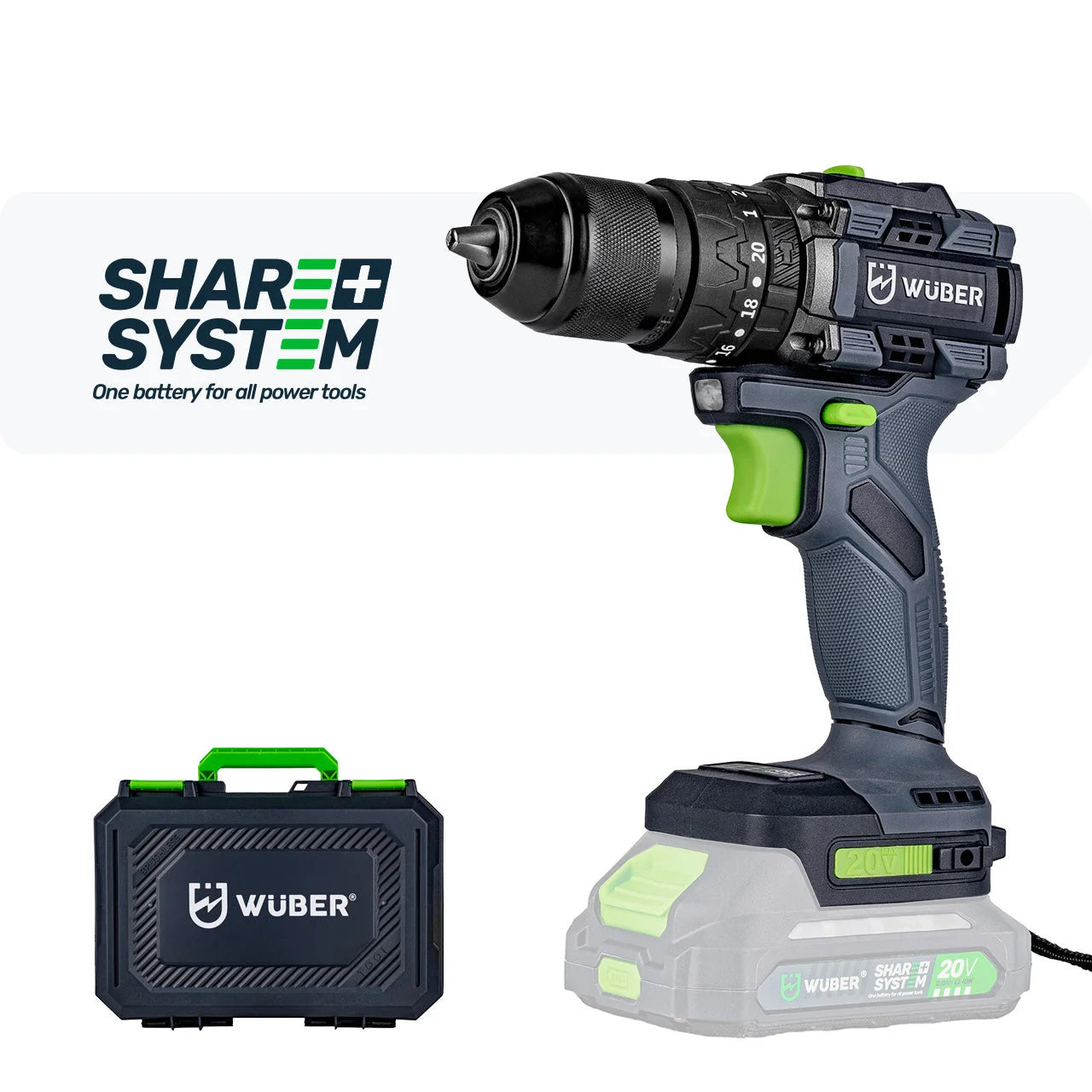

Package Contents

• Combi drill (tool only)
• Carrying case
• Original packaging

A fit for: Carpenters, fitters, construction workers, service technicians, maintenance mechanics.

Typical settings: Construction, timber-frame and interior fitting, workshop industry, property maintenance.

Frequently Asked Questions (FAQ)

Are battery and charger included with combi drill W04523?

No. Combi drill W04523 is supplied as a tool-only version without battery and charger. It fits 20 V batteries in the Share+ System from Wuber. A carrying case is included in the package.

How many clutch settings and what speeds does combi drill W04523 have?

Combi drill W04523 has 20+1+1 clutch settings and two gears. Gear 1 runs at 0-500 rpm and gear 2 at 0-1700 rpm. Maximum torque is 50 Nm.

What sets combi drill W04523 apart from other combi drills?

Combi drill W04523 has a brushless motor, a 13 mm chuck and 20+1+1 clutch settings in a tool-only machine weighing 1.4 kg. It belongs to the Share+ System and shares 20 V batteries with other tools on the platform.
