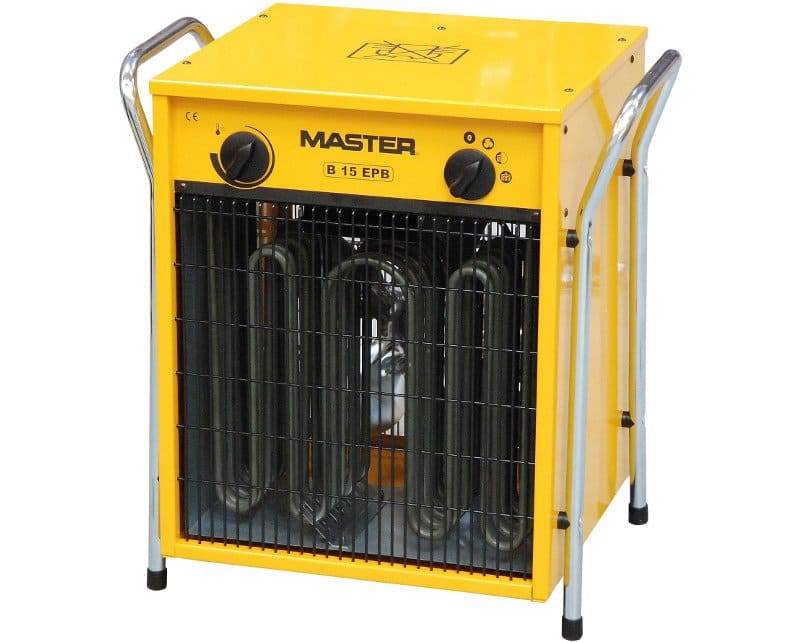

Construction Fan 15 kW 400V with Thermostat, 1700 m³/h, IP24, Master

Quick Facts

• Power: Two heating modes (7.5 kW / 15 kW) and one fan mode
• Voltage: 400V / 50Hz (3-phase)
• Airflow: 1700 m³/h for efficient heat distribution
• Capacity: Heats areas up to 150 m²
• Thermostat: Built-in and adjustable between 5-35°C
• Protection Class: IP24, protected against water splashes
• Construction: Robust metal casing with carrying handle

What is a 15 kW Construction Fan and why choose it?

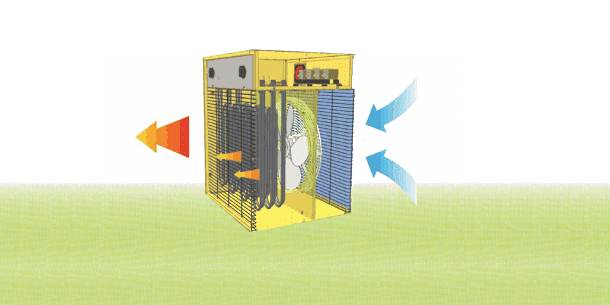

A construction fan is a portable and powerful heat source designed to quickly and efficiently heat larger, temporary spaces. This Master model is a reliable electric fan heater that delivers up to 15 kW of heating power. It should be chosen for its robust metal construction and high airflow of 1700 m³/h, which ensures fast and even heat distribution. The built-in thermostat allows for precise temperature control and energy-efficient operation, while safety features such as an overheating thermostat and reset button ensure safe use in demanding environments.

Which environments is the product suitable for?

This construction fan is designed for professional use and is well-suited for a variety of environments where temporary heating is required. Its durable construction and high capacity make it suitable for:

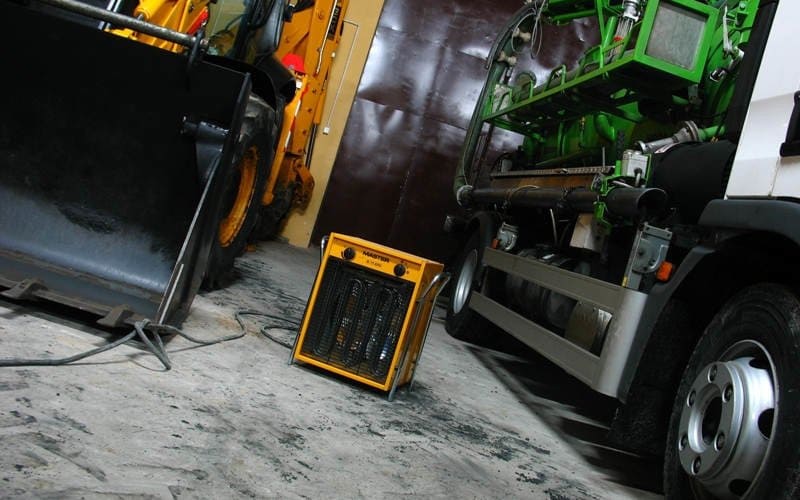

• Construction sites for drying and heating
• Warehouses and logistics halls

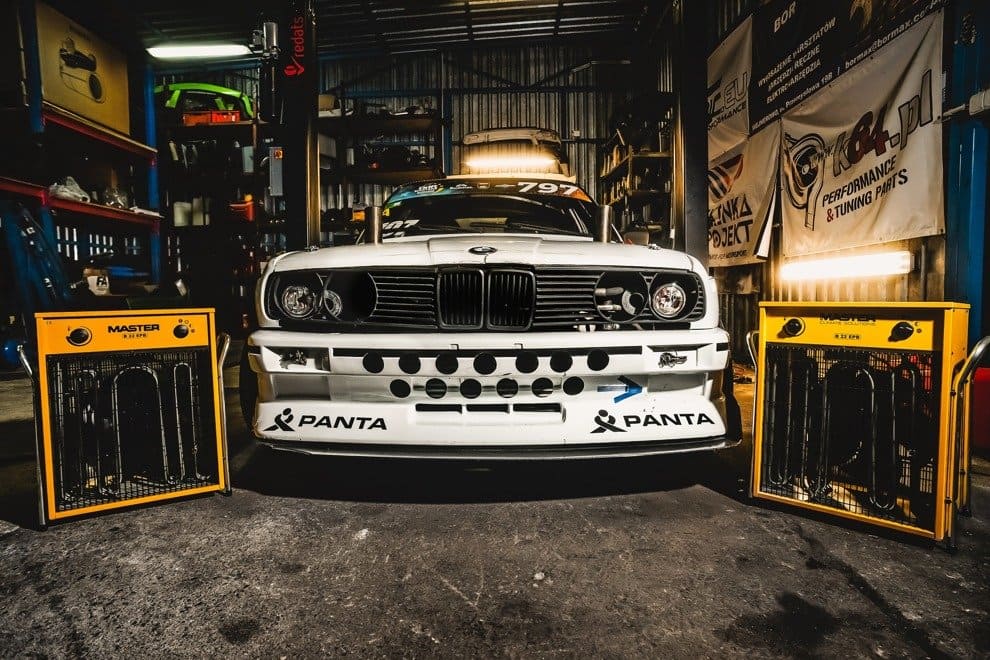

• Workshops and garages
• Larger event tents and pavilions
• Agricultural buildings and barns

Technical Specifications

Frequently Asked Questions (FAQ)

What type of electrical connection is required for this construction fan?

The fan requires a 3-phase 400V connection and connects with a 32A plug (5-pin). A standard 230V connection is not sufficient to power the unit.

Can the fan be used without heat, for air circulation only?

Yes, the product has a separate fan mode. This allows you to use it to circulate air in a room during warmer periods or to assist with ventilation.

Is the fan heater safe to use in dusty environments?

Yes, it is designed for demanding environments such as construction sites. It has an IP24 protection class, meaning it is protected against water splashes, and is equipped with an overheating thermostat that automatically shuts off the unit if it gets too hot.
