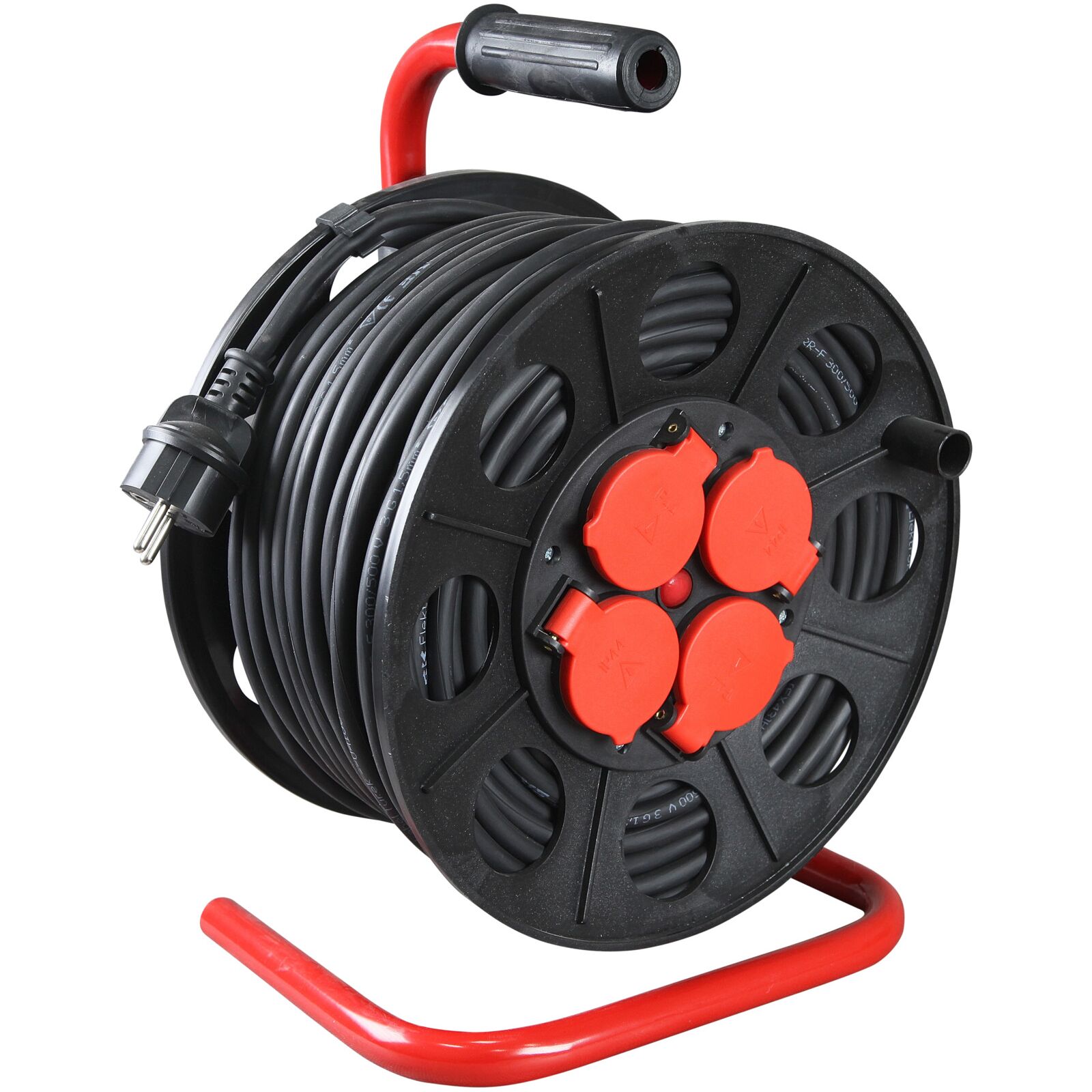

Cable Reel IP44 3 x 2.5 mm² 25 m 4 Earthed Sockets Plastic Drum

Quick Facts — 46647 Cable reel

• Model: 46647
• EAN: 5907570023130
• Type: Cable reel with plastic drum
• Cable length: 25 m
• Cable cross-section: 3 x 2.5 mm²
• Protection class: IP44
• Sockets: 4 earthed sockets

Cable reel 46647 is a plastic drum with 25 m of 3 x 2.5 mm² cable and four earthed sockets, built to power several tools from one point on site.

Protection class IP44 gives protection against objects over 1 mm and against water splashes from all directions. The drum stores the cable wound up and lets it be pulled out to the required length.

What sets cable reel 46647 apart?

Four earthed sockets on a single drum let several machines be connected at once, and the 3 x 2.5 mm² cable is 25 m long. The drum is plastic and the reel is packed in a cardboard box. What sets it apart from simpler extension leads is the combination of:

• plastic drum for storing and unreeling the cable
• 4 earthed sockets
• protection class IP44
• 25 m cable with a 3 x 2.5 mm² cross-section

Is cable reel 46647 suited to building sites and outdoor work?

Yes, IP44 means protection against water splashes from all directions, which suits outdoor use in normal weather but not hosing down or immersion. The maximum load is 920 W 4 A with the cable wound up. With the cable fully extended, a higher load applies.

Technical Specifications

Chosen by: Electricians who need several sockets on site. Construction workers running hand tools away from a fixed outlet. Civil engineering workers operating outdoors. Maintenance staff needing mobile power.

Found in: Building and construction. Civil engineering and groundwork. Property maintenance. Renovation and refurbishment. Outdoor installation work.

Frequently Asked Questions (FAQ)

Can cable reel 46647 run at full power with the cable wound up?

No. With the cable wound up the maximum load is 920 W 4 A. A higher load is only possible with the cable fully extended, so the drum should be unreeled completely for power-hungry machines.

Does cable reel 46647 withstand rain and hosing down outdoors?

Yes for water splashes from all directions, as the reel is rated IP44. IP44 does not cover hosing down or immersion, and it protects against objects over 1 mm.

How does cable reel 46647 differ from other extension leads?

Cable reel 46647 has a plastic drum with 25 m of 3 x 2.5 mm² cable and four earthed sockets, giving several connection points and stored cable in one unit. A plain extension lead usually has a single socket and no drum.
