Cross Laser 1 Laser 2 Lines IP 54 Range 25 m ±1.5mm/5m CE, Proline

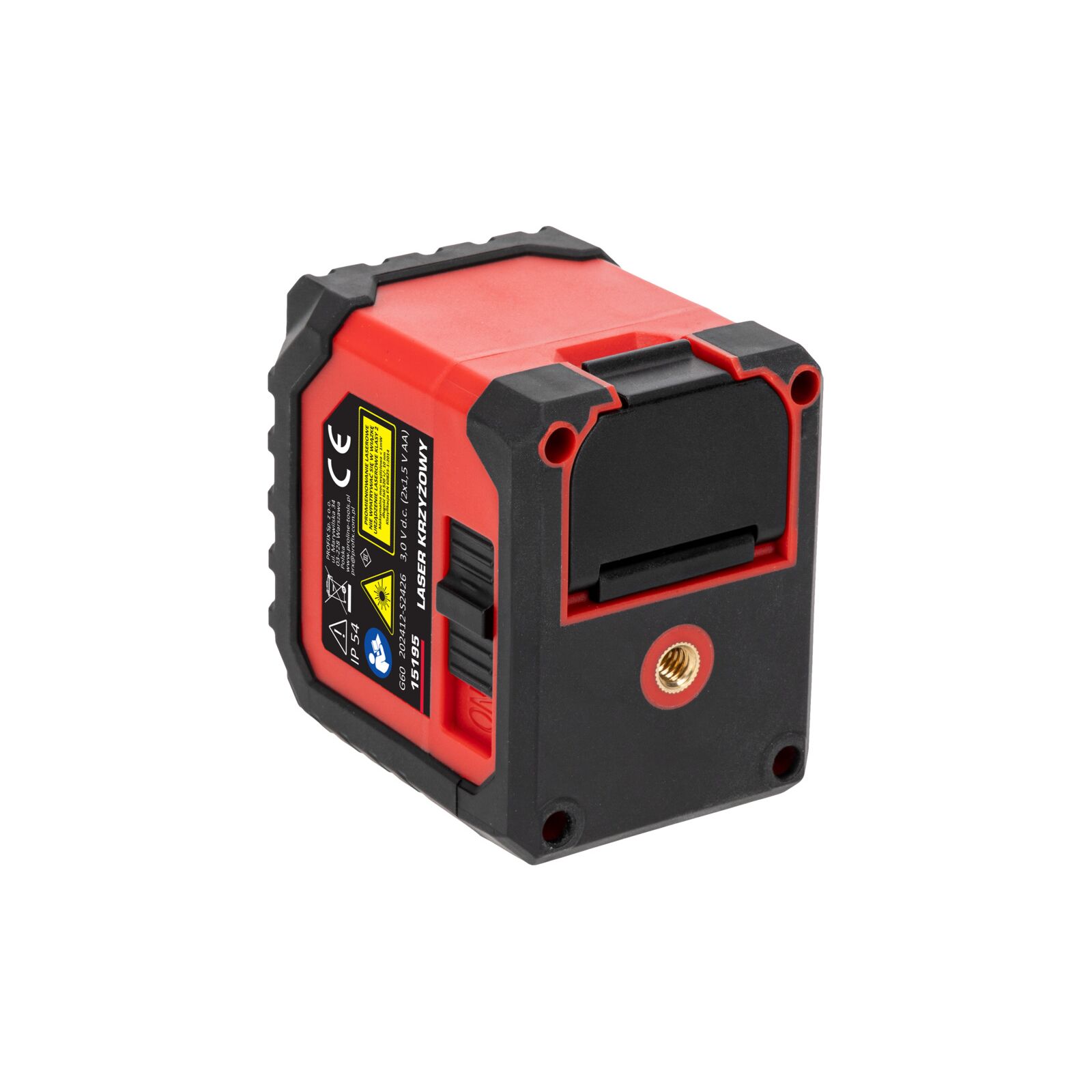

Quick Facts — 15195 Cross laser

• Model: 15195
• EAN: 5903755193216
• Type: Cross laser, 1 laser, 2 lines
• Accuracy: ±1.5mm/5m
• Range: up to 25 m
• Protection class: IP 54

Cross laser with one laser source and two lines for marking plumb and level indoors, with accuracy of ±1.5mm/5m and a range of up to 25 m. The Proline 15195 self-levels within ±3°±1 with a levelling time under 3 s.

The lockable pendulum allows sloped lines to be set out. The 1/4" and 5/8" threads allow the laser to be mounted on tripods, and the wall bracket with magnets is an alternative when no tripod is used.

Why installers and carpenters choose cross laser 15195

The cross laser gives fast set-up for plumb and level, since it levels itself within ±3°±1 in under 3 s. The green beam with a wavelength of 520±10nm and a power of no more than 1 mW gives a clear line at ranges of up to 25 m.

What matters in practical use is:

• accuracy of ±1.5mm/5m
• pendulum lock that permits sloped lines
• tripod thread of 1/4" and 5/8" and a wall bracket with magnets

Is cross laser 15195 suited to indoor work and tripod mounting?

Yes, the laser is intended exclusively for indoor use and can be mounted on tripods with a 1/4" or 5/8" thread. Protection class IP 54 protects against dust and splashes, but not against hosing down. Power comes from 2 x 1.5 V batteries of type AA.

Technical Specifications

Package Contents

• Cross laser
• Wall bracket with magnets
• 5/8" adapter
• Case

Suitable for: Electricians fitting luminaires on ceilings and walls. Joiners aligning cabinets and worktops. Tilers marking level on floors and walls. Plasterboard fitters setting out track.

Industries: Electrical installation. Carpentry. Tiling. Plasterboard fitting. Interior fit-out.

Frequently Asked Questions (FAQ)

Is cross laser 15195 suited to outdoor work?

No, cross laser 15195 is intended exclusively for indoor use. The range is up to 25 m and protection class IP 54 protects against splashes but not against hosing down.

How quickly does cross laser 15195 level itself?

Cross laser 15195 self-levels within ±3°±1, and the levelling time is under 3 s. Accuracy of ±1.5mm/5m then applies.

How does cross laser 15195 differ from other cross lasers?

Cross laser 15195 has one laser with two lines and a pendulum lock that permits sloped lines. Model 15196 allows the vertical and horizontal beams to be switched on separately, which does not apply to this model.
