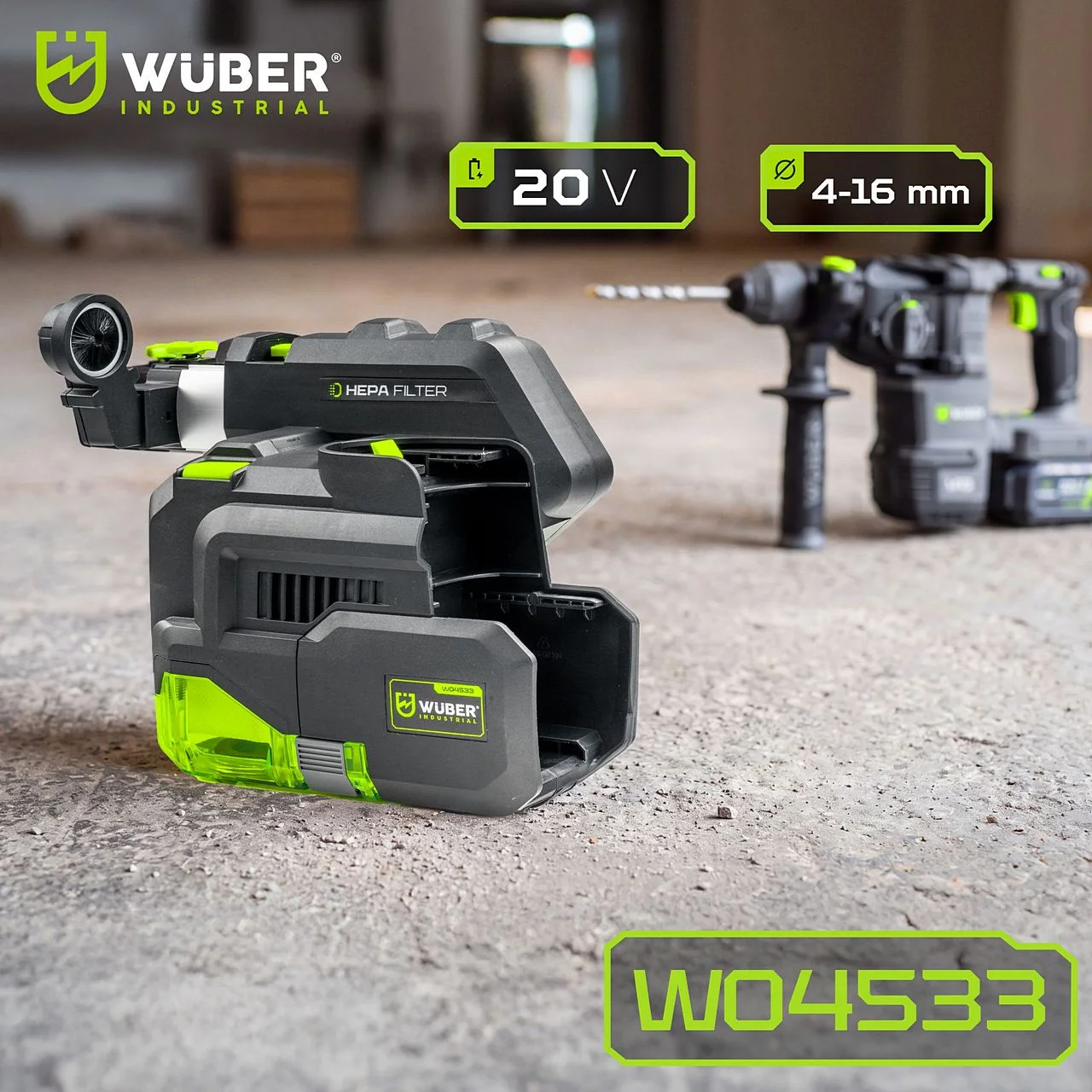

Dust Extractor for Rotary Hammer 4-16 mm, HEPA Filter, LED Light, 20 V, Wuber Tools

Quick Facts — W04533 Dust extractor

• Model: W04533
• EAN: 5906436762084
• Type: Dust extractor for rotary hammer
• Filter: HEPA
• Drill bit diameter: 4-16 mm

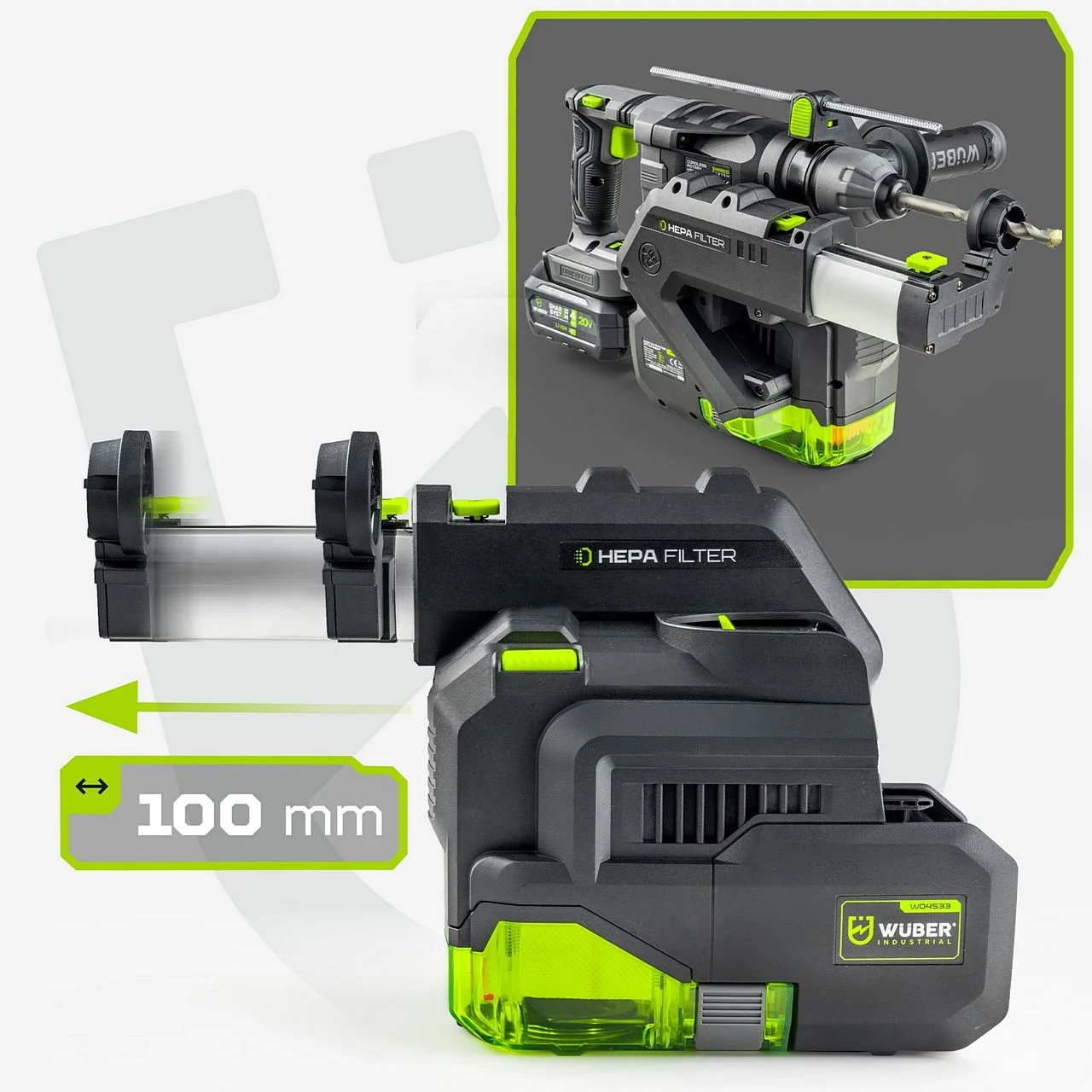

• Max. drilling depth: 100 mm
• Lighting: LED
• Weight (net): 1.3 kg

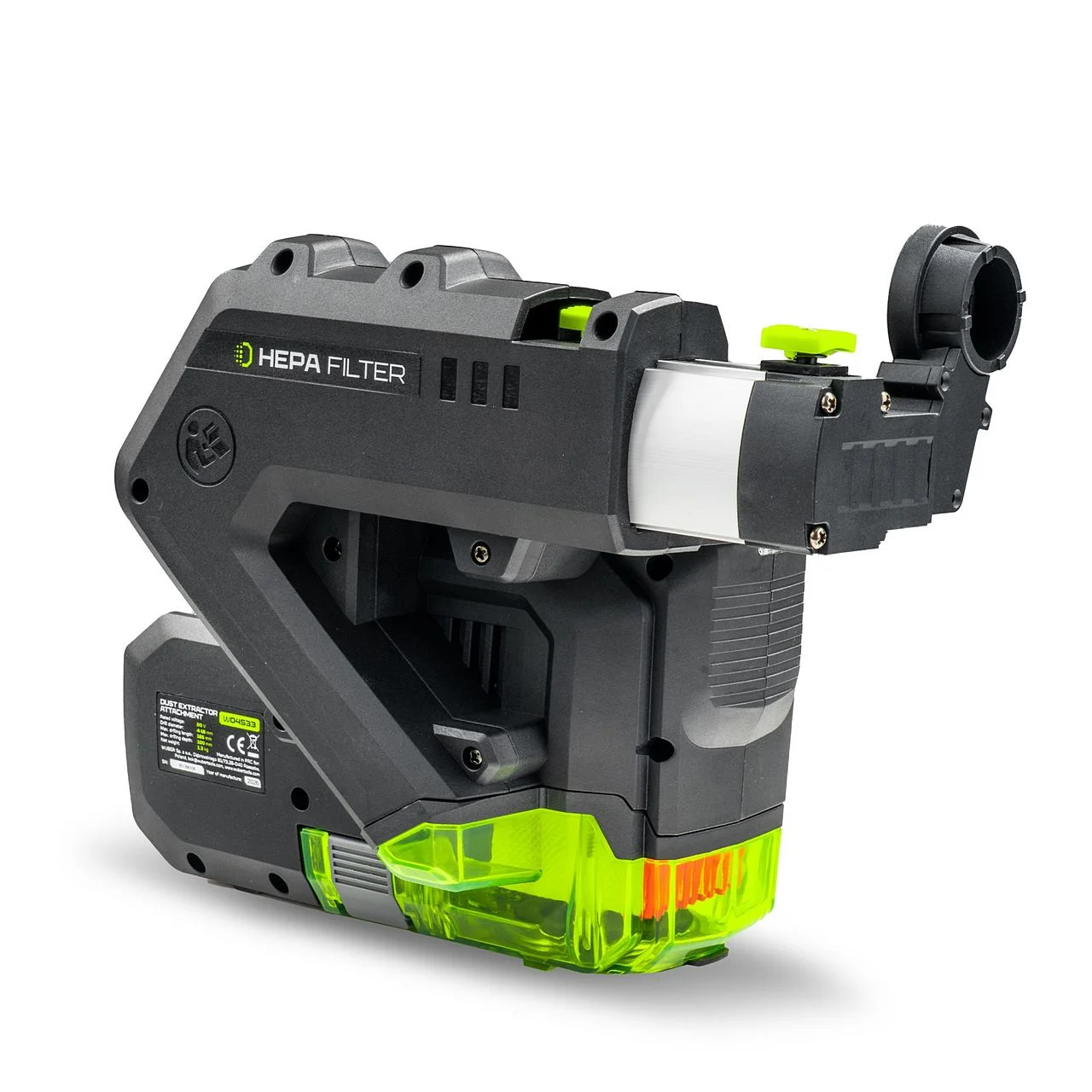

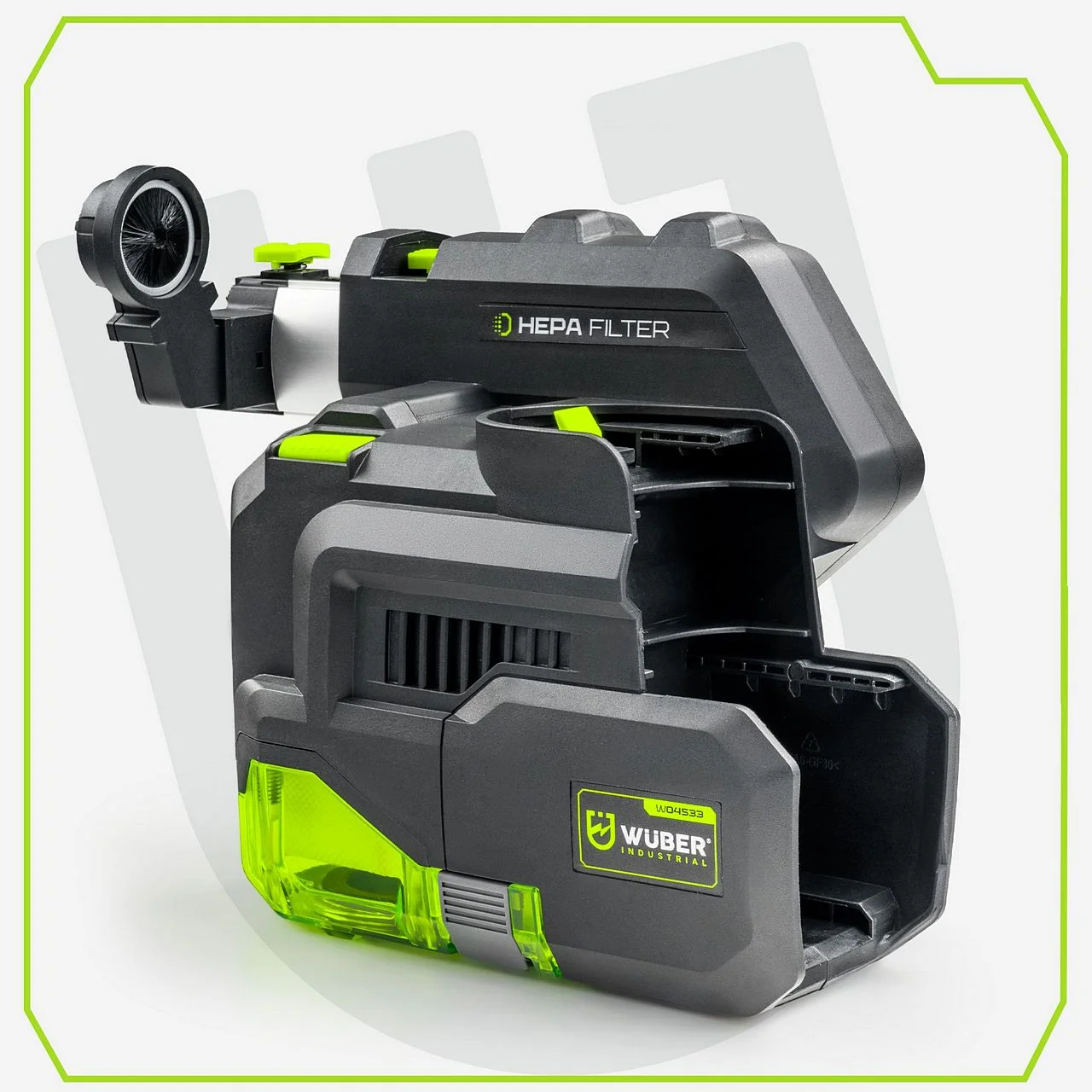

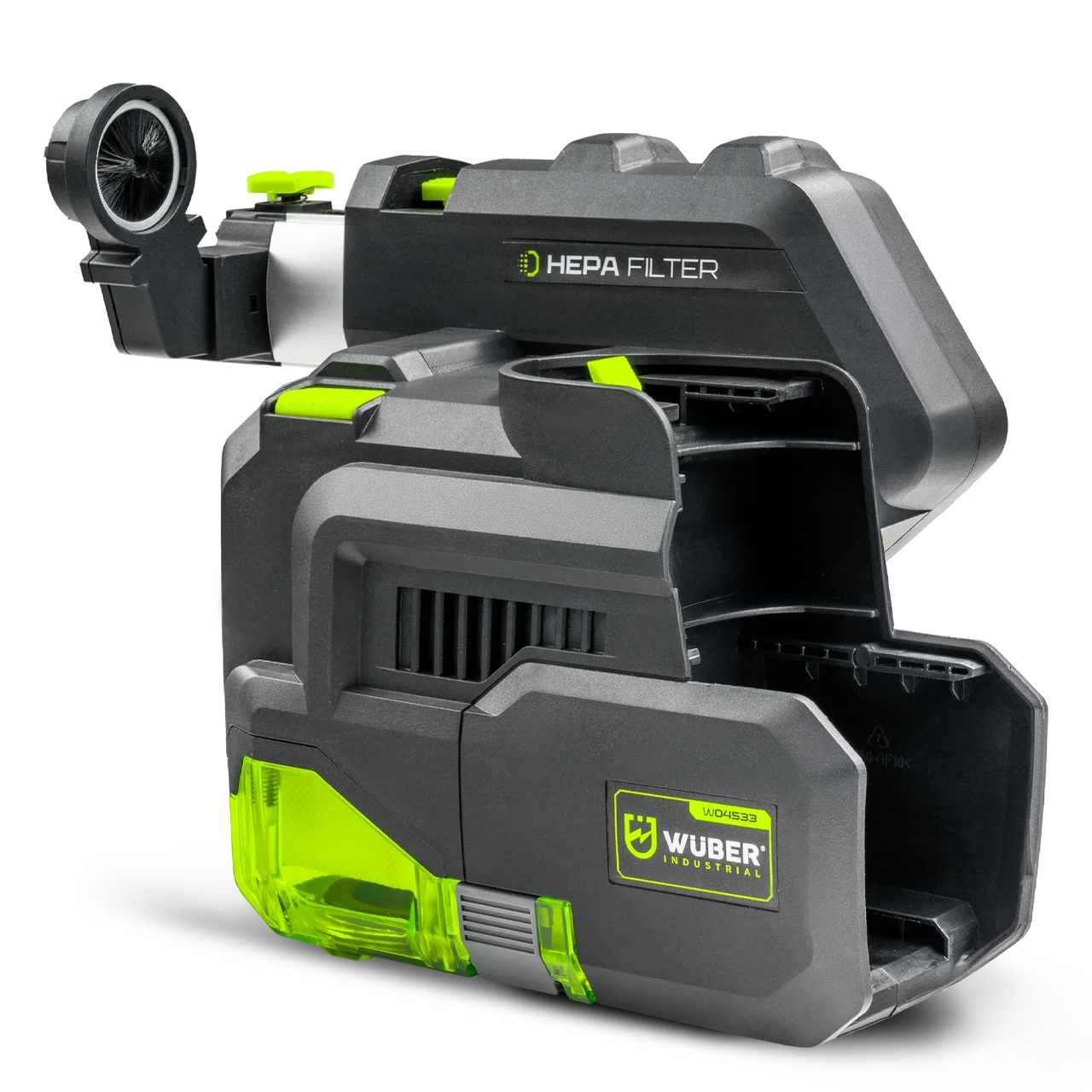

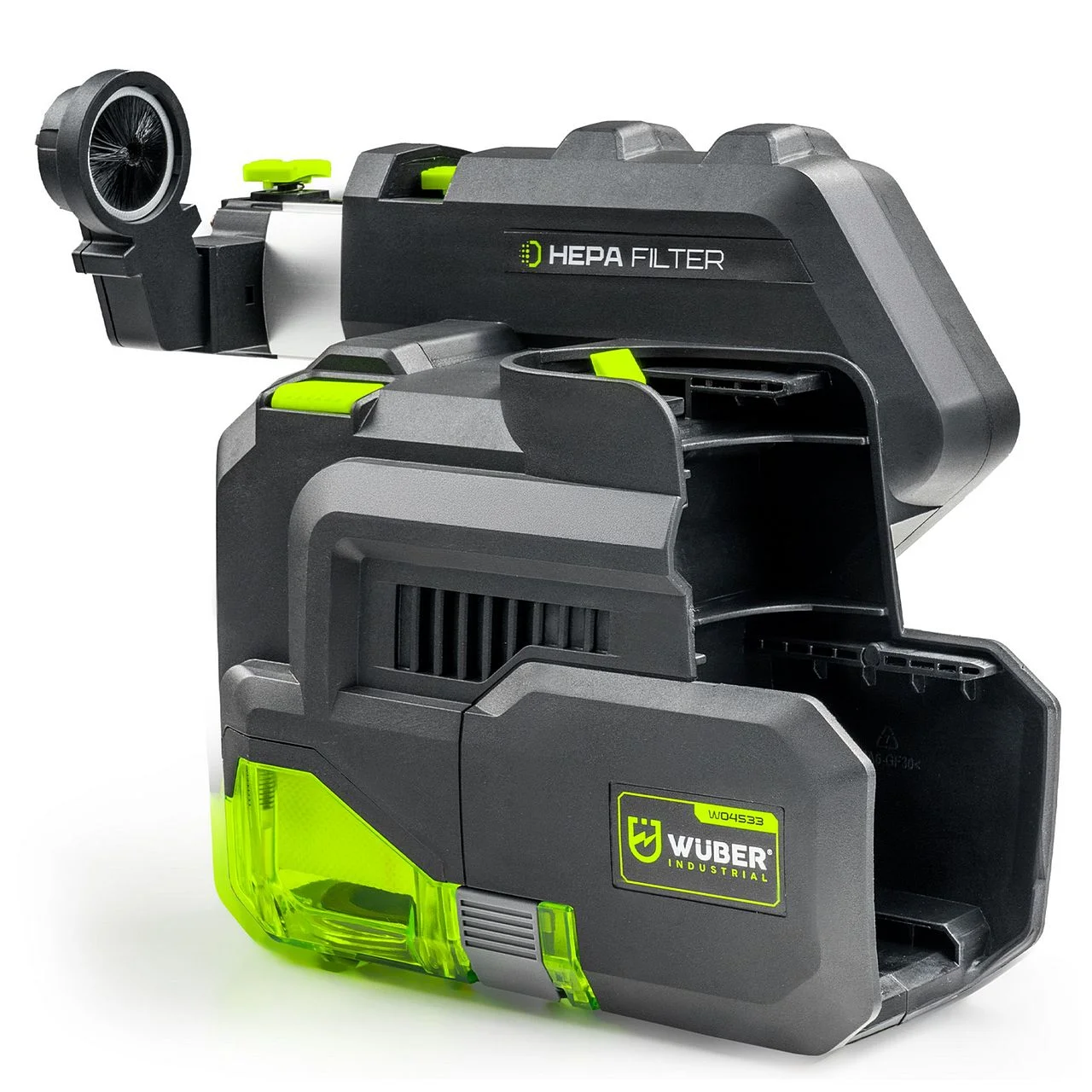

Dust extractor W04533 from Wuber Tools is an attachment for the W04532 rotary hammer that removes drilling dust right at the hole, with a HEPA filter and integrated LED light. It covers bits of 4-16 mm diameter and holes up to 100 mm deep.

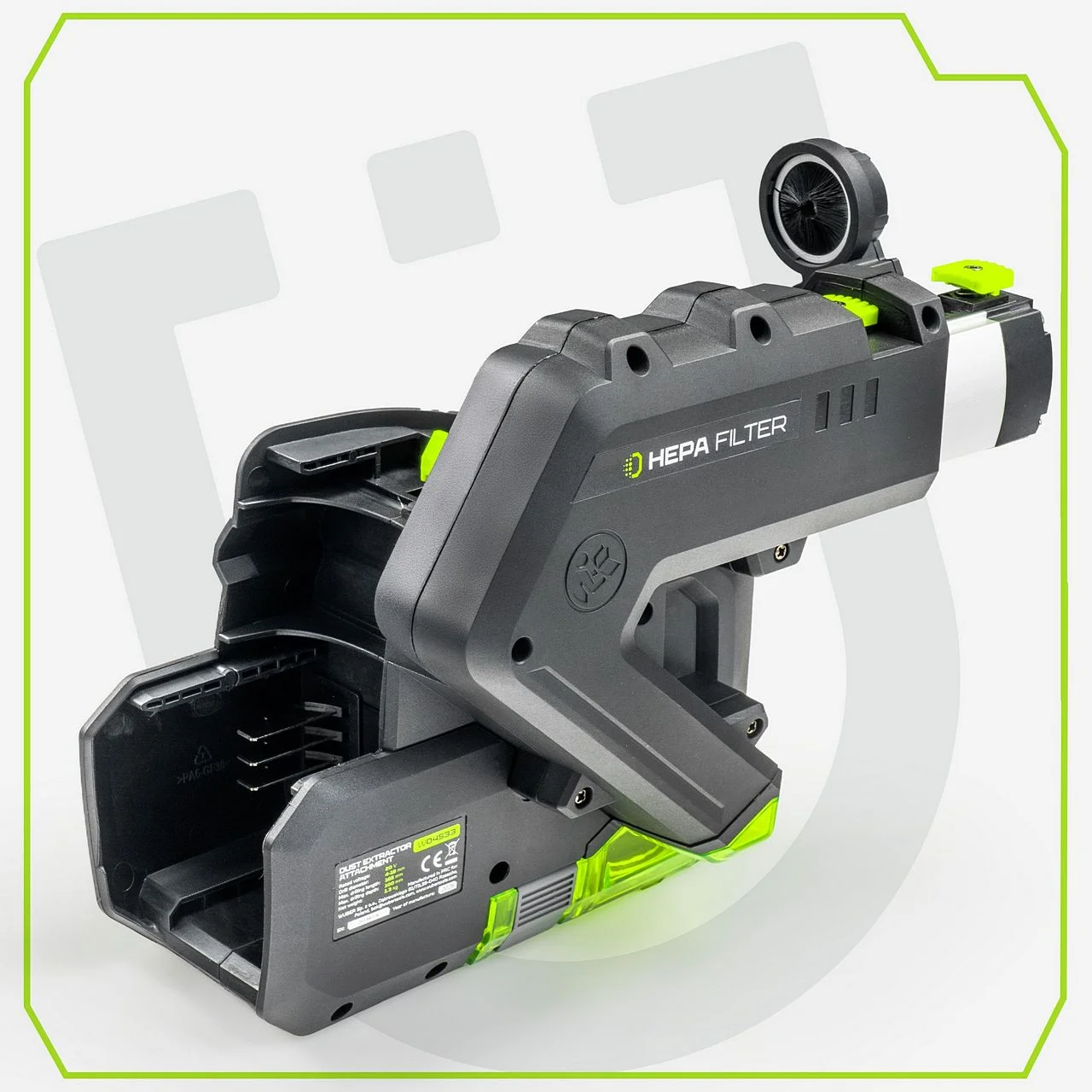

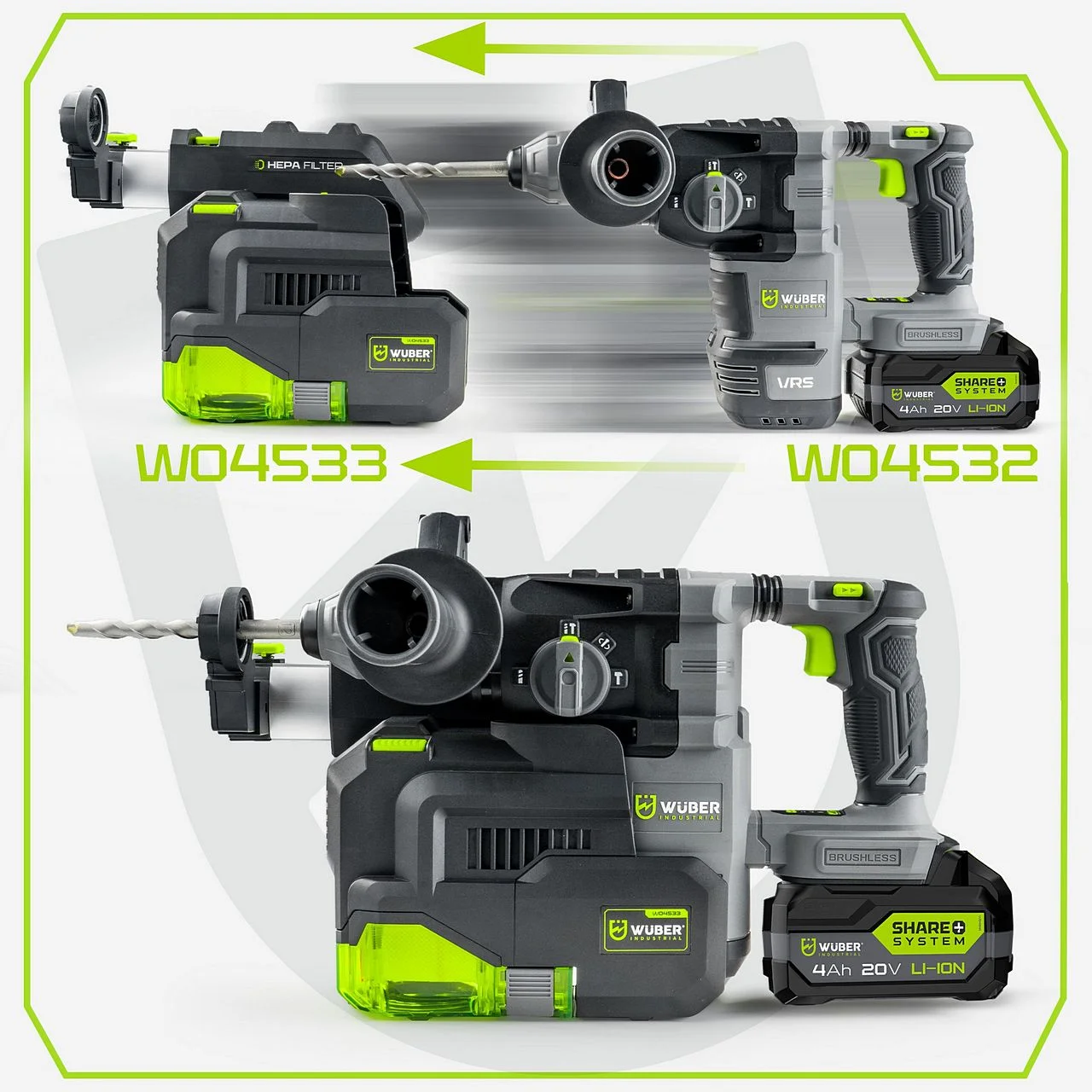

The extractor mounts in the rotary hammer's guide groove and is powered through the hammer's contacts. It has no battery of its own and weighs 1.3 kg.

What sets dust extractor W04533 apart?

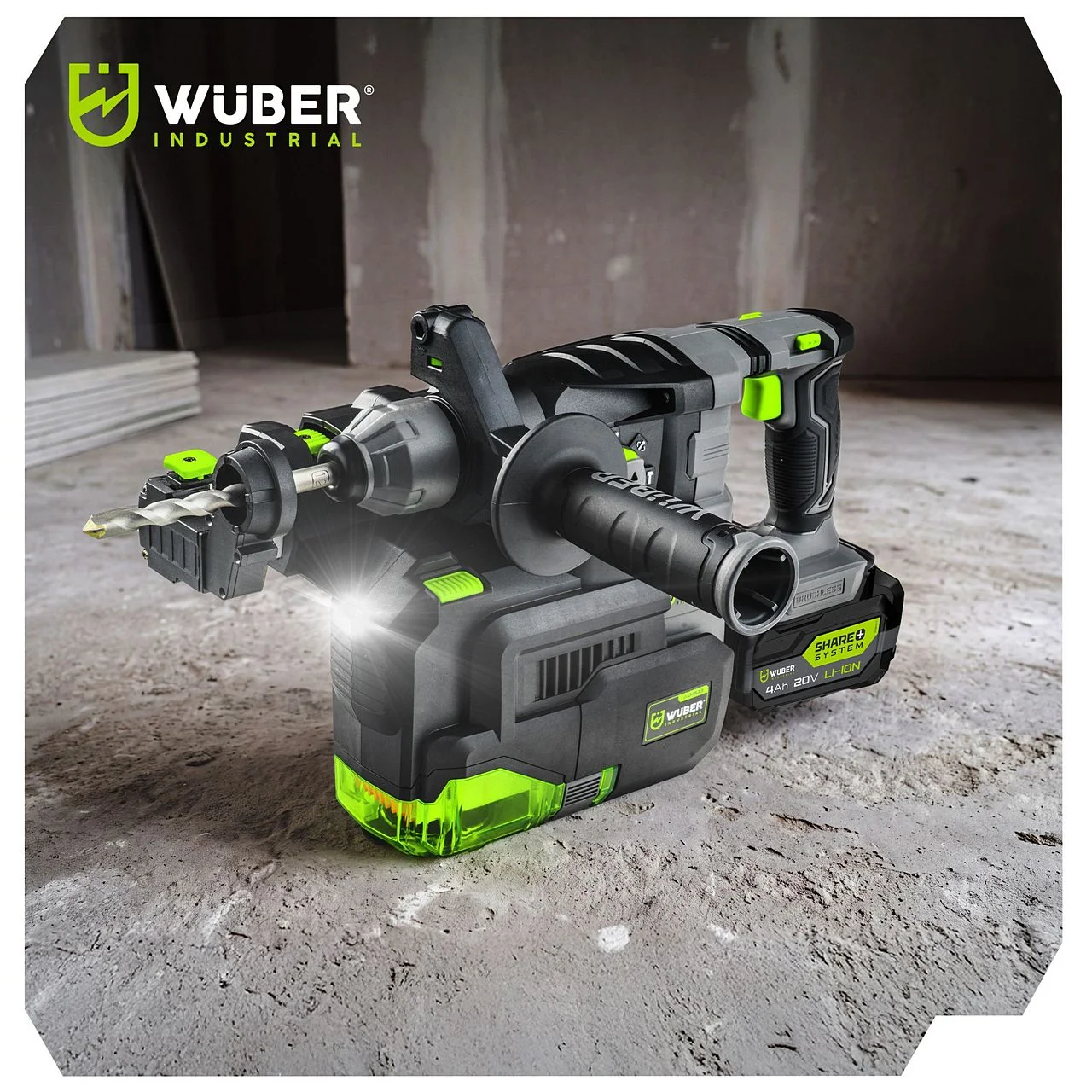

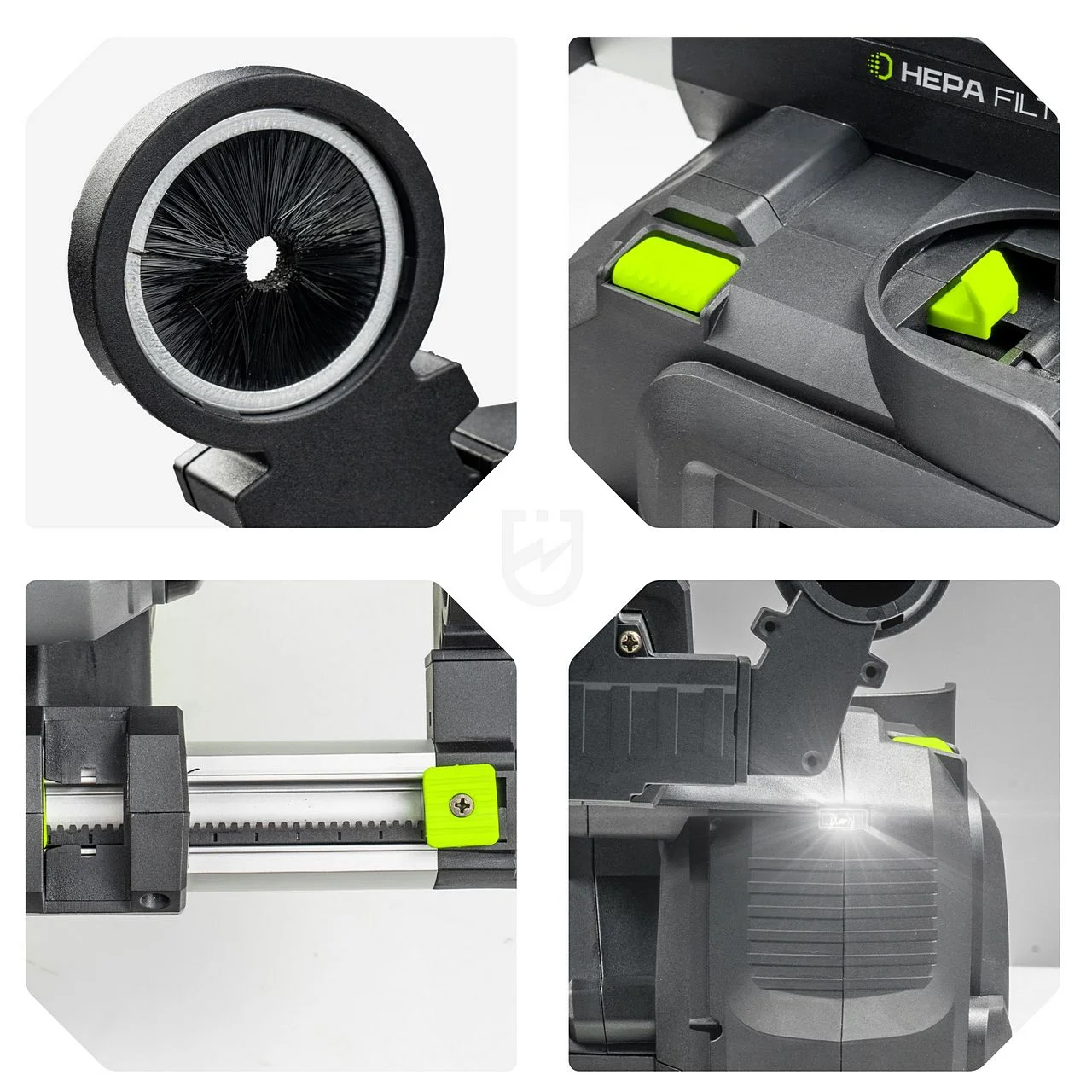

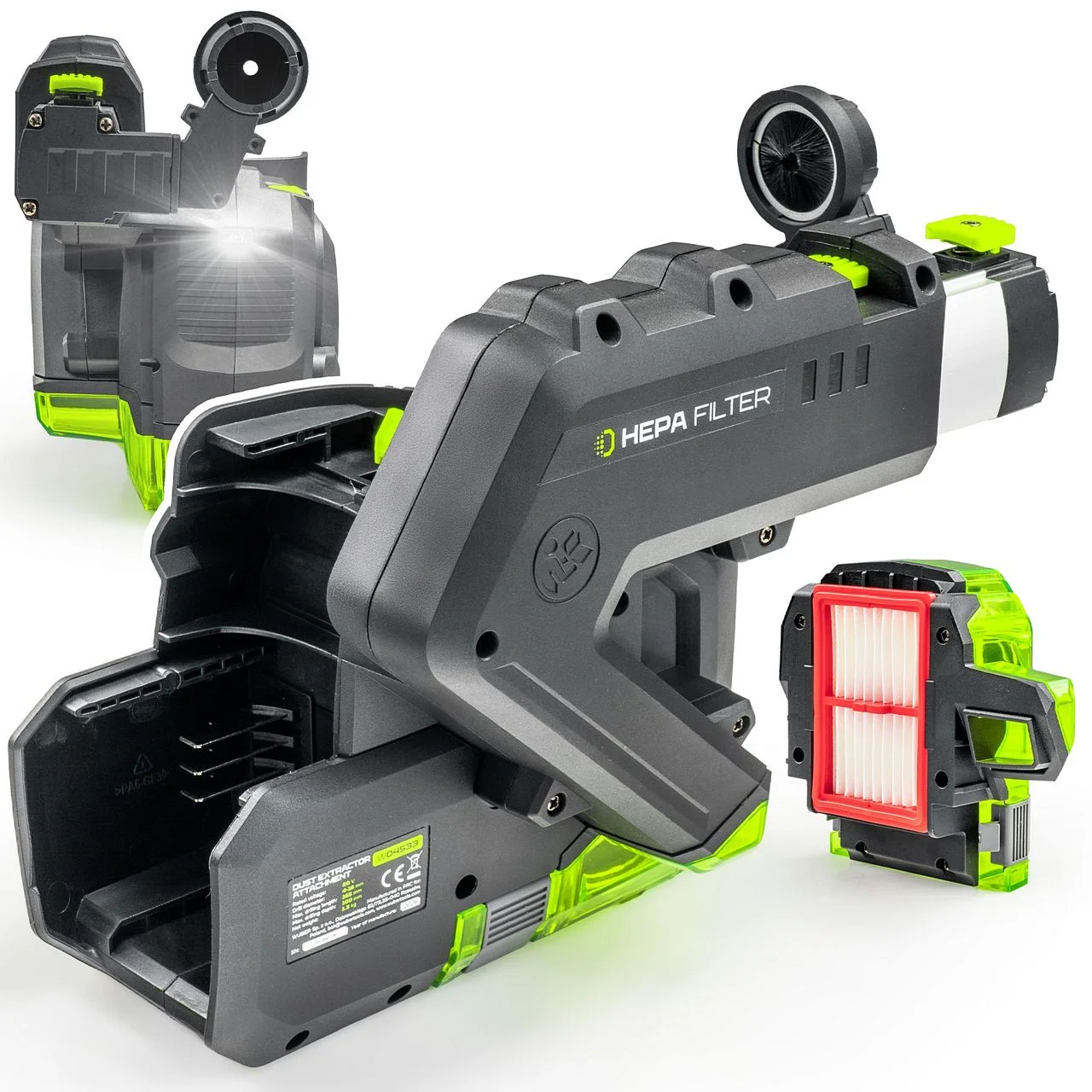

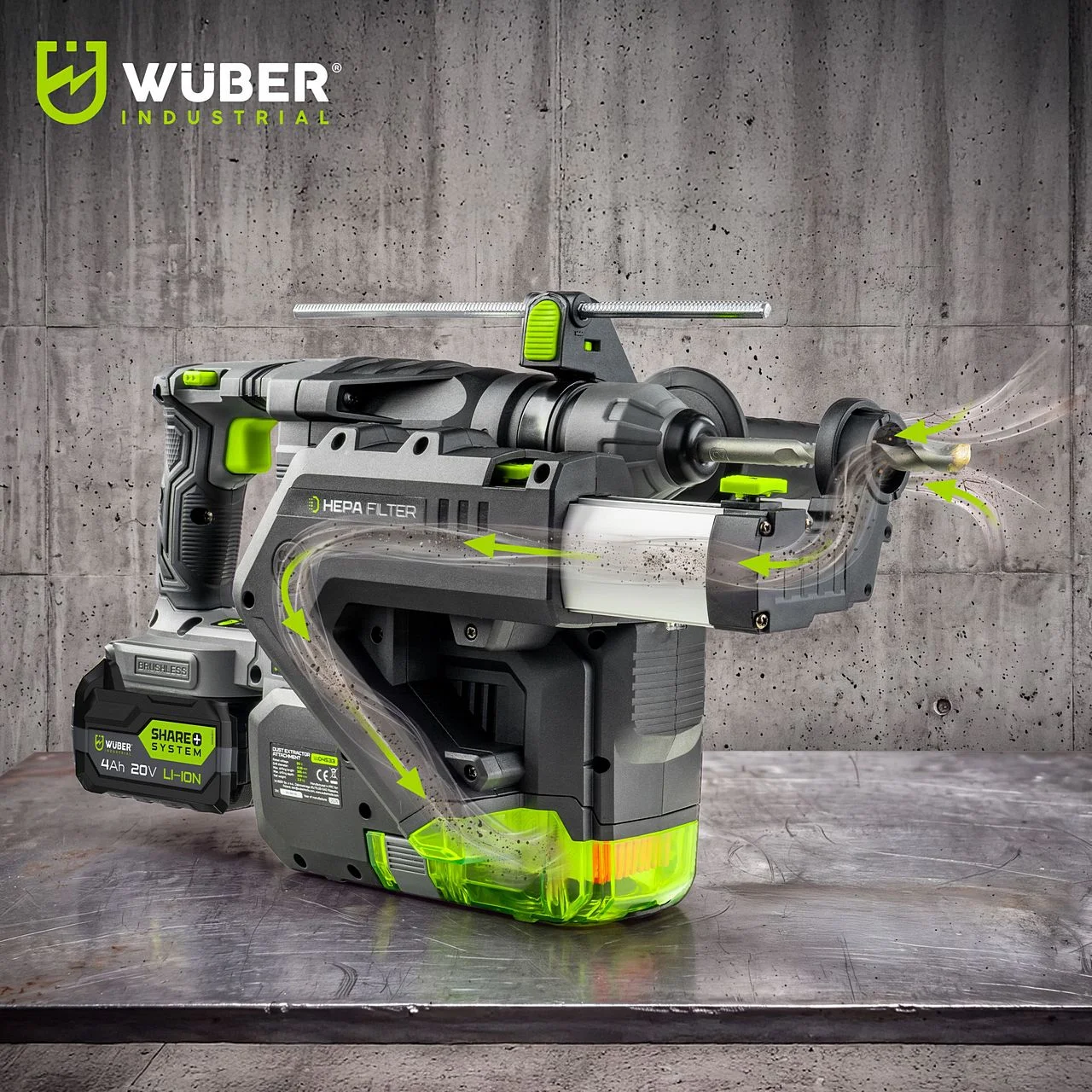

The extractor captures dust the moment it is produced, which stops it settling in the room. Up to 95% of the dust is extracted, and the pleated HEPA filter retains fine particles. The extraction head has a brush ring that seals around the bit, and the LED light illuminates the drilling point in poor lighting.

Further features that help in use:

• Depth stop with two settings for repeatable holes for plugs and anchors

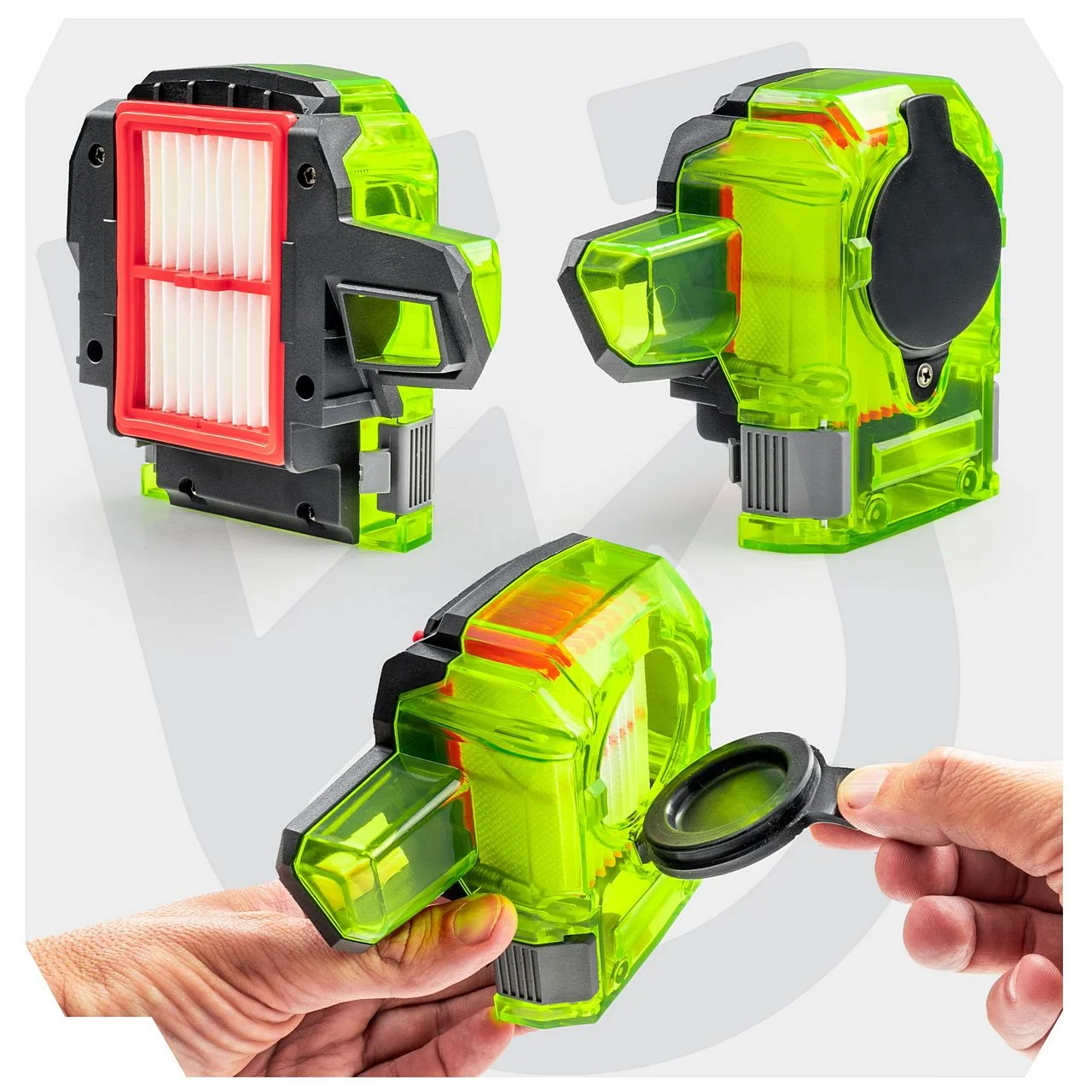

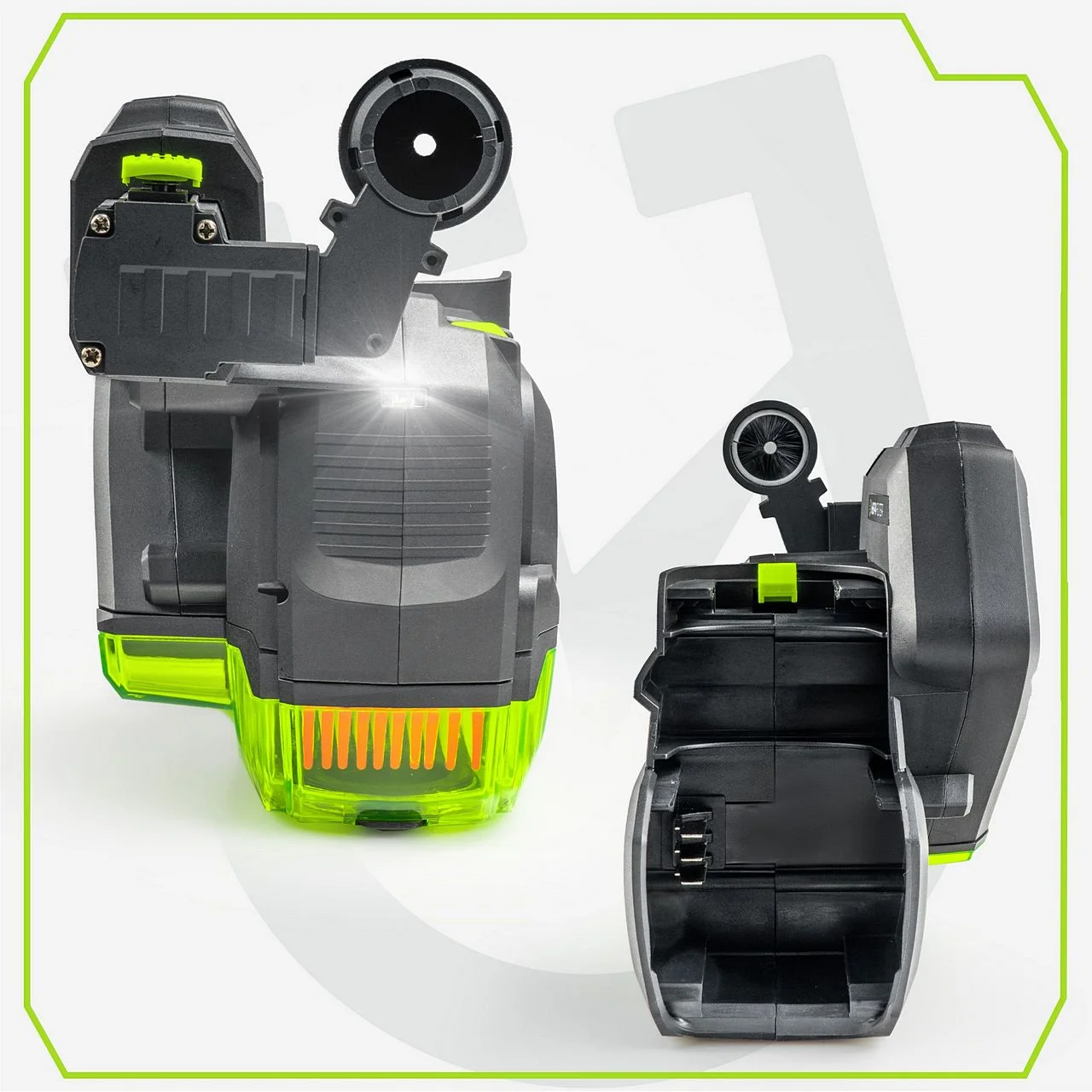

• Transparent container that shows the fill level without being removed

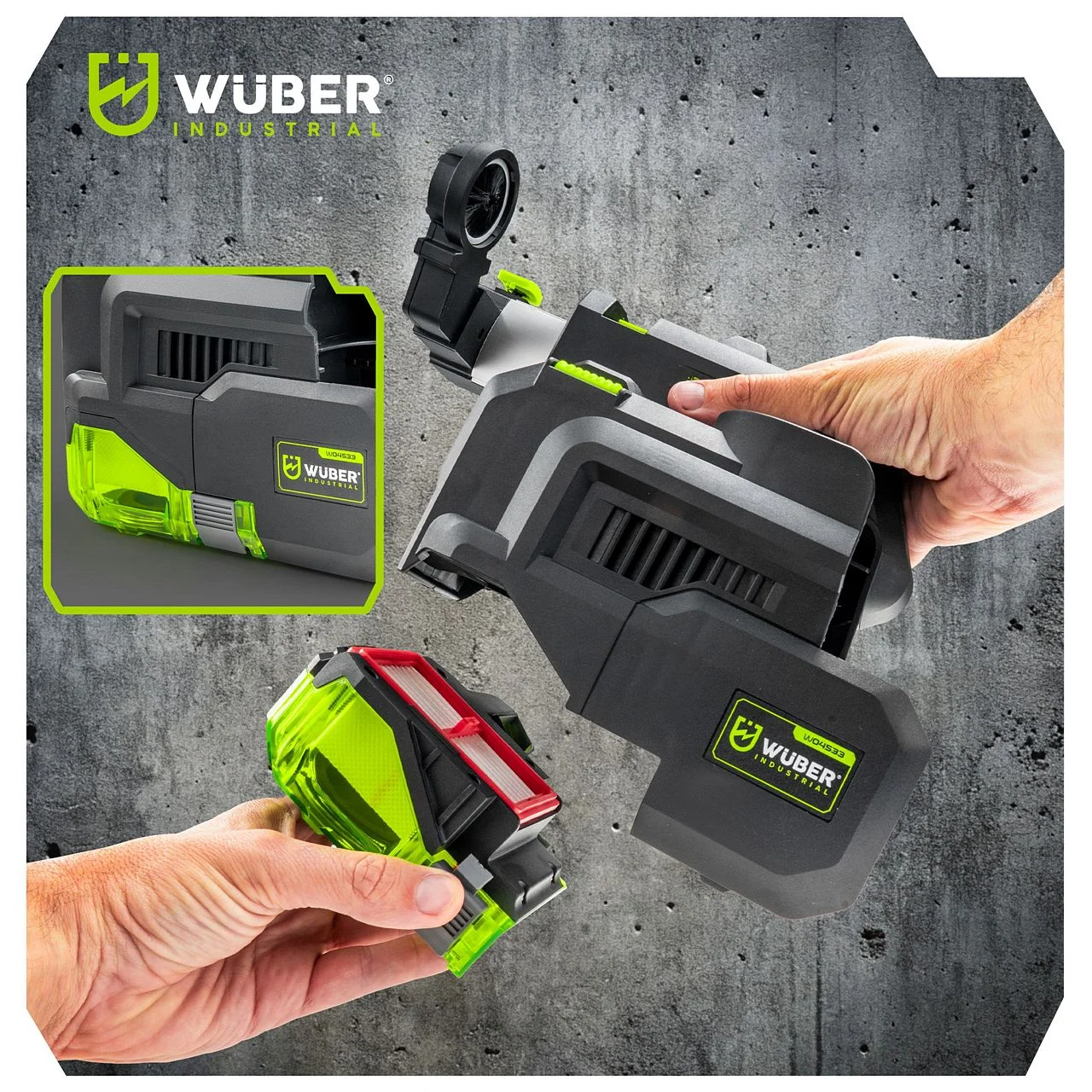

• Detachable container with a bottom outlet opening for easy emptying
• Snap-on mount that seats firmly on the rotary hammer body

How dust extractor W04533 is used when drilling in concrete and brick

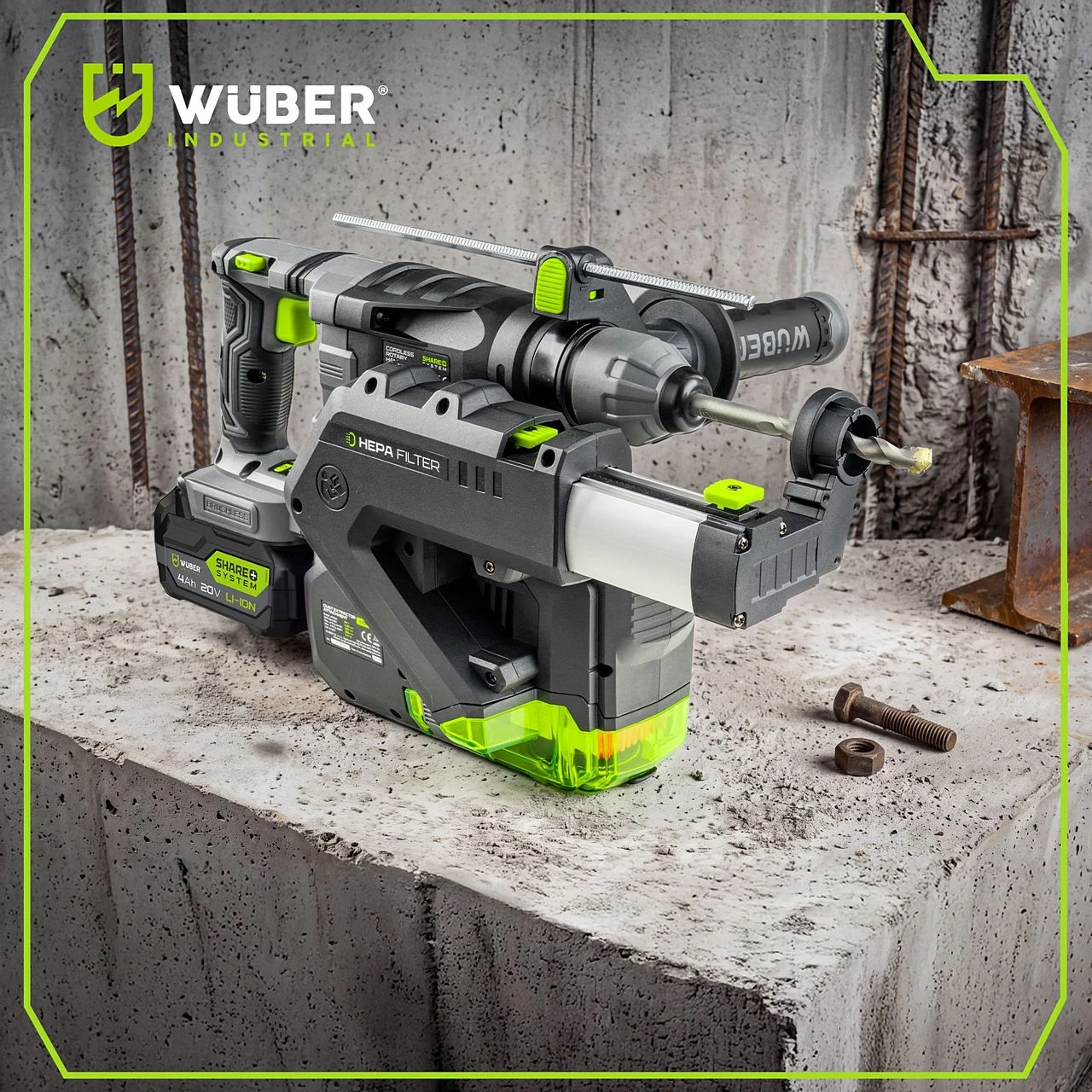

The extractor is intended for drilling in concrete, brick, plaster and natural stone with the W04532 rotary hammer. Bits up to 165 mm in length and 4-16 mm in diameter can be used, and drilling depth is limited to 100 mm.

Low dust reduces the cleaning needed after drilling. It is especially useful for serial drilling of holes for plugs and anchors, where the depth stop gives uniform holes.

Technical Specifications

Package Contents

• Dust extractor
• Extraction head with brush ring
• Original packaging

Suitable for: Electricians drilling for fixings in concrete. Installers setting plugs and anchors in series. Construction workers drilling indoors in brick and plaster. Fitters drilling in natural stone.

Industries: Electrical installation. Construction. Ventilation installation. Renovation and refurbishment.

Frequently Asked Questions (FAQ)

Does dust extractor W04533 work with rotary hammers other than the W04532?

No. Dust extractor W04533 is built for the Wuber W04532 rotary hammer and is powered through its contacts. It has no battery of its own, and the rotary hammer, battery and charger are not included.

Which bits and holes does dust extractor W04533 handle?

Dust extractor W04533 is intended for bits of 4-16 mm diameter and at most 165 mm in length. Maximum drilling depth is 100 mm.

What separates dust extractor W04533 from other rotary hammer dust extractors?

Dust extractor W04533 is powered by the rotary hammer's battery and weighs 1.3 kg with no battery of its own. It has a HEPA filter, LED light, a brush ring on the extraction head and a two-setting depth stop.
