Dust Shroud for Angle Grinder 115-125 mm, Adapters 51/47/42/39 mm, M14, Wuber Tools

Quick Facts — W29002 Angle grinder dust shroud

• Model: W29002
• EAN: 5905873300842
• Type: Dust shroud with brush edge
• Compatible with: Angle grinders 115-125 mm
• Thread: M14

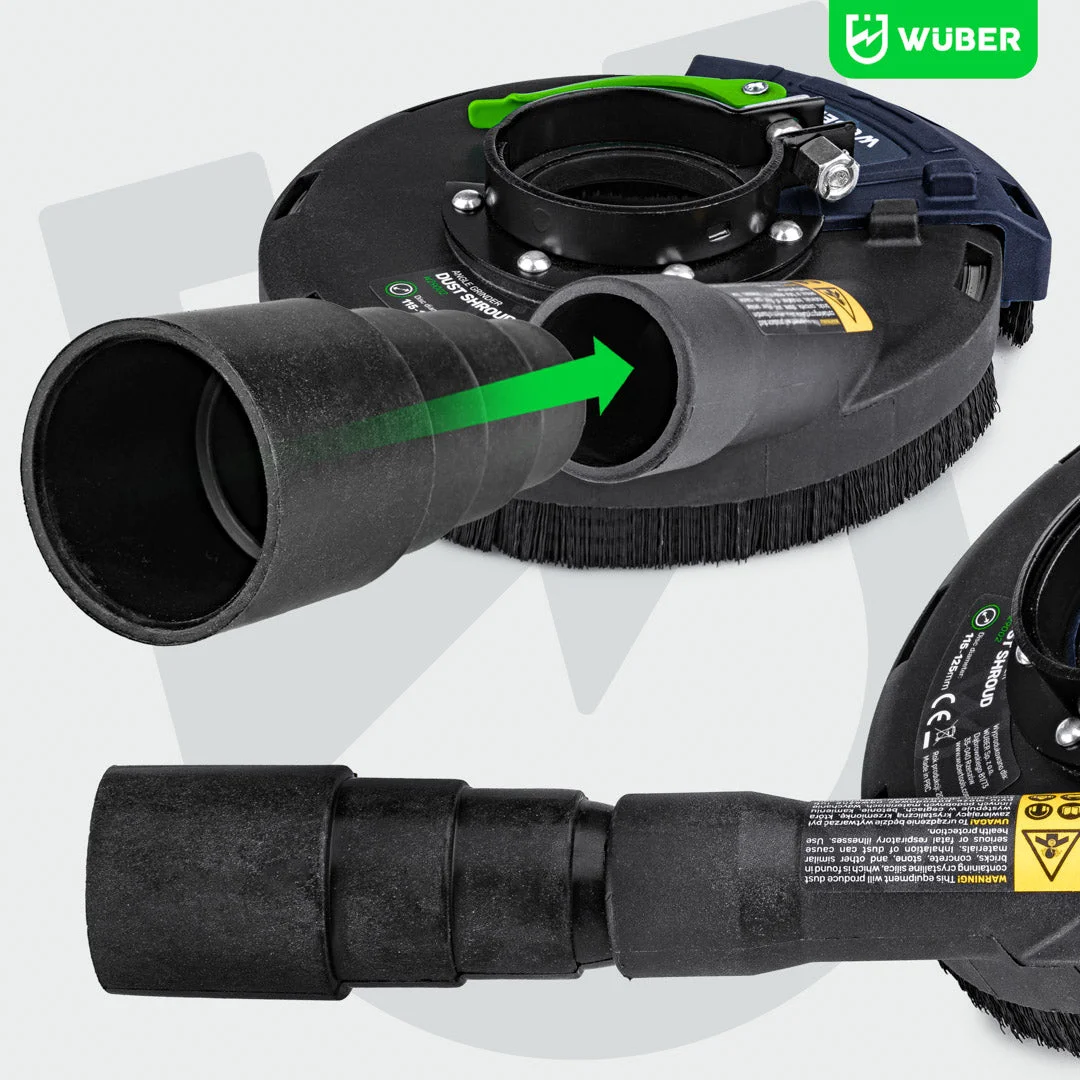

• Vacuum port: 28-36 mm
• Weight (net): 0.5 kg

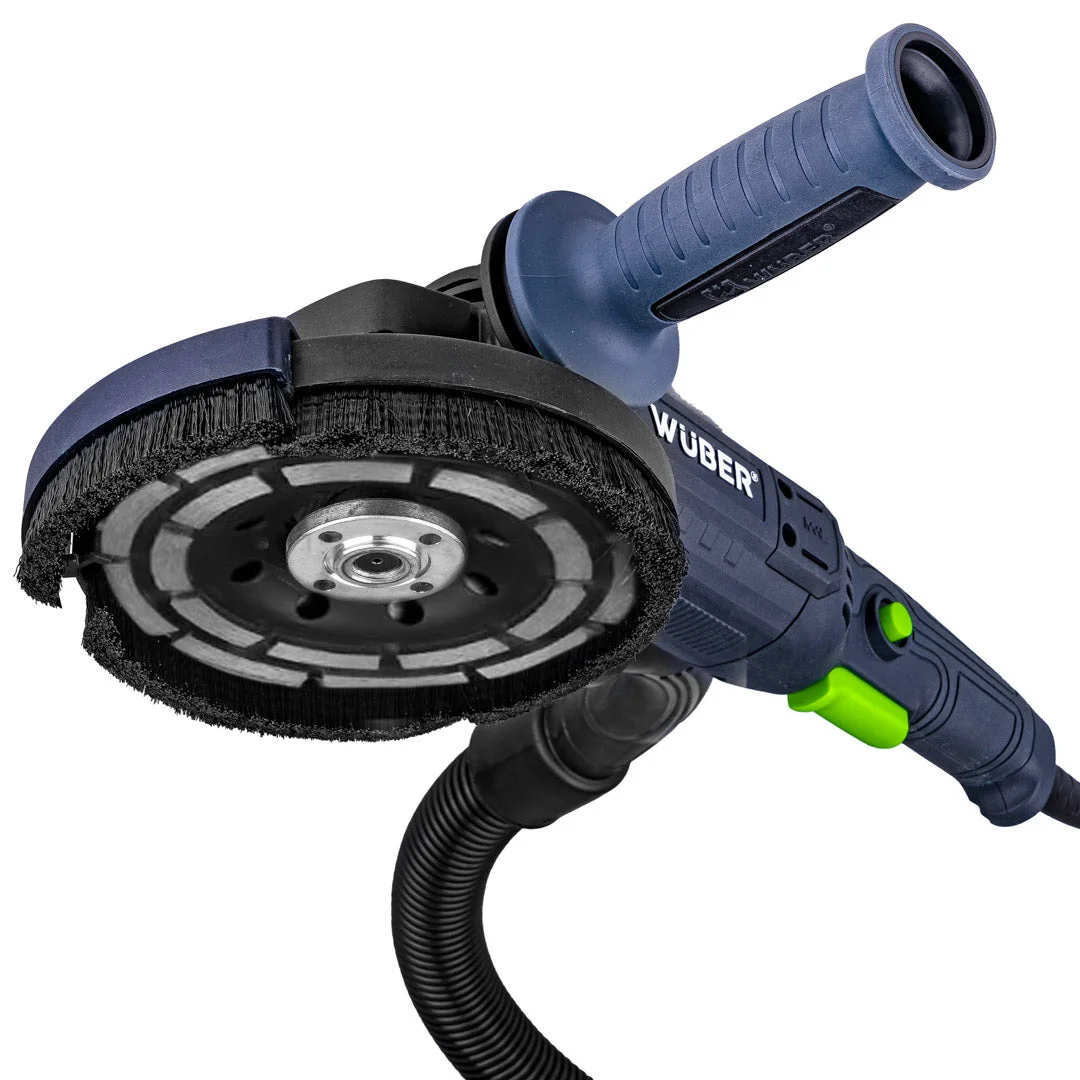

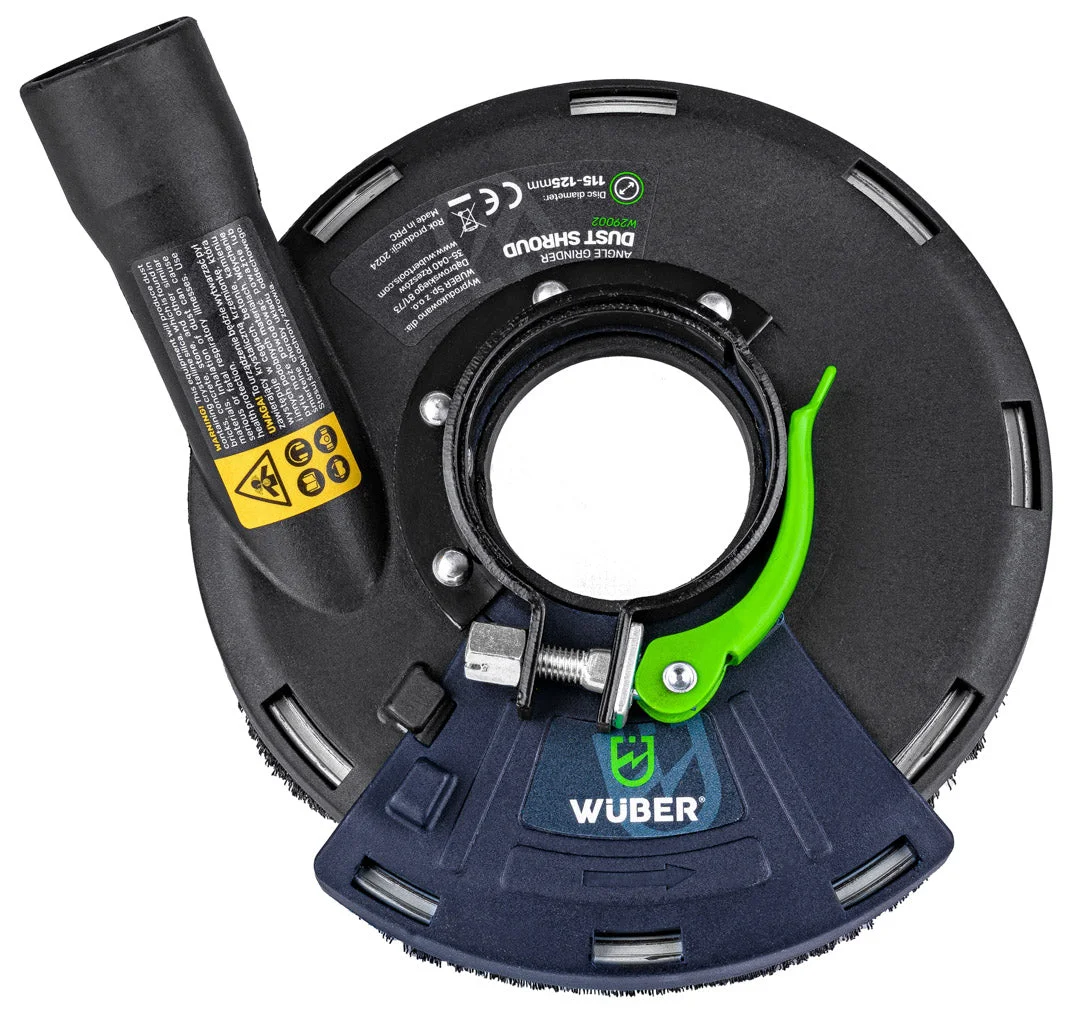

Dust shroud W29002 for angle grinders with 115-125 mm wheel diameter connects the grinder to an industrial vacuum via a 28-36 mm port. The shroud has a brush edge against the work surface and an adjustable shutter for angled work. Wuber Tools is the manufacturer.

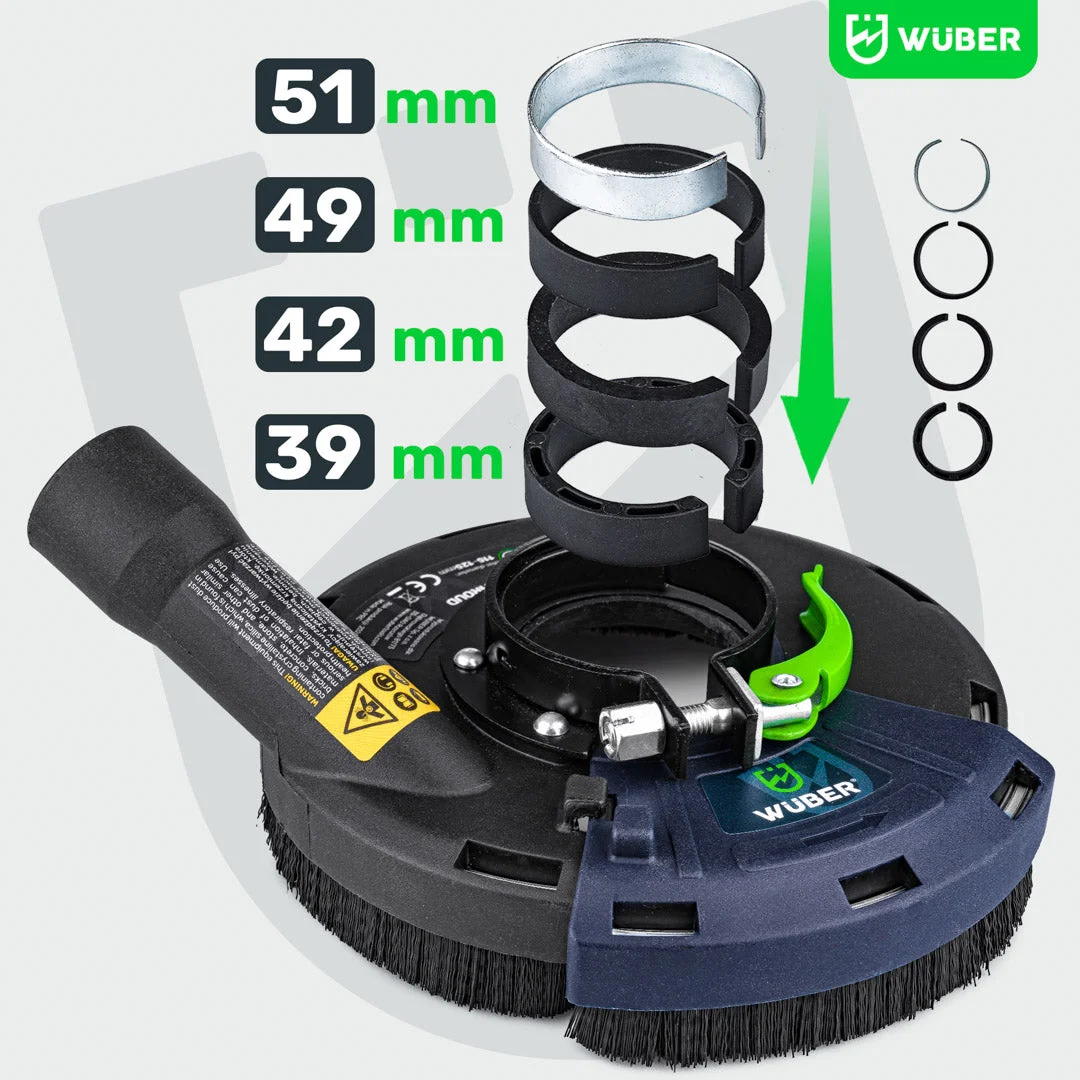

Four mounting adapters for spindle flanges of 51, 47, 42 and 39 mm are included, and the shroud fits angle grinders with an M14 thread. A vacuum adapter and a key are part of the set.

Why graders and sanders choose dust shroud W29002

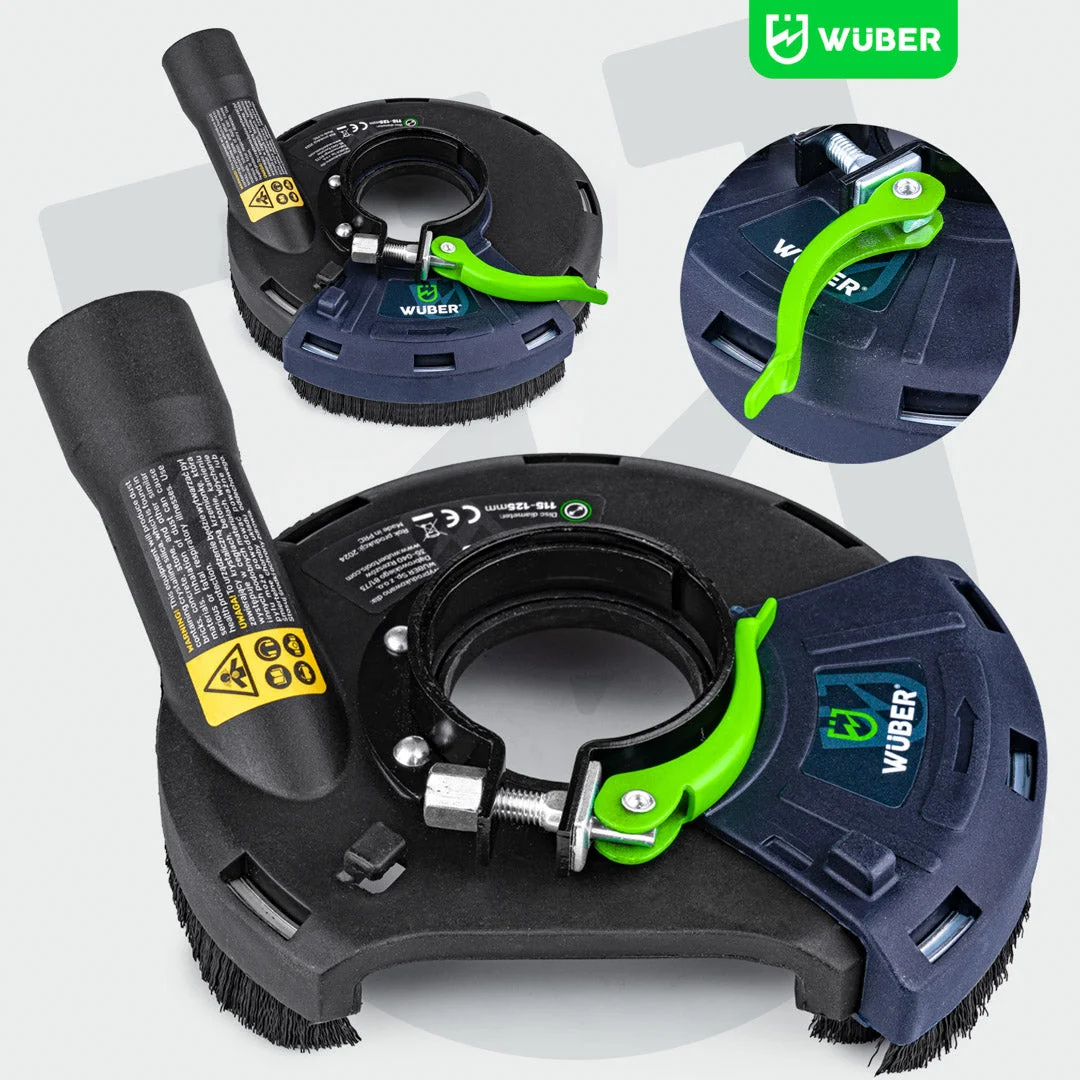

The brush edge seals against the surface, giving more effective dust extraction while grinding. The shutter slides to the left when the grinder is held at an angle, so extraction keeps working.

Four adapters cover spindle flanges from 39 to 51 mm, so one shroud can be moved between different angle grinders. The 28-36 mm vacuum port suits various industrial vacuums.

Applications for dust shroud W29002

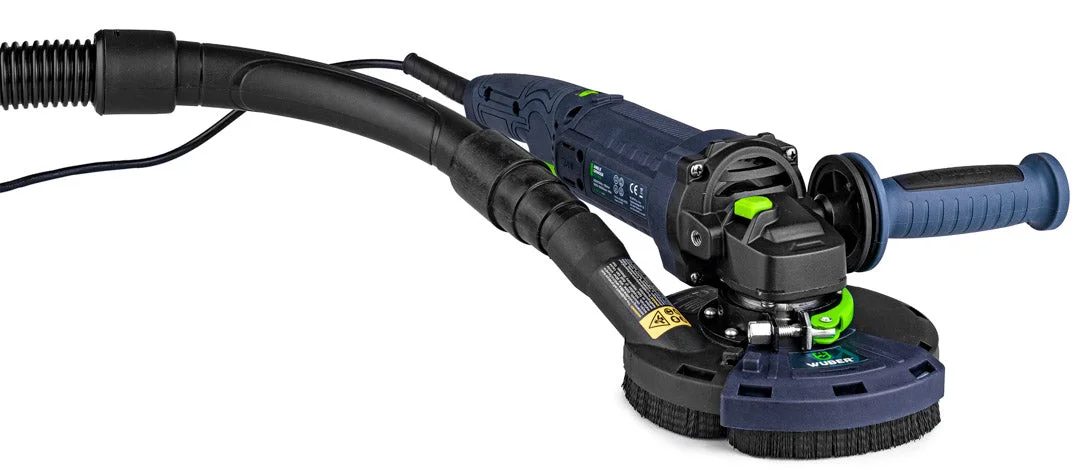

The dust shroud is used with an angle grinder and an industrial vacuum when dust is to be extracted directly at the grinding point:

• Grinding with an angle grinder, wheel diameter 115-125 mm
• Angled work with the shutter slid to the left
• Connection to an industrial vacuum with a 28-36 mm hose
• Mounting on angle grinders with an M14 thread

Technical Specifications

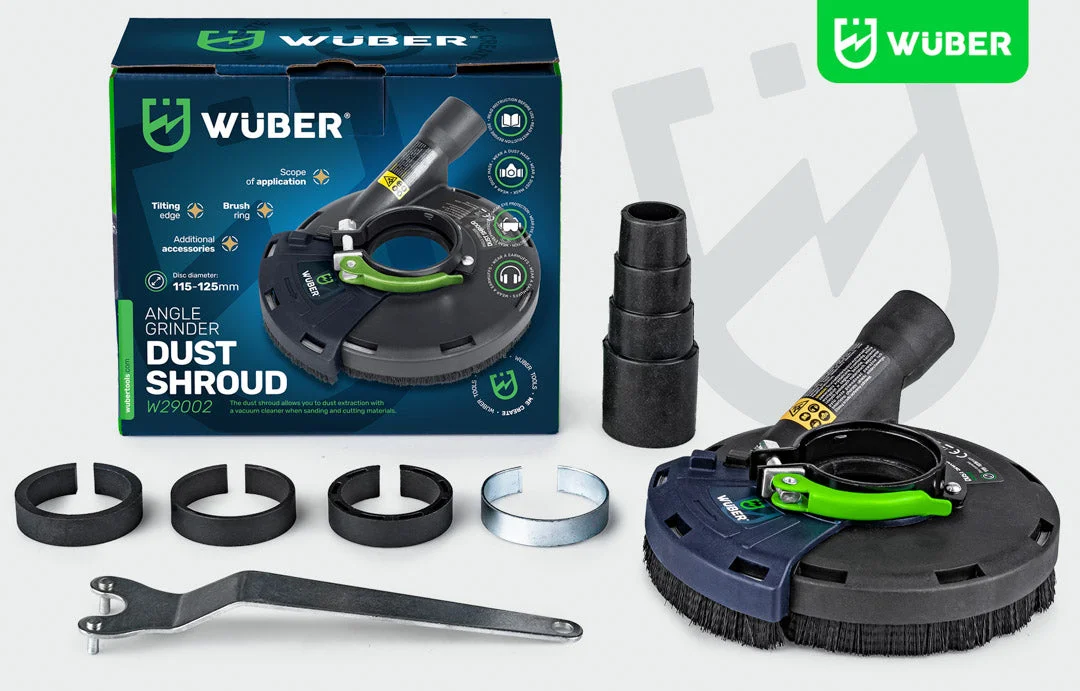

Package Contents

• Dust shroud
• Mounting adapter, 4 pcs
• Industrial vacuum adapter
• Key
• Original packaging

Suitable for: Site grinders working with 115-125 mm angle grinders. Bricklayers grinding in dust-sensitive environments. Renovation fitters with an industrial vacuum on site. Concrete workers grinding surfaces.

Industries: Construction and renovation. Concrete and masonry. Surface preparation before painting. Metalworking and workshops.

Frequently Asked Questions (FAQ)

Does dust shroud W29002 fit angle grinders with a 51 mm spindle flange?

Yes, the set includes adapters for spindle flanges of 51, 47, 42 and 39 mm. The shroud is intended for angle grinders with an M14 thread and a wheel diameter of 115-125 mm.

How does the shutter on dust shroud W29002 work for angled work?

The shutter slides to the left when the angle grinder is held at an angle to the surface. The brush edge still keeps good contact with the surface, and the 28-36 mm vacuum port stays in place.

What sets dust shroud W29002 apart from other angle grinder dust shrouds?

W29002 comes with four adapters for spindle flanges of 51, 47, 42 and 39 mm plus a vacuum adapter. The 28-36 mm port and the brush edge with an adjustable shutter give wide compatibility.
