Master industrial fan 90 cm 17160 m³/h EBERG EBF 36

Master industrial fan 90 cm 17160 m³/h EBERG EBF 36

Professional EBERG EBF 90cm Fan in Black Finish - Industrial Grade Quality

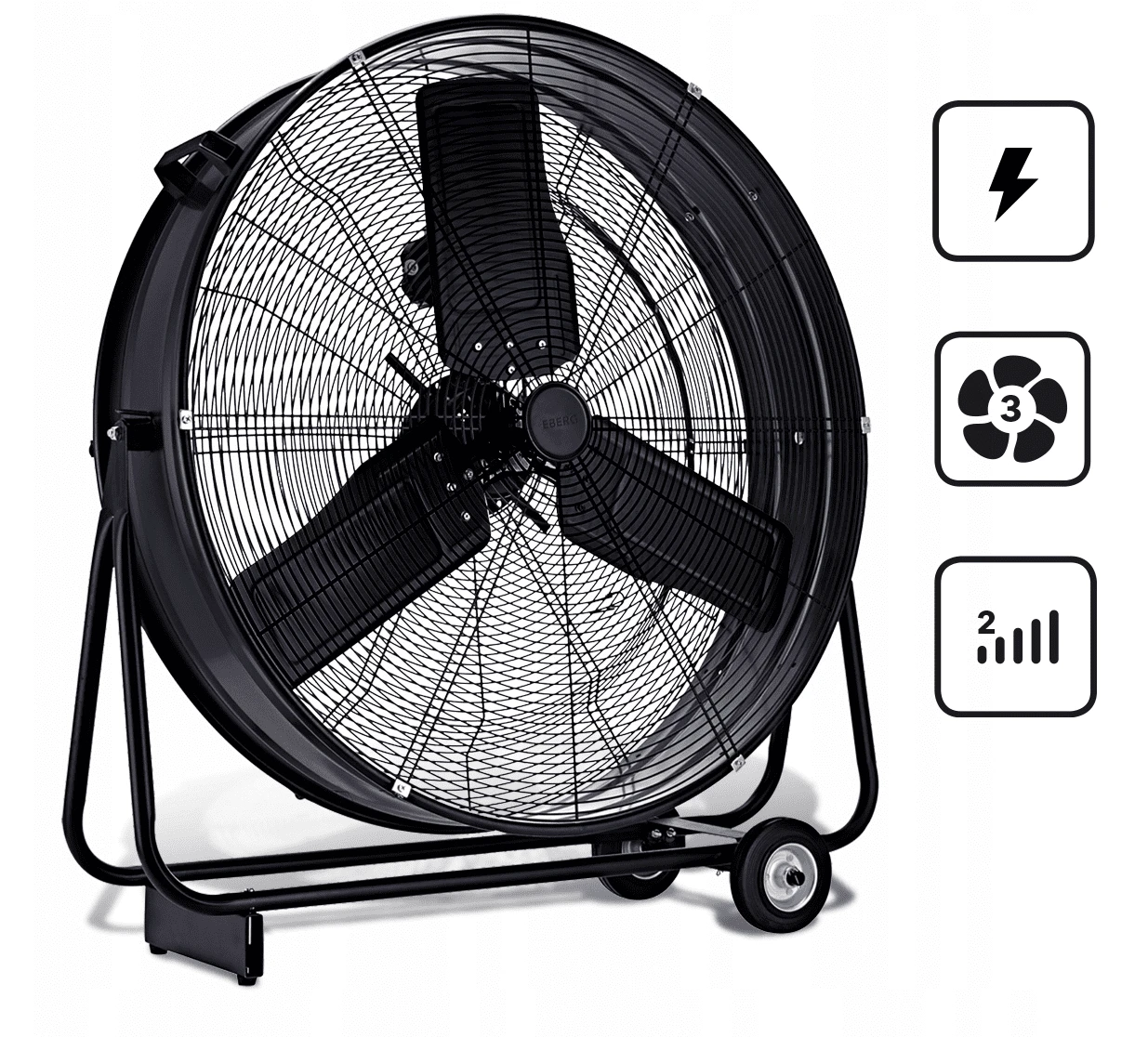

One of the most powerful professional floor fans available on the market. The EBERG EBF 90 is equipped with 3 specially designed blades that ensure powerful and effective air circulation.

Key Benefits and Features

• High quality construction - Works even in the toughest conditions
• Perfect for professional use - Workshops, production halls, warehouses, construction, and agriculture
• High power - 350W motor with full 90cm diameter
• Full mobility - Included wheels for easy transport

Technical Specifications

• Air flow: 363 m³/min / 21,795 m³/h
• Power: 350W
• Voltage: 230V / 50Hz
• Fan diameter: 90cm
• Fan type: Axial
• Speed settings: 2 speeds
• Protection class: IP20
• Dimensions (L x W x H): 105 x 26 x 109 cm
• Weight net/gross: 22/25 kg
• Cable length: 150 cm
• Construction: Powder-coated steel
• Manufacturer: EBERG

Professional EBERG EBF Fans - Optimal Air Circulation

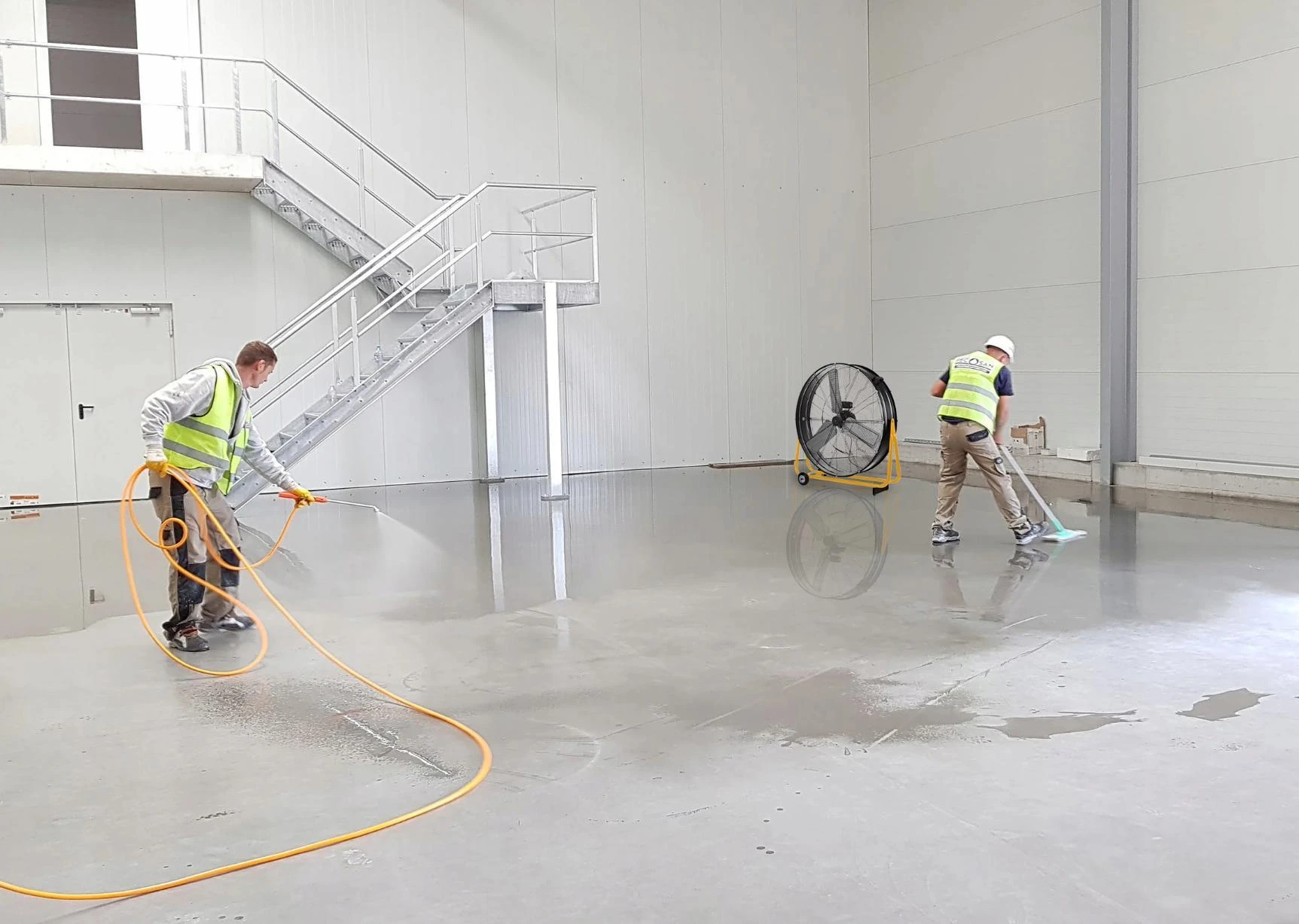

Professional EBERG EBF fans work excellently everywhere ventilation needs to be improved, air circulation increased, and to support drying of humid spaces.

EBERG EBF axial fans support air circulation, which can also increase the performance of other cooling, heating, and drying equipment, as well as facilitate removal of unpleasant odors in production halls, workshops, barns, warehouses, etc.

Stable and Vibration-Free Operation

Thanks to the solid base with anti-slip supports, you have assurance that the fan will be stable during operation even at the highest speed. The rubber supports also function as dampening, eliminating all vibrations related to fan operation.

360° Adjustable Air Direction

The additional possibility of stepless adjustment of the tilt angle by 180° allows you to direct the air stream in any direction. High-quality materials used in fan production, combined with innovative construction, make the fan essential equipment that works even in the most difficult conditions.

Performance and Functions

✅ High Performance - Full 350W

A 350W motor combined with a rotor width of 90cm can create an air stream of 21,795m³/h at 2 fan speeds. The ability to regulate rotation speed allows adaptation of power to current needs.

✅ Steel Construction

The steel construction has been protected against corrosion through powder coating. EBERG EBF has been covered with black paint with a matte finish, guaranteeing fan durability even in the toughest conditions.

✅ Complete Tilt Adjustment

The ability to adjust fan tilt within the range of 0-180° allows free setting of blow direction depending on needs.

✅ Mobility

Two large rubber wheels together with a handle and low weight enable comfortable placement and transport of the fan.

Main Advantages Summary

• High power: 350W motor
• High performance: 21,795 m³/h air flow
• Specially profiled rotor with 3 blades
• Two blow speeds for optimal adaptation
• Easy transport thanks to handle, low weight, and wheel construction
• 180° tilt adjustment for flexible air direction
• Modern construction with highest quality
• Superior build quality and finish

Application Areas for the Fan

• Agriculture and cultivation
• Animal husbandry

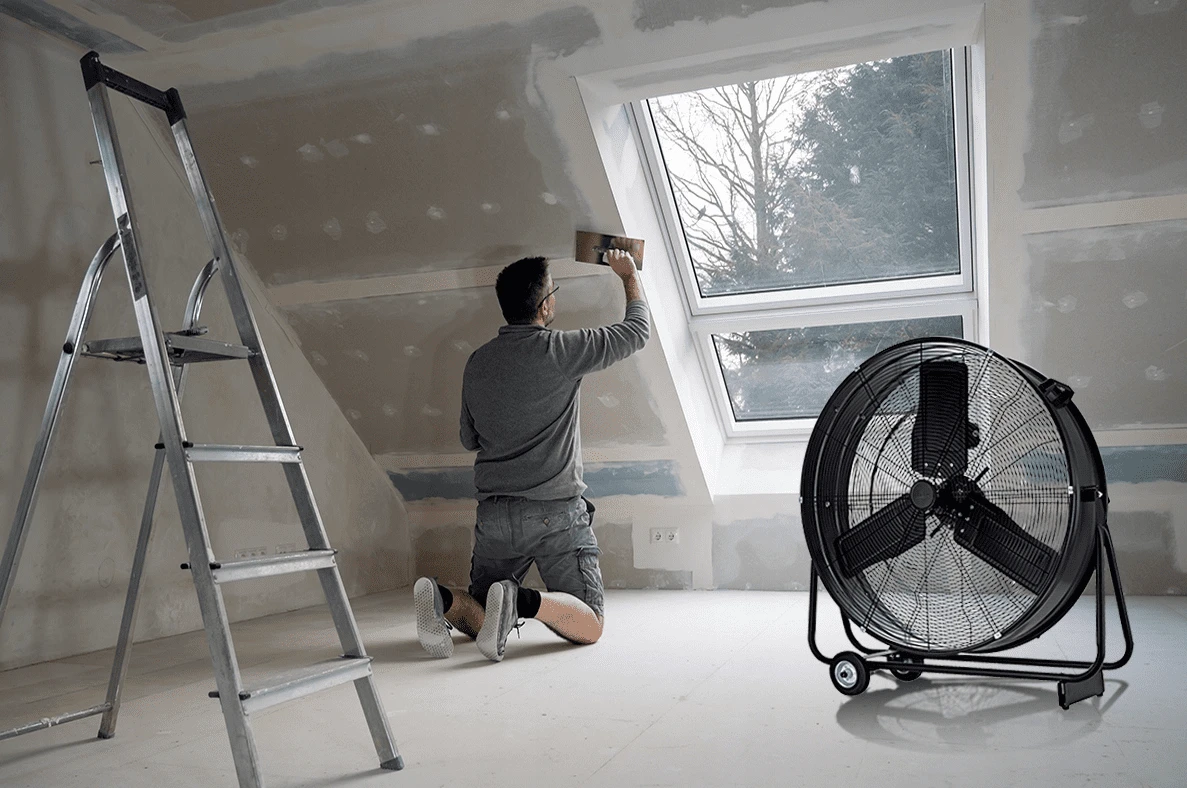

• Construction and finishing
• Industry and warehousing
• Production halls, carpentry workshops
• Automotive workshops
• Supplement to gravitational ventilation in household spaces
• Theaters, cinemas, film studios, gyms, fitness centers

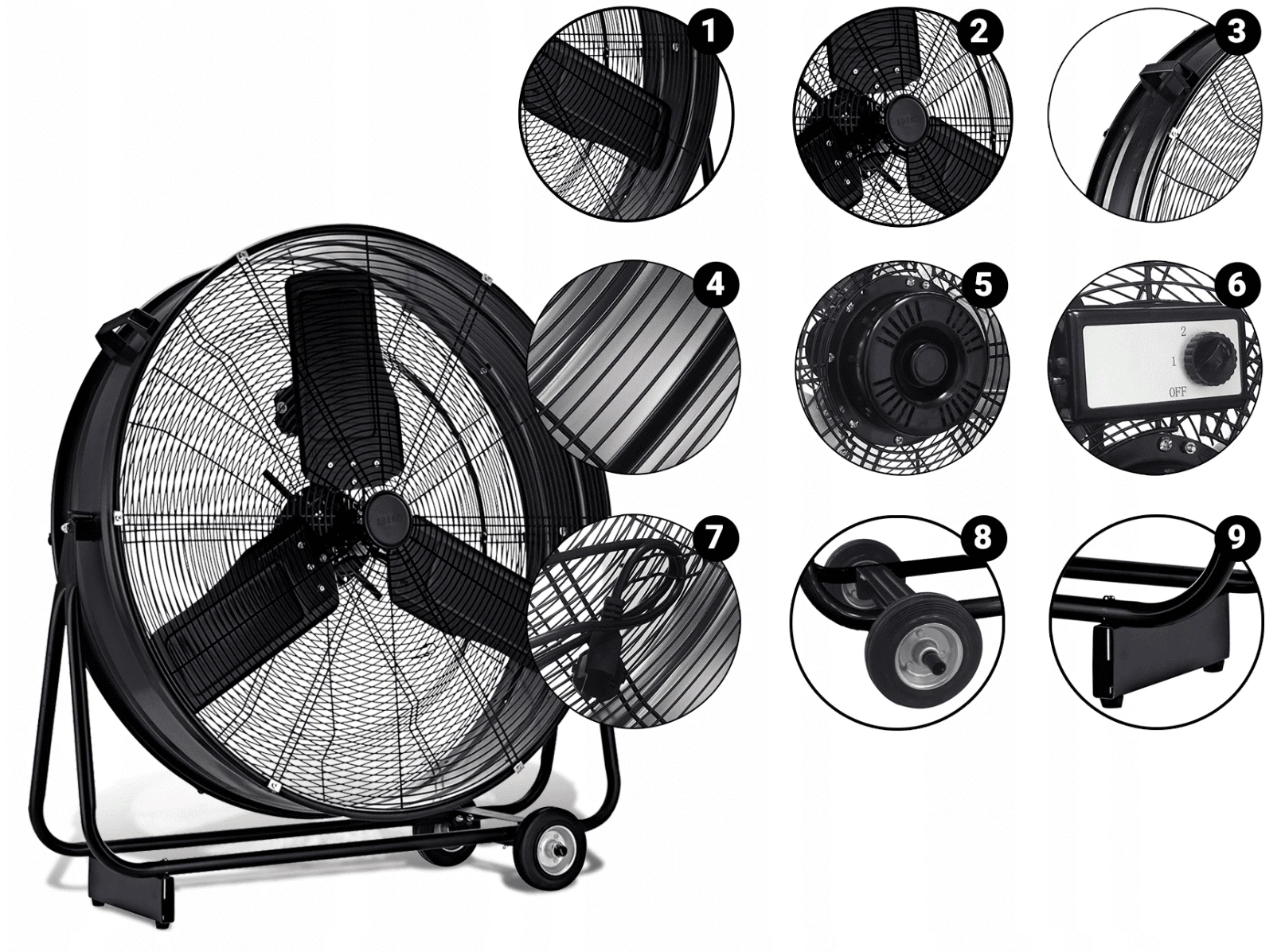

Fan Construction

• Front guard
• Fan blades
• Drum housing
• Rear guard
• Motor
• Control box
• Power cable
• Solid base with attached wheels
• Anti-slip supports

Dimensions and Specifications

• A (Length): 105 cm
• B (Height): 109 cm
• C (Width): 26 cm

Package Contents

• 1x EBERG EBF 90 R1 Fan
• 2x Rubber wheels
