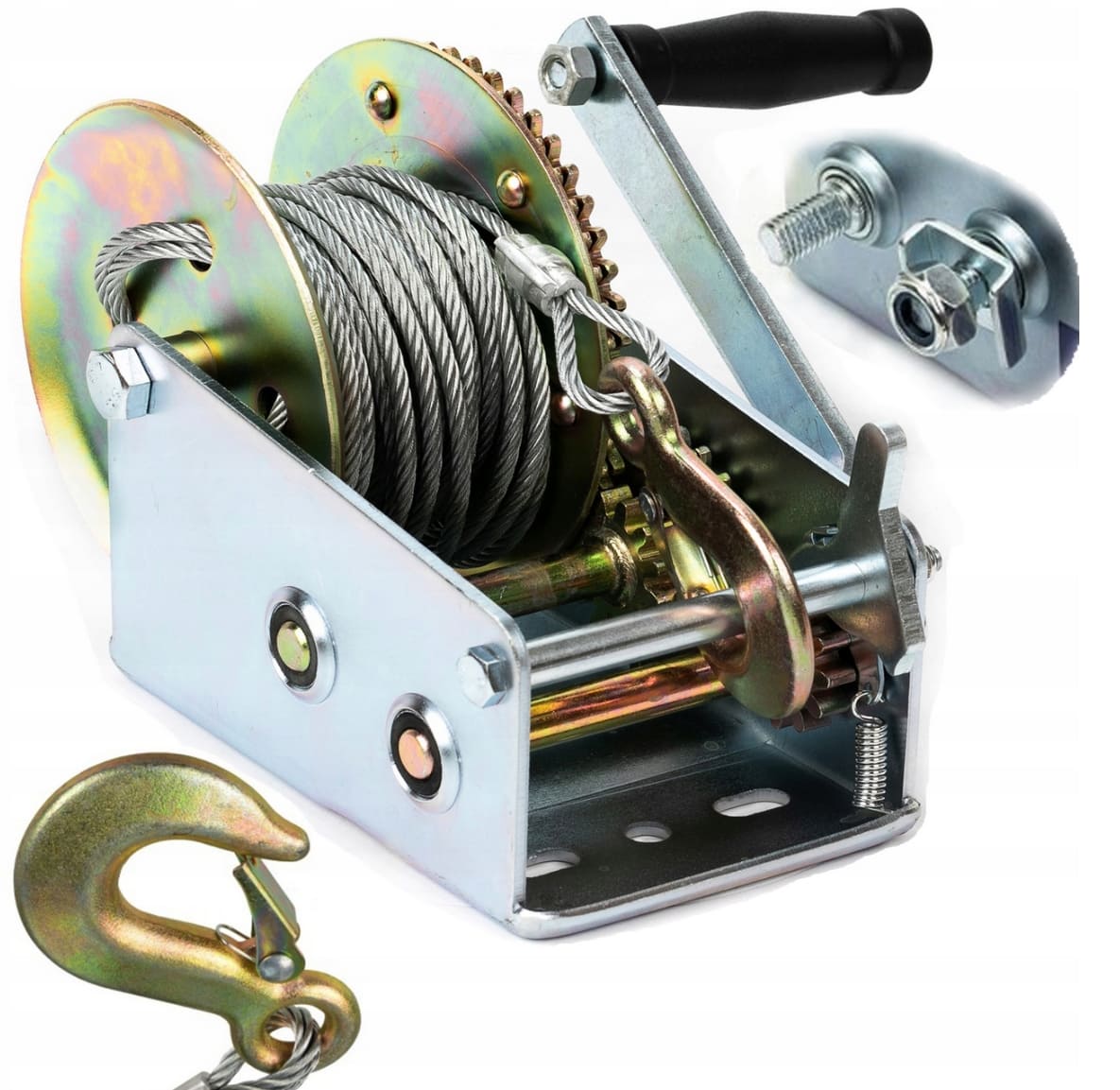

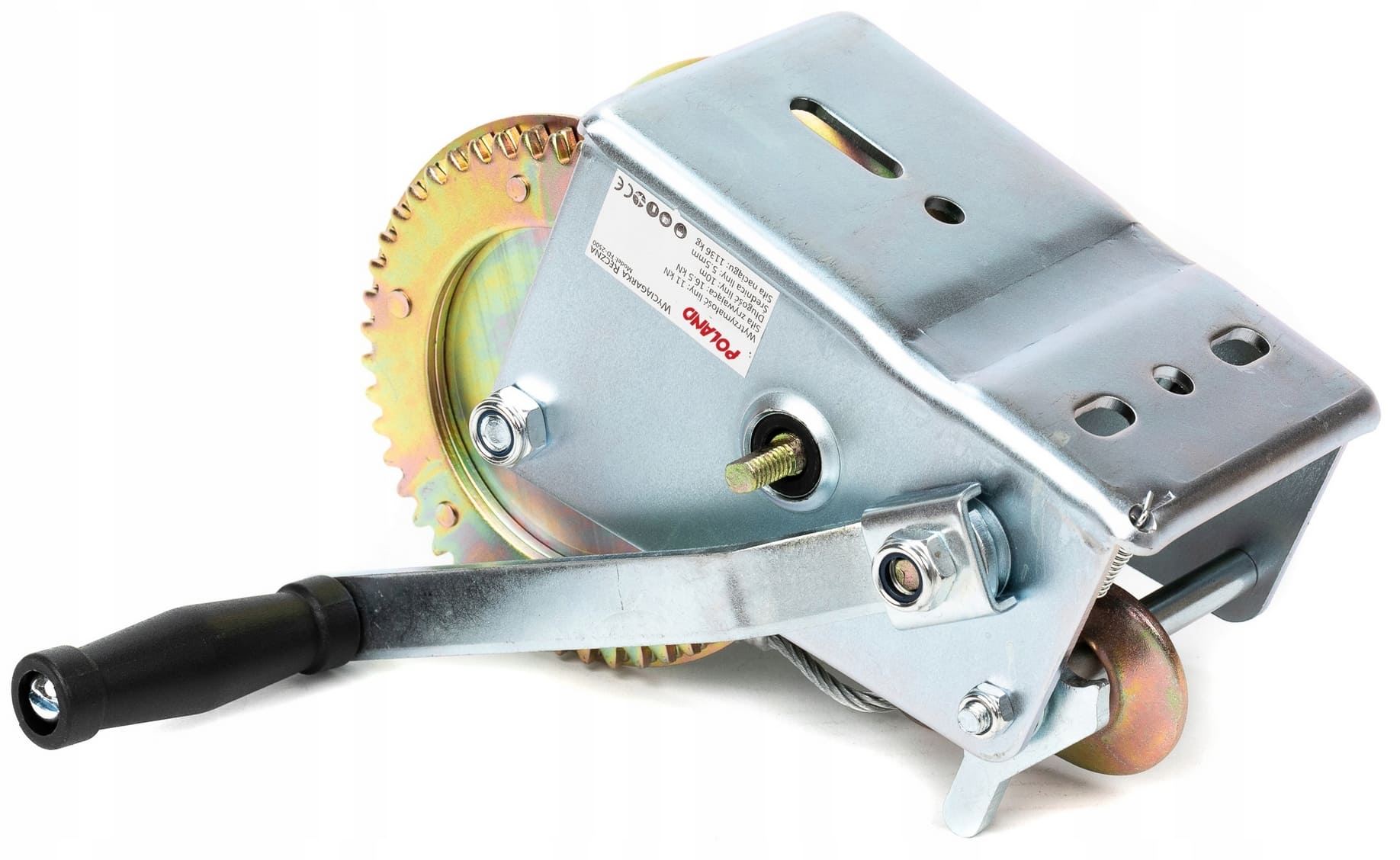

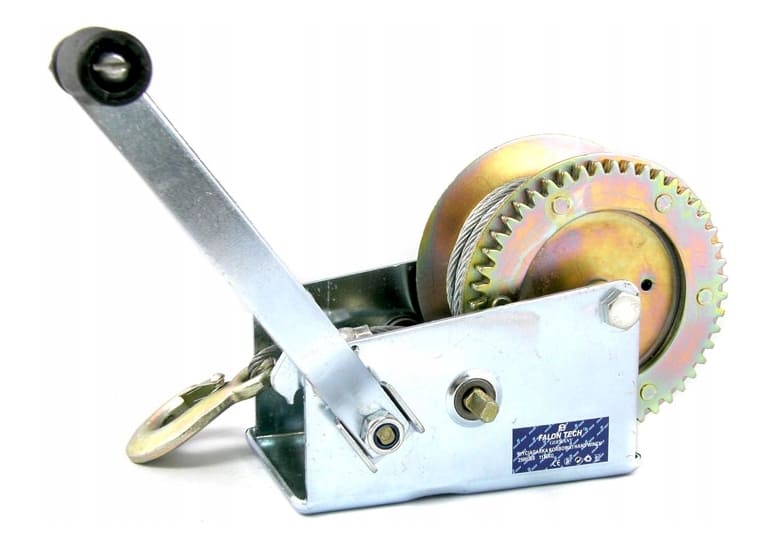

Hand Winch 1125 kg with Hook, 10 m Rope 4.5 mm, 2 Gears, 2 Directions, Steel

Quick Facts — K00141 Hand winch

• Model: K00141
• Type: Hand winch with hook
• Max load: 1125 kg
• Rope: 10 m, 4.5 mm
• Gears: 2 (fast/slow)
• Directions: 2

Hand winch K00141 is built for a pulling force of up to 1125 kg and comes with 10 m of rope, 4.5 mm thick, and a hook with a spring-loaded latch. The steel construction and manual operation make it usable where no power supply is available.

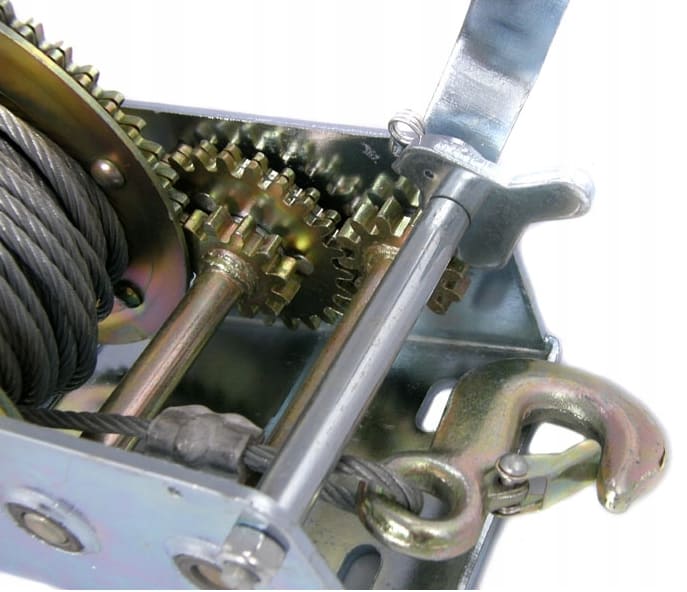

Two gears, fast and slow, give a choice between quick take-up of slack rope and controlled drive under load. The winch works in two directions, giving both pulling and paying out with the same tool.

When does hand winch K00141 make the most sense?

It makes the most sense for lifting and pulling up to 1125 kg where 10 m of rope is enough. The fast gear is used to haul in rope without load, the slow gear for pulling under load.

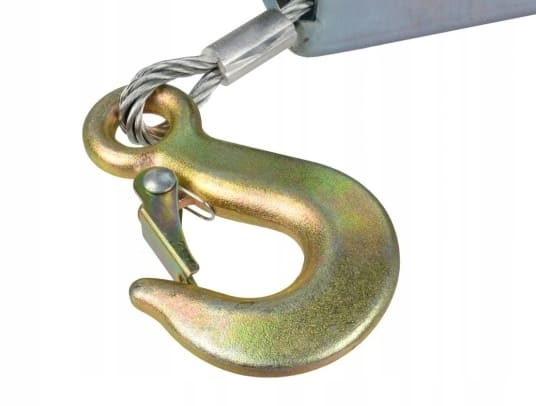

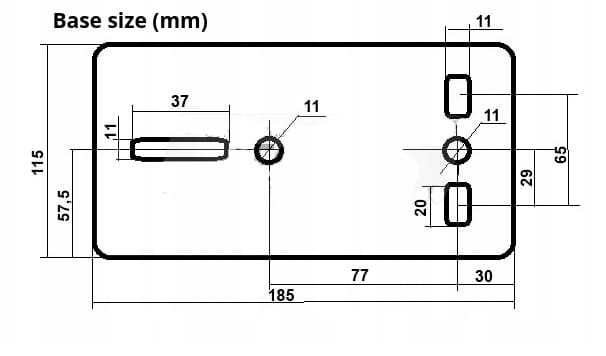

The hook has a spring-loaded latch that holds the load during the pull. At 18.5 cm x 11.5 cm and 4.8 kg, the winch can be moved between workplaces.

Is hand winch K00141 suited to workshops and field work?

Yes, manual operation needs no power, and the winch is made of steel. What decides the use is the load limit and the rope length:

• Max load 1125 kg
• Rope length 10 m, thickness 4.5 mm
• Weight 4.8 kg

Technical Specifications

Chosen by: Vehicle mechanics pulling or moving heavy loads in the workshop.

Found in: Car workshops and vehicle recovery.

Frequently Asked Questions (FAQ)

Can hand winch K00141 handle loads over 1125 kg?

No, the max load of hand winch K00141 is 1125 kg. The rope is 10 m long and 4.5 mm thick, which also limits the pulling distance.

How do the two gears on hand winch K00141 work?

Hand winch K00141 has two gears, fast and slow. The fast one is used to haul in rope, the slow one for pulling under load. The winch works in two directions.

How does hand winch K00141 differ from other hand winches?

Hand winch K00141 combines a 1125 kg max load with 10 m of rope, two gears and two directions, in a steel body weighing 4.8 kg. The hook has a spring-loaded latch.
