Heating Coils for Induction Heater, Complete Set with Spare Coils, MAGNUM

Quick Facts — IND-M-S2-2 Induction heater coil set

• Model: IND-M-S2-2
• Type: Coil set for induction heaters
• Number of coils: 7
• Side coils: 17, 20, 24 and 28 mm
• Flat coil: 55 mm
• Flexible coil: 920 mm
• Spot heating coil: 33 mm

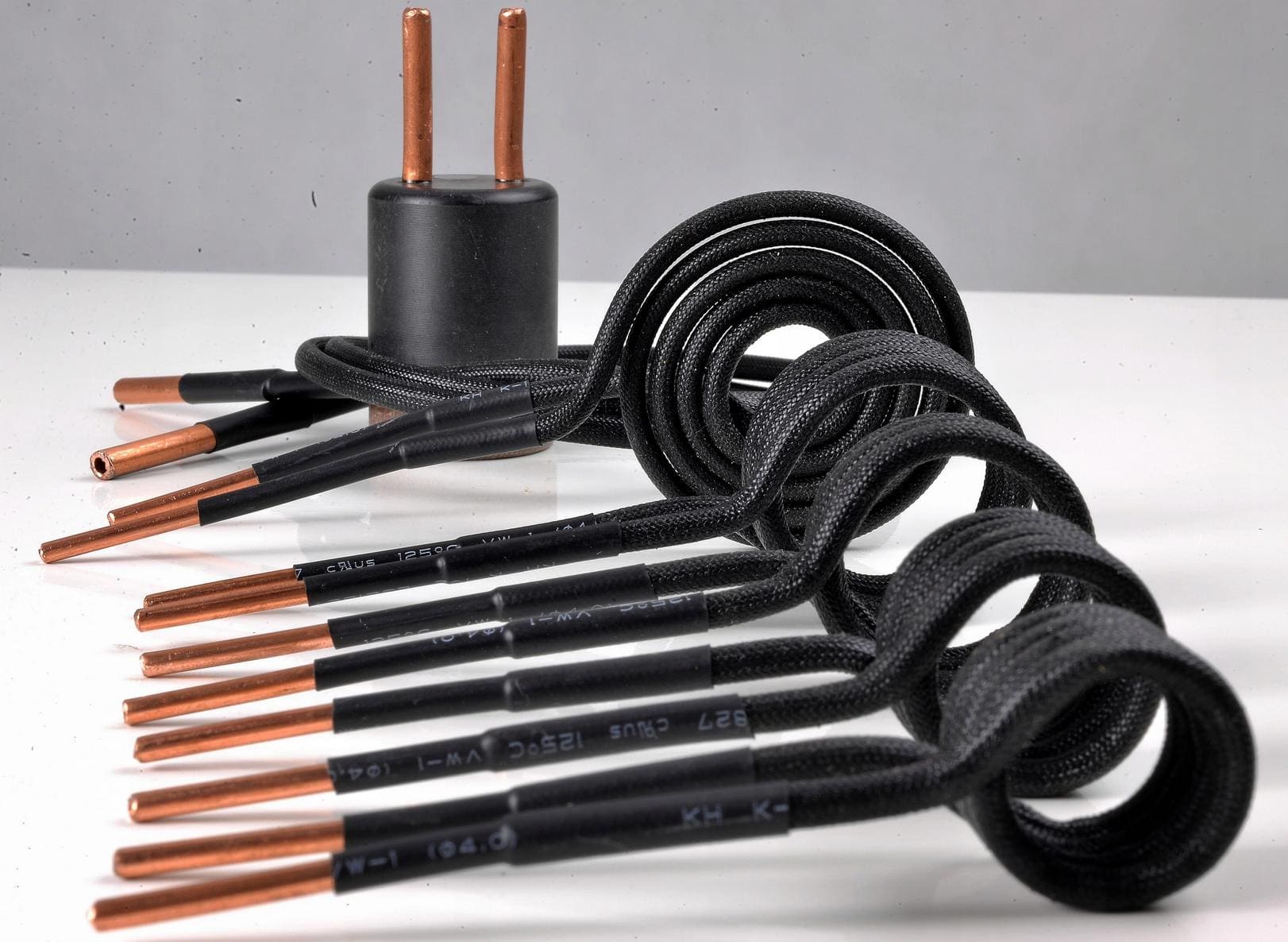

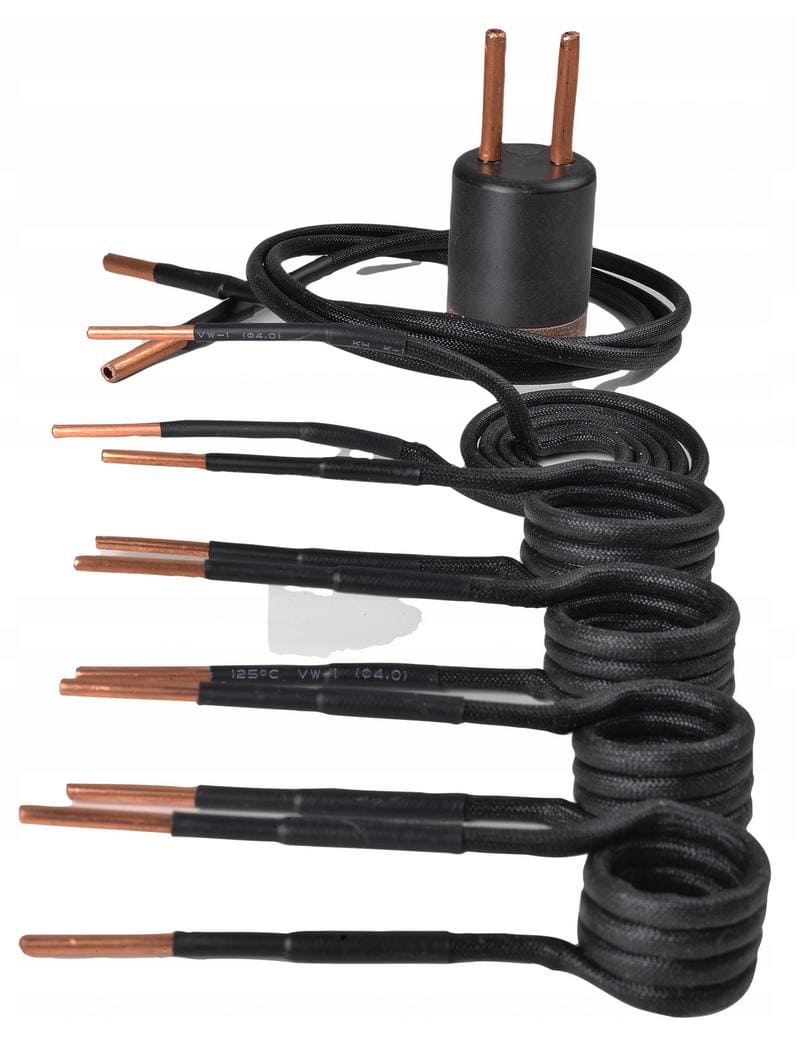

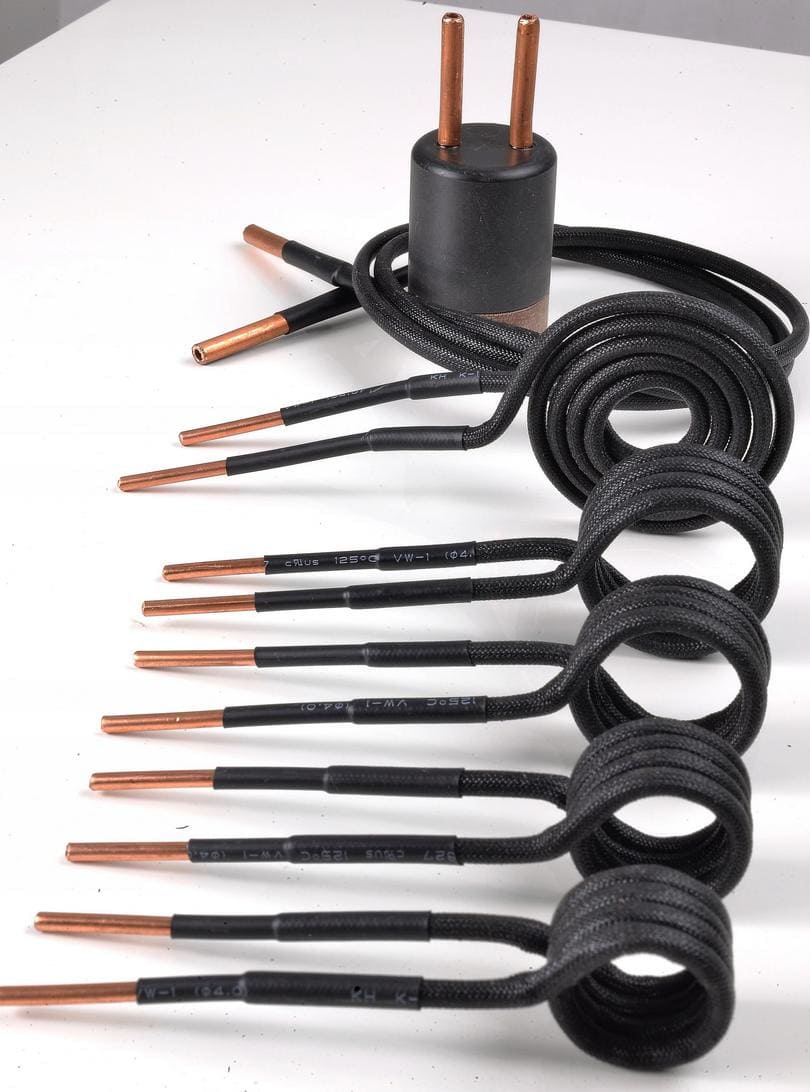

A complete set of spare and replacement coils for induction heaters such as the MAGNUM POWER HEATER, SHERMAN INDI-1 and WELDMAN INDUCTOR 2000. The set gathers seven coils for different workpieces, from side coils and a flat coil to a flexible coil and a spot heating coil.

The coil range covers pipes, reinforcing bars and sheet metal, so the same induction heater can be used on workpieces of different shapes and sizes.

What sets the IND-M-S2-2 heating coil set apart?

The set gathers seven coil shapes in one delivery: four side coils of 17, 20, 24 and 28 mm, a 55 mm flat coil with a wire diameter of 3 mm and a length of 80 mm, a 920 mm flexible coil and a 33 mm spot heating coil.

The flat coil has 5 coils. The flexible coil bends to shape and is intended for pipes and reinforcing bars.

How the IND-M-S2-2 heating coil set is used on pipes, rebar and sheet metal

The set is used on pipes, reinforcing bars and sheet metal by swapping coils on the induction heater, and each coil has its own area of use:

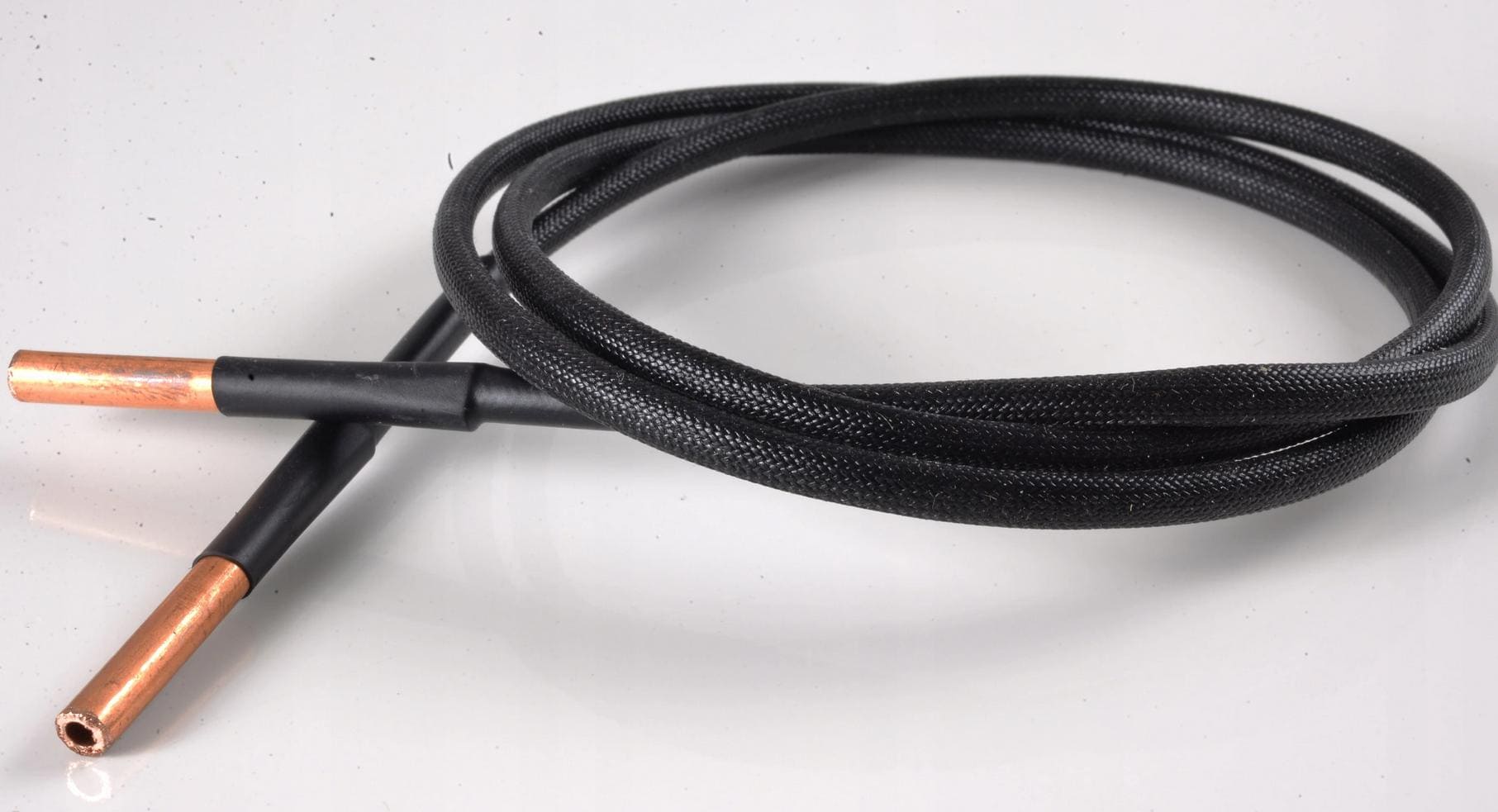

• 920 mm flexible coil for pipes, reinforcing bars and similar workpieces.

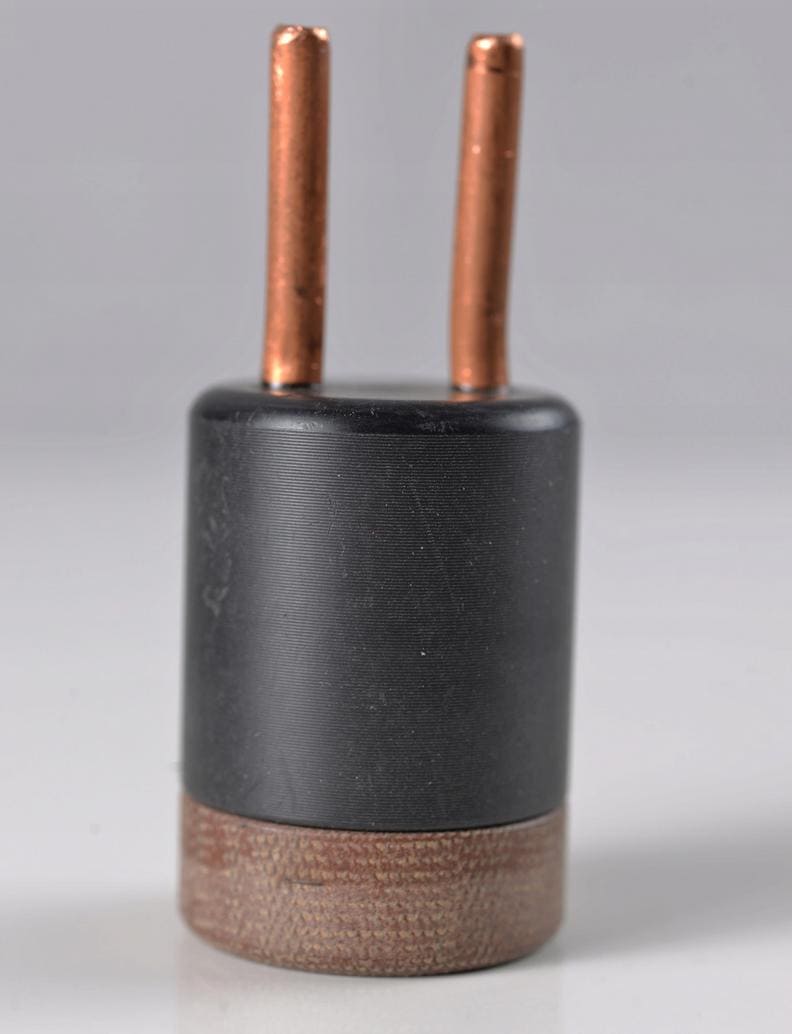

• 33 mm spot heating coil for spot heating of sheet metal.
• 55 mm flat coil with a wire diameter of 3 mm and a length of 80 mm.

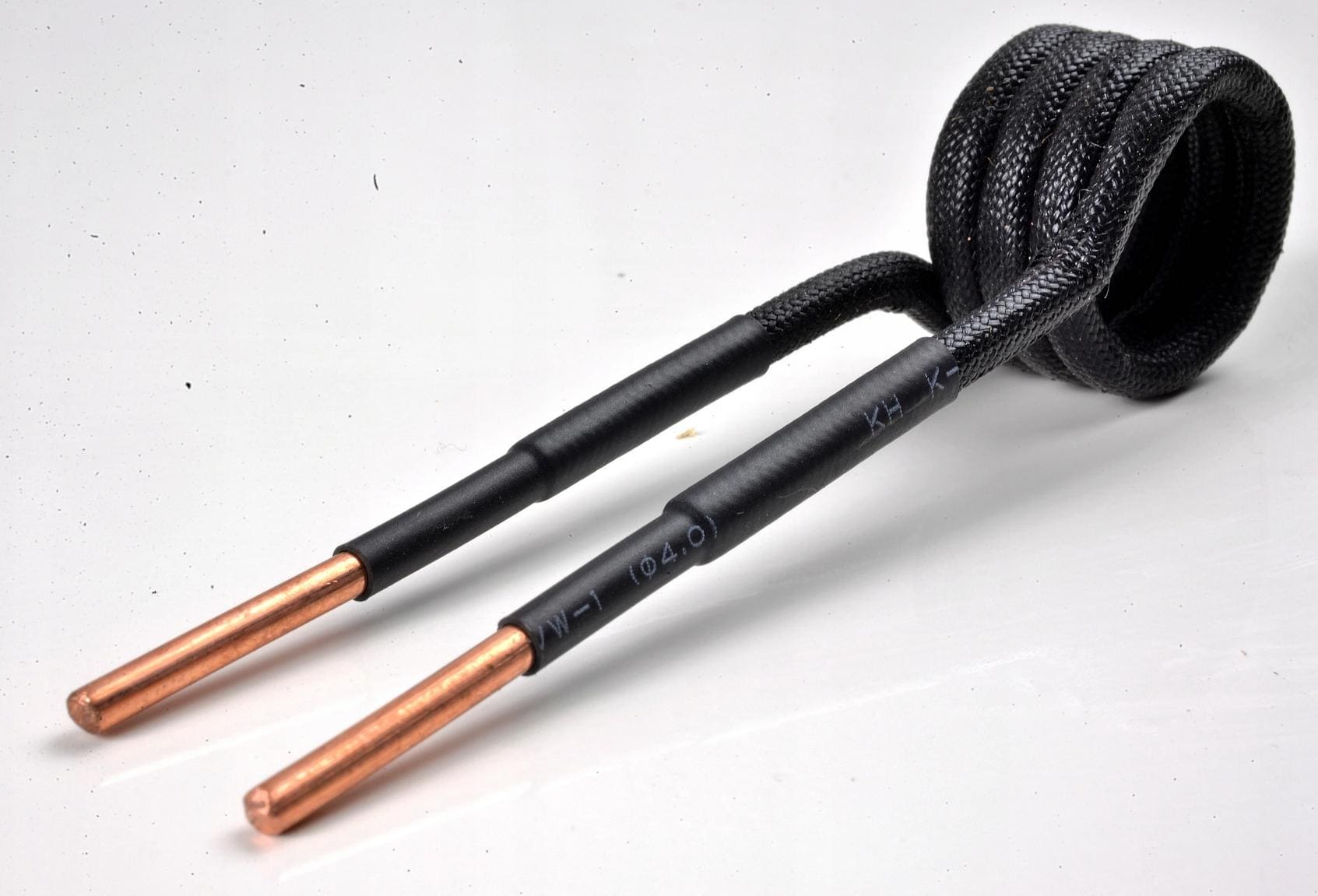

• Side coils of 17, 20, 24 and 28 mm.

Technical Specifications

Package Contents

• Side coil 17 mm
• Side coil 20 mm
• Side coil 24 mm
• Side coil 28 mm
• Flat coil 55 mm, 5 coils
• Flexible coil 920 mm
• Spot heating coil 33 mm

A fit for: Workshop mechanics who heat seized parts. Pipe fitters who heat pipes. Rebar workers who heat reinforcing bars. Sheet metal workers who spot heat sheet metal.

Typical settings: Mechanical workshops. Pipe installation. Building sites with reinforcement work. Sheet metal shops.

Frequently Asked Questions (FAQ)

Does the IND-M-S2-2 heating coil set fit the SHERMAN INDI-1 and WELDMAN INDUCTOR 2000?

Yes. The IND-M-S2-2 heating coil set is intended primarily for the POWER HEATER, SHERMAN INDI-1 and WELDMAN INDUCTOR 2000 induction heaters. The set contains seven coils: four side coils of 17, 20, 24 and 28 mm, a 55 mm flat coil, a 920 mm flexible coil and a 33 mm spot heating coil.

What are the dimensions of the flat coil in the IND-M-S2-2 heating coil set?

The flat coil in the IND-M-S2-2 heating coil set is 55 mm with a wire diameter of 3 mm and a length of 80 mm, and has 5 coils.

How does the IND-M-S2-2 heating coil set differ from other induction heater coils?

The IND-M-S2-2 heating coil set gathers seven coil shapes for induction heaters: side coils of 17, 20, 24 and 28 mm, a 55 mm flat coil, a 920 mm flexible coil and a 33 mm spot heating coil. Pipes, reinforcing bars and sheet metal are therefore covered by one and the same set.
