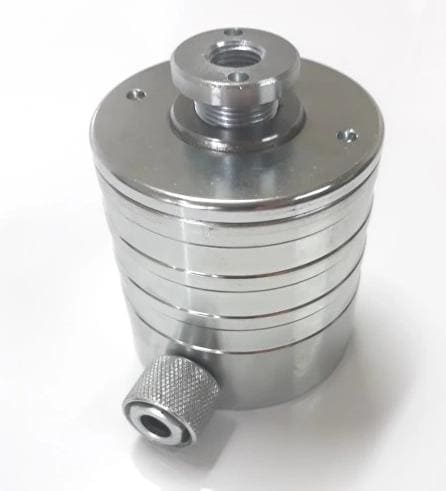

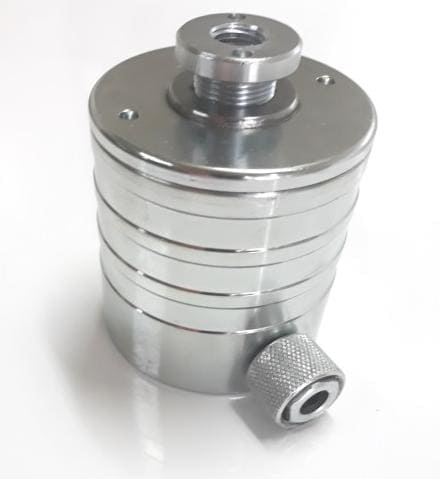

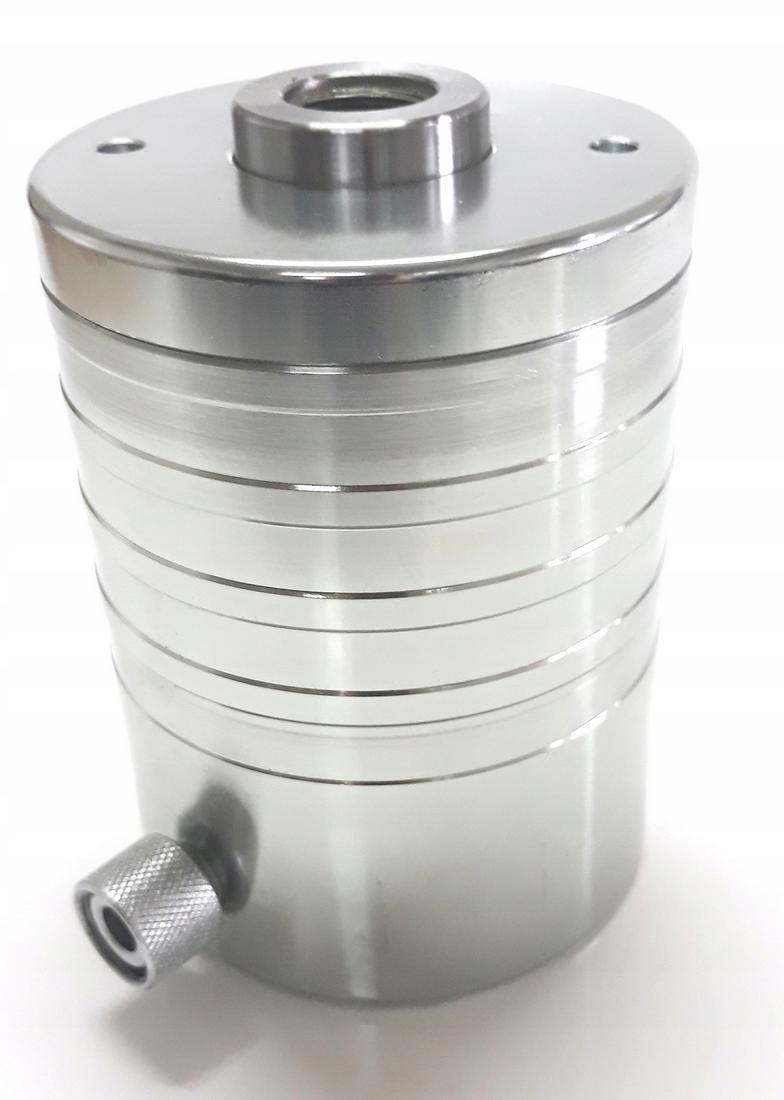

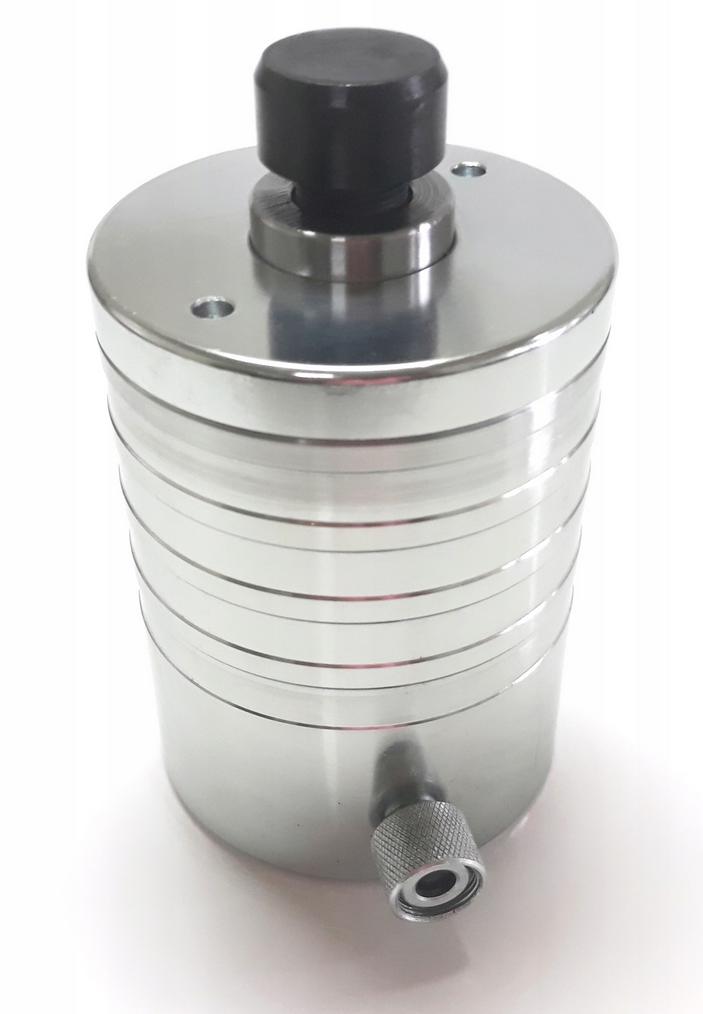

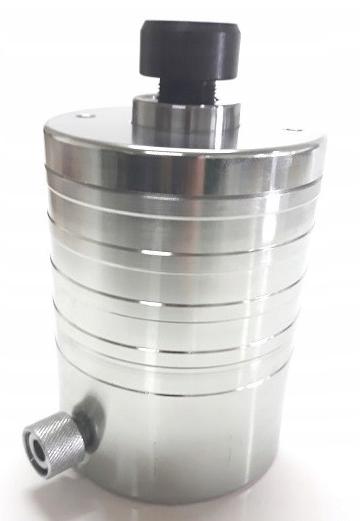

Hydraulic Cylinder Puller 40 Ton, M16-M24

Quick Facts — CU-20t-m16 Cylinder puller

• Model: CU-20t-m16
• Type: Hydraulic cylinder puller
• Max force: 40 ton (depends on the pump used)
• Thread: M16, M18 or M24, pitch 1.5
• Material: Hardened steel
• Return: Automatically to rest position when the pump is disconnected

The cylinder puller is a hydraulic pressing tool for heavy dismantling and pressing jobs with a max force of 40 ton, depending on the pump used. It is made of hardened steel and is used when repairing trucks, machinery and tractors.

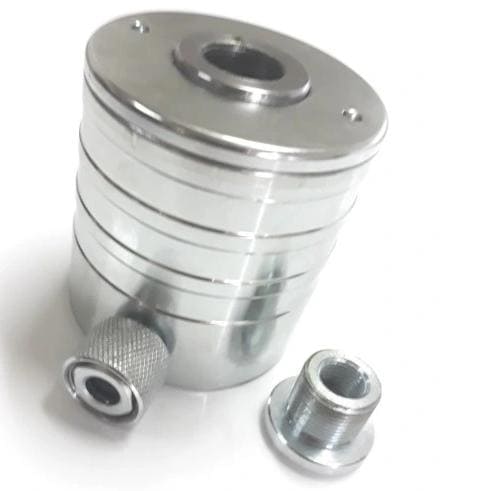

The puller comes with three nut sizes, M16, M18 and M24, all with 1.5 thread. The size is chosen when ordering.

Key benefits of cylinder puller CU-20t-m16

The benefit is high force in a compact tool: up to 40 ton, where the pump decides how much force is actually reached. Further features:

• Hardened steel construction.
• The cylinder returns automatically to its rest position when the pump is disconnected.
• Can also be used for pushing down, not only pulling.
• Three nut sizes: M16, M18 and M24 with 1.5 thread.

How cylinder puller CU-20t-m16 is used in the workshop

The cylinder puller is used when repairing trucks, machinery and tractors, and in other workshop jobs. The cylinder connects to a hydraulic pump that supplies the force, and it works both as a puller and for pushing down. After the job the cylinder returns to its rest position as soon as the pump is disconnected.

Technical Specifications

A fit for: Truck mechanics. Tractor mechanics. Machinery repairers. Workshop mechanics.

Typical settings: Truck workshops. Agricultural machinery workshops. Construction equipment service. General mechanical workshops.

Frequently Asked Questions (FAQ)

Does cylinder puller CU-20t-m16 work with any pump?

No. The max force of 40 ton is only reached with a pump that can deliver it, since the force depends on the type of pump. The cylinder comes in nut sizes M16, M18 and M24 with 1.5 thread.

Can cylinder puller CU-20t-m16 also be used for pushing?

Yes. The tool can also be used for pushing down. After the job the cylinder returns automatically to its rest position when the pump is disconnected.

How does cylinder puller CU-20t-m16 differ from other pullers?

It is hydraulically driven with up to 40 ton and built in hardened steel. The force comes from a separate pump, and the cylinder returns automatically to its rest position when the pump is disconnected. It comes in three nut sizes: M16, M18 and M24.
