Router Bit Set, 6 mm Shank, Ø 6-32 mm, 12 Pieces, Wuber Tools

Quick Facts — W00024 Router bit set

• Model: W00024
• EAN: 5906436760981
• Type: Router bit set
• Number of pieces: 12
• Shank diameter: 6 mm
• Working diameter: 6-32 mm

Wuber Tools W00024 is a set of 12 router bits with a 6 mm shank and working diameters from 6 to 32 mm. The set covers edge profiling, template copying, chamfering and grooving in wood.

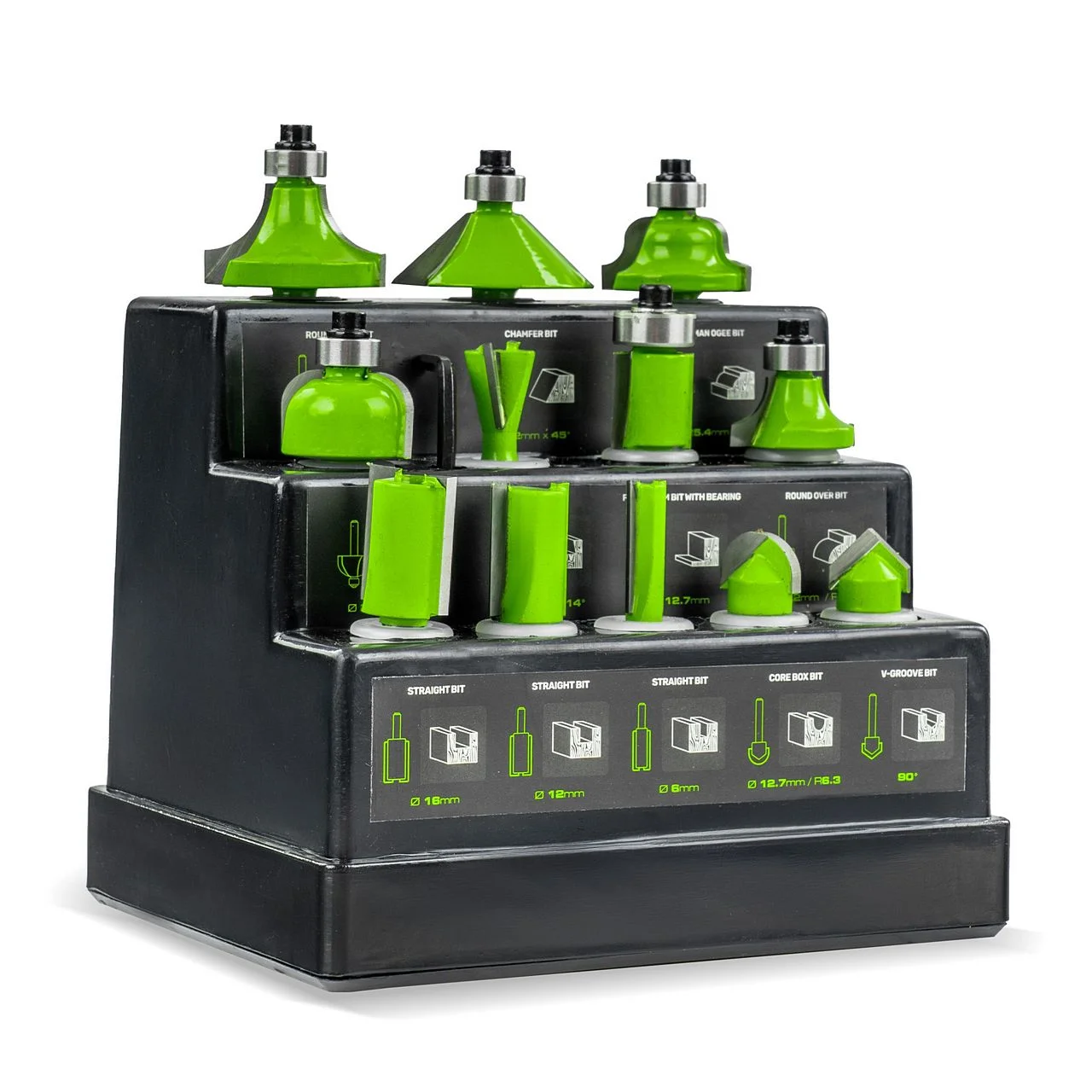

Six of the bits have a bearing for guiding along straight edges and curves without a template. Everything is supplied in a holder with a transparent lid.

Key benefits of router bit set W00024

The set brings the most common edge profiles together in one holder, so changing profile does not require separate purchases. The main points:

• Six bits with bearings for guiding along edges and curves
• Roundover, chamfer, ogee, cove and flush trim bits in one set
• Dovetail bit Ø 12.7 mm × 14° for joinery
• Three straight bits, Ø 16 mm, 12 mm and 6 mm
• Holder with a transparent lid that protects the bits from dust

How router bit set W00024 is used in woodworking

The set is used in woodworking, where edges on furniture and mouldings are rounded, chamfered or profiled. The bearing bits follow the edge directly, while the Ø 12.7 mm flush trim bit follows a template or an existing surface.

The dovetail bit and the V-groove bit Ø 12.25 mm × 90° handle joints and grooves. The straight bits are used for flat grooves and recesses in the surface.

Technical Specifications

Package Contents

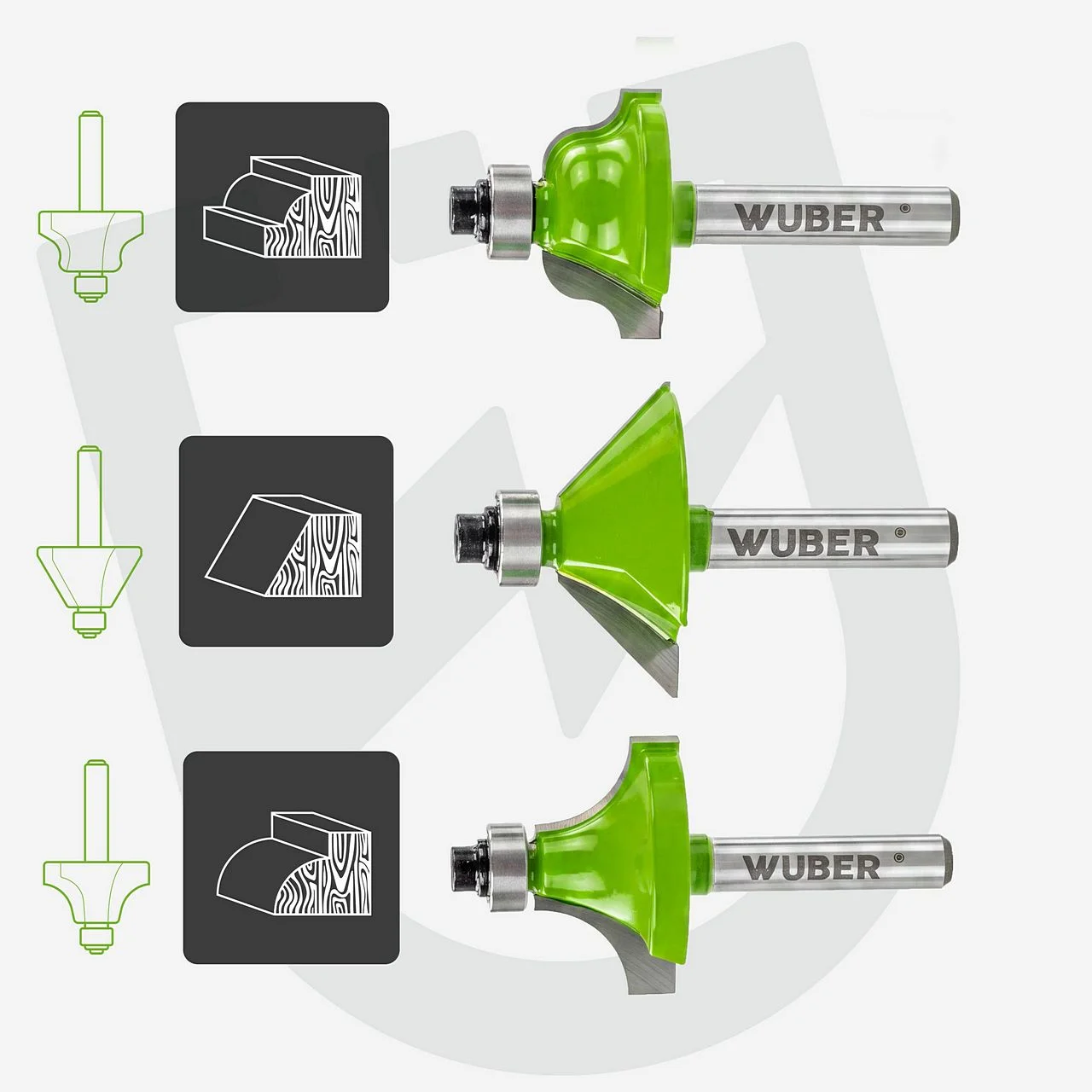

• Roundover bit Ø 28.6 mm / R 9.5 with bearing
• Chamfer bit Ø 32 mm × 45° with bearing
• Ogee bit Ø 25.4 mm / R 4 with bearing
• Cove bit Ø 22 mm / R 6.3 with bearing

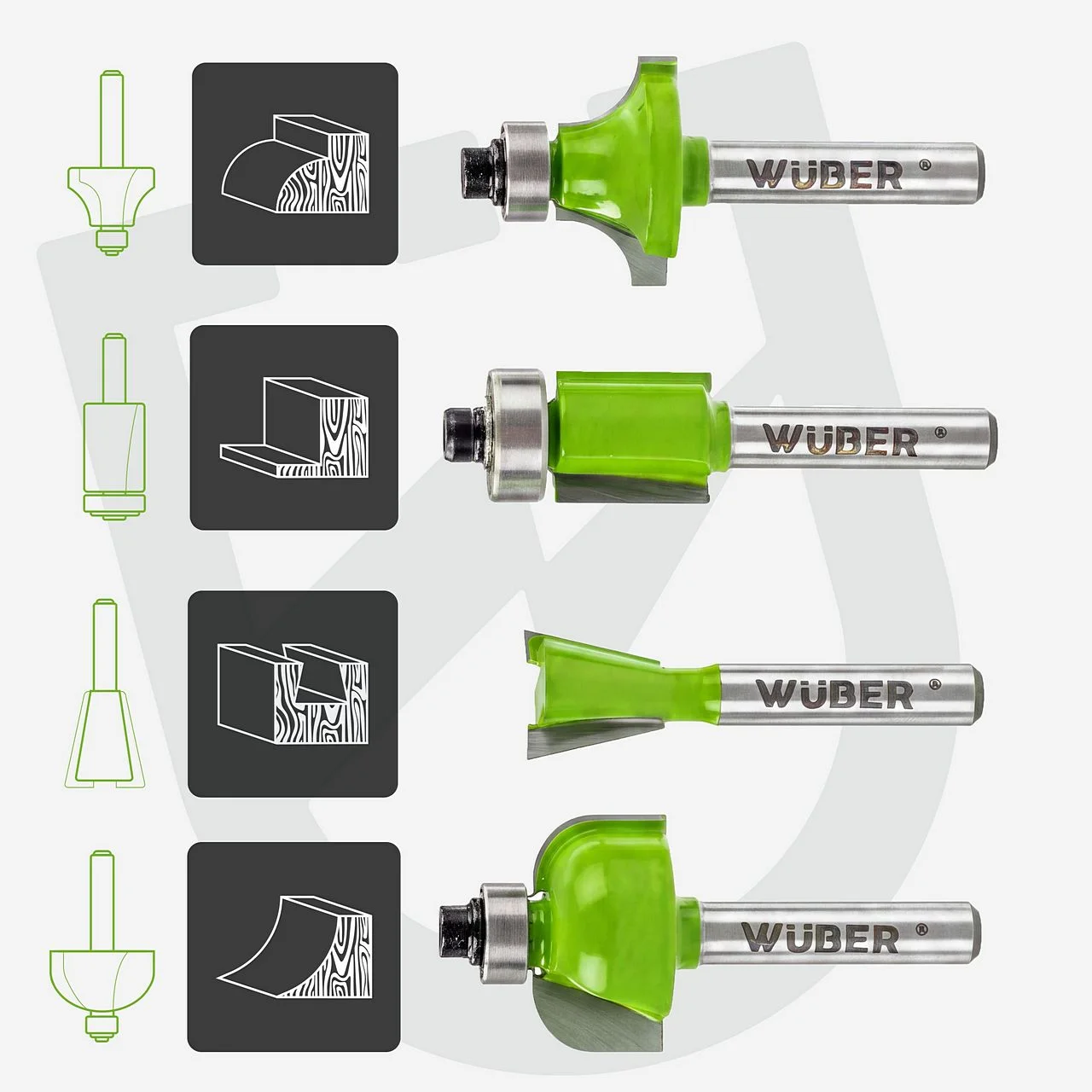

• Roundover bit Ø 22 mm / R 6.3 with bearing
• Flush trim bit Ø 12.7 mm with bearing
• Dovetail bit Ø 12.7 mm × 14°

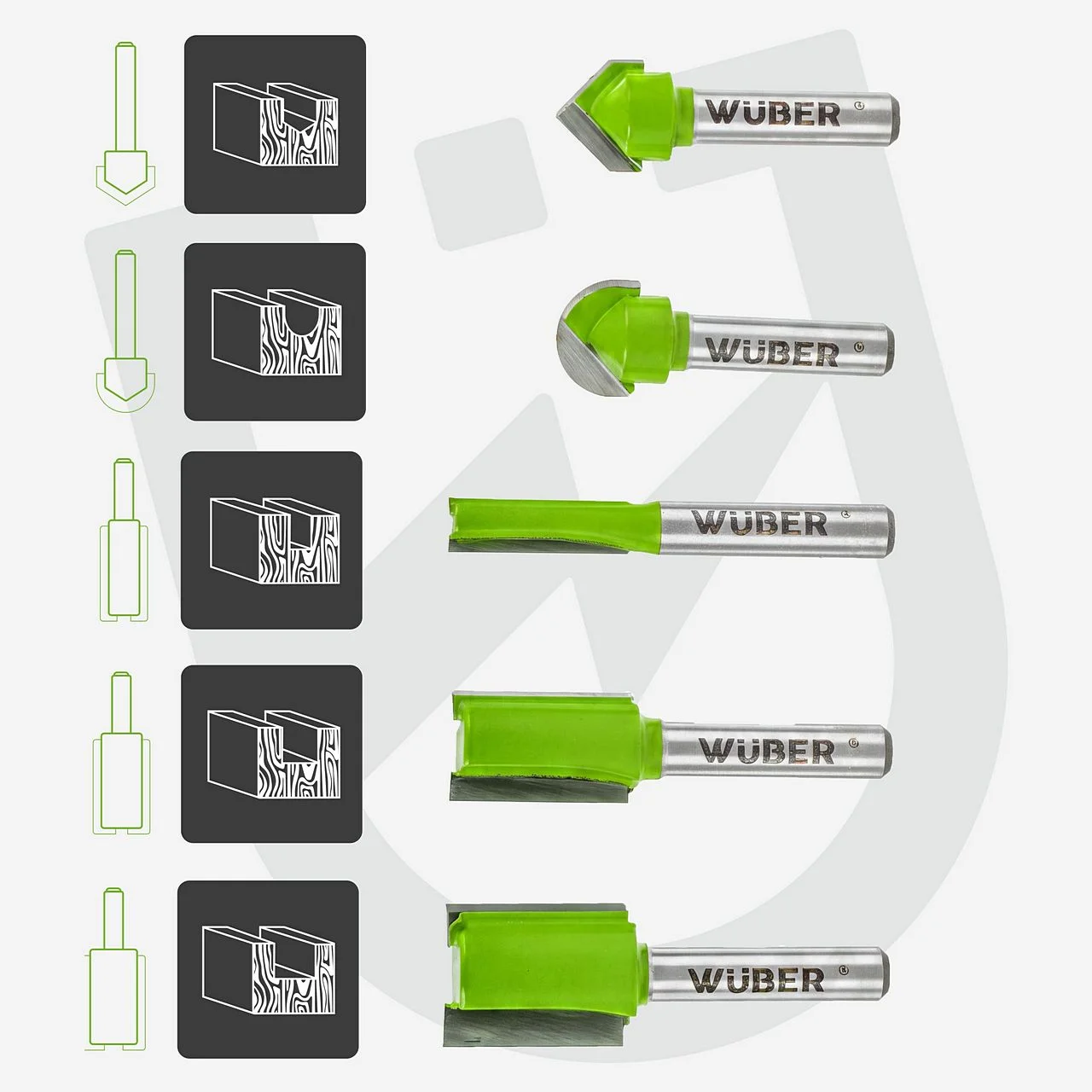

• Straight bit Ø 16 mm, 12 mm and 6 mm, 3 pcs
• Core box bit Ø 12.7 mm / R 6.3
• V-groove bit Ø 12.25 mm × 90°

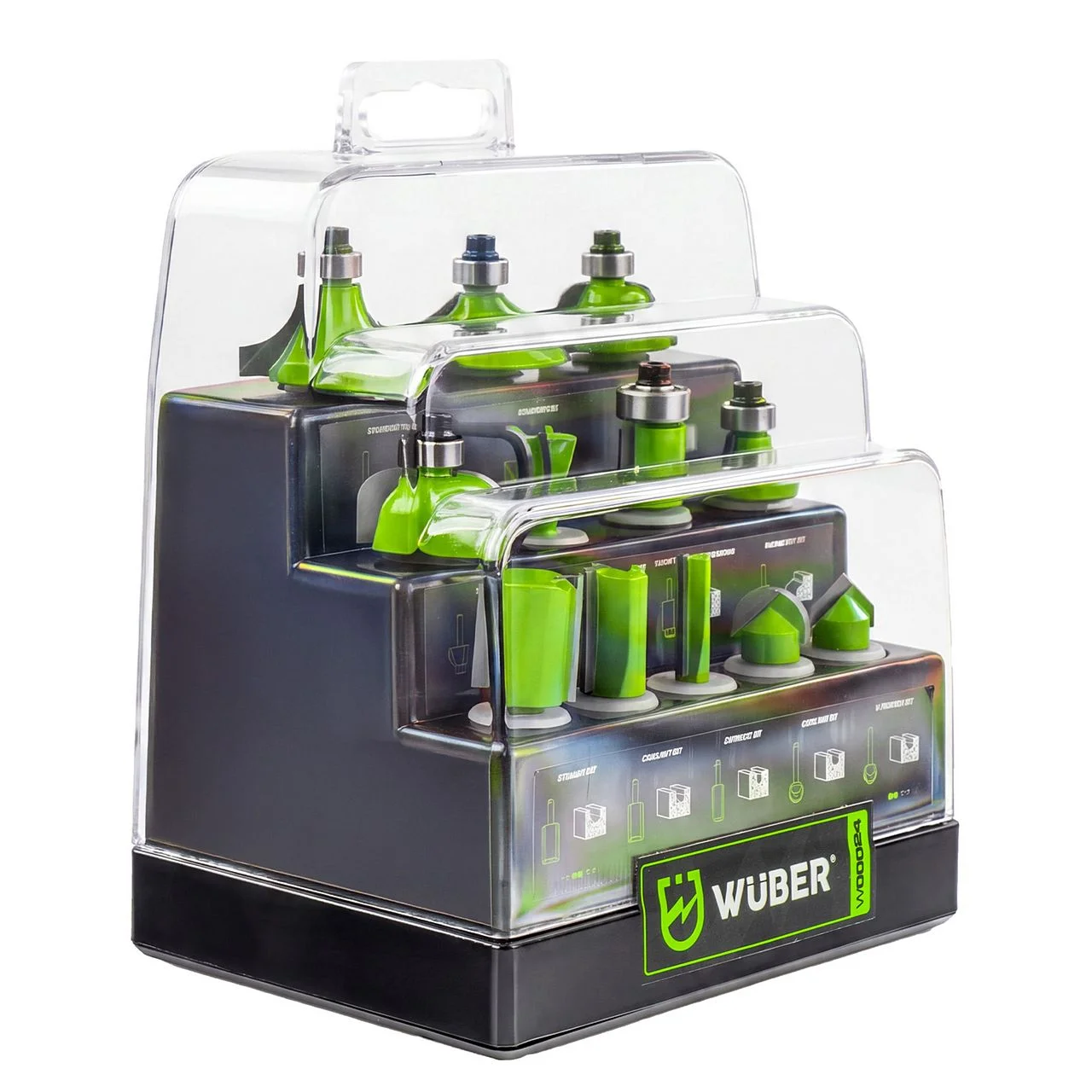

• Holder with transparent lid
• Original packaging

Suitable for: Joiners profiling edges on furniture and mouldings. Fitters who rout joints and grooves. Cabinetmakers copying from a template. Hobby woodworkers with a router for 6 mm shanks.

Industries: Furniture manufacturing. Interior joinery. Building carpentry. Workshop woodworking.

Frequently Asked Questions (FAQ)

Does router bit set W00024 fit a router with a 12 mm collet?

No, not without a reducer. The bits have a 6 mm shank and fit routers with a 6 mm collet. The 6-32 mm working diameter determines how wide a profile each bit cuts.

How many bits in W00024 have a bearing?

Six of the 12 bits have a bearing: the roundover bits Ø 28.6 mm and Ø 22 mm, the chamfer bit, the ogee bit, the cove bit and the flush trim bit. The bearing guides the bit along the edge without a template.

What distinguishes router bit set W00024 from other router bit sets?

The set has 12 bits with a 6 mm shank and diameters from 6 to 32 mm, six of them with bearings. It also includes a dovetail bit Ø 12.7 mm × 14° and a V-groove bit Ø 12.25 mm × 90°, so joints can be routed without extra purchases.
