Transmission Jack Adapter 500 kg 2-Stage Tilt Angle Chain Included AT-ASB2, Apptech

Quick Facts – Apptech AT-ASB2 Transmission Jack Adapter

• Brand: Apptech
• Model: AT-ASB2
• Type: Adapter for transmission jack
• Lifting capacity: 500 kg
• Shaft diameter: 28–29 mm
• Tilt adjustment: 2-stage
• Direction adjustment: Up/down, left/right

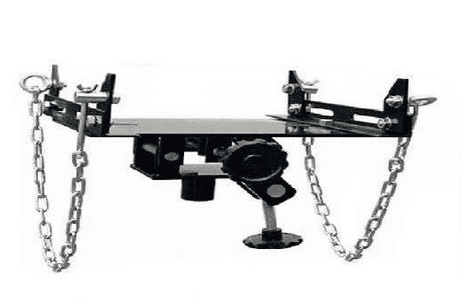

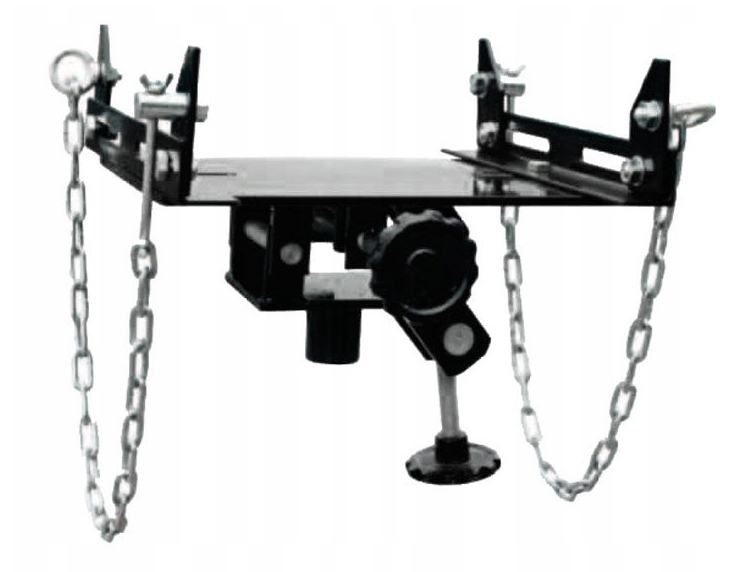

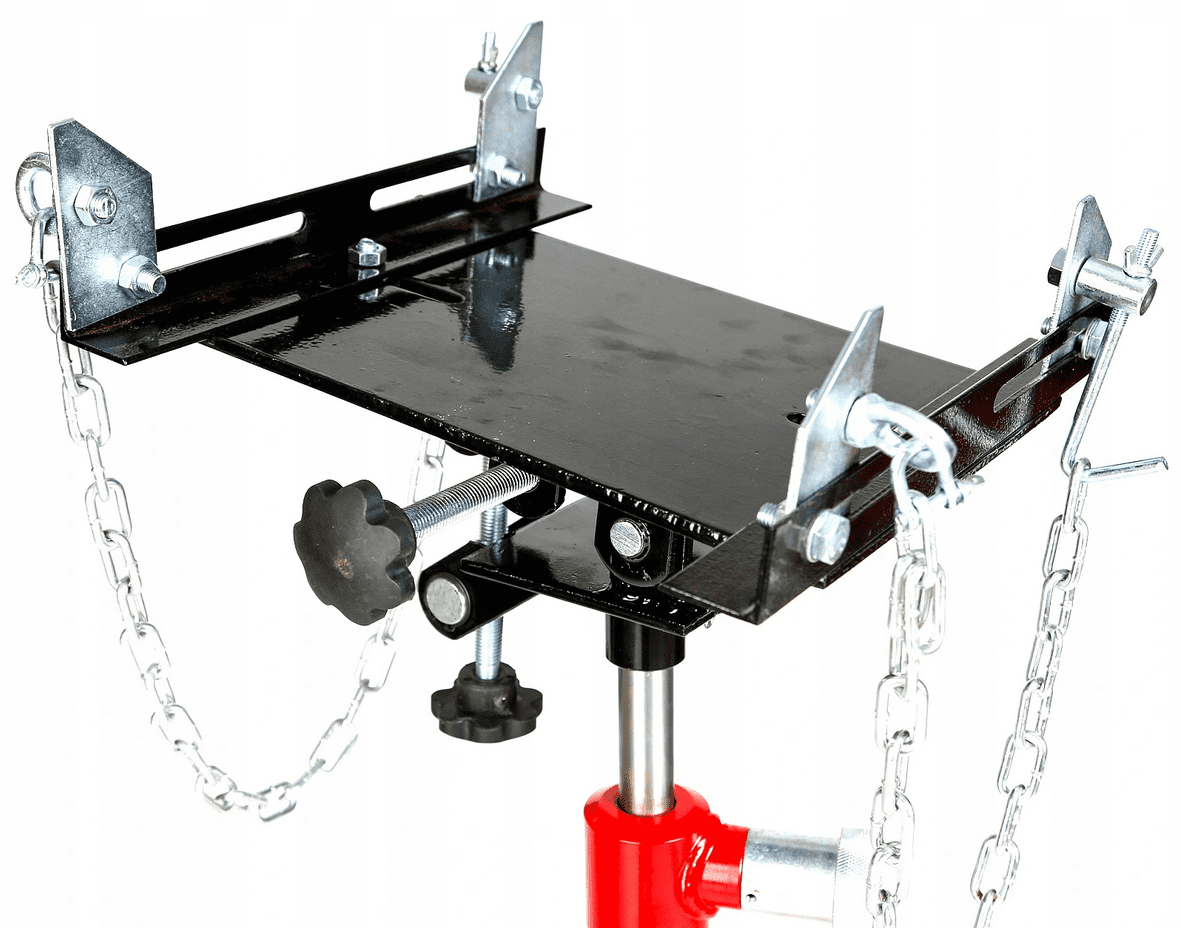

The Apptech AT-ASB2 is a robust transmission jack adapter that mounts on transmission jacks for safe handling of gearboxes, transfer cases and differentials. With a lifting capacity of 500 kg, the adapter handles heavy components from cars, SUVs and light commercial vehicles. The 2-stage tilt adjustment together with four-way directional adjustment (up/down, left/right) makes it easy to position the gearbox exactly for installation.

The adapter is manufactured from solid, reinforced steel for maximum durability and safety. It fits transmission jacks with a shaft diameter of 28–29 mm. Complete with two chains and shackles for secure attachment of the component during lifting and positioning.

Why choose Apptech AT-ASB2?

Lifting and installing a gearbox is one of the most demanding tasks during service and repair. Without the right adapter, you risk both personal injury and damage to an expensive component. The AT-ASB2 provides full control with 2-stage tilt and multi-directional adjustment, so you can fine-tune the position until splines and bolt patterns match perfectly. The robust construction and included chain system ensure the gearbox stays secure throughout the job.

Applications

• Installation and removal of manual and automatic gearboxes
• Handling of transfer cases and differentials
• Service of clutches and flywheels
• Work on cars, SUVs and light commercial vehicles

Package contents

• Transmission jack adapter AT-ASB2
• 2 pcs chains
• 2 pcs shackles
• 2 pcs wing nuts

Frequently Asked Questions about Apptech AT-ASB2 Transmission Jack Adapter

Which transmission jacks does the adapter fit?

The AT-ASB2 fits transmission jacks with a shaft diameter of 28–29 mm, which is a common standard size. Check your jack's shaft diameter before purchase to ensure compatibility. Most jacks in the 500 kg class use this dimension.

How does the 2-stage tilt adjustment work?

The tilt adjustment allows you to angle the adapter in two fixed positions to match the gearbox angle to the engine. Combined with the ability to adjust in four directions (up, down, left, right), you get full control to position the component exactly. This is crucial for getting the input shaft to slide into the clutch without forcing.

Is 500 kg enough for an automatic gearbox?

Yes, most automatic gearboxes for cars and SUVs weigh between 70–150 kg, so 500 kg capacity provides good margin. For really heavy components such as gearboxes from larger trucks or buses, an adapter with higher capacity may be needed. Always check the component weight before lifting.
