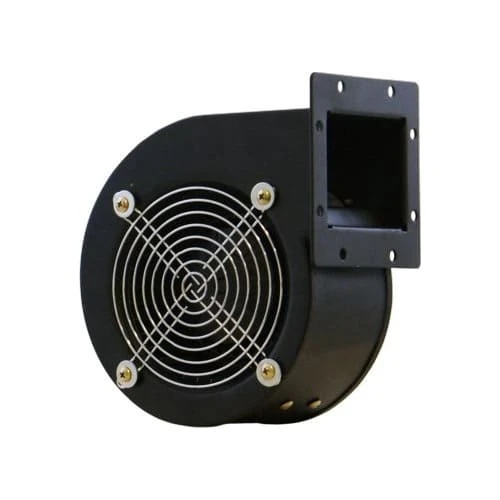

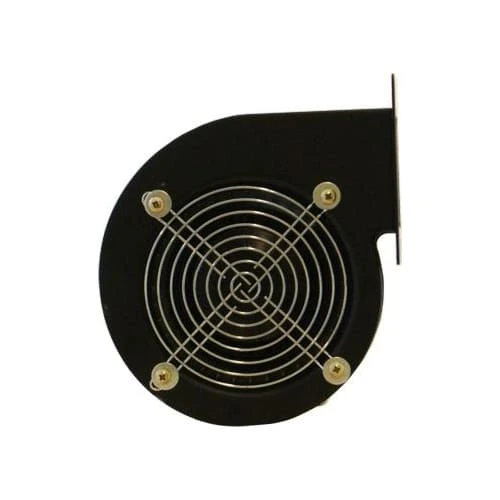

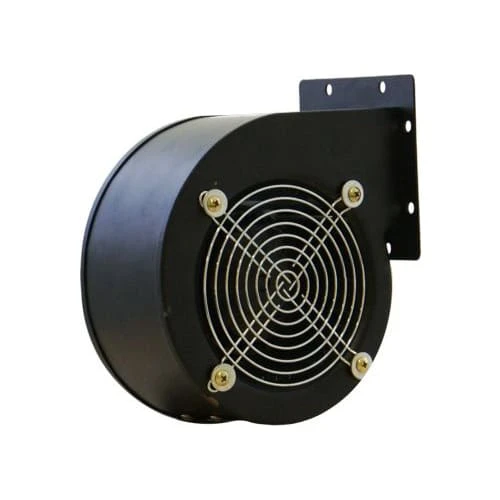

Centrifugal Fan Ferono FOP750 – Industrial Fan with High Performance

Applications

The Ferono FOP750 is an industrial fan that provides high-pressure solutions for demanding ventilation. The centrifugal fan is designed to change the airflow direction by 90°, offering greater pressure and efficiency compared to axial fans. Equipped with forward-curved blades and modern technology, this fan is ideal for:

• Industrial facilities
• Workshops
• Ventilation systems with long ducts
• Kitchens and spaces requiring high pressure

Its quiet operation and high performance make the Ferono FOP750 an excellent choice for all types of advanced ventilation.

Design and Construction

The Ferono FOP750 features a robust design with both casing and blades made of high-quality metal. Its modern oval design prevents dirt and dust buildup, ensuring long-lasting performance and minimal maintenance.

Centrifugal Fan - Technical Specifications

• Model: FOP750
• Air Pressure (Pa): 360
• Voltage (V): 230
• Frequency (Hz): 50
• Power (W): 115
• Current (A): 0.50
• Speed (RPM): 2300
• Airflow (m³/h): 370
• Noise Level (dB): 89
• Capacitor Capacity (μF/V): 3 / 450
• Net Weight / Gross Weight (kg): 11 / 11.8

Motor

The Ferono FOP750 is equipped with a brushless, modern motor that supports voltage regulation. The built-in thermal protection is activated by a temperature sensor, protecting the motor from overheating. Insulation class F and IP44 ensure reliable operation even in tough conditions. The double bearings significantly extend the fan’s lifespan.

Advantages of the Ferono FOP750

• Modern and durable design
• Quiet operation
• Brushless motor for high reliability
• Built-in thermal protection
• Double bearings for longer lifespan
• High insulation class for copper wires: F
• IP44-rated for challenging environments
• Operating temperature range: -20°C to 65°C

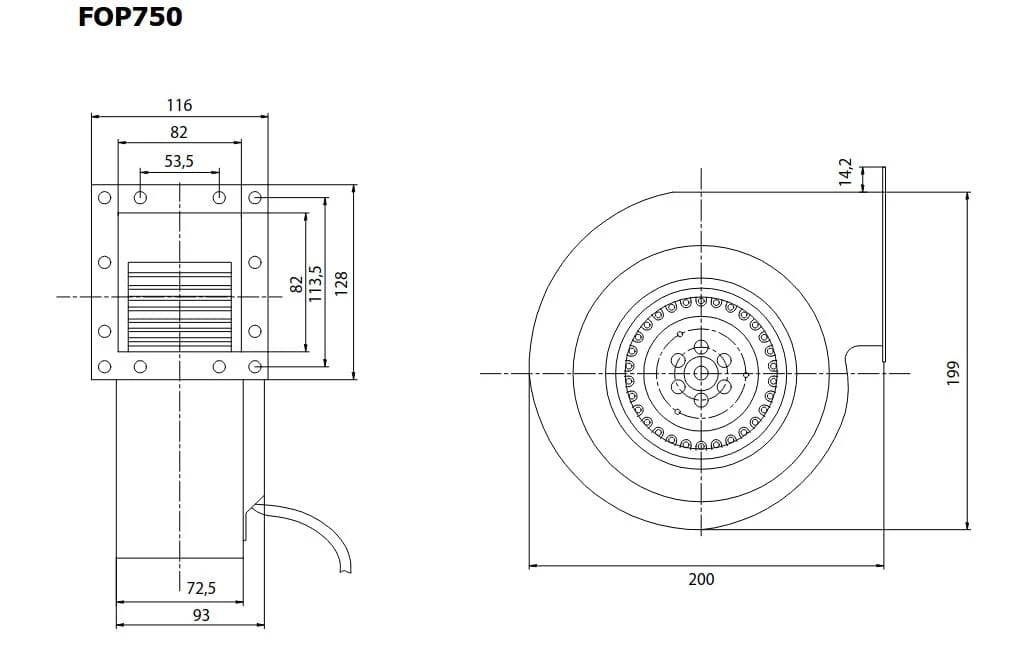

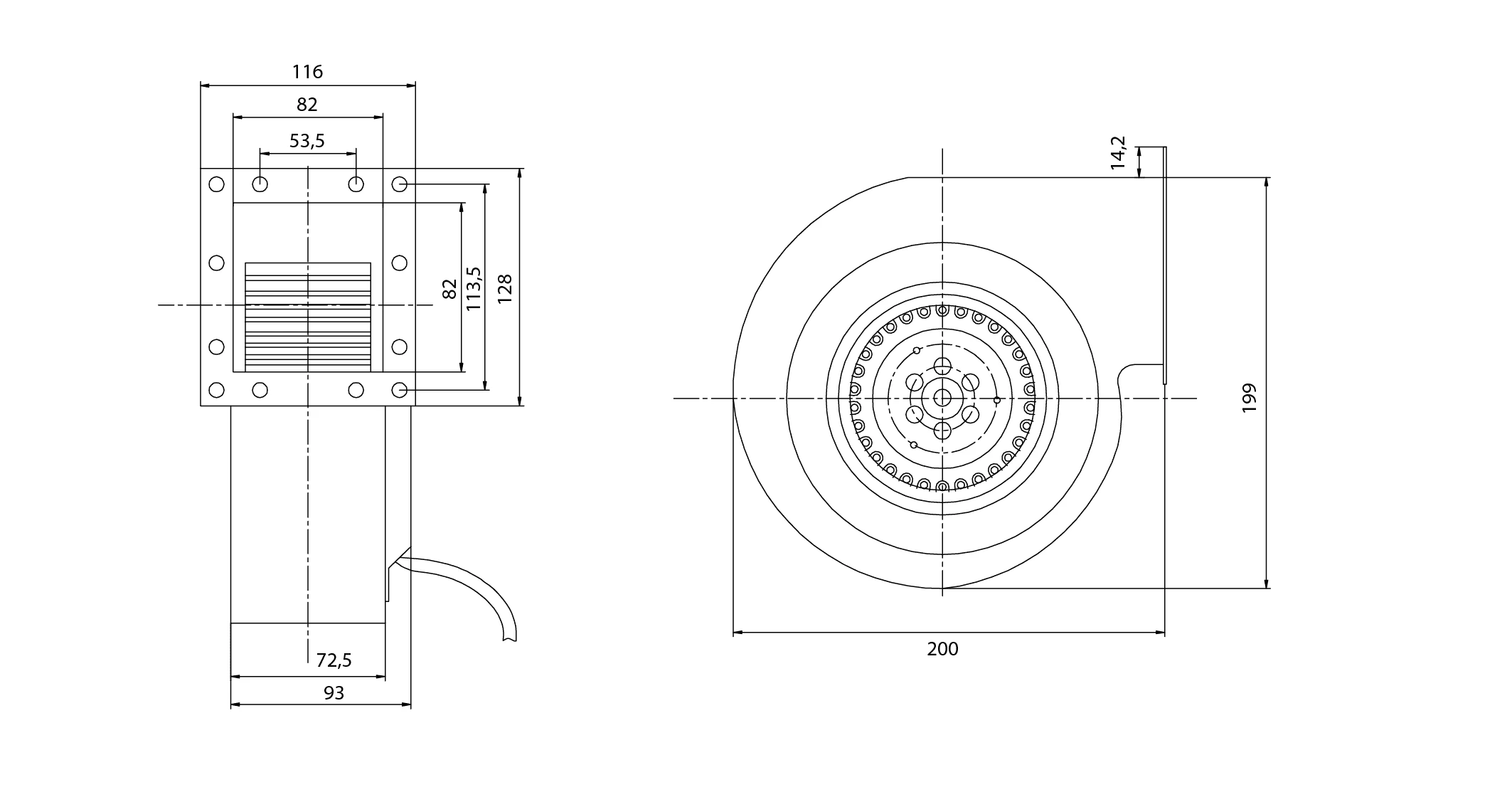

Dimensions

• A (mm): 116
• B (mm): 102
• C (mm): 82
• D (mm): 88
• E (mm): 109.5
• F (mm): 48
• G (mm): 64.6
• H (mm): 109.5
• I (mm): 180.5
• J (mm): 174.8
• K (mm): 7

Note: The Ferono FOP750 is ideal for systems requiring high-pressure ventilation and long-term reliability.

Choose the Ferono FOP750 industrial fan to enhance your ventilation system with high-performance technology. Order today from us for competitive prices and fast delivery!
