Circular Duct Fan Ferono FKM100 – Optimal Ventilation

Applications

The Ferono FKM100 is a high-performance circular duct fan designed to provide efficient ventilation in both residential and commercial environments. Thanks to its modern construction, this fan delivers high air pressure and superior performance with minimal noise levels, making it ideal for:

• Residential spaces
• Offices
• Industrial facilities
• Ventilation systems with round ducts

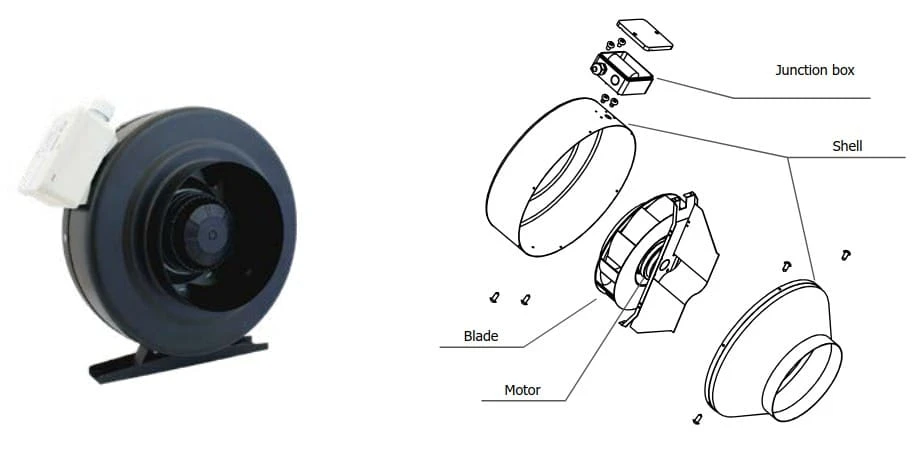

Design and Construction

The Ferono FKM100 features a sturdy metal construction and high-quality plastic fan blades. Its modern oval design prevents dirt buildup, ensuring long-lasting performance. The fan comes with a mounting base and a connection box for easy installation in round duct systems.

Technical Specifications

• Model: FKM100
• Air Pressure (Pa): 370
• Diameter (mm): 100
• Voltage (V): 230
• Frequency (Hz): 50
• Power (W): 90
• Current (A): 0.43
• Speed (RPM): 2680
• Airflow (m³/h): 330
• Noise Level (dB): 61
• Capacitor (μF/V): 3 / 450
• Net Weight / Gross Weight (kg): 3.0 / 3.4

Motor

The Ferono FKM100 is equipped with a brushless, modern motor that supports voltage regulation and features built-in thermal protection to prevent overheating. With insulation class F and IP44-rated sealing, this circular duct fan ensures reliable operation even under demanding conditions.

Advantages of the Ferono FKM100

• Durable metal casing
• High-quality plastic fan blades
• Modern and efficient design
• Quiet operation
• Reliable brushless motor
• Built-in thermal protection
• IP44-rated for challenging environments
• Operating temperature range: –10°C to 60°C

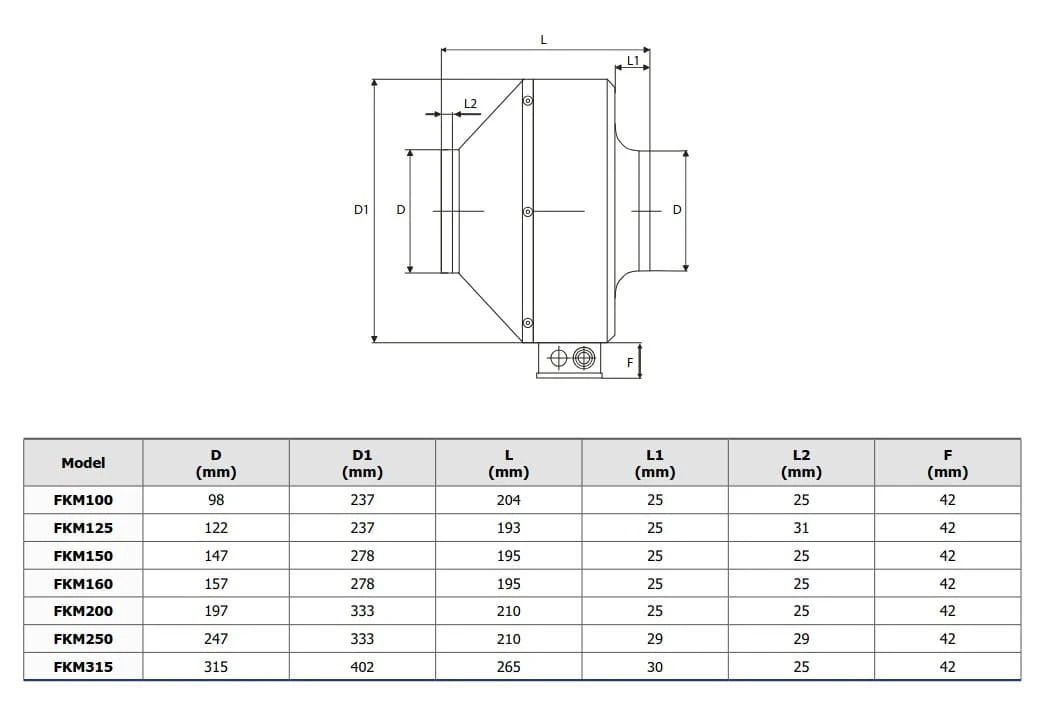

Dimensions

• D (mm): 98
• D1 (mm): 237
• L (mm): 204
• L1 (mm): 25
• L2 (mm): 25
• F (mm): 42

Note: The Ferono FKM100 is an excellent choice for systems requiring reliable ventilation and high performance. Order today and experience the benefits of an efficient circular duct fan.
