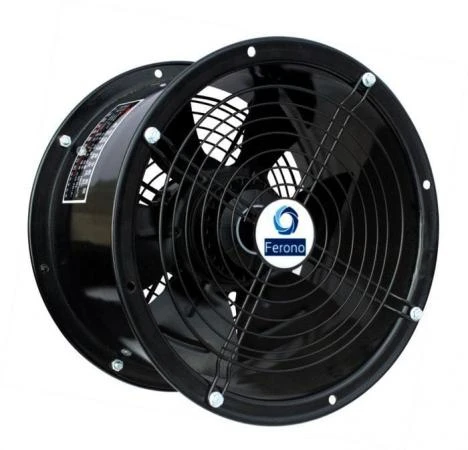

Ventilation - Axial Duct Fan Ferono FKO500 – Efficient and Waterproof Axial Fan

Applications

The Ferono FKO500 is a high-performance circular duct fan / axial fan designed to deliver effective ventilation in various environments. Its waterproof construction and the ability to mount vertically or horizontally make it ideal for:

• Industrial spaces such as warehouses, workshops, and production halls
• Commercial buildings like stores and wholesalers
• Specialized facilities like greenhouses, poultry houses, and barns
• Smaller spaces such as offices and garages

Design and Performance

The Ferono FKO500 combines modern design with robust construction. Its black finish and aesthetic design make it suitable for installation in public and commercial spaces. With high performance, low noise levels, and easy installation, this fan offers a versatile solution for efficient air circulation.

Technical Specifications

• Model: FKO500
• Air Pressure (Pa): 170
• Diameter (mm): 500
• Voltage (V): 230
• Frequency (Hz): 50
• Power (W): 320
• Current (A): 1.49
• Speed (RPM): 1350
• Airflow (m³/h): 8000
• Noise Level (dB): 73
• Capacitor Capacity (μF/V): 8 / 450
• Net Weight / Gross Weight (kg): 10.4 / 11.9

Motor

Equipped with a modern brushless motor designed for voltage regulation. The motor features built-in thermal protection and a high insulation class (F). With an IP55 rating, the fan is reliable and safe even in demanding conditions.

Benefits of the Ferono FKO500

• High airflow capacity due to aerodynamically designed rotor blades
• Robust metal construction for both motor and rotor blades
• Double bearings for extended lifespan
• IP55-rated for safe operation in humid environments
• Operating temperature range: –20°C to 80°C
• Relative humidity range: 20% to 95%

Dimensions

• A (mm): 122
• B (mm): 500
• C (mm): 520
• D (mm): 542
• E (mm): 569
• F (mm): 8
• G (mm): 6
• L (mm): 190

Order now! The Ferono FKO500 delivers reliable and efficient ventilation for a wide range of applications. With high capacity and robust design, it is the perfect choice for industrial and commercial environments.
