Quick Facts — W22054 Air/hydraulic jack

• Model: W22054
• EAN: 5906436763449
• Type: Pneumatic
• Lifting capacity: 22000 kg
• Lifting height: 220-435 mm (535 mm with adapters)
• Working pressure: 0.6–0.8 MPa (6–8 bar)
• Weight: 36 kg

Air/hydraulic jack for lorries, tractor units, buses, trailers and heavy agricultural and construction machinery, with a lifting capacity of 22000 kg. The Wuber Tools W22054 runs on compressed air at 6–8 bar and reaches 535 mm lifting height with the supplied adapters.

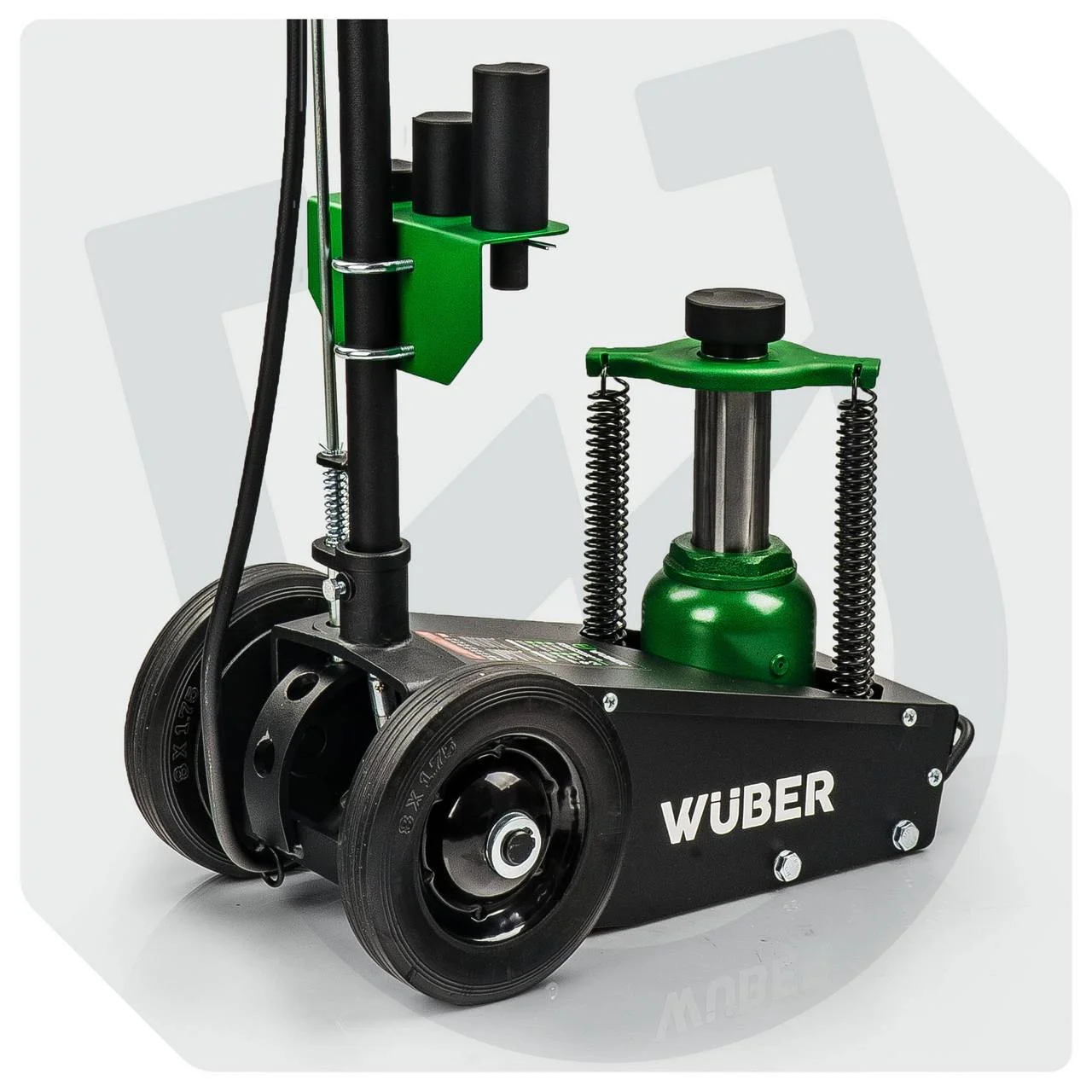

The construction is thick sheet steel with a double sealing system. The threaded saddle with an extendable screw gives 80 mm of adjustment of the support point, and large wheels together with a folding control handle make it easy to roll the jack under the vehicle.

What sets air/hydraulic jack W22054 apart?

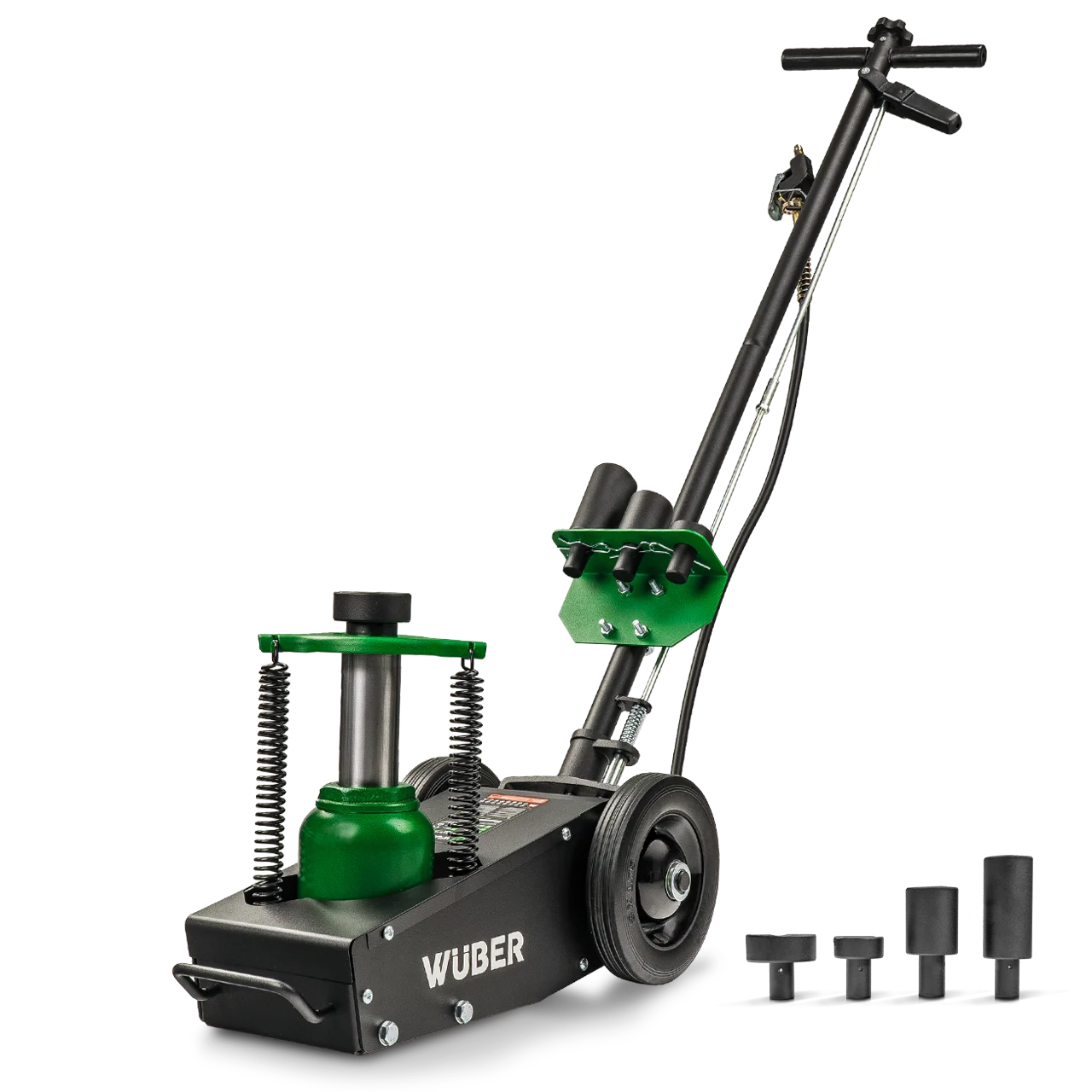

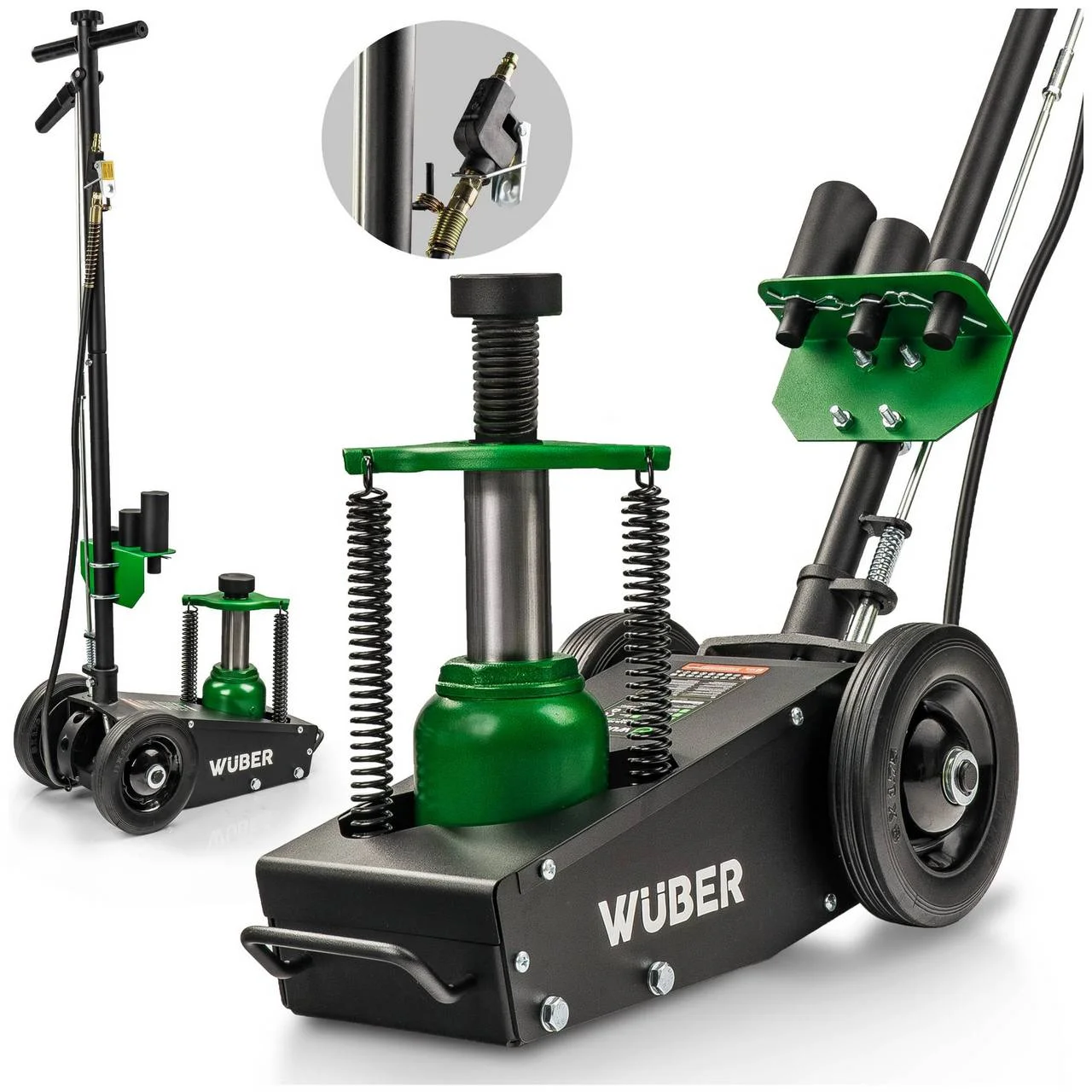

Pneumatic drive gives fast lifting without pumping, and the air valve lever locks in the working position so that the air supply stays constant without holding the lever down. Lifting height is 220-435 mm, and four saddle adapters raise it to 535 mm.

The 80 mm saddle screw reduces the gap to the chassis before lifting. The oil filler and service valve are easy to reach, which simplifies bleeding and maintenance. Piston stroke is 135 mm and the jack has a safety valve.

Where air/hydraulic jack W22054 performs best

Workshops with compressed air and heavy vehicles benefit most, as the jack lifts 22000 kg:

• Lorries and tractor units
• Buses and trailers
• Heavy agricultural and construction machinery

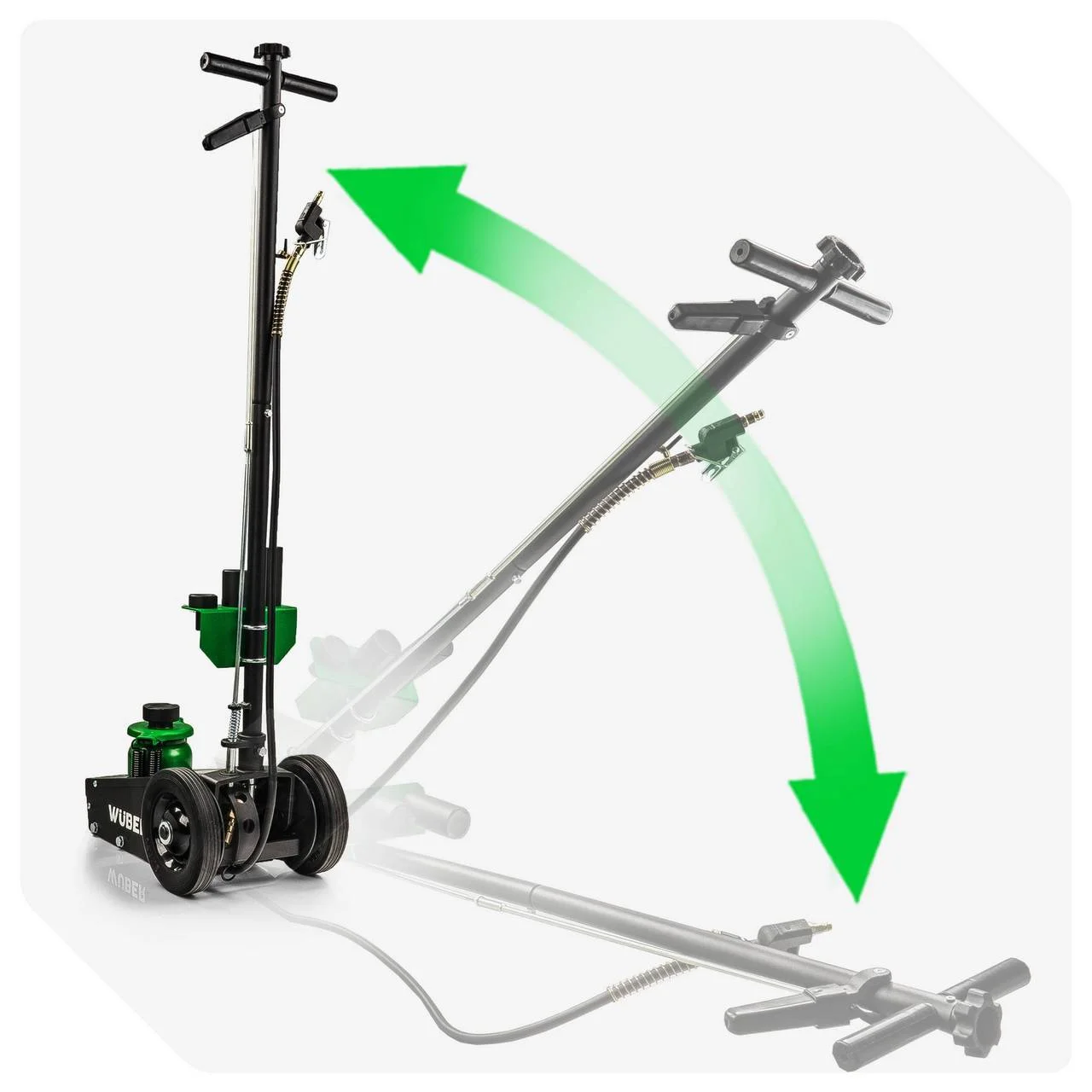

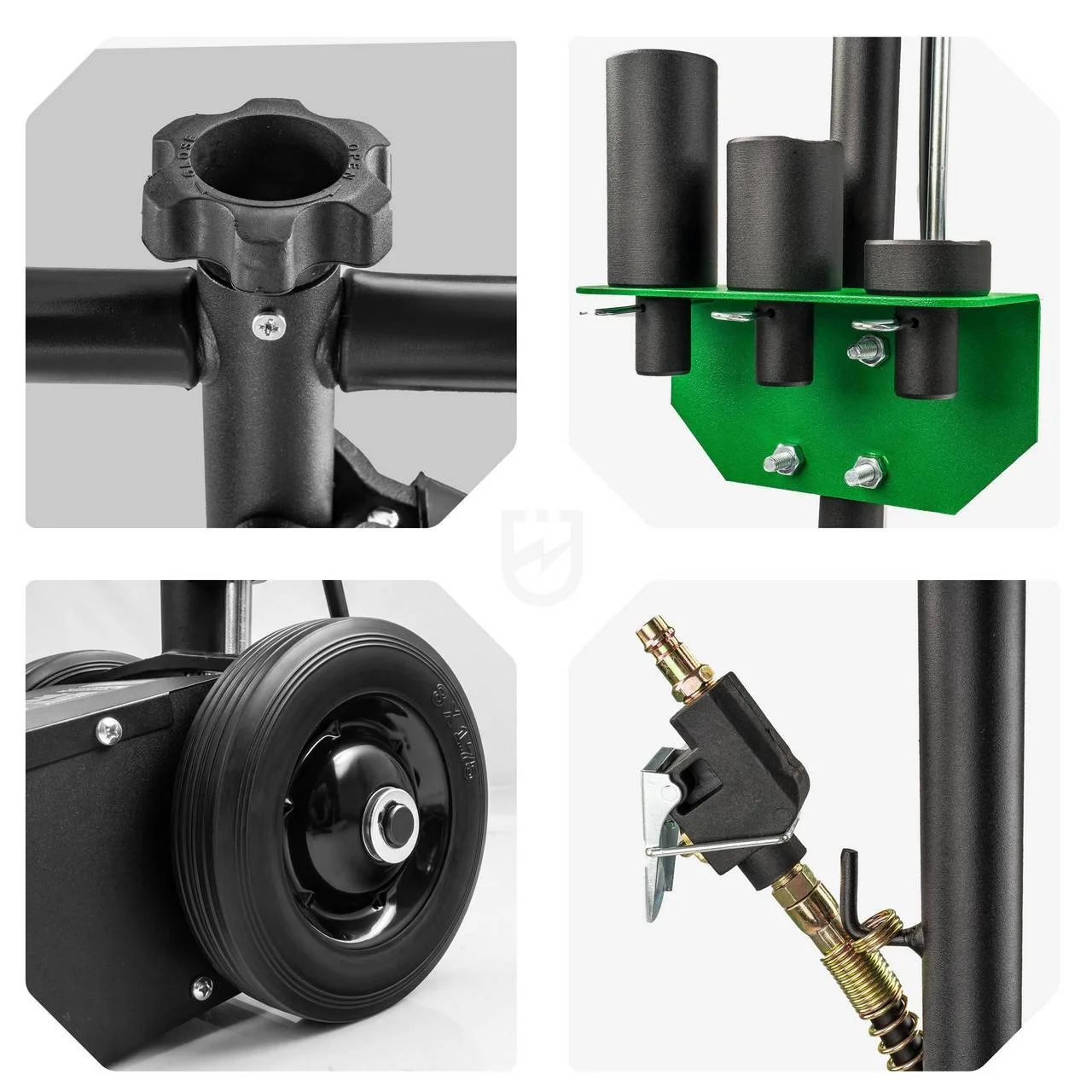

Wheels, an adjustable handle angle with locking lever and a built-in carrying handle let it be moved and positioned under the vehicle in the workshop.

Technical Specifications

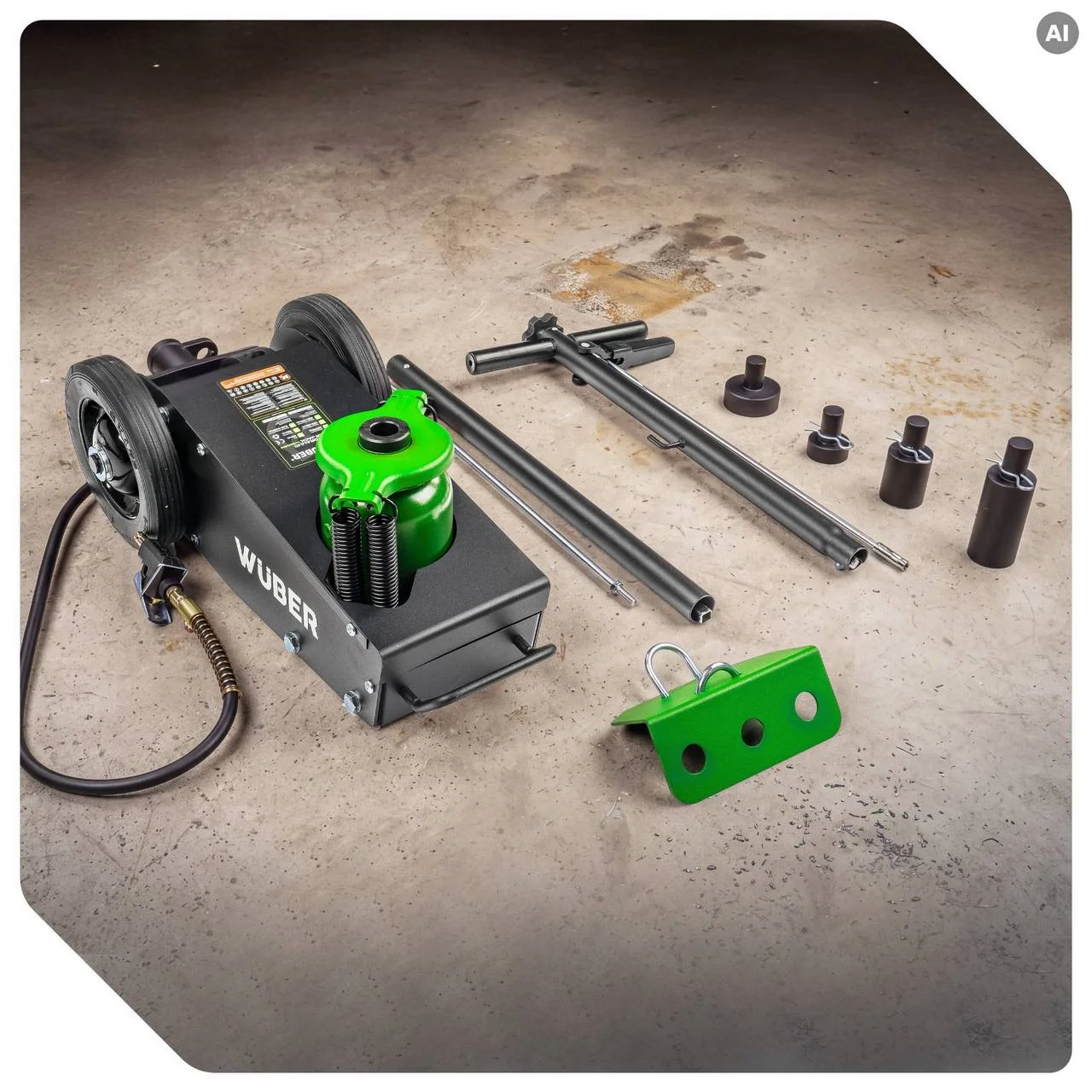

Package Contents

• Air/hydraulic jack
• Saddle adapter set
• Air hose with quick coupler and control lever
• Folding control handle with locking lever
• Original packaging

Used by: Lorry mechanics. Bus technicians. Construction machinery mechanics. Agricultural machinery mechanics.

Common in: Haulage. Bus transport. Farming. Construction. Heavy vehicle workshops.

Frequently Asked Questions (FAQ)

Does air/hydraulic jack W22054 work in a workshop without a compressor?

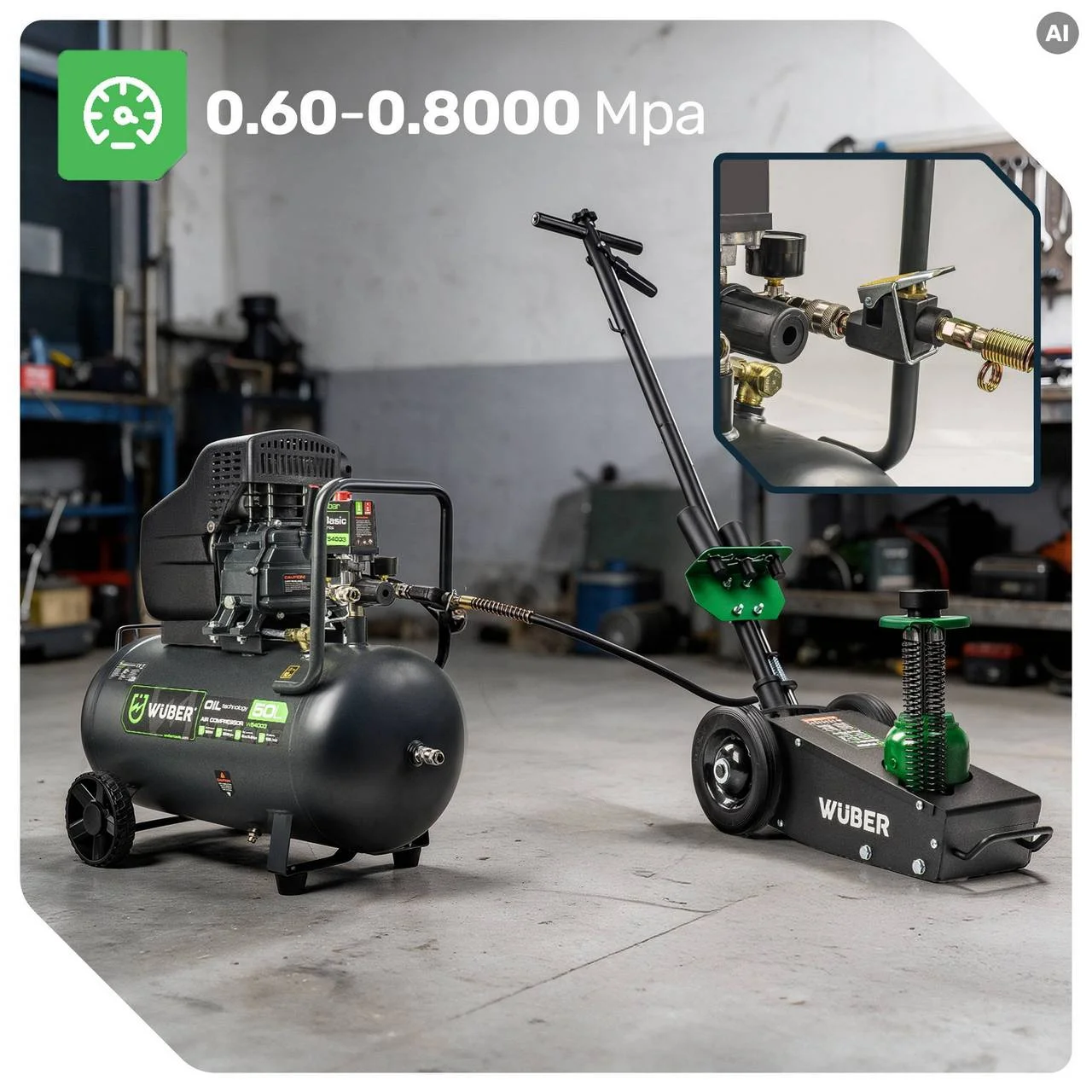

No. The jack runs on compressed air at 0.6–0.8 MPa (6–8 bar) and needs a compressor delivering that pressure. An air hose with quick coupler and control lever is supplied.

What lifting height does air/hydraulic jack W22054 reach?

Lifting height is 220-435 mm, and with the four supplied saddle adapters it reaches 535 mm. The saddle screw adds 80 mm of adjustment and the piston stroke is 135 mm.

What sets air/hydraulic jack W22054 apart from other jacks?

It runs on compressed air instead of manual pumping. The air supply can be locked in the working position. Lifting capacity is 22000 kg and the saddle has four adapters that raise the lifting height by 100 mm to 535 mm.
