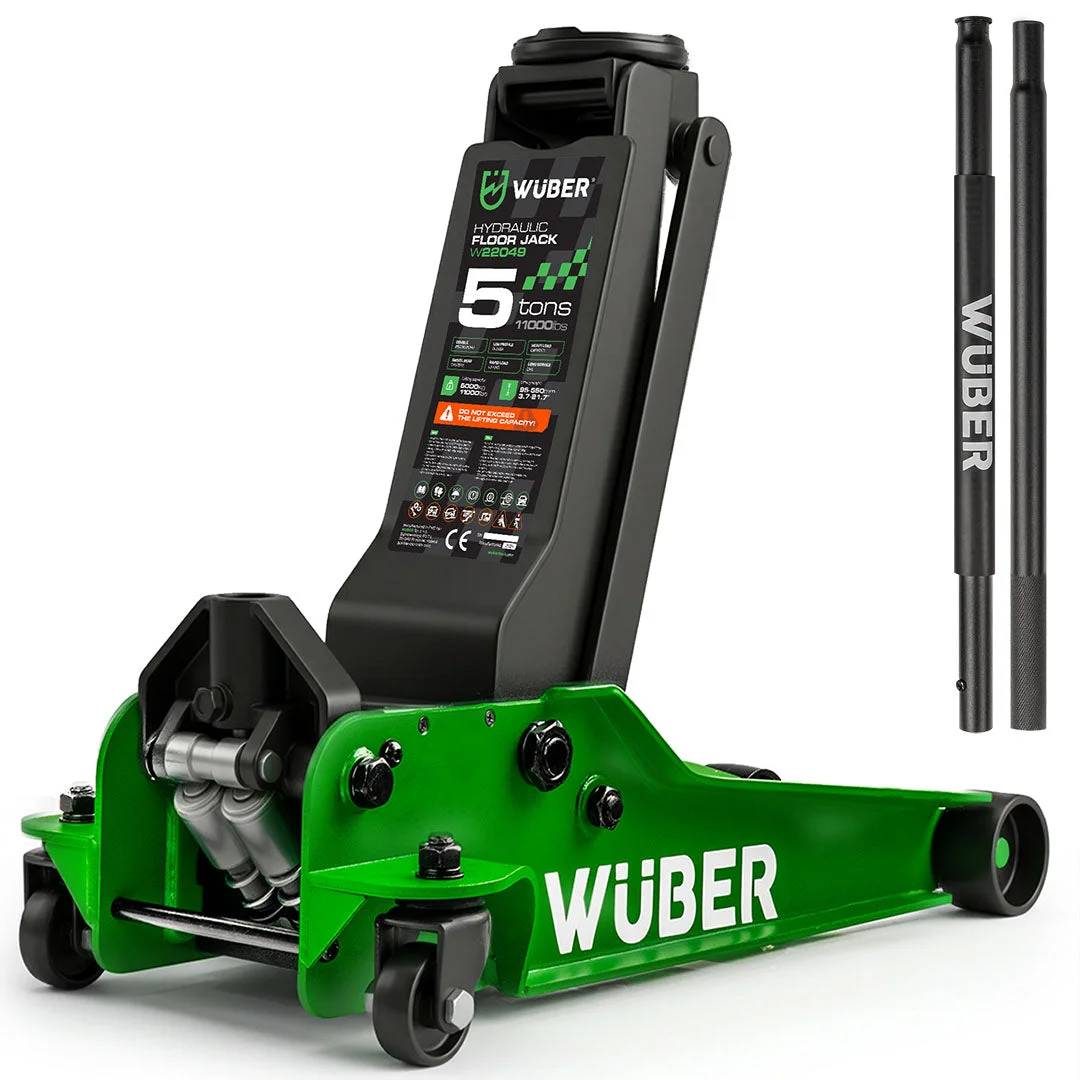

Low Profile Garage Jack 5 t, 95–550 mm, Twin Piston, Hydraulic, Wuber Tools

Quick Facts — W22049 Garage jack

• Model: W22049
• EAN: 5906436763463
• Type: Low profile, hydraulic
• Lifting capacity: 5000 kg

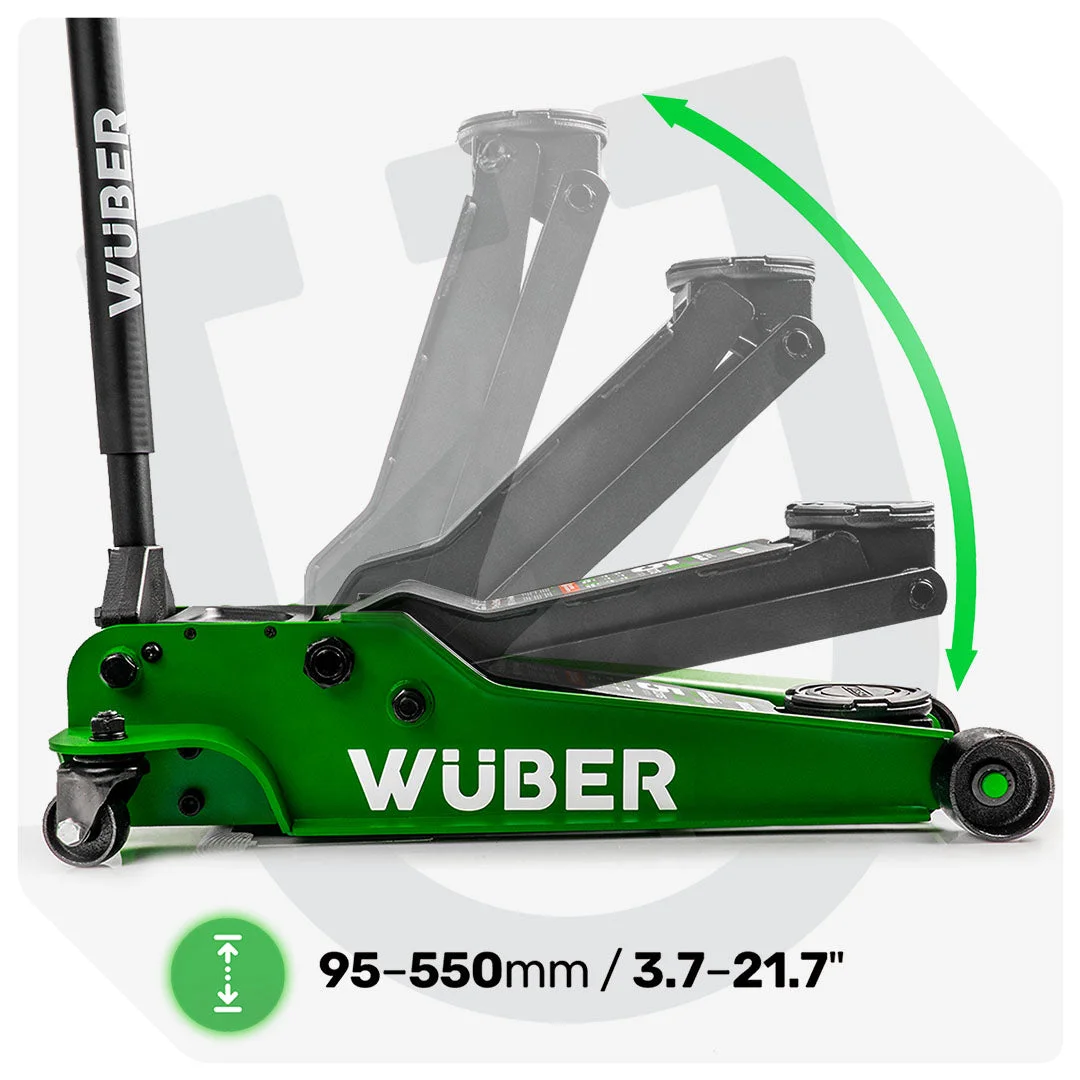

• Lifting range: 95–550 mm
• Hydraulic cylinder: Twin piston
• Saddle: 120 mm
• Weight: 46.5 kg

Wuber Tools W22049 is a hydraulic low profile jack rated for 5000 kg, built for lowered cars, SUVs and vans. The twin piston pump takes the saddle from 95 mm to the full 550 mm in 10 pump strokes without load.

The frame is built from steel profiles 6.5 mm thick and is powder coated. The low entry height of 95 mm lets the jack slide under the sills of sports and lowered cars.

Why mechanics choose garage jack W22049

The twin piston pump cuts lift time: 10 strokes take the saddle from 95 mm to 550 mm without load. That means fewer movements per lift in a workshop where the jack is used many times a day. The two-piece 125 cm handle with foam grip gives leverage and protects the bodywork from scratches. Lowering is controlled from the handle via the release valve, so the vehicle can be set down onto stands in a controlled way.

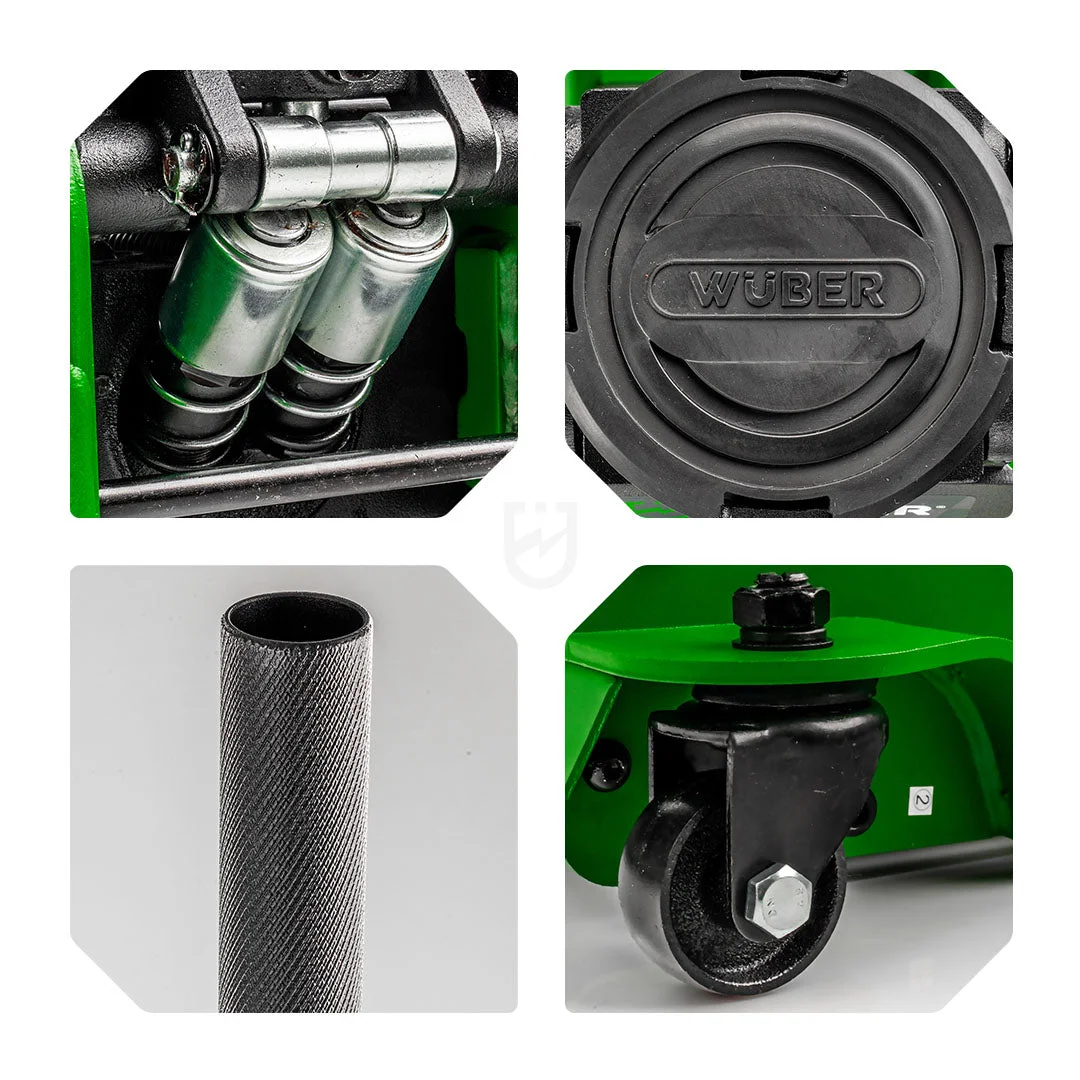

The front wheels have a cast iron core with a nylon and glass fibre composite tread, and the rear wheels swivel 360 degrees. The rotating 120 mm saddle has a rubber pad against underbody damage. A tray on top of the body holds wheel bolts while working.

Is jack W22049 suited to lowered cars and vans?

Yes. The 95 mm starting height lets the jack go under lowered cars, and the 5000 kg capacity with a 550 mm maximum height covers SUVs and vans as well. At 79 x 35 x 17 cm and 46.5 kg it is a stable but heavy unit to move. The safety valve protects against overload. The delivery includes:

• Hydraulic low profile jack W22049

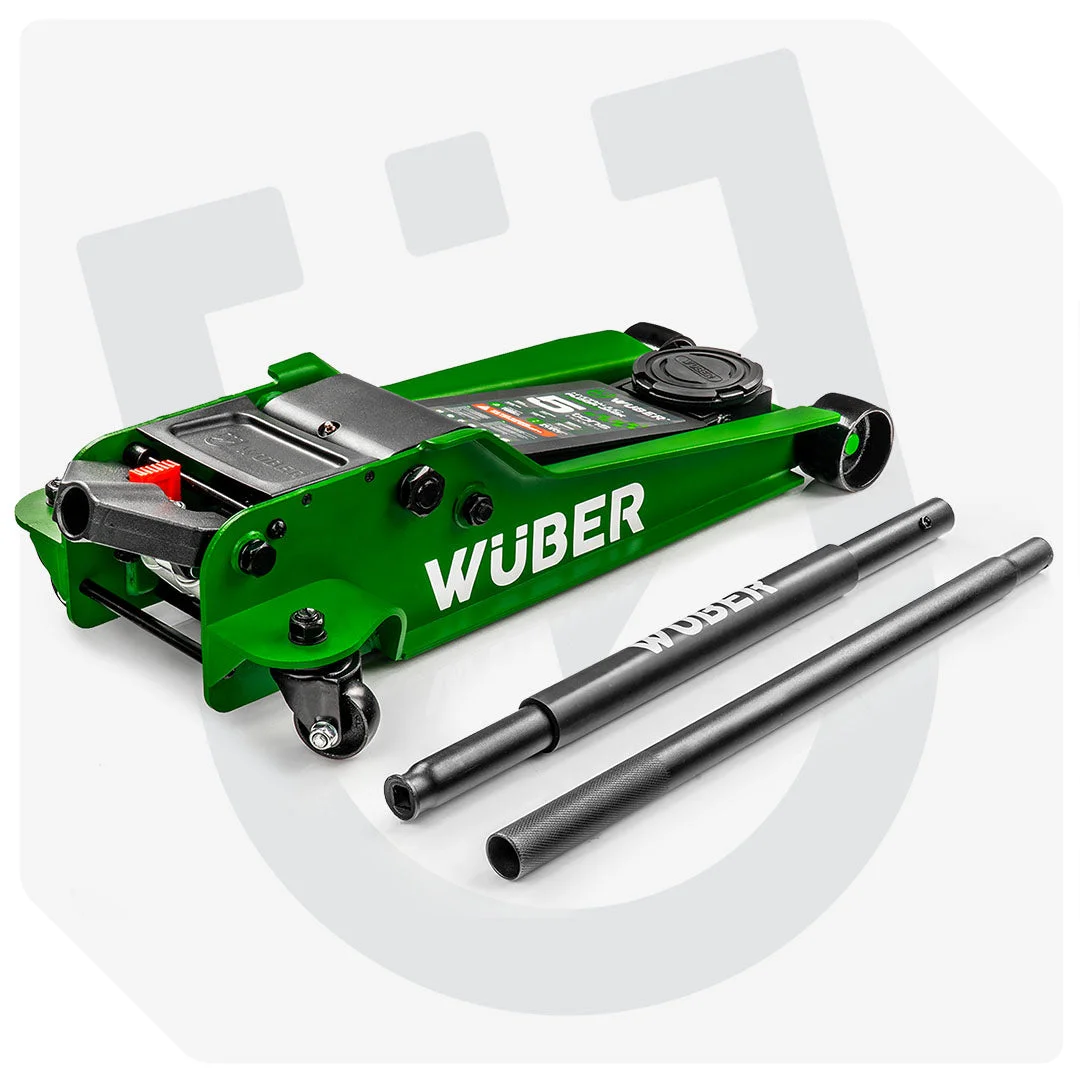

• Two-piece handle with foam grip
• Original packaging

Technical Specifications

Package Contents

• Hydraulic low profile jack W22049
• Two-piece handle with foam grip
• Original packaging

Suitable for: Tyre fitters in tyre workshops, Van service technicians, Mechanics in sports car workshops, Brake technicians.

Industries: Car workshops, Tyre workshops, Vehicle servicing, Haulage and transport workshops.

Frequently Asked Questions (FAQ)

Does jack W22049 fit lowered cars with low ground clearance?

Yes. The saddle of jack W22049 starts at 95 mm, so it goes under vehicles with at least 95 mm of ground clearance. The maximum lifting height is 550 mm and the 120 mm saddle has a rubber pad against underbody damage.

How fast does jack W22049 lift to full height?

The twin piston pump takes jack W22049 from 95 mm to 550 mm in 10 strokes without load. The handle is 125 cm and two-piece, and the release valve is controlled from the handle for controlled lowering.

What distinguishes jack W22049 from other garage jacks?

Jack W22049 has a twin piston pump, giving 10 strokes to full height without load, and a low profile with a 95 mm starting height. Capacity is 5000 kg. The frame is built from 6.5 mm steel profiles and the front wheels have a cast iron core with a composite tread.
