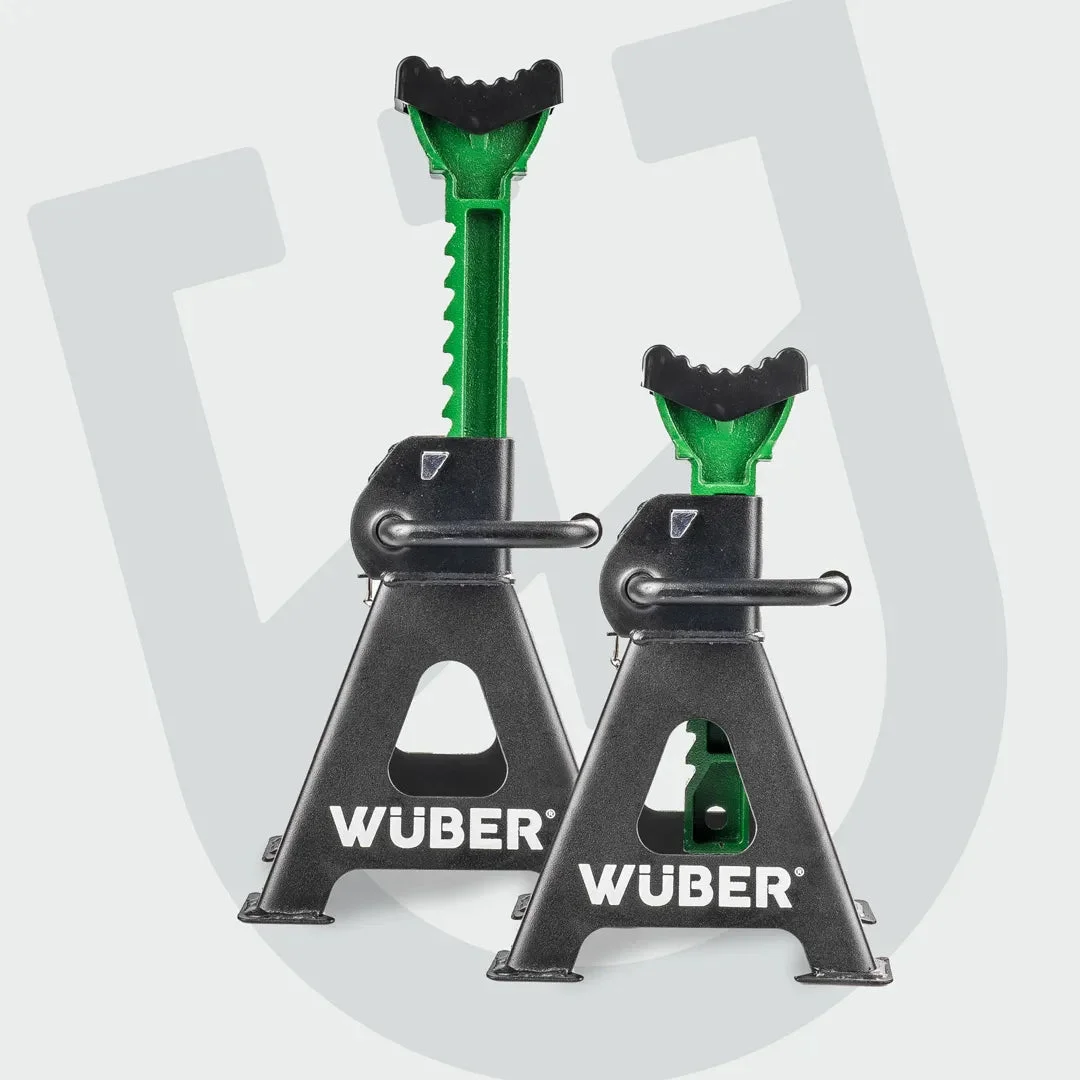

Axle Stands 3 t, 280–425 mm, 2 pcs, with Locking Pin and Rubber Pads, Wuber Tools

Quick Facts — W22009 Axle stands

• Model: W22009
• EAN: 5908239734824
• Type: Axle stands with locking pin
• Lifting capacity: 3000 kg
• Lifting height (min–max): 280-425 mm
• Quantity: 2 pcs

Axle stands W22009 from Wuber Tools are a set of 2 pcs for workshops that support vehicles after lifting. Each stand has a lifting capacity of 3000 kg and a height range of 280-425 mm.

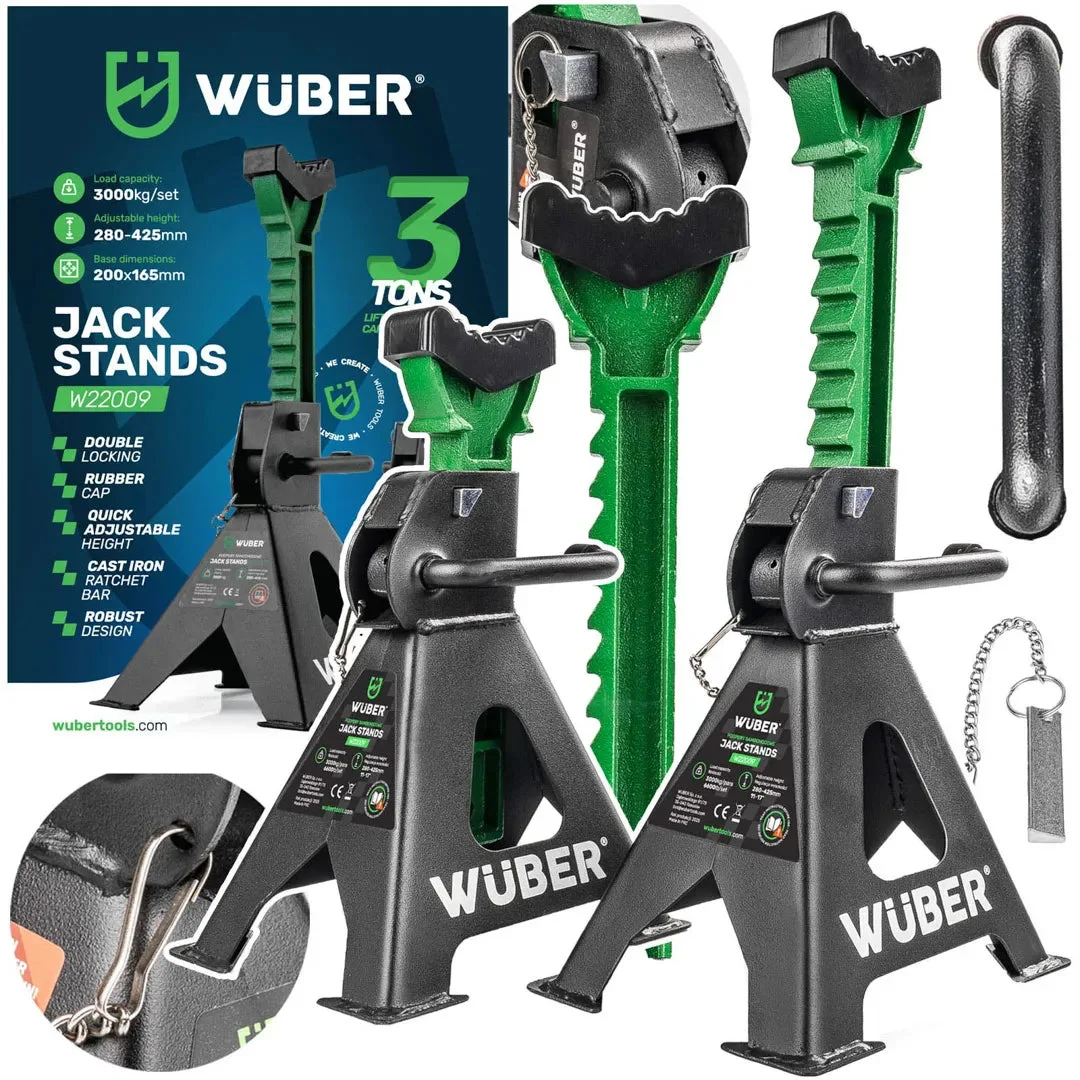

The stands have a base plate of 195x200 mm and a locking pin that stops the support bar from slipping out of position by accident. Rubber pads on the support points protect the vehicle underbody from scratches.

What makes axle stands W22009 a strong choice for workshop work under vehicles?

The height range of 280-425 mm gives support for vehicles with different suspension heights, and the capacity of 3000 kg per stand covers most vehicles below that weight. The wide base of 195x200 mm gives stability against the floor.

The locking mechanism is hardened and is supplemented by a locking pin that secures the support bar against accidental movement. The rubber pads sit against the vehicle and reduce the risk of scratches and of the vehicle slipping on the stand.

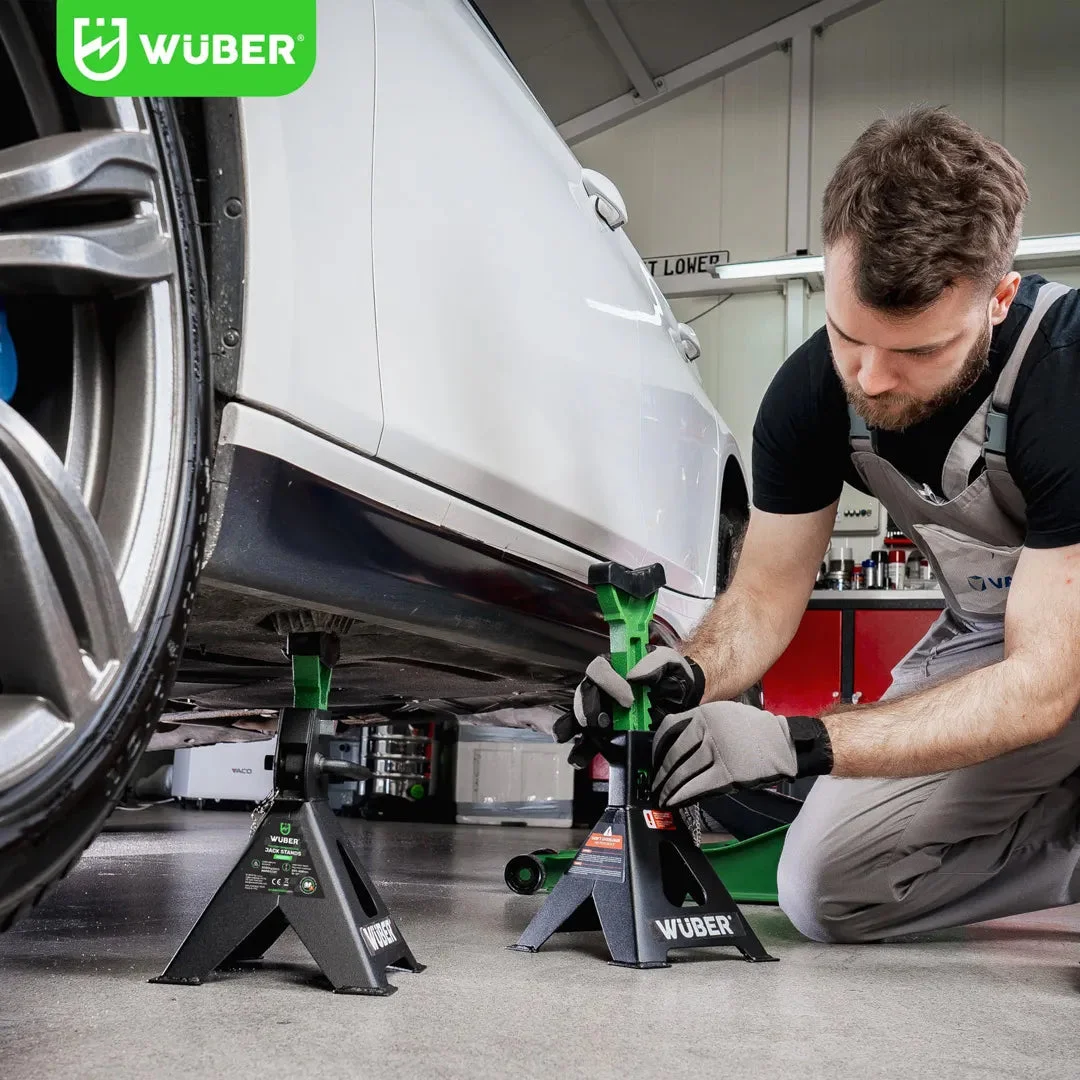

How axle stands W22009 are used in the car workshop

The stands are used to support vehicles that have been lifted by other means and are then set up for work under the chassis. This is how the set is designed for it:

• Height is adjusted within 280-425 mm to suit the vehicle suspension.
• A locking pin secures the support bar against slipping out of position.
• Rubber pads protect the vehicle against scratches.
• Two stands in the set give support on both sides.

Technical Specifications

Package Contents

• Axle stand, 2 pcs
• Rubber pad, 2 pcs
• Original packaging

Chosen by: Car mechanics working under passenger cars and light commercial vehicles.

Found in: Car workshops, tyre workshops, service garages, vehicle maintenance.

Frequently Asked Questions (FAQ)

Are axle stands W22009 suitable for vehicles over 3 tonnes?

No. The lifting capacity is 3000 kg, and vehicles over that weight must not be supported by axle stands W22009.

What height range do axle stands W22009 cover?

Axle stands W22009 adjust between 280 mm and 425 mm. The base plate is 195x200 mm and the stands weigh 4.8 kg per set.

What sets axle stands W22009 apart from other axle stands?

Axle stands W22009 combine a hardened locking mechanism with a locking pin as an extra lock, plus rubber pads that protect the vehicle. The set holds 2 pcs with a lifting capacity of 3000 kg.
