Wall-Mounted Exhaust Fan 450 mm, Axial Fan 250 W 5200 m³/h, IP 54, Harmann

Quick Facts — WAX-450-W-4-5100S Wall-mounted exhaust fan

• Model: WAX-450-W-4-5100S
• EAN: 5901885927251
• Type: Axial exhaust fan, wall-mounted
• Diameter: 450 mm
• Max airflow: 5200 m³/h
• Power: 250 W
• Protection rating: IP 54

Wall-mounted axial fan for extraction from industrial, warehouse and commercial buildings, with a 450 mm diameter and a max airflow of 5200 m³/h at 250 W. The Harmann fan has a compact, flat motor-rotor design where the motor body takes up minimal space.

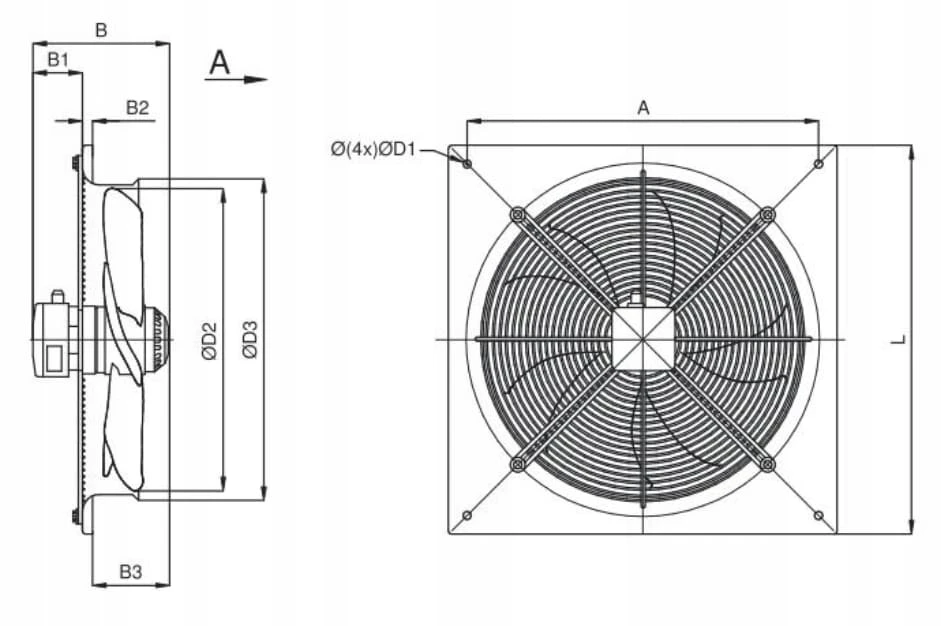

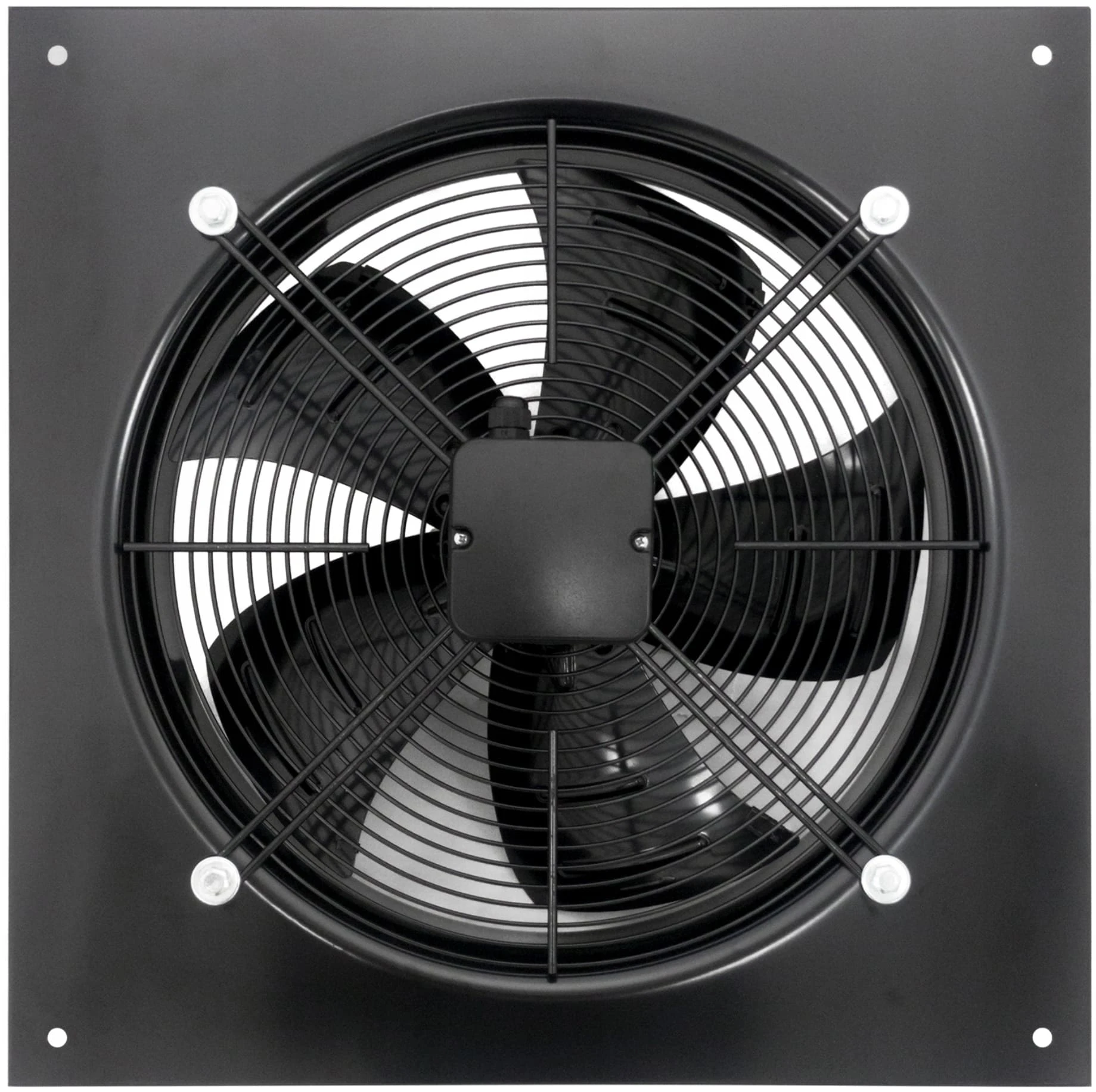

The housing is a square mounting plate in profiled steel sheet, painted black, with a powder-coated steel grille that carries the motor assembly with external rotor and the junction box. The fan is installed in building openings and only from the inside, from the room side.

What makes exhaust fan WAX-450-W-4-5100S a strong choice for industrial and premises ventilation?

It delivers 5200 m³/h max airflow and 125 Pa max pressure with a single-phase asynchronous motor at 230 V/50 Hz and 250 W. Noise level is 62 dB(A) at 3 m distance, weight 10 kg.

The rotor blades are black-painted steel, dynamically balanced to class G4 according to DIN ISO 1940. The motor has integrated thermal protection that cuts the power at approximately 150-160°C and resets at 90-120°C. Insulation class F (155) and speed control by voltage regulation are part of the design.

How exhaust fan WAX-450-W-4-5100S is used in industrial, warehouse and commercial buildings

The fan is used for extraction of clean, non-dusty air. It is not intended for air containing:

• chemically aggressive gases
• corrosive gases
• explosive gases

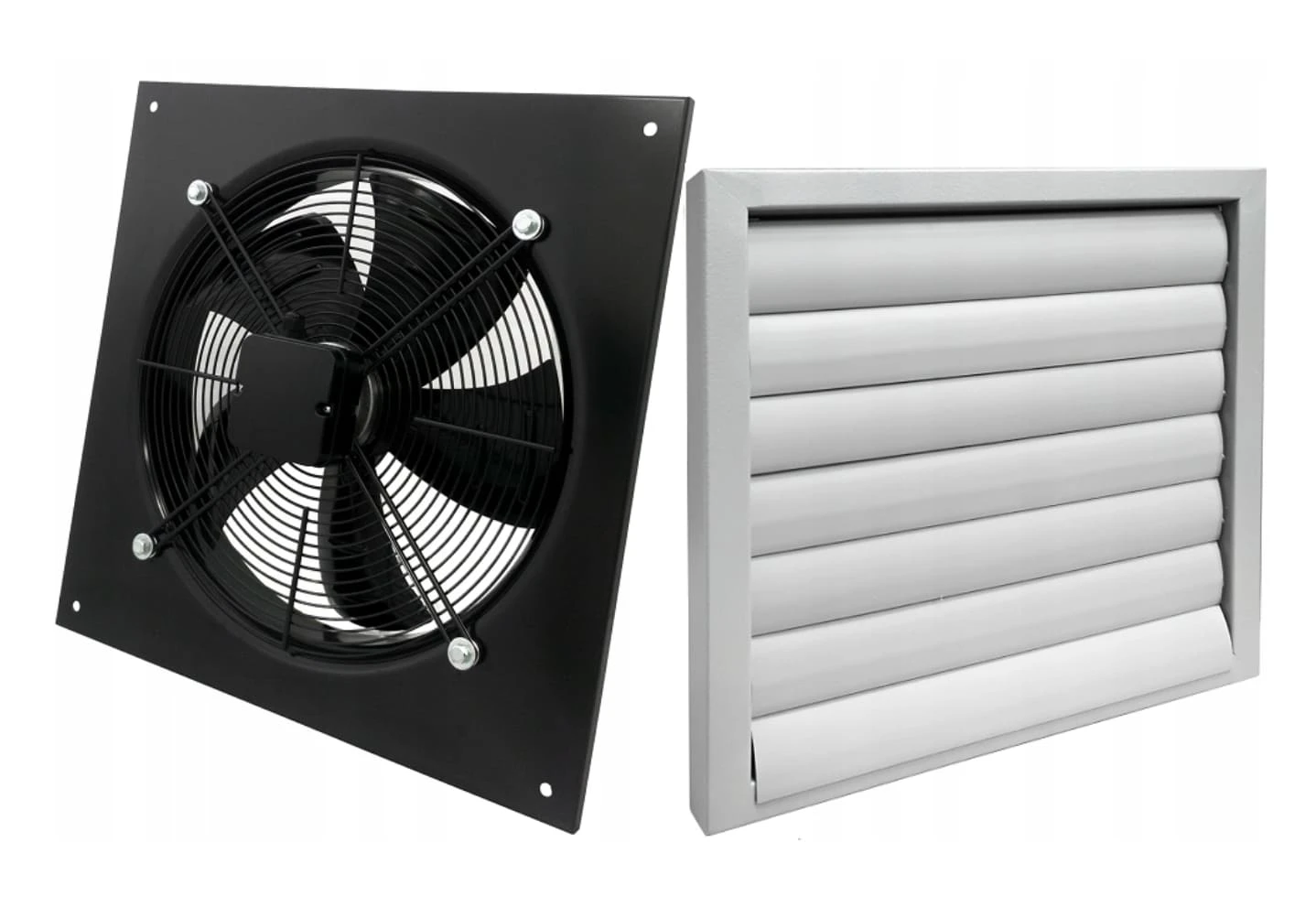

Max operating temperature is 60°C. Protection rating IP 54 applies to this model. The fan comes with a junction box, and a gravity shutter is available as an option.

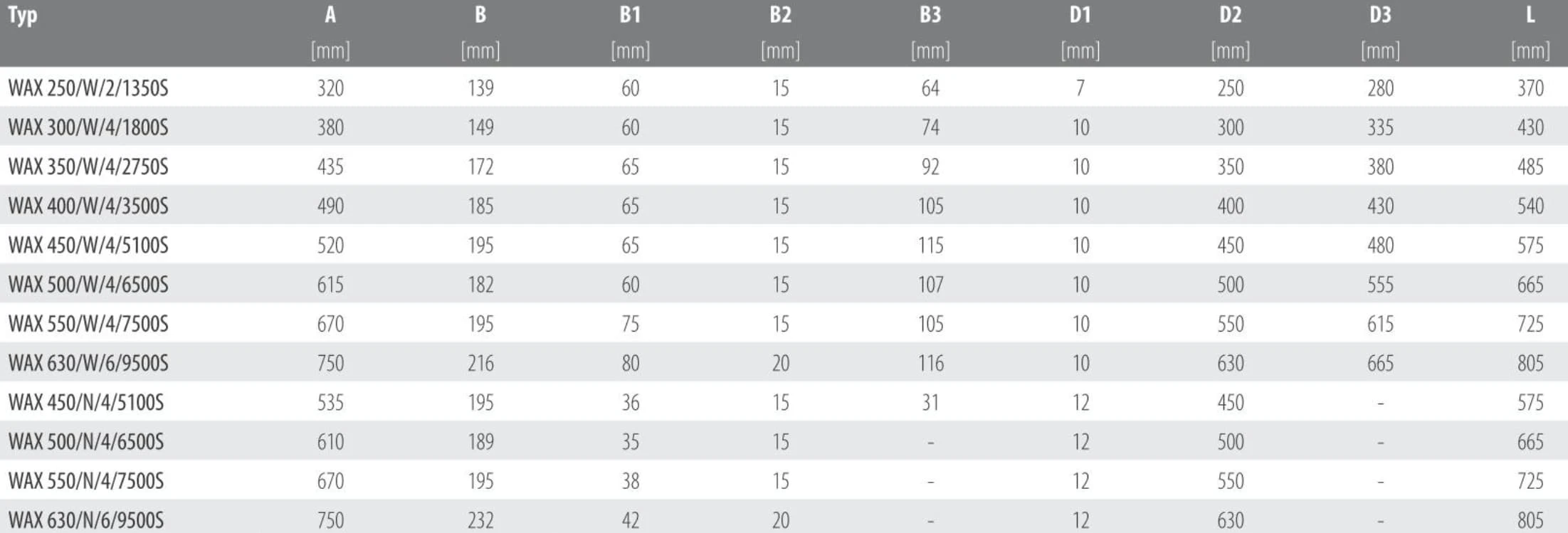

Technical Specifications

A fit for: Ventilation installers, warehouse operations managers, facility technicians and electricians.

Typical settings: Warehouse premises, industrial halls, commercial buildings and workshop premises.

Frequently Asked Questions (FAQ)

Can the WAX-450-W-4-5100S be mounted from the outside of the wall?

No. The WAX-450-W-4-5100S exhaust fan can only be mounted from the inside, from the room side, in a building opening. It has a square mounting plate in profiled steel sheet and a junction box.

Can the speed of the WAX-450-W-4-5100S be regulated?

Yes. The fan is designed for speed regulation by voltage and is driven by a single-phase asynchronous motor at 230 V/50 Hz with 250 W max power. The motor has integrated thermal protection.

What sets exhaust fan WAX-450-W-4-5100S apart from other wall fans?

The design is a compact, flat axial fan with an external rotor and a motor with rotating housing. It delivers 5200 m³/h and 125 Pa max pressure at 62 dB(A) at 3 m, with a rotor balanced to class G4 according to DIN ISO 1940 and IP 54.
