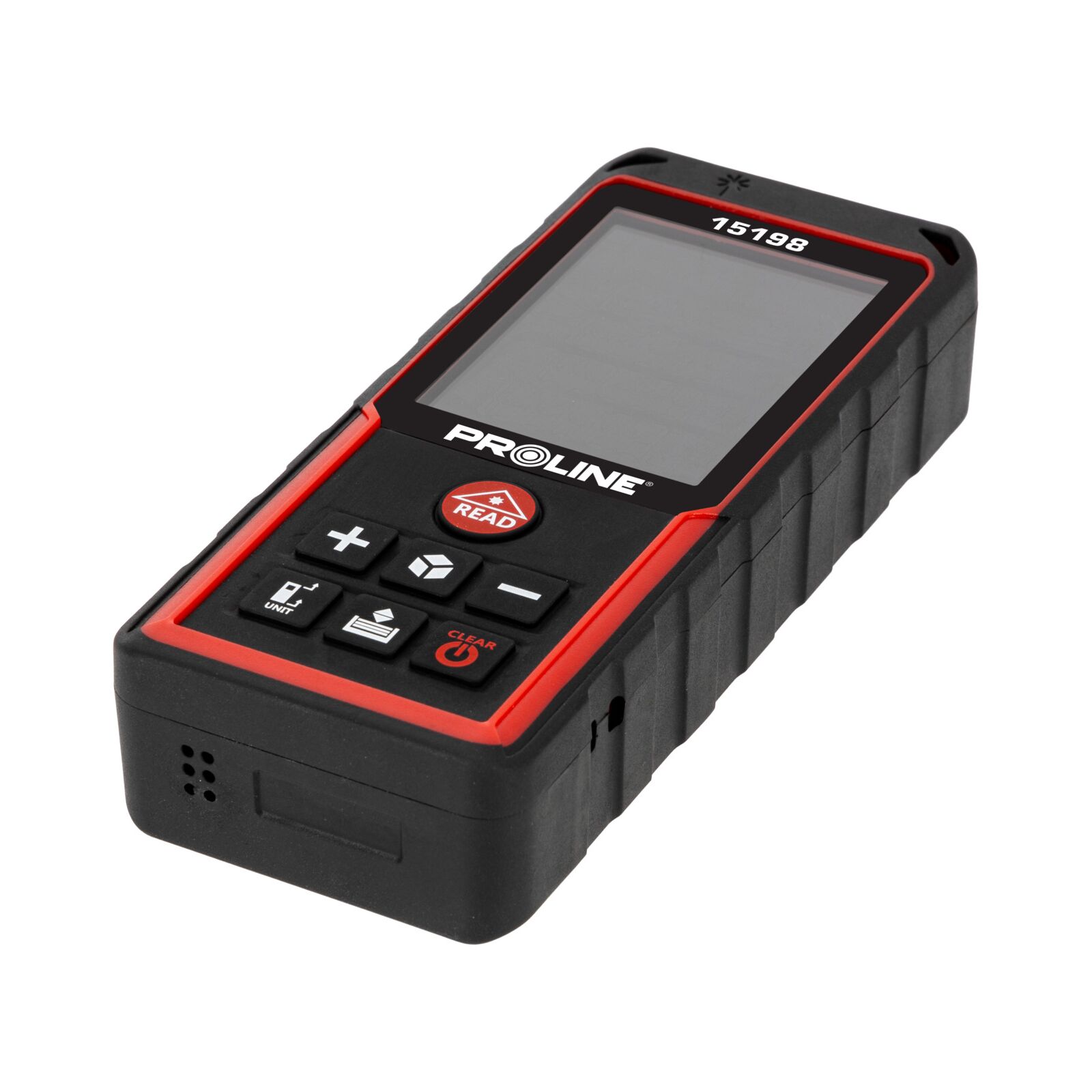

Laser Distance Meter 70 m, CE, IP 54, Class II 620-690 nm, Proline

Quick Facts — 15198 Laser distance meter

• Model: 15198
• EAN: 5903755193209
• Type: Laser distance meter
• Range: 70 m
• Laser class: II, 620-690 nm, <1 mW
• Protection: IP 54
• Measuring time: 0.5 sec
• Memory: 99 measurements

The 15198 laser distance meter measures up to 70 m with a class II laser and a 0.5 sec measuring time, and is built for site use with IP 54 and CE marking. Proline.

The LCD shows single and continuous measurement as well as direct and indirect measurement by the Pythagorean theorem. It also calculates surface area and volume and can add and subtract measurements. The memory holds 99 measurements.

What sets laser distance meter 15198 apart?

The measuring functions go beyond plain length measurement. The meter handles the following calculations directly in the instrument:

• Single and continuous measurement
• Pythagorean theorem, direct and indirect
• Surface area and volume calculation
• Addition and subtraction of measurements

The measuring starting point can be set to the front or the back of the instrument, which simplifies measuring against corners and edges. Automatic switch-off occurs after 5 min.

Where laser distance meter 15198 performs best

The meter is used for length, area and volume measurement indoors and outdoors within the temperature range 0 °C to +40 °C. IP 54 protects against dust and splashes, and the dimensions 120 mm x 50 mm x 25 mm at 92 g ±5 g make it pocket-sized. The batteries (type AAA, 3 x 1.5 V) last up to 5000 measurements.

Technical Specifications

Package Contents

• Laser distance meter
• Instruction manual

Used by: Site managers measuring room areas. Interior designers and floor layers calculating surfaces. Roofers and installers taking measurements outdoors. Property valuers and surveyors.

Common in: Construction and renovation. Flooring and roofing work. Property inspection. Interior fit-out and installation.

Frequently Asked Questions (FAQ)

Is laser distance meter 15198 suitable for outdoor measuring?

Yes, with limitations. Laser distance meter 15198 has IP 54, which withstands dust and splashes but not hosing down or immersion, and the operating temperature is 0 °C to +40 °C.

How many measurements do the batteries of laser distance meter 15198 last?

Up to 5000 measurements on three AAA batteries of 1.5 V. The memory of laser distance meter 15198 stores 99 measurements and the automatic switch-off acts after 5 min.

What sets laser distance meter 15198 apart from other distance meters?

Laser distance meter 15198 measures up to 70 m in 0.5 sec and has a selectable starting point, front or back. It calculates directly with the Pythagorean theorem as well as surface area and volume, and weighs 92 g ±5 g.
