| Category | » Wood Screws / Screws / Products | |
| Brand | » KLIMAS |

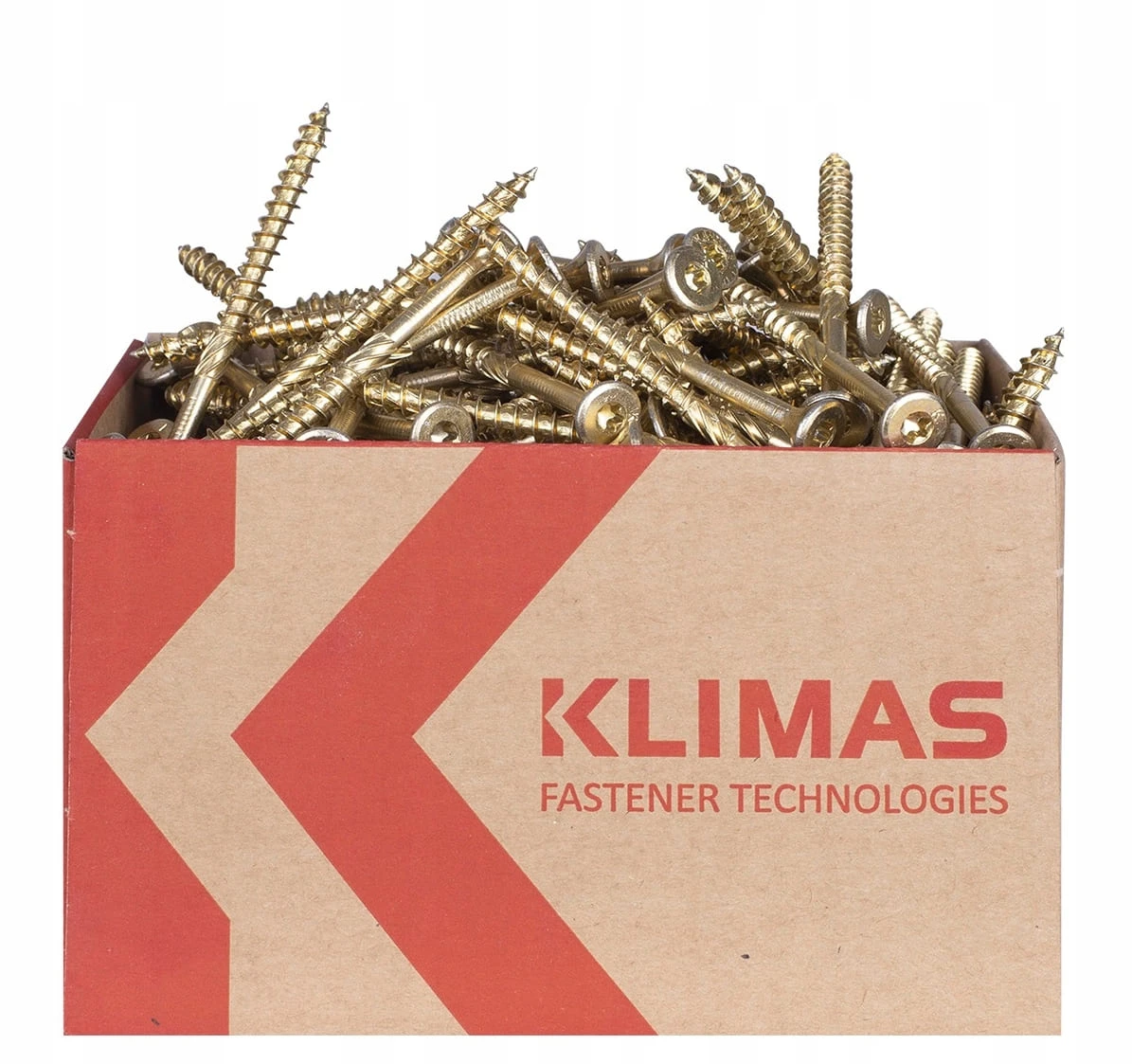

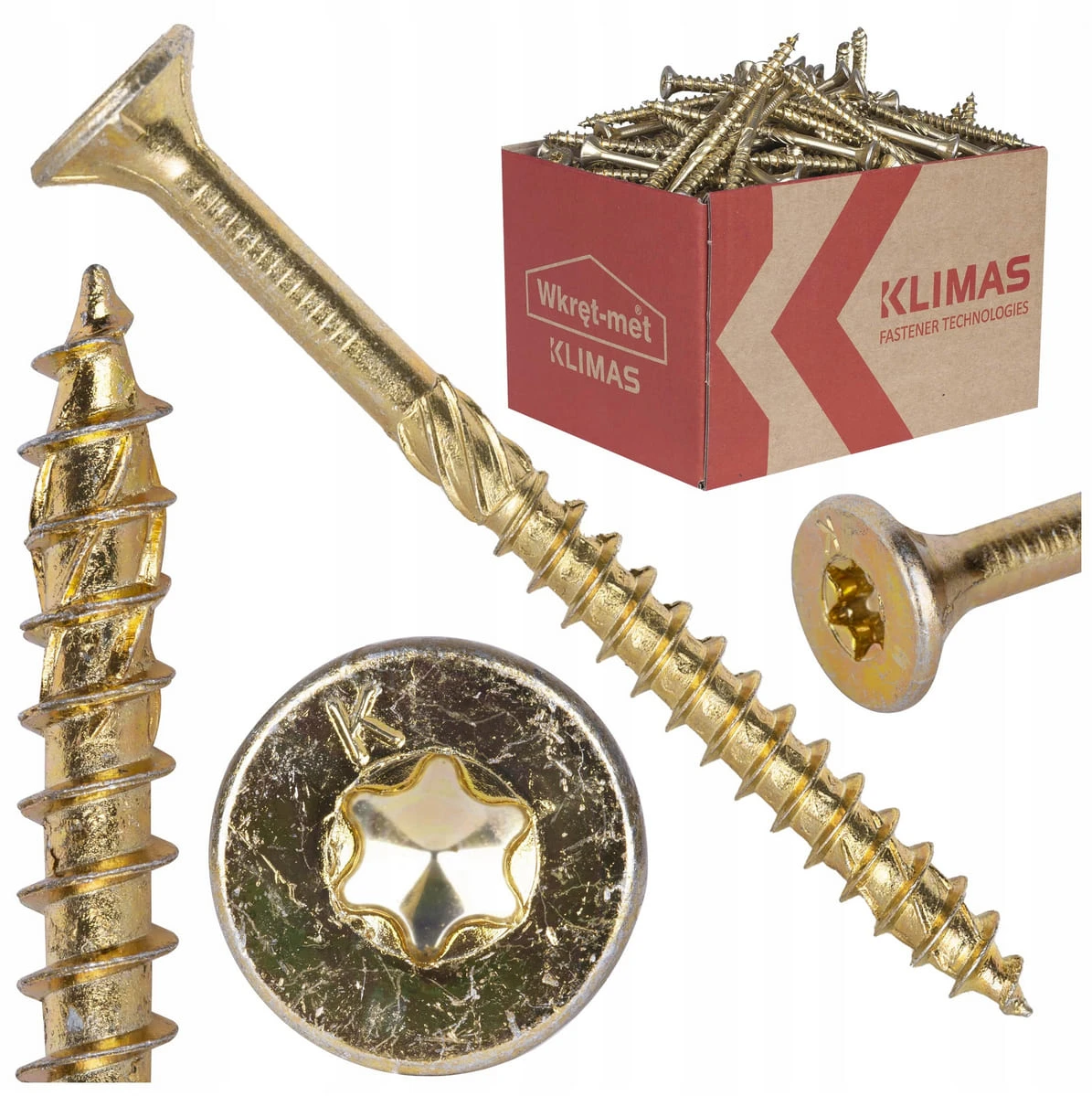

Klimas KMWHT bulk pack of professional Torx wood screws for fast and secure fastening in wood. The screws have a countersunk head, C4-class surface coating and a waxed finish, making them ideal for construction projects, renovation and carpentry where you need strong and durable joints – both indoors and outdoors.
Recommended for professional use and jobs that require maximum safety and durability. Manufactured in Europe and compliant with European standards. Especially popular among carpenters and construction companies in Sweden thanks to their quality and attractive price.
| Box QTY | varies depending on size, see the options list |
|---|---|
| Diameter | 3-10 mm |
| Lenght | 30-600 mm |
| Drive | Torx |
| Head type | Countersunk head |
| Material | Carbon steel |
| Coating | Yellow zinc plated, C4 corrosion class |
| Certifications | CE, ETA-18/0817, PN-EN 14592:2008+A1:2012 |
| Manufactured in | EU / Poland |
| Recommended speed | 400–2000 RPM |
| Suitable materials | Wood, plywood, OSB, MDF, glulam (LVL, CLT, KVH, BSH/GLT) |

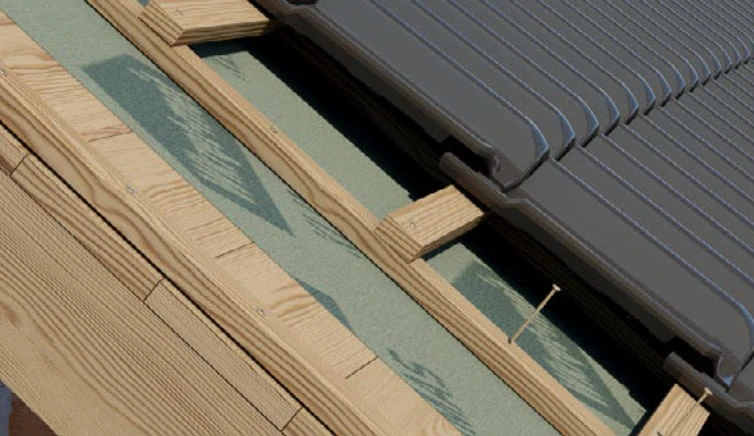

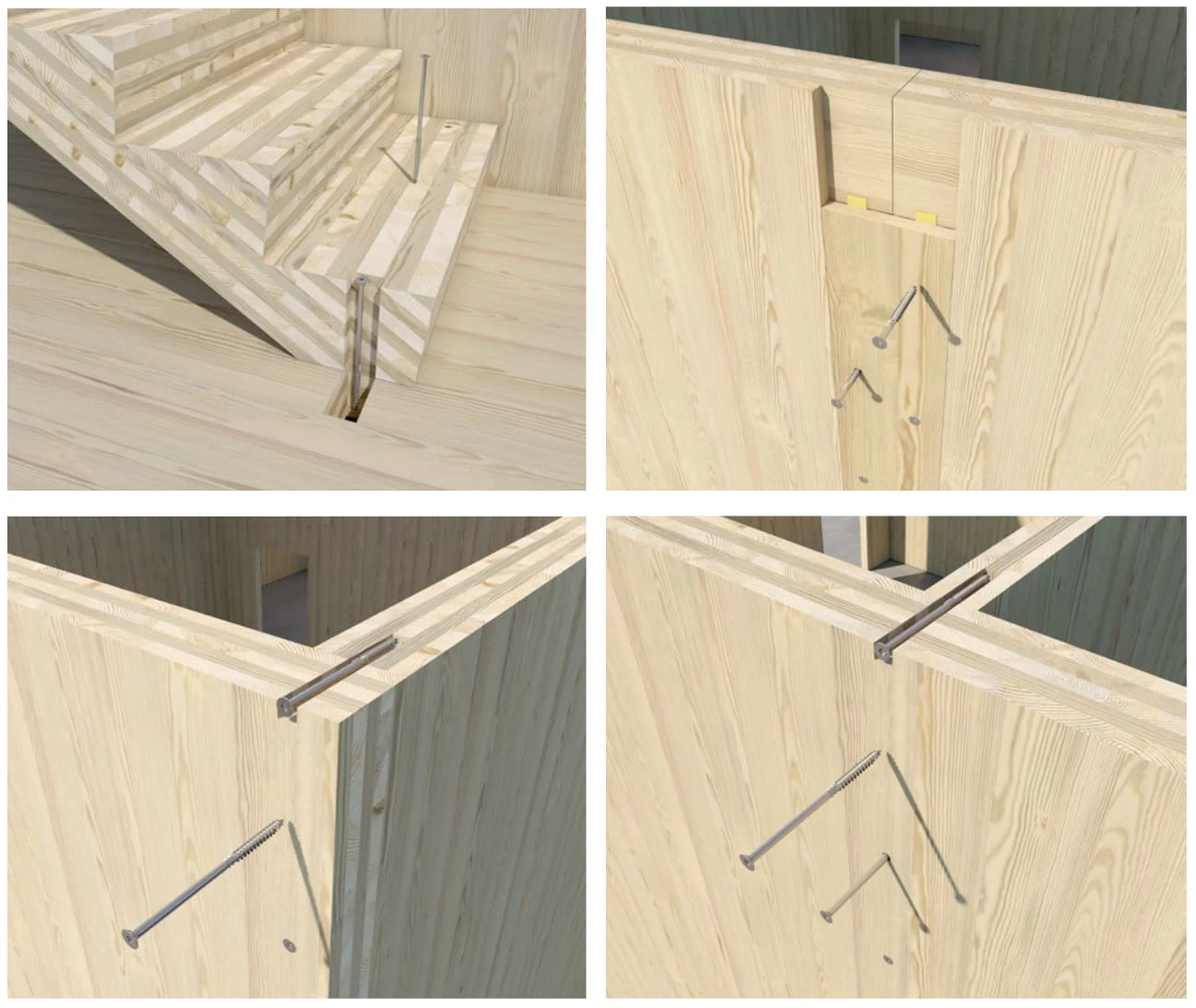

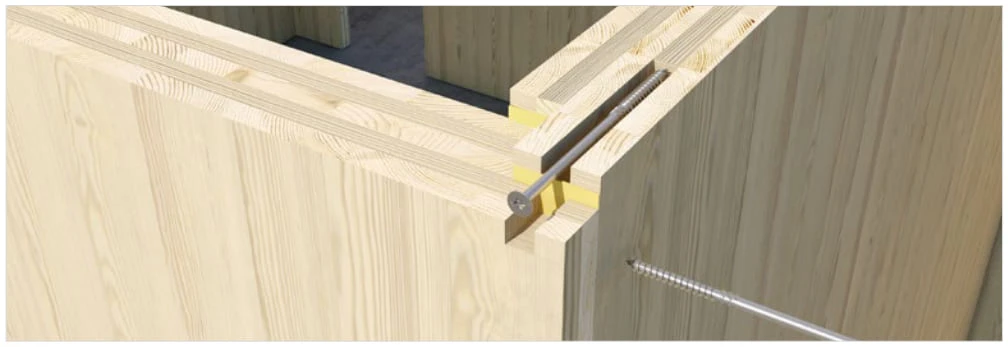

Perfect choice when building or reinforcing timber structures: frames, wall and roof structures, trusses, studs, sheet materials, renovation work and installation of wooden components. The wood screw is suitable both for professional building projects and for anyone who wants a safe alternative to nails.
Do you need larger quantities of screws or other models?
Contact us for a quote – we will help you find the right products at highly competitive prices.
Klimas is one of Europe's leading manufacturers of fastening systems and construction screws. Their products are sold in more than 65 countries worldwide and are known for high durability, precision and reliability. Klimas is considered one of the largest and most reputable screw producers in Europe.
KLIMAS provides corrosion protection equivalent to C3/C4-rated structural wood screws and belongs to the same performance segment as other professional screw systems used in Europe. The coating and durability are comparable to:
ETA is the highest level of European approval for load-bearing structural screws. The certification confirms that KLIMAS screws:
For engineers and designers, KLIMAS screws function equivalently to other established ETA-approved brands, such as:
| Product |
Outer thread diameter dw [mm] |
Inner thread diameter d1 [mm] |
Shank diameter ds [mm] |
Head diameter Dw [mm] |
Length range Lw [mm] |
|---|---|---|---|---|---|
| WKCS ∅ 3 | 3 | 2.00 | 2.20 | 6 | 30–40 |
| WKCS ∅ 3.5 | 3.5 | 2.25 | 2.50 | 7 | 30–50 |
| WKCS ∅ 4 | 4 | 2.55 | 2.87 | 8 | 30–70 |
| WKCS ∅ 4.5 | 4.5 | 2.95 | 3.10 | 9 | 40–80 |
| WKCS ∅ 5 | 5 | 3.15 | 3.50 | 10 | 40–120 |
| WKCS ∅ 6 | 6 | 3.80 | 4.30 | 12 | 50–300 |
| WKCS ∅ 8 | 8 | 5.50 | 5.78 | 14 | 80–600 |
| WKCS ∅ 10 | 10 | 6.30 | 7.00 | 18 | 120–600 |
| Product |
Characteristic plastic moment My,k [N·m] |
Characteristic withdrawal resistance – wood fax,k [N/mm²] |
Characteristic withdrawal resistance – LVL fax,k [N/mm²] |
Characteristic head pull-through – wood fhead,k [N/mm²] |
Characteristic head pull-through – LVL fhead,k [N/mm²] |
Characteristic tensile strength ftens,k [kN] |
Characteristic torsional strength ftor,k [N·m] |
|---|---|---|---|---|---|---|---|
| WKCS ∅ 3 | 1.5 | 13 | 15 | 22.5 | 22.5 | 3.5 | 1.5 |
| WKCS ∅ 3.5 | 2 | 13 | 15 | 20.8 | 20.8 | 4 | 2 |
| WKCS ∅ 4 | 3.5 | 13 | 15 | 19.4 | 19.4 | 6 | 3.5 |
| WKCS ∅ 4.5 | 5 | 13 | 15 | 18.3 | 18.3 | 8 | 4.5 |
| WKCS ∅ 5 | 6 | 12 | 15 | 17.4 | 17.4 | 9 | 6 |
| WKCS ∅ 6 | 10 | 12 | 13 | 15.9 | 15.9 | 13 | 10 |
| WKCS ∅ 8 | 25 | 12 | 13 | 14.7 | 14.7 | 25 | 27 |
| WKCS ∅ 10 | 43 | 11 | 13 | 13.0 | 13.0 | 36 | 45 |
1. Withdrawal and head pull-through values for wood are based on a reference density ρₐ = 350 kg/m³.
2. Withdrawal and head pull-through values for LVL are based on a reference density ρₐ = 480 kg/m³.
|
Product code (white zinc) |
Product code (yellow zinc) |
Dimensions d × w × L [mm] |
Thread length L g [mm] |
Max usable length tfix [mm] |
Bit / Type |
|---|---|---|---|---|---|
| Diameter ∅ 3 mm | |||||
| WKCS-30030-B | WKCS-30030 | 3×30 | 17 | 13 | TX10 |
| WKCS-30035-B | WKCS-30035 | 3×35 | 17 | 18 | TX10 |
| WKCS-30040-B | WKCS-30040 | 3×40 | 22 | 18 | TX10 |
| Diameter ∅ 3.5 mm | |||||
| WKCS-35030-B | WKCS-35030 | 3,5×30 | 17 | 13 | TX15 |
| WKCS-35035-B | WKCS-35035 | 3,5×35 | 17 | 18 | TX15 |
| WKCS-35040-B | WKCS-35040 | 3,5×40 | 22 | 18 | TX15 |
| WKCS-35050-B | WKCS-35050 | 3,5×50 | 30 | 20 | TX15 |
| Diameter ∅ 4 mm | |||||
| WKCS-40030-B | WKCS-40030 | 4×30 | 17 | 13 | TX20 |
| WKCS-40035-B | WKCS-40035 | 4×35 | 17 | 18 | TX20 |
| WKCS-40040(400)-B | WKCS-40040(400) | 4×40 | 22 | 18 | TX20 |
| WKCS-40045-B | WKCS-40045 | 4×45 | 30 | 15 | TX20 |
| WKCS-40050-B | WKCS-40050 | 4×50 | 30 | 20 | TX20 |
| WKCS-40060-B | WKCS-40060 | 4×60 | 40 | 20 | TX20 |
| WKCS-40070(200)-B | WKCS-40070(200) | 4×70 | 40 | 30 | TX20 |
| Diameter ∅ 4.5 mm | |||||
| WKCS-45040-B | WKCS-45040 | 4,5×40 | 22 | 18 | TX20 |
| WKCS-45050-B | WKCS-45050 | 4,5×50 | 30 | 20 | TX20 |
| WKCS-45060-B | WKCS-45060 | 4,5×60 | 40 | 20 | TX20 |
| WKCS-45070-B | WKCS-45070 | 4,5×70 | 40 | 30 | TX20 |
| WKCS-45080-B | WKCS-45080 | 4,5×80 | 50 | 30 | TX20 |
| Diameter ∅ 5 mm | |||||
| WKCS-50040-B | WKCS-50040 | 5×40 | 22 | 18 | TX25 |
| WKCS-50050-B | WKCS-50050 | 5×50 | 30 | 20 | TX25 |
| WKCS-50060-B | WKCS-50060 | 5×60 | 40 | 20 | TX25 |
| WKCS-50070-B | WKCS-50070 | 5×70 | 40 | 30 | TX25 |
| WKCS-50080-B | WKCS-50080 | 5×80 | 50 | 30 | TX25 |
| WKCS-50090-B | WKCS-50090 | 5×90 | 50 | 40 | TX25 |
| WKCS-50100-B | WKCS-50100 | 5×100 | 60 | 40 | TX25 |
| WKCS-50120-B | WKCS-50120 | 5×120 | 60 | 60 | TX25 |
| Diameter ∅ 6 mm | |||||
| WKCS-60050-D | WKCS-60050 | 6×50 | 30 | 20 | TX30 |
| WKCS-60060(100)-D | WKCS-60060(100) | 6×60 | 30 | 30 | TX30 |
| WKCS-60070(100)-D | WKCS-60070(100) | 6×70 | 40 | 30 | TX30 |
| WKCS-60080(100)-D | WKCS-60080(100) | 6×80 | 50 | 30 | TX30 |
| WKCS-60090-D | WKCS-60090 | 6×90 | 50 | 40 | TX30 |
| WKCS-60100-D | WKCS-60100 | 6×100 | 60 | 40 | TX30 |
| WKCS-60120-D | WKCS-60120 | 6×120 | 75 | 45 | TX30 |
| WKCS-60140-D | WKCS-60140 | 6×140 | 75 | 65 | TX30 |
| WKCS-60160-D | WKCS-60160 | 6×160 | 75 | 85 | TX30 |
| WKCS-60180-D | WKCS-60180 | 6×180 | 75 | 105 | TX30 |
| WKCS-60200-D | WKCS-60200 | 6×200 | 75 | 125 | TX30 |
| WKCS-60220-D | WKCS-60220 | 6×220 | 75 | 145 | TX30 |
| WKCS-60240-D | WKCS-60240 | 6×240 | 75 | 165 | TX30 |
| WKCS-60260-D | WKCS-60260 | 6×260 | 75 | 185 | TX30 |
| WKCS-60280-D | WKCS-60280 | 6×280 | 75 | 205 | TX30 |
| WKCS-60300-D | WKCS-60300 | 6×300 | 75 | 225 | TX30 |
| Diameter ∅ 8 mm | |||||
| WKCS-08080-B | WKCS-08080(50) | 8×80 | 50 | 30 | TX40 |
| WKCS-08100-B | WKCS-08100(50) | 8×100 | 50 | 50 | TX40 |
| WKCS-08120-B | WKCS-08120(50) | 8×120 | 80 | 40 | TX40 |
| WKCS-08140-B | WKCS-08140(50) | 8×140 | 100 | 40 | TX40 |
| WKCS-08160-B | WKCS-08160(50) | 8×160 | 100 | 60 | TX40 |
| WKCS-08180-B | WKCS-08180(50) | 8×180 | 100 | 80 | TX40 |
| WKCS-08200-B | WKCS-08200(50) | 8×200 | 100 | 100 | TX40 |
| WKCS-08220-B | WKCS-08220(50) | 8×220 | 100 | 120 | TX40 |
| WKCS-08240-B | WKCS-08240(50) | 8×240 | 100 | 140 | TX40 |
| WKCS-08260-B | WKCS-08260(50) | 8×260 | 100 | 160 | TX40 |
| WKCS-08280-B | WKCS-08280(50) | 8×280 | 100 | 180 | TX40 |
| WKCS-08300-B | WKCS-08300(50) | 8×300 | 100 | 200 | TX40 |
| WKCS-08320-B | WKCS-08320(50) | 8×320 | 100 | 220 | TX40 |
| WKCS-08340-B | WKCS-08340(50) | 8×340 | 100 | 240 | TX40 |
| WKCS-08360-B | WKCS-08360(50) | 8×360 | 100 | 260 | TX40 |
| WKCS-08380-B | WKCS-08380(50) | 8×380 | 100 | 280 | TX40 |
| WKCS-08400-B | WKCS-08400(50) | 8×400 | 100 | 300 | TX40 |
| WKCS-08440-B* | WKCS-08440(50)* | 8×440 | 100 | 340 | TX40 |
| WKCS-08480-B* | WKCS-08480(50)* | 8×480 | 100 | 380 | TX40 |
| WKCS-08520-B* | WKCS-08520(50)* | 8×520 | 100 | 420 | TX40 |
| WKCS-08560-B* | WKCS-08560(50)* | 8×560 | 100 | 460 | TX40 |
| WKCS-08600-B* | WKCS-08600(50)* | 8×600 | 100 | 500 | TX40 |
| Diameter ∅ 10 mm | |||||
| WKCS-10120-B | WKCS-10120 | 10×120 | 80 | 40 | TX40 |
| WKCS-10140-B | WKCS-10140 | 10×140 | 80 | 60 | TX40 |
| WKCS-10160(25)-B | WKCS-10160(25) | 10×160 | 100 | 60 | TX40 |
| WKCS-10180(25)-B | WKCS-10180(25) | 10×180 | 100 | 80 | TX40 |
| WKCS-10200(25)-B | WKCS-10200(25) | 10×200 | 100 | 100 | TX40 |
| WKCS-10220-B | WKCS-10220 | 10×220 | 100 | 120 | TX40 |
| WKCS-10240-B | WKCS-10240 | 10×240 | 100 | 140 | TX40 |
| WKCS-10260-B | WKCS-10260 | 10×260 | 100 | 160 | TX40 |
| WKCS-10280-B | WKCS-10280 | 10×280 | 100 | 180 | TX40 |
| WKCS-10300-B | WKCS-10300 | 10×300 | 100 | 200 | TX40 |
| WKCS-10320-B | WKCS-10320 | 10×320 | 100 | 220 | TX40 |
| WKCS-10340-B | WKCS-10340 | 10×340 | 100 | 240 | TX40 |
| WKCS-10360-B | WKCS-10360 | 10×360 | 100 | 260 | TX40 |
| WKCS-10380-B | WKCS-10380 | 10×380 | 100 | 280 | TX40 |
| WKCS-10400-B | WKCS-10400 | 10×400 | 100 | 300 | TX40 |
| WKCS-10440-B* | WKCS-10440* | 10×440 | 100 | 340 | TX40 |
| WKCS-10480-B* | WKCS-10480* | 10×480 | 100 | 380 | TX40 |
| WKCS-10520-B* | WKCS-10520* | 10×520 | 100 | 420 | TX40 |
| WKCS-10560-B* | WKCS-10560* | 10×560 | 100 | 460 | TX40 |
| WKCS-10600-B* | WKCS-10600* | 10×600 | 100 | 500 | TX40 |
