SpeedBox 3.0 B.Tuning for EBikes with BOSCH (incl. Gen4 non smart) motors

SpeedBox 3.0 B.Tuning for EBikes with BOSCH (incl. Gen4 non smart) motors

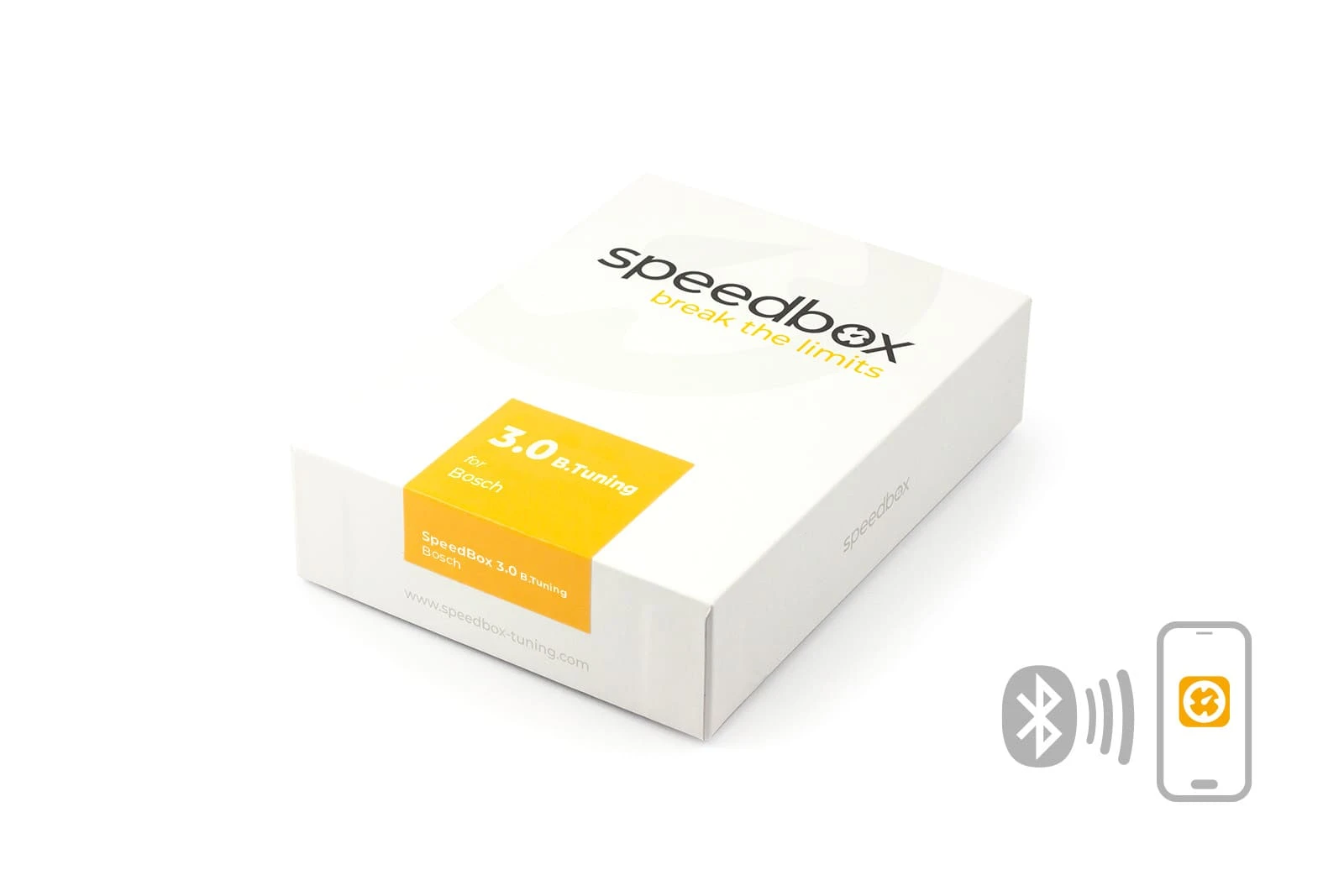

SpeedBox Chip Tuning for E-Bikes with Bosch Motors

SpeedBox is a revolutionary upgrade for your e-bike with a Shimano motor. With its new design, modern hardware, and firmware, it breathes new life into your e-bike.

(Note! This model includes Bluetooth)

What Makes SpeedBox So Special?

• Overcome speed limits and enjoy the freedom to ride faster.
• Use the SpeedBox App to view real-time data and customize your ride.
• Displays correct speed values on your e-bike’s display.

Installation and Compatibility

This SpeedBox 3.0 is designed to fit perfectly with e-bikes equipped with Bosch motors including Gen4 (non smart only):

- Active Line (Plus), Cargo Line, Performance Line (Speed, CX)

Note! This model does not work if you have the so-called Smart System with rim magnet. These models require SpeedBox 1.1 or 1.2.

How Does It Work?

SpeedBox is very easy to use, especially this model, which includes Bluetooth and its own app that we highly recommend!

The tuning kit can be activated directly from the mobile application or from your e-bike's display. Activate SpeedBox 3.0 by briefly activating the walk assist function. A value of 9.9 km/h (6.2 mph) will display, allowing you to ride at speeds of 40 km/h, 50 km/h, or even over 60 km/h.

To deactivate the tuning chip, briefly activate the walk assist function again. The value 2.5 km/h (1.6 mph) will appear on your display, resetting the speed limit to 25 km/h. Your e-bike will function as it did before the chip was installed.

SpeedBox is also designed for e-bikes without a classic control unit with walk assist. In this case, use the combination of - + - + buttons to activate SpeedBox. You can deactivate SpeedBox in the same way.

You can set the maximum speed for electric assistance by switching modes: Turbo - EMTB - Tour - Eco - Tour - EMTB - Turbo. A current speed limit will display afterward. The maximum speed for electric assistance can be changed by briefly pressing the walk assist function or rotating the rear wheel 360°. A value of 1.5 km/h on the display corresponds to a limit of 15 km/h, 2 km/h to 20 km/h, 2.5 to 25 km/h, 3.0 to 30 km/h, 9.9 to 99 km/h, etc. The last shown limit is saved after 5 seconds of inactivity.

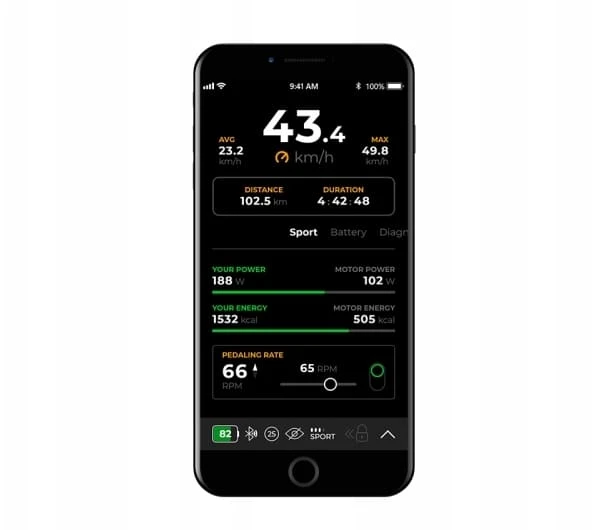

SpeedBox App for SpeedBox 3.0 B.Tuning

The SpeedBox App is specifically designed for SpeedBox 3.0 B.Tuning, which uses Bluetooth technology to connect your e-bike to your mobile phone. After downloading the app and connecting your phone to your e-bike, you can view current data and trip parameters on your phone. Save your rides, compare results with friends, and monitor your performance and progress. This allows you to fully enjoy the ride while leaving performance data analysis for later.

Features of the SpeedBox App:

• Control of tuning
• Speed limit settings

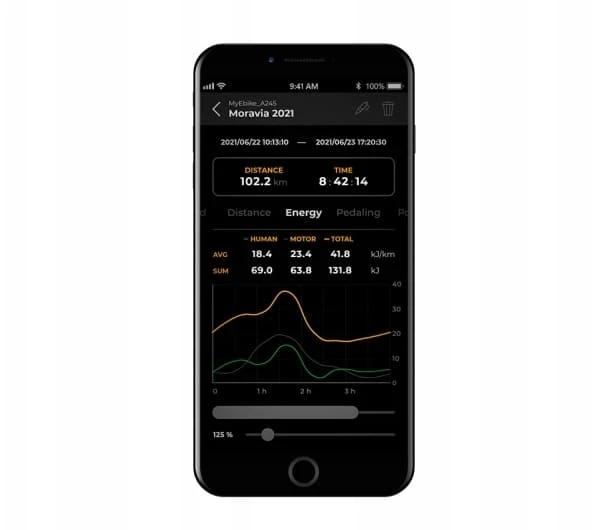

• Save and view your rides
• Invisible tuning
• Motor lock
• Motor diagnostics

SpeedBox 3.0 B.Tuning is not limited to the SpeedBox app, but it's a great tool that provides a complete overview of your performance. We recommend downloading the SpeedBox app to your phone before ordering the SpeedBox 3.0 B.Tuning chip. You can try our demo version to explore all the amazing features and ensure the app is fully functional on your phone. To connect to the SpeedBox B.Tuning chip, your phone must support Bluetooth 4.0 or higher.

Easy and Safe Installation

Our SpeedBox uses original connectors for easy and safe installation. Check out our instructional videos and guides for a seamless experience.

FEATURES:

• Max speed: unlimited
• Activation/deactivation: by turning the light on/off
• Model WITH Bluetooth
• You can see actual values in our SpeedBox app – directly on your phone’s display
• Display shows: actual values up to 23 km/h
• Compatible with Bosch motors:
  - Active Line Plus
  - Performance Line
  - Performance Line CX Line
  - Performance Line Speed
  - Cargo Line
• Compatible with displays:
  - KIOX
  - INTUVIA
  - NYON
  - PURION
  - COBI
• Not compatible with:
  - Bosch Smart System

Note on Bosch 4th Generation Motors:

When using SpeedBox 3.0 with Bosch motors from the 4th generation (manufactured in 2020 or later), it’s necessary to leave the bike on after your ride until a value of 0.0 km/h is displayed. During this process, the remaining time will be shown in minutes. Once complete, it is safe to turn off your bike, and you can look forward to your next ride.

Mounting

SpeedBox uses original connectors, ensuring that the installation process is very simple and the chip connects properly. Detailed instructions and videos are available to make installation easy for you. Removing the tuning chip is just as easy. If you have any issues with installation or removal, please don’t hesitate to contact us.

If you plan to install SpeedBox on a brand-new bike, make sure to ride at least 1 km before activating the chip.

Note! Before updating the software on your e-bike, first disconnect SpeedBox from the e-bike, update the software, and then reinstall SpeedBox.

Detailed installation information can be found here.

If you lose your service password or PIN, you can use our service available here.

Important Information

Allowing the motor in your e-bike to assist at high speeds may cause extra wear on the motor. Avoid excessive speeds. A recommended maximum speed setting is often 30-35 km/h, though it is entirely up to you.

Please note that using this type of modified e-bike on public roads may be illegal in some countries. Neither we nor the manufacturer accept any liability for damages resulting from the use of SpeedBox products. E-bikes equipped with SpeedBox products must not be used on public roads, bike paths, and public spaces. E-bikes with SpeedBox products may only be used on private land at your own risk. Using SpeedBox may void your e-bike’s warranty. We strongly recommend using other safety features and protective equipment to prevent injury.
