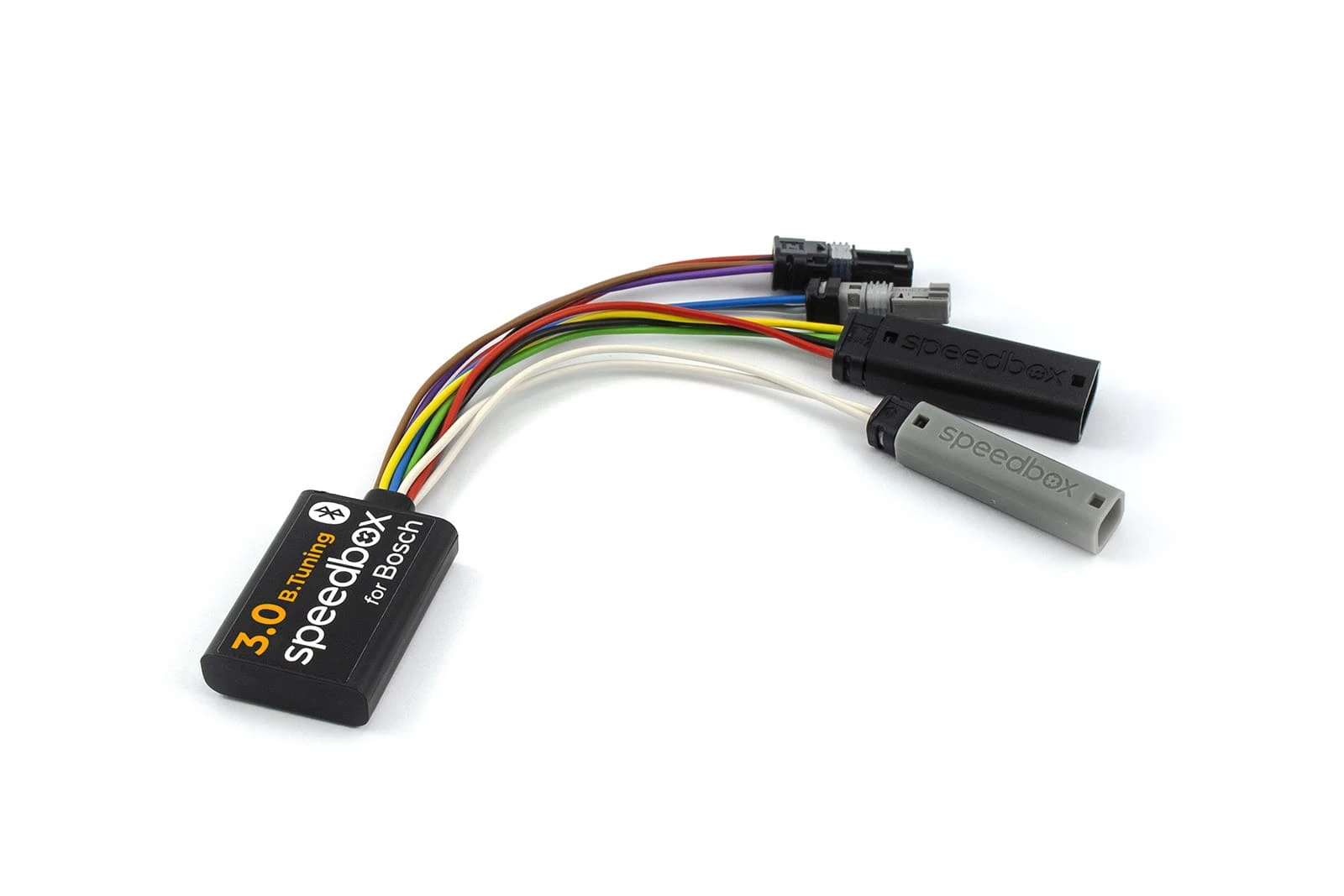

SpeedBox 3.0 Tuning for EBikes with BOSCH (incl. Gen4 non smart) motors

SpeedBox 3.0 Tuning for EBikes with BOSCH (incl. Gen4 non smart) motors

SpeedBox Chip Tuning for E-Bikes with Bosch Motors

SpeedBox is a revolutionary upgrade for your e-bike with a Shimano motor. With its new design, modern hardware, and firmware, it breathes new life into your e-bike.

(Note! This model does not include Bluetooth)

What Makes SpeedBox So Special?

• Overcome speed limits and enjoy the freedom to ride faster.
• Use the SpeedBox App to view real-time data and customize your ride (only available with BT model).
• Displays correct speed values on your e-bike’s display.

Installation and Compatibility

This SpeedBox 3.0 is designed to fit perfectly with e-bikes equipped with Bosch motors including Gen4 (non-smart only):

- Active Line (Plus), Cargo Line, Performance Line (Speed, CX)

Note! This model does not work if you have the so-called Smart System with or without rim magnet. These models require SpeedBox 1.1 or 1.2.

How Does It Work?

SpeedBox is very easy to use.

Activate SpeedBox 3.0 by briefly activating the walk assist function. A value of 9.9 km/h (6.2 mph) will display, allowing you to ride at speeds of 40 km/h, 50 km/h, or even over 60 km/h.

To deactivate the tuning chip, briefly activate the walk assist function again. The value 2.5 km/h (1.6 mph) will appear on your display, resetting the speed limit to 25 km/h. Your e-bike will function as it did before the chip was installed.

SpeedBox is also designed for e-bikes without a classic control unit with walk assist. In this case, use the combination of - + - + buttons to activate SpeedBox. You can deactivate SpeedBox in the same way.

You can set the maximum speed for electric assistance by switching modes: Turbo - EMTB - Tour - Eco - Tour - EMTB - Turbo. A current speed limit will display afterward. The maximum speed for electric assistance can be changed by briefly pressing the walk assist function or rotating the rear wheel 360°. A value of 1.5 km/h on the display corresponds to a limit of 15 km/h, 2 km/h to 20 km/h, 2.5 to 25 km/h, 3.0 to 30 km/h, 9.9 to 99 km/h, etc. The last shown limit is saved after 5 seconds of inactivity.

Easy and Safe Installation

Our SpeedBox uses original connectors for easy and safe installation. Check out our instructional videos and guides for a seamless experience.

FEATURES:

• Max speed: unlimited
• Activation/deactivation: by turning the light on/off
• Model without Bluetooth
• You can see the actual values directly on your bike’s display
• Compatible with Bosch motors:
  - Active Line Plus
  - Performance Line
  - Performance Line CX Line
  - Performance Line Speed
  - Cargo Line
• Compatible with displays:
  - KIOX
  - INTUVIA
  - NYON
  - PURION
  - COBI
• Not compatible with:
  - Bosch Smart System
  - SpeedBox App

Note on Bosch 4th Generation Motors:

When using SpeedBox 3.0 with Bosch motors from the 4th generation (manufactured in 2020 or later), it’s necessary to leave the bike on after your ride until a value of 0.0 km/h is displayed. During this process, the remaining time will be shown in minutes. Once complete, it is safe to turn off your bike, and you can look forward to your next ride.

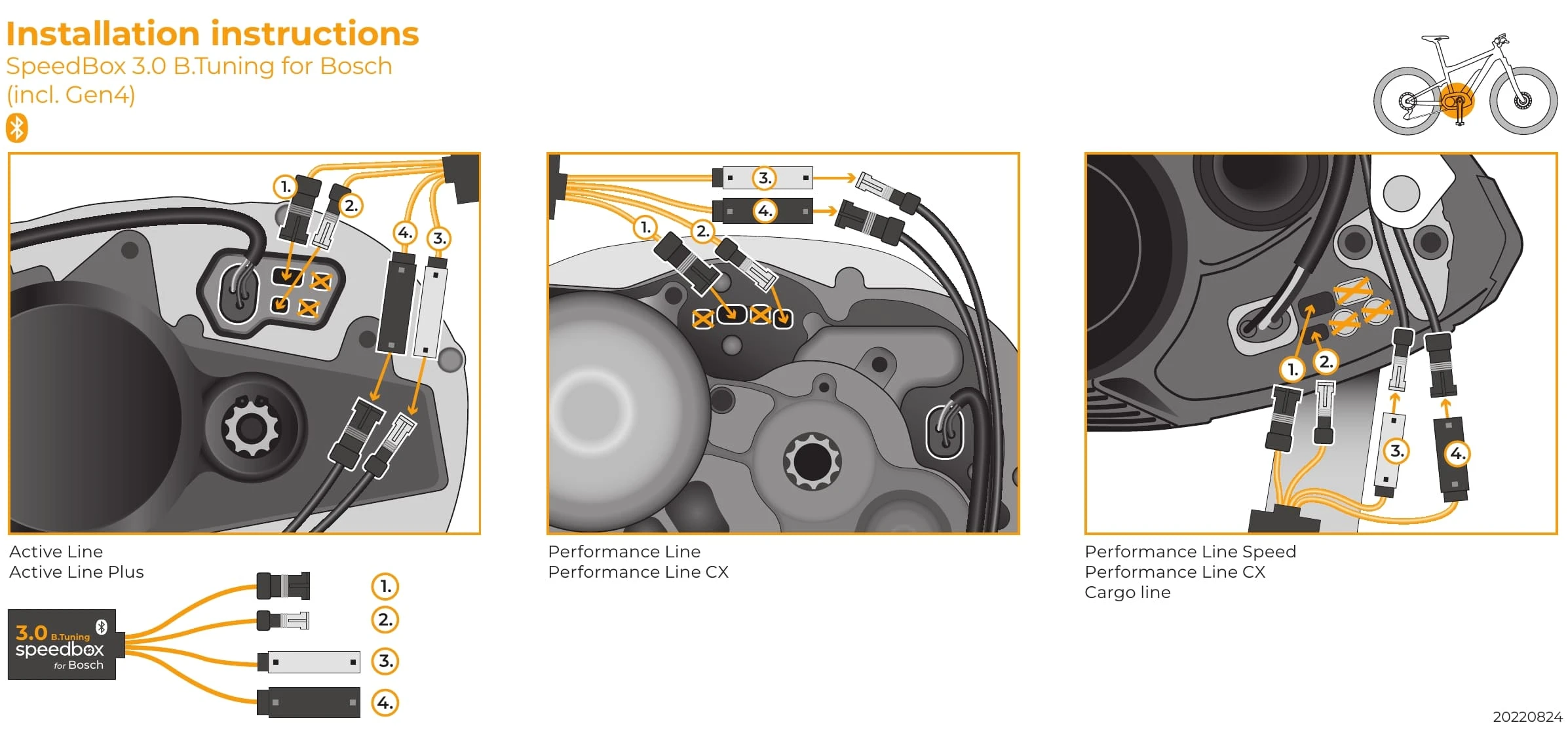

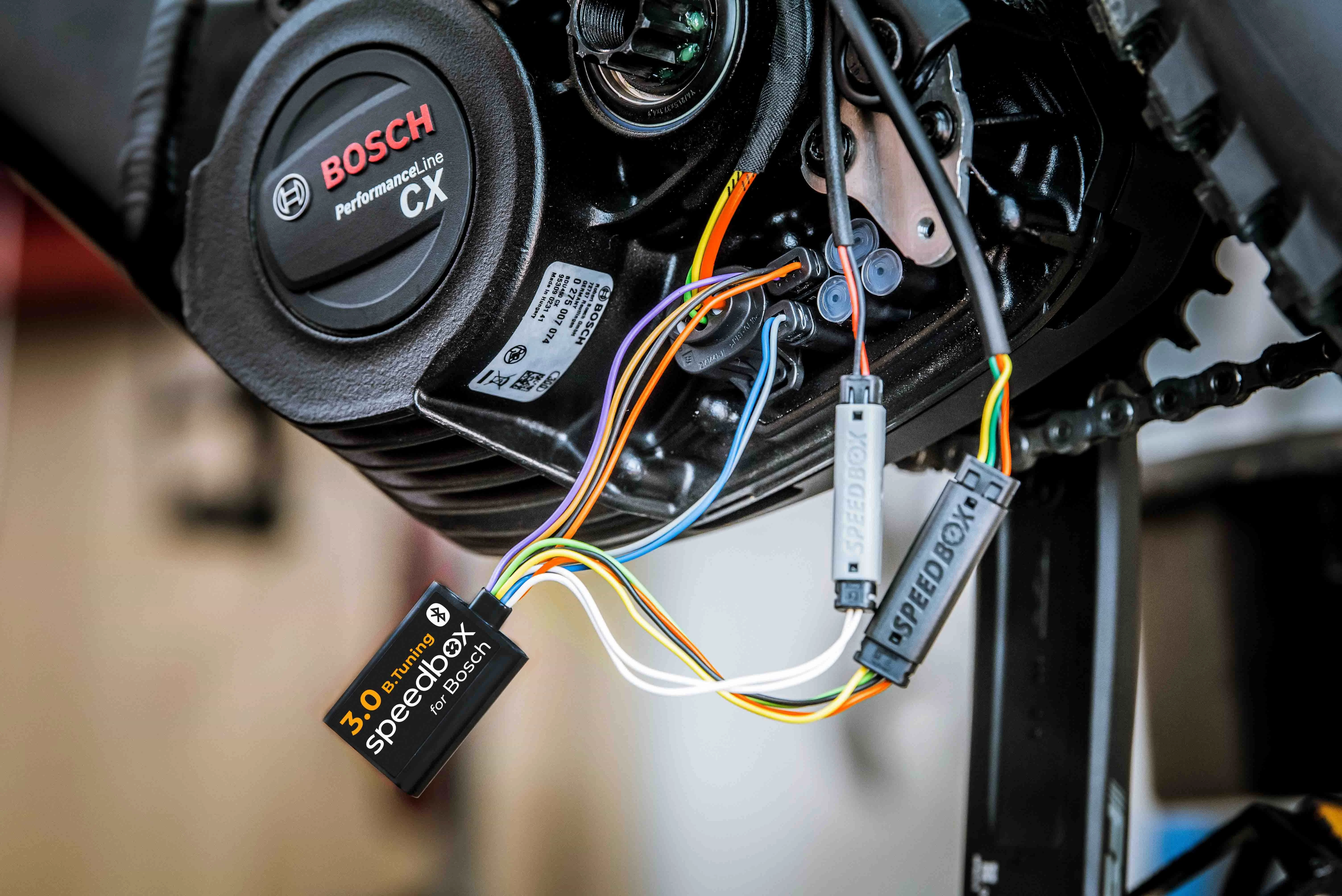

Mounting

SpeedBox uses original connectors, ensuring that the installation process is very simple and the chip connects properly. Detailed instructions and videos are available to make installation easy for you. Removing the tuning chip is just as easy. If you have any issues with installation or removal, please don’t hesitate to contact us.

If you plan to install SpeedBox on a brand-new bike, make sure to ride at least 1 km before activating the chip.

Note! Before updating the software on your e-bike, first disconnect SpeedBox from the e-bike, update the software, and then reinstall SpeedBox.

Detailed installation information can be found here.

If you lose your service password or PIN, you can use our service available here.

Important Information

Allowing the motor in your e-bike to assist at high speeds may cause extra wear on the motor. Avoid excessive speeds. A recommended maximum speed setting is often 30-35 km/h, though it is entirely up to you.

Please note that using this type of modified e-bike on public roads may be illegal in some countries. Neither we nor the manufacturer accept any liability for damages resulting from the use of SpeedBox products. E-bikes equipped with SpeedBox products must not be used on public roads, bike paths, and public spaces. E-bikes with SpeedBox products may only be used on private land at your own risk. Using SpeedBox may void your e-bike’s warranty. We strongly recommend using other safety features and protective equipment to prevent injury.
