Wall Fan Axial 500mm Brushless Metal IP44 6570 m³/h, Ferono

Quick Facts — Ferono Wall Fan FPT500

• Axial fan for wall mounting, diameter 500 mm
• Brushless motor with double bearings
• Airflow 6570 m³/h, power 320 W
• Protection class IP44, insulation class F
• Motor and blades in metal
• Protective grille on both sides
• Operation from -20°C to 80°C, humidity 20–85%

An axial fan for wall mounting with a brushless motor and protective grilles on both sides of the blade assembly. The motor and blades are made of metal, and the aerodynamically profiled blades give efficient airflow on a single-phase power supply.

The brushless motor is prepared for voltage regulation and is protected against overheating via a built-in temperature sensor in the windings. The fan is rated to protection class IP44 and withstands demanding operating temperatures and humidity.

What makes the FPT500 a strong choice for industrial wall ventilation?

The brushless motor with double bearings gives a long service life and stable operation, while protective grilles on both sides of the blade assembly guard against accidental contact with the rotor. Electrical strength of 1500VAC/50-60Hz for one minute with a leakage current below 5 mA, plus an insulation resistance of 10 MΩ at 500V DC, gives a fan built for demanding industrial operation.

What temperature and humidity range does the fan handle?

The Ferono FPT500 operates in temperatures from -20°C to 80°C and withstands a relative humidity between 20% and 85%. The wide working range makes the fan usable both in cold storage facilities and warmer production environments, without compromising performance or safety.

Applications for the wall fan

The fan suits wall-mounted ventilation in industrial premises, warehouses, workshops and production facilities where a robust, metal-built option is needed. It is particularly well suited where the environment requires splash-water protection (IP44) and where the operating temperature can vary significantly throughout the year.

Dimension overview Ferono FPT500 (mm)

Suitable for: HVAC installers, facility managers, workshop supervisors and installers of industrial ventilation.

Industries: industry, warehousing and logistics, workshops, production.

Frequently asked questions (FAQ)

Can the Ferono FPT500 handle very dusty or wet environments beyond the stated protection range?

No, protection class IP44 provides protection against splash water from all directions and against solid objects larger than 1 mm, but the fan is not intended for submersion in water or extremely dusty environments beyond the stated humidity range of 20–85%. Check that the installation site stays within these limits.

Is the Ferono FPT500 speed-controllable?

Yes, the brushless motor is prepared for voltage regulation, allowing the airflow to be adjusted as needed. A built-in temperature sensor in the windings protects the motor against overheating regardless of the speed selected.

What sets an axial fan like the Ferono FPT500 apart from a centrifugal fan?

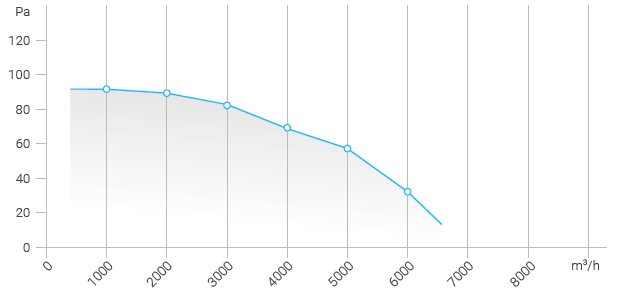

An axial fan like the Ferono FPT500 moves air straight through the fan along the motor's rotational axis and is best suited to wall mounting with low to moderate back-pressure, whereas a centrifugal fan moves air at an angle and handles higher pressure drops in duct systems. The axial design gives the FPT500 a high airflow of 6570 m³/h but a relatively low pressure of 92 Pa, making it best suited to open wall ventilation rather than long duct runs.
