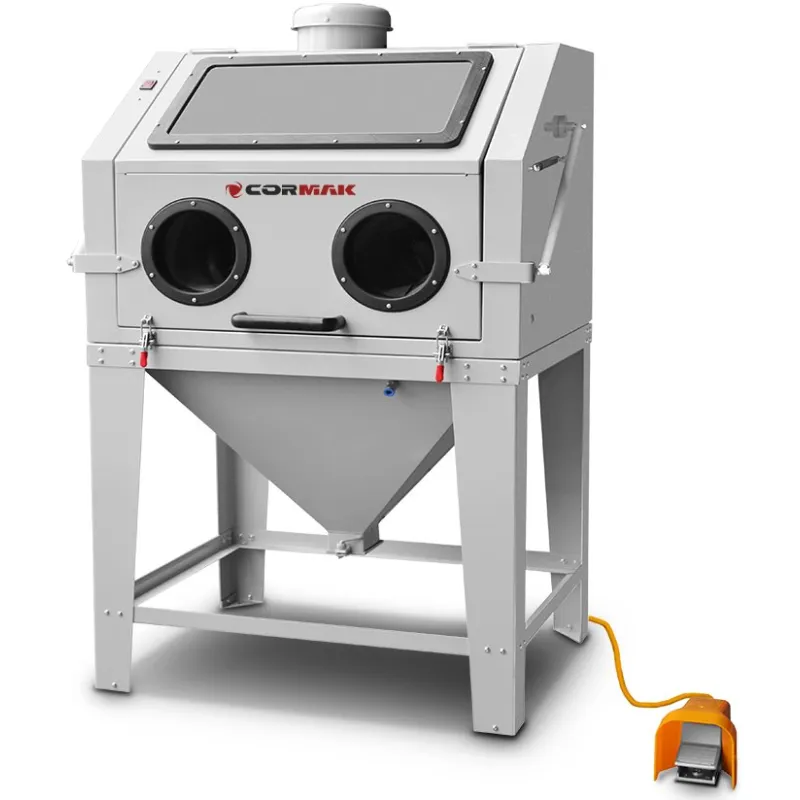

350 L Top-Opening Blast Cabinet with Cyclone Dust Extractor, 8 Ceramic Nozzles and Light, Cormak

350 L Top-Opening Blast Cabinet with Dust Extraction

• Brand: Cormak
• Model: KDP350TOP + DC15
• Type: Sandblasting cabinet with cyclone dust extractor

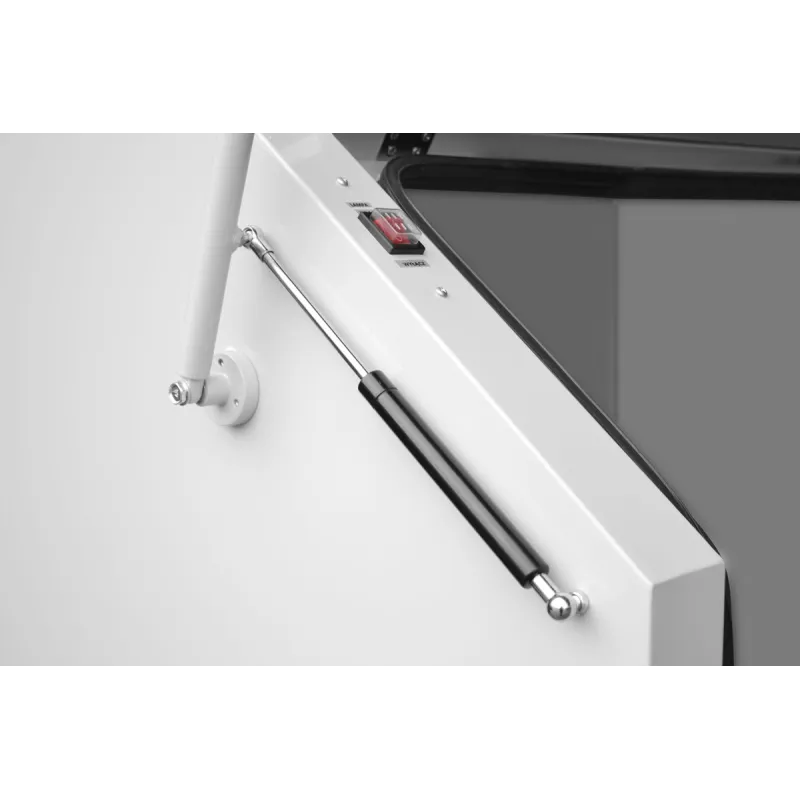

• Opening: Front lid lifting upwards on gas struts
• Blast gun: 8 ceramic nozzles included
• Lighting: 12 V fluorescent lamp with switch
• Abrasives: Quartz sand, glass beads, emery and plastic media

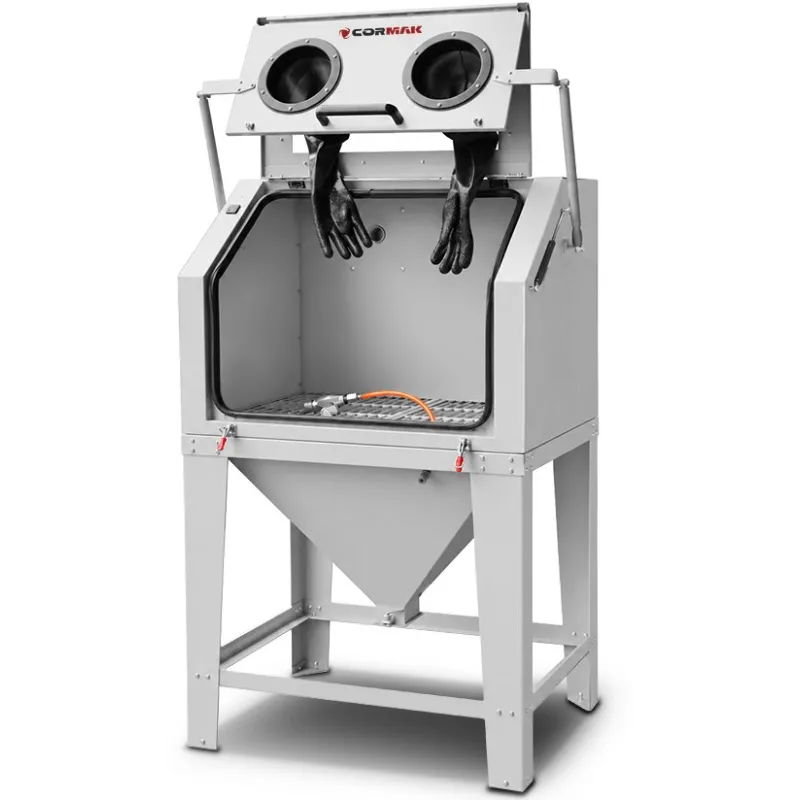

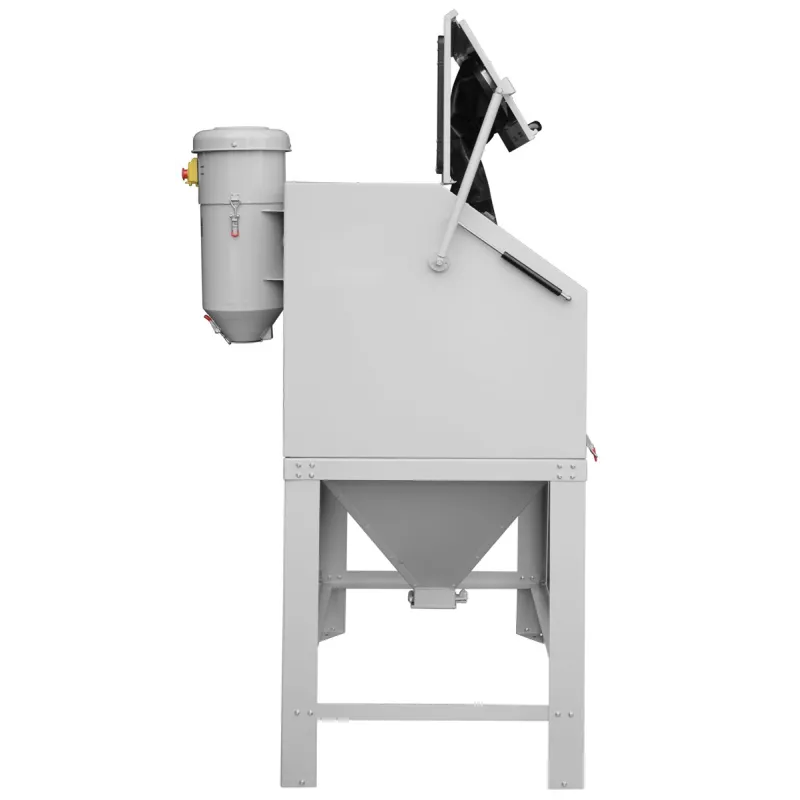

The Cormak KDP350TOP is a 350-litre blast cabinet for cleaning and preparing metal surfaces. It is used on rims, engine parts, machine components and other steel or aluminium parts. The front lid lifts upwards and is held open by gas struts, so large and heavy parts can be lowered in from above rather than manoeuvred through a side door.

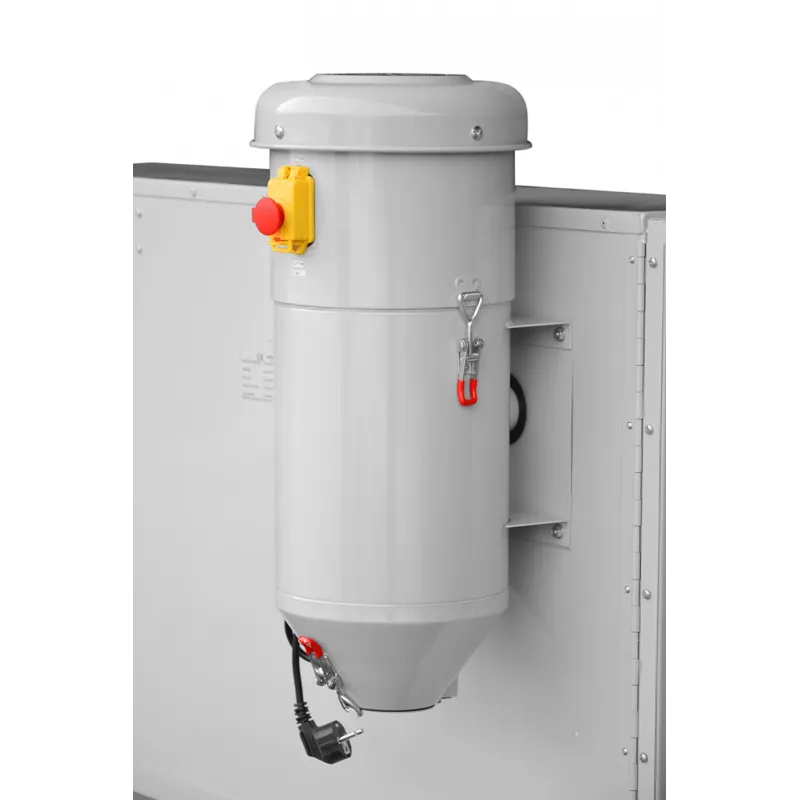

The DC15 cyclone dust extractor is included and connects to the cabinet's Ø63 and Ø90 mm extraction ports. Cyclone separation helps the filter keep its capacity for longer. It keeps the work area cleaner and the view through the window clearer, even during long shifts. The lid has rubber seals all round that keep dust inside the cabinet.

The cabinet is delivered in parts and assembled following the included instructions. Swedish manual available on request.

When does a top-opening blast cabinet make the most sense?

The top opening is built for parts that are too large or heavy to pass through a side door. The gas struts hold the lid open while the part is positioned, and inside there is an 890 x 655 mm floor area with a height of 360/610 mm. The 12 V fluorescent lamp and the 580 x 270 mm window give a clear view of the surface while blasting. Four replaceable protective films keep the window from frosting over.

Applications for the blast cabinet

The blast cabinet removes rust, old paint, lacquer and process deposits. It is also used to prepare surfaces before painting, lacquering or welding. Typical jobs include:

• blasting aluminium and steel rims
• restoring car and engine parts
• preparing steel and aluminium parts before painting or welding
• cleaning industrial and machine components

Technical Specifications

Package contents

• Cormak KDP350TOP blast cabinet
• DC15 cyclone dust extractor with filter
• Connection hose
• 12 V fluorescent lamp (230 V) with switch
• 2 integrated rubber gloves

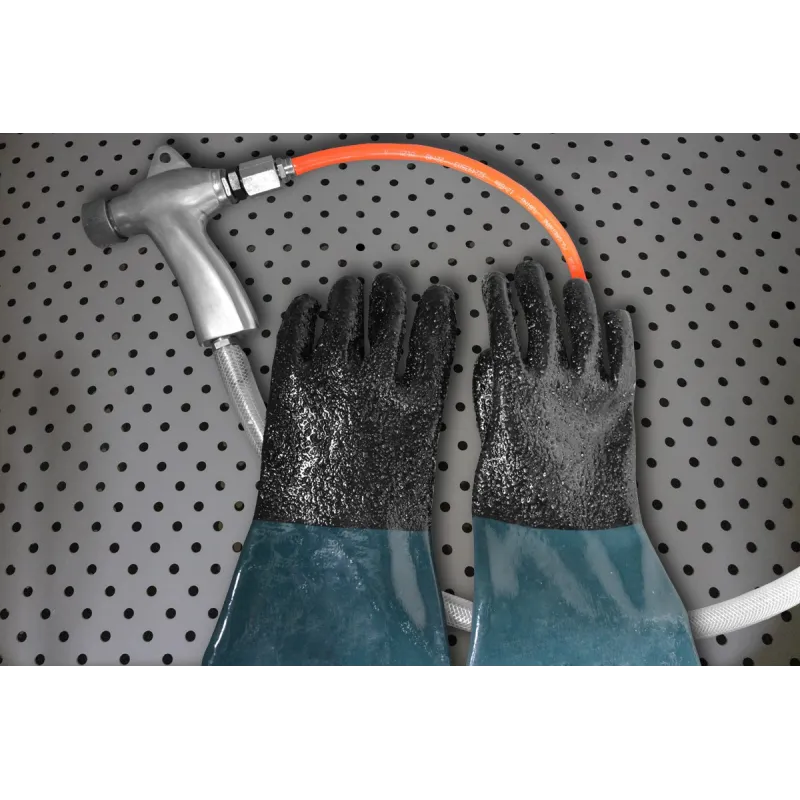

• Blast gun with 8 ceramic nozzles
• 4 protective films for the viewing window
• Front lid with rubber seals all round
• 2 extraction ports (Ø63 mm and Ø90 mm)

Chosen by: Rim refurbishers, car restorers, engine rebuilders, painters and welders preparing larger parts.

Found in: Rim workshops, car and engine restoration workshops, paint shops and mechanical workshops.

Frequently Asked Questions (FAQ)

Does the Cormak KDP350TOP blast cabinet take 20-inch rims?

Yes, the Cormak KDP350TOP blast cabinet takes aluminium and steel rims up to 20 inches. Internal dimensions are 890 x 655 x 360/610 mm. The top opening on gas struts lets the rim be lowered in from above. Rims larger than 20 inches do not fit.

What compressor does the Cormak KDP350TOP blast cabinet with dust extractor need?

The Cormak KDP350TOP blast cabinet uses 400–700 l/min at a working pressure of 4–8 bar. The compressor connects via a 1/4" quick coupler. The fluorescent lamp runs on a 230 V supply, so a standard power socket is needed at the cabinet.

How does the Cormak KDP350TOP top-opening blast cabinet differ from blast cabinets with side doors?

The Cormak KDP350TOP is loaded from above through a front lid held open by gas struts, while side-door cabinets are loaded from the side. The top opening makes it easier to position large, heavy parts such as rims and engine components without passing them through a door opening. The DC15 cyclone dust extractor is already included in the package.
